Removal Procedure

  1. Remove the sunroof window. Refer to SUNROOF WINDOW REPLACEMENT (CF5)  or SUNROOF WINDOW REPLACEMENT (ZRX/EXTREME W/ CF5) .
  2. Remove the seal (2) from the front of the upper frame by pulling upward on the seal.
  3. Finish removing the seal from the rear of the mainframe.
  4. Completely clean the channel in the mainframe of silicone adhesive and any other debris. A nylon glazing stick or a soft wire brush would be helpful in removing the silicone.

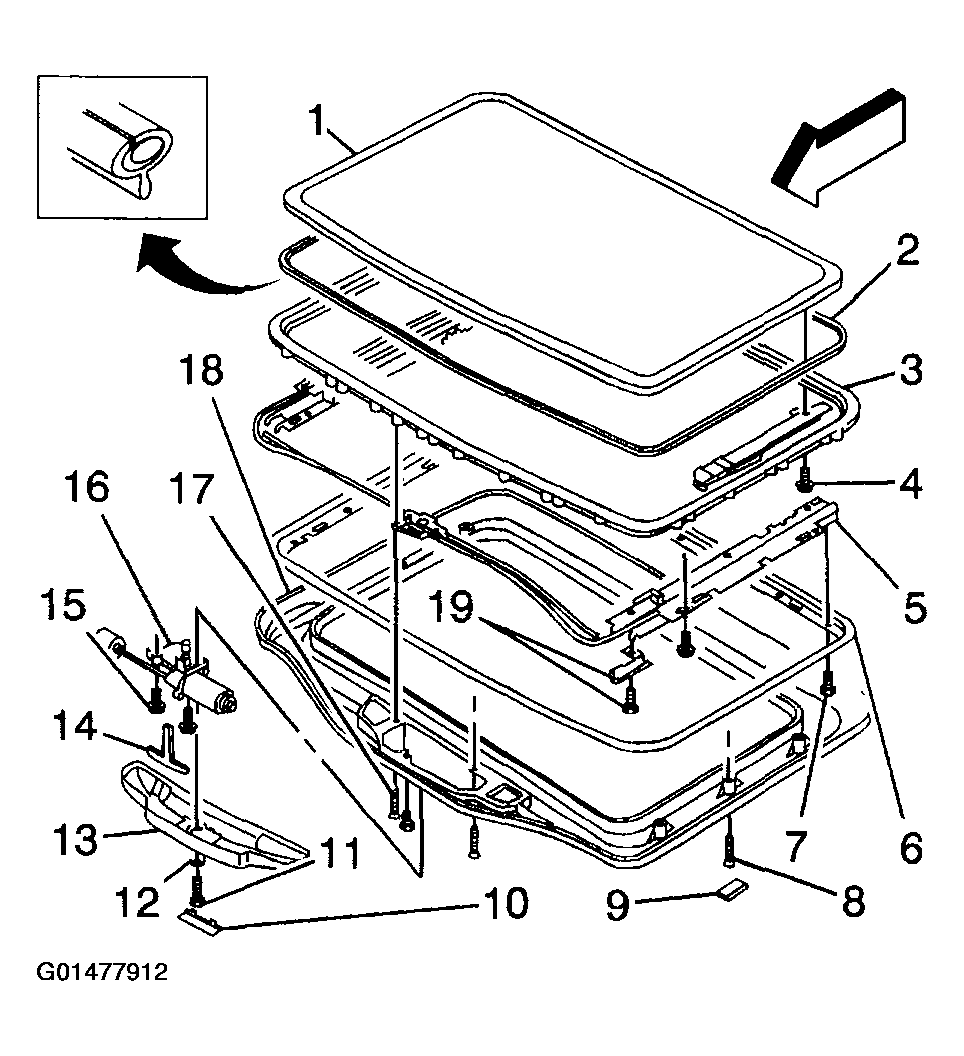

    Fig 1: Sunroof Seal/Molding (ZRX/EXTREME w/CF5)
    G01477912Courtesy of GENERAL MOTORS CORP.
