Installation Procedure

  1. Apply black, non-corrosive silicone adhesive under the entire outside edge of the seal.
  2. Insert the new window seal by pressing the seal into the mainframe channel (3). Use a roller-type tool on the seal to aid in the installation of the seal into the channel.
  3. Install the sunroof window. Refer to SUNROOF WINDOW REPLACEMENT (CF5)  or SUNROOF WINDOW REPLACEMENT (ZRX/EXTREME W/ CF5) .
  4. Fully close the sunroof and wait 4-6 hours for the silicone to dry.
  5. Visually inspect the window and seal in the full open and closed positions.
  6. Open the sunroof.
  7. Inspect the seal for high spots, correct if needed.

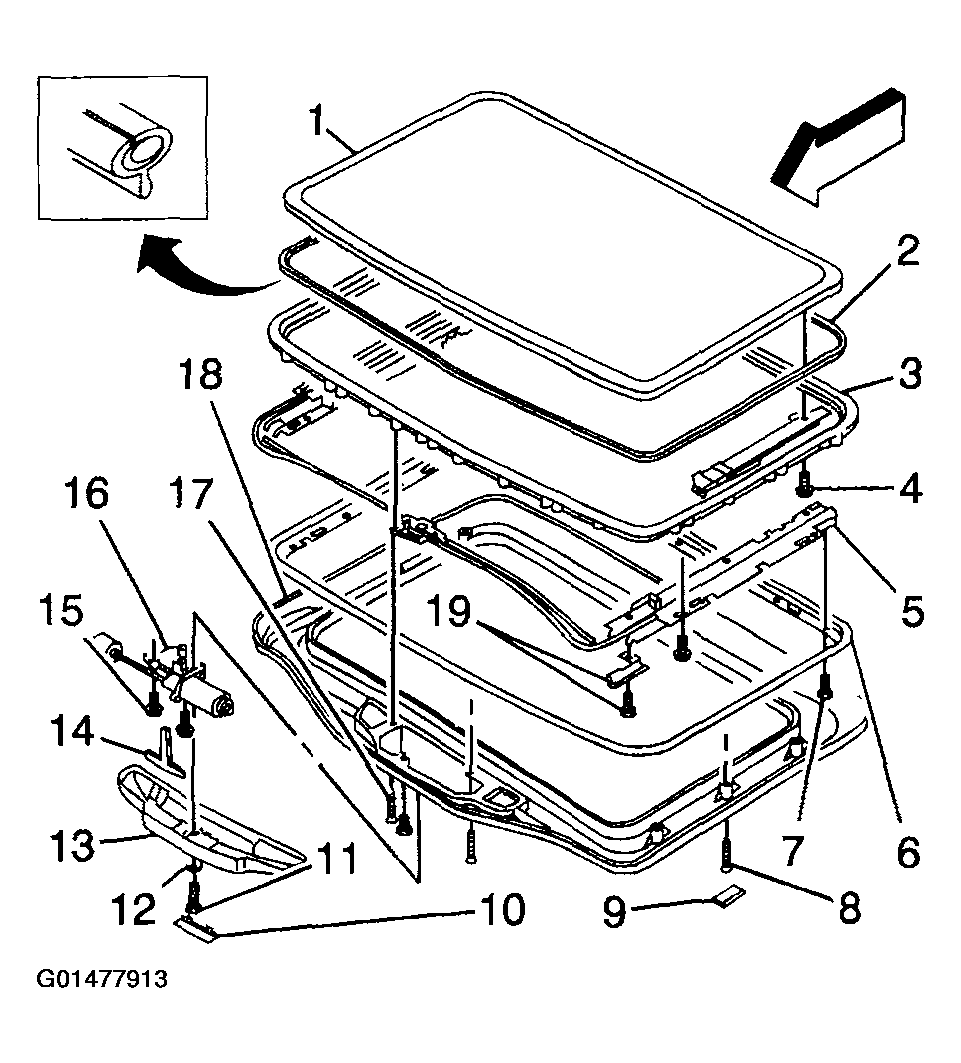

    Fig 1: Sunroof Seal/Molding (ZRX/EXTREME w/CF5)
    G01477913Courtesy of GENERAL MOTORS CORP.
