Installation Procedure

  1. Carefully lift open the sunroof window, with the palm of the hand.
  2. Place hands at the front edge of the sunroof window.
  3. Push rearward on both sides of the sunroof to the full open position.
  4. Verify the leading edge of the sunroof window is parallel with the rear edge of the sunroof mainframe.
  5. Install the sunroof motor/actuator to the drive tube motor block (3).
  6. Position the motor/actuator to the drive tube motor block.
  7. Apply Loctite ® Blue, GM P/N 12345382 (Canadian P/N 10953489) or equivalent, to the motor/actuator screw threads.

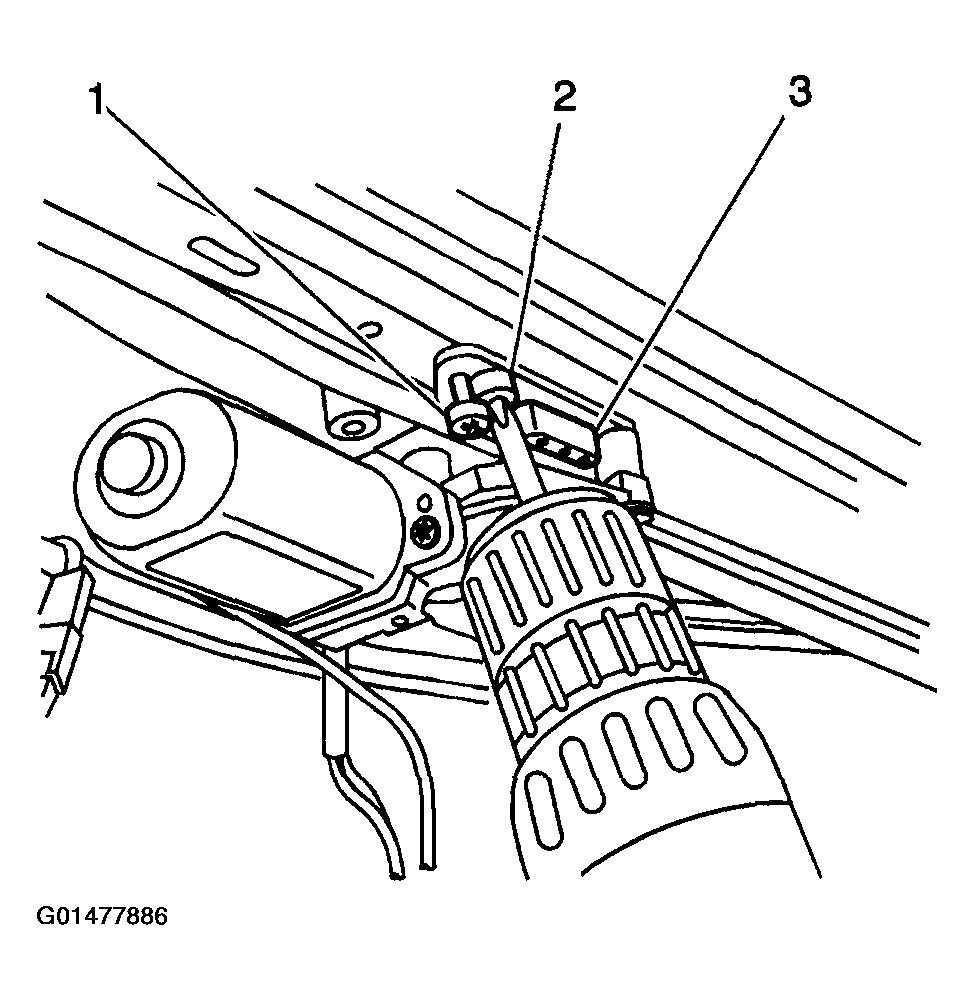

    Fig 1: Installing Motor/Actuator To Drive Tube Motor Block
    G01477886Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  8. Install the screws that retain the sunroof motor/actuator to the sunroof drive tube motor block (3).

    Tighten

    Tighten the screws to 4.0 N-m (35 Ib in).

  9. Connect the electrical connector to the motor/actuator.
  10. Ensure the electrical harness is tucked behind the motor/actuator prior to installing the garnish trim cover screw.
  11. Install the motor/actuator garnish trim cover (1) to the window panel garnish molding (3).
  12. Install the cover screw (2).

    Tighten

    Tighten the screw to 1.5 N-m (13 Ib in).

  13. Install the motor/actuator service cover.
  14. Test the function of the sunroof through several cycles.

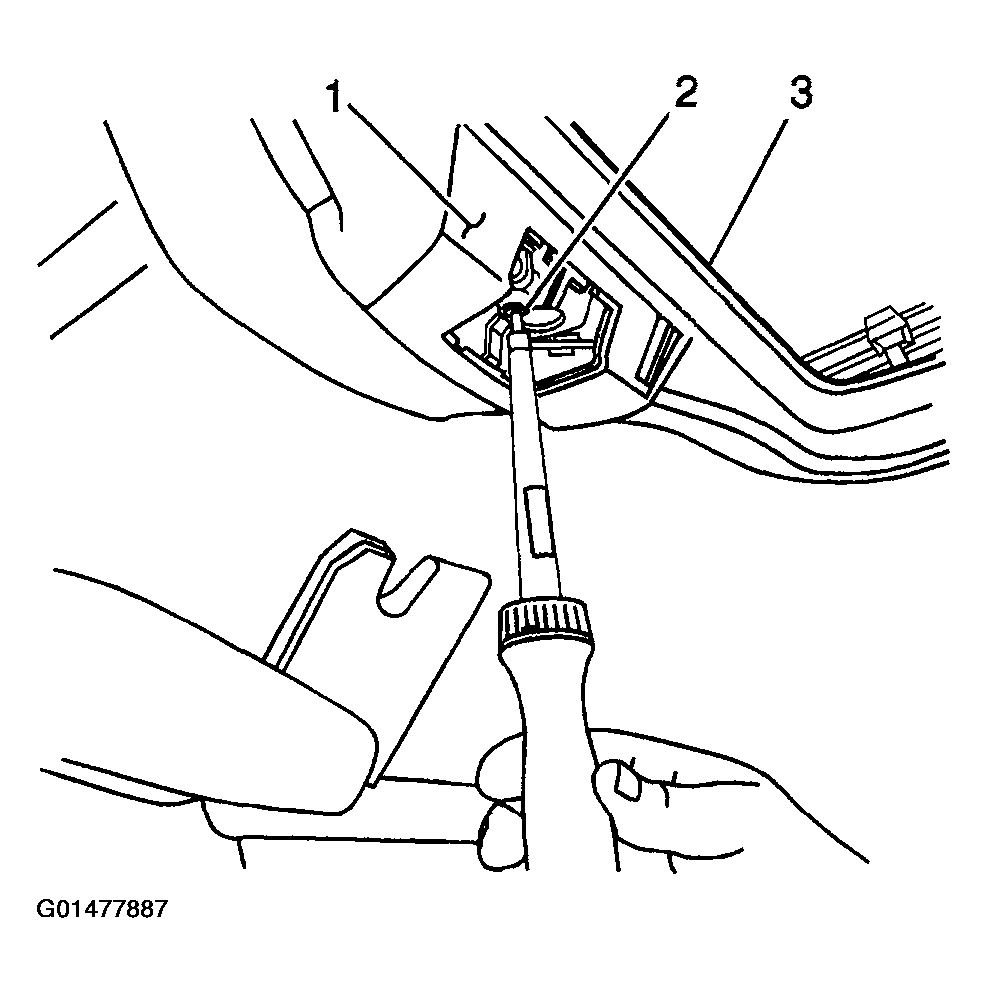

    Fig 2: Motor/Actuator Service Cover
    G01477887Courtesy of GENERAL MOTORS CORP.
