Tools Required

J 38043  Sunroof T-Wrench

If you are unable to close the sunroof window using the sunroof window switch, refer to DIAGNOSTIC STARTING POINT - ROOF .

1. Remove the motor/actuator service cover.
2. Locate the sunroof crank supplied in the instrument panel (I/P) compartment.
3. With the sunroof crank, insert the small end into the center location slot in the motor/actuator.
4. Turn the sunroof crank, clockwise, until the sunroof window is in the full closed position.
5. Install the motor/actuator service cover.
6. Return the sunroof crank to the I/P compartment.

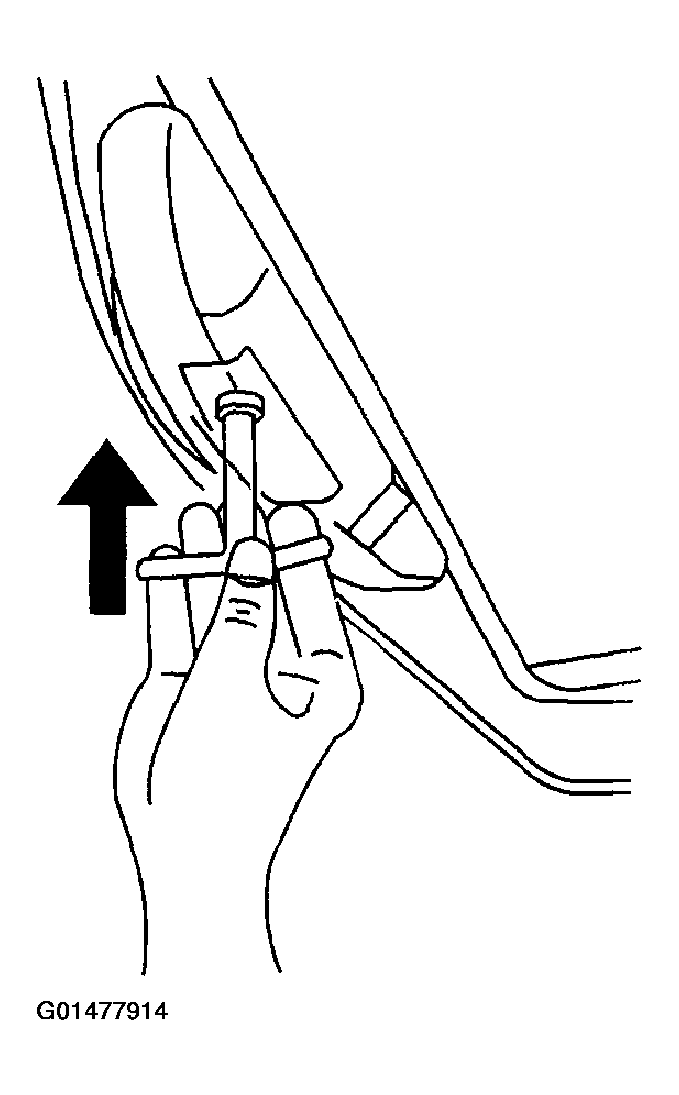

   Fig 1: Motor/Actuator Service Cover

   Courtesy of GENERAL MOTORS CORP.
