Removal Procedure

  1. Remove the sunroof panel window garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- SUNROOF PANEL WINDOW (ZRX/EXTREME W/ CF5) in Interior Trim.
  2. Remove the screws (1) around the entire periphery of the lower frame (2).

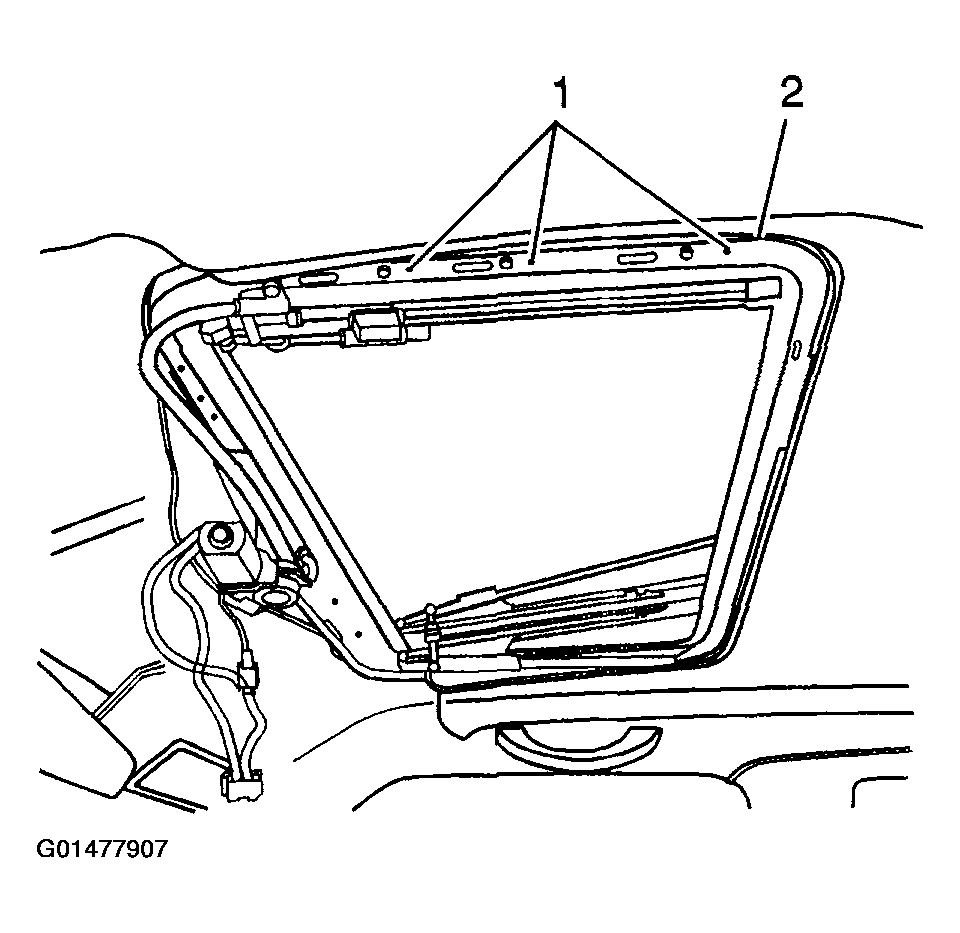

    Fig 1: Removing Screws Around Entire Periphery Of Lower Frame
    G01477907Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector to the motor.
  4. Remove the silver motor screw.
  5. Carefully lower the rear of the frame and work the frame (2) from the front of the headliner.
  6. Remove the lower frame (2) from the vehicle.

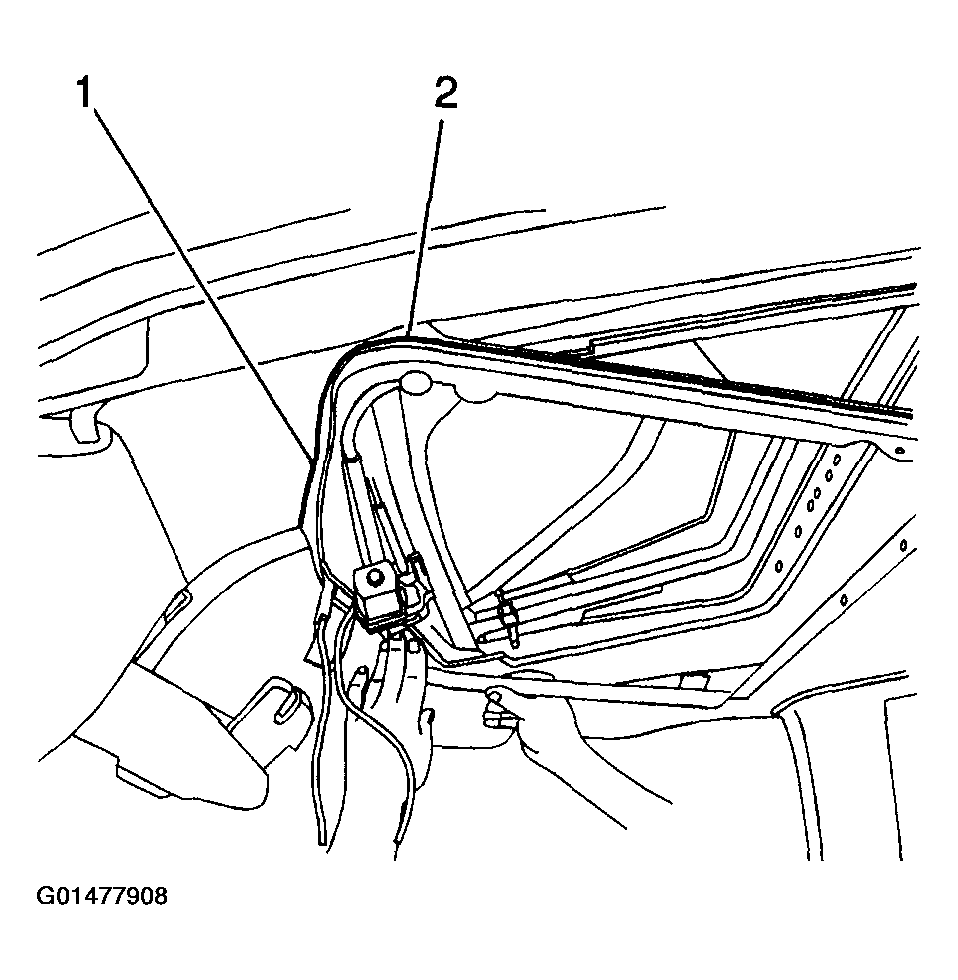

    Fig 2: Removing Lower Frame From Vehicle
    G01477908Courtesy of GENERAL MOTORS CORP.

    Important:  The upper frame assembly will need to have new foam tape applied to the outer ring prior to assembly. The new foam tape will ensure the sunroof will seal properly upon the lower frame installation.

  7. Remove the upper frame assembly from the vehicle.
  8. Remove the old foam tape and apply new foam tape to the upper frame assembly.

    Important:  When applying new foam tape, overlap the foam tape at a screw hole to ensure proper sealing of the screw holes.

  9. Remove the sunroof window track assembly.

    Refer to SUNROOF WINDOW TRACK ASSEMBLY REPLACEMENT (ZRX/EXTREME W/ CF5) .

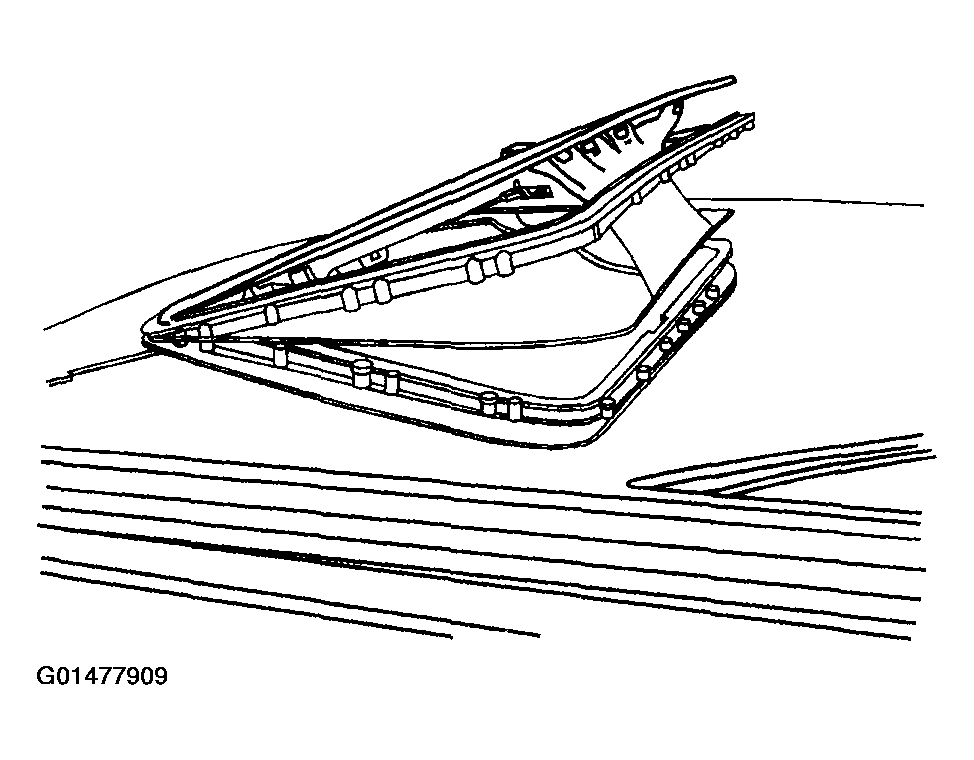

    Fig 3: Removing Upper Frame Assembly From Vehicle
    G01477909Courtesy of GENERAL MOTORS CORP.
