Removal Procedure

  1. Remove the headliner. Refer to HEADLINER REPLACEMENT (PICKUP) or HEADLINER REPLACEMENT (UTILITY) .
  2. Disconnect the rear drain hose from the drain exit located at the rear of the sunroof on either side.

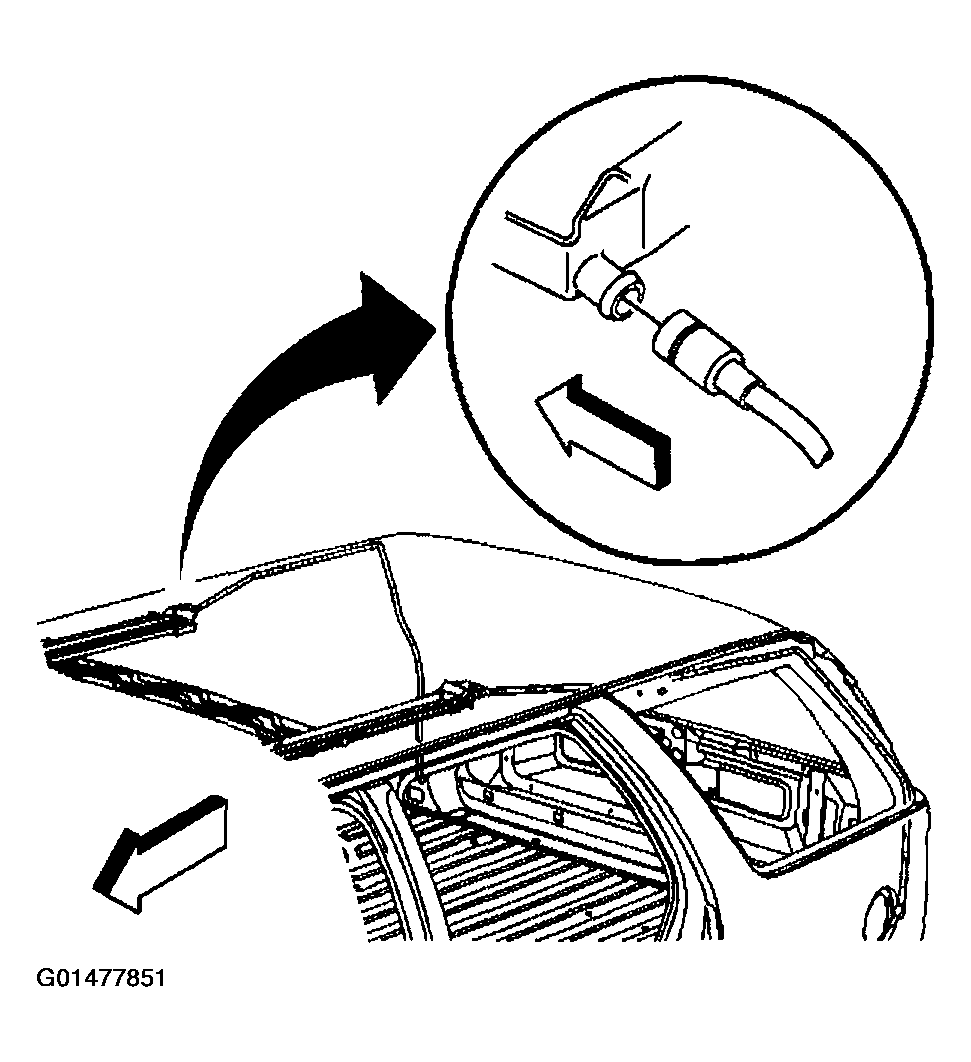

    Fig 1: Removing Rear Drain Hose From Drain Exit Located At Rear Of Sunroof On Either Side
    G01477851Courtesy of GENERAL MOTORS CORP.
  3. Remove the rosebud clips securing the drain hose to the vehicle.
  4. Remove the drain hose.

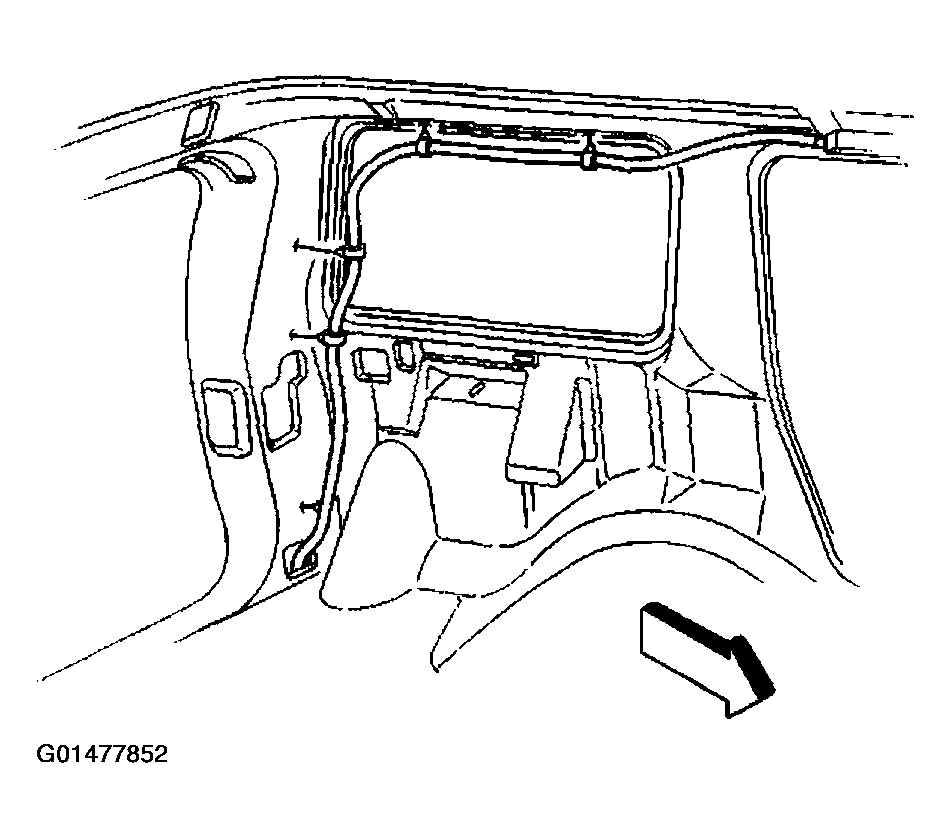

    Fig 2: Removing Rosebud Clips Securing Drain Hose To Vehicle
    G01477852Courtesy of GENERAL MOTORS CORP.
