Installation Procedure

  1. Connect the rear drain hose from the drain exit located at the rear of the sunroof on either side.

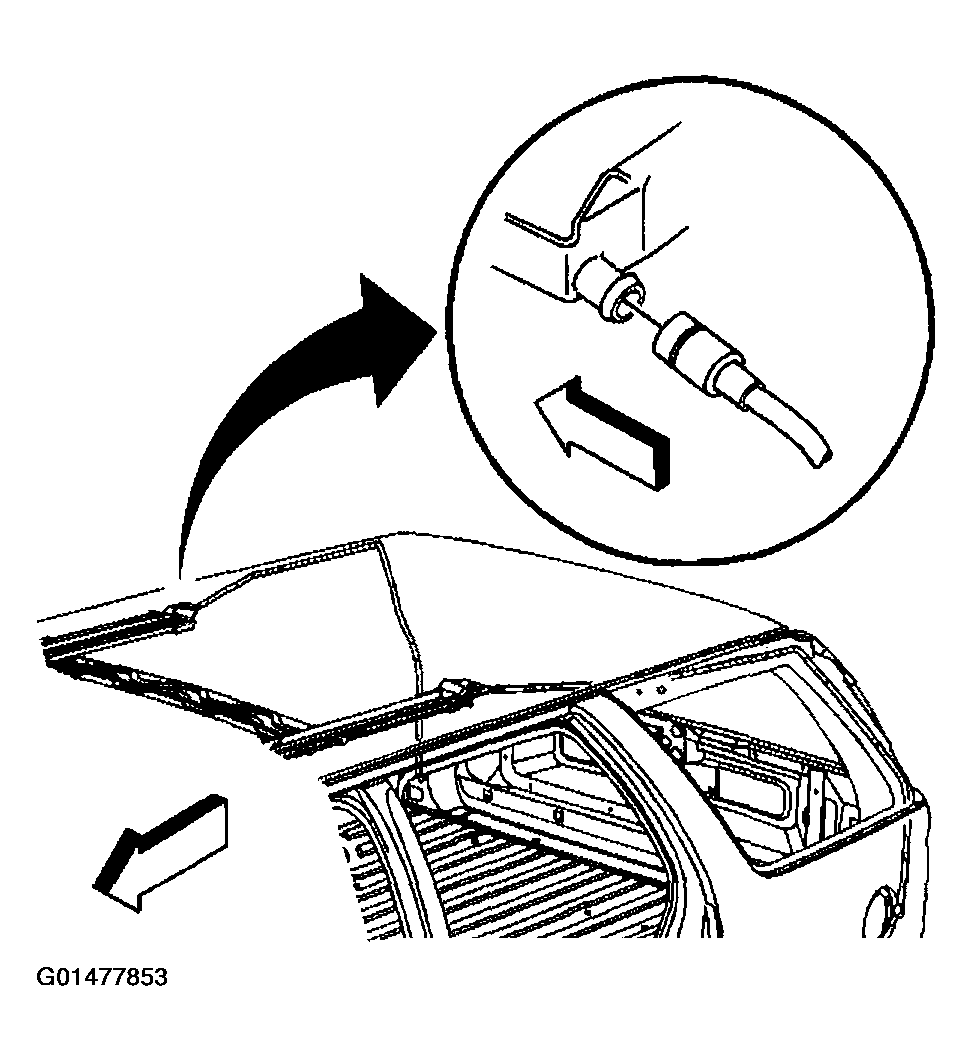

    Fig 1: Installing Rear Drain Hose To Drain Exit Located At Rear Of Sunroof On Either Side
    G01477853Courtesy of GENERAL MOTORS CORP.
  2. Install the rosebud clips securing the drain hose to the vehicle.
  3. Install the end of the drain hose into the sill opening.
  4. Install the headliner. Refer to HEADLINER REPLACEMENT (PICKUP) or HEADLINER REPLACEMENT (UTILITY) .

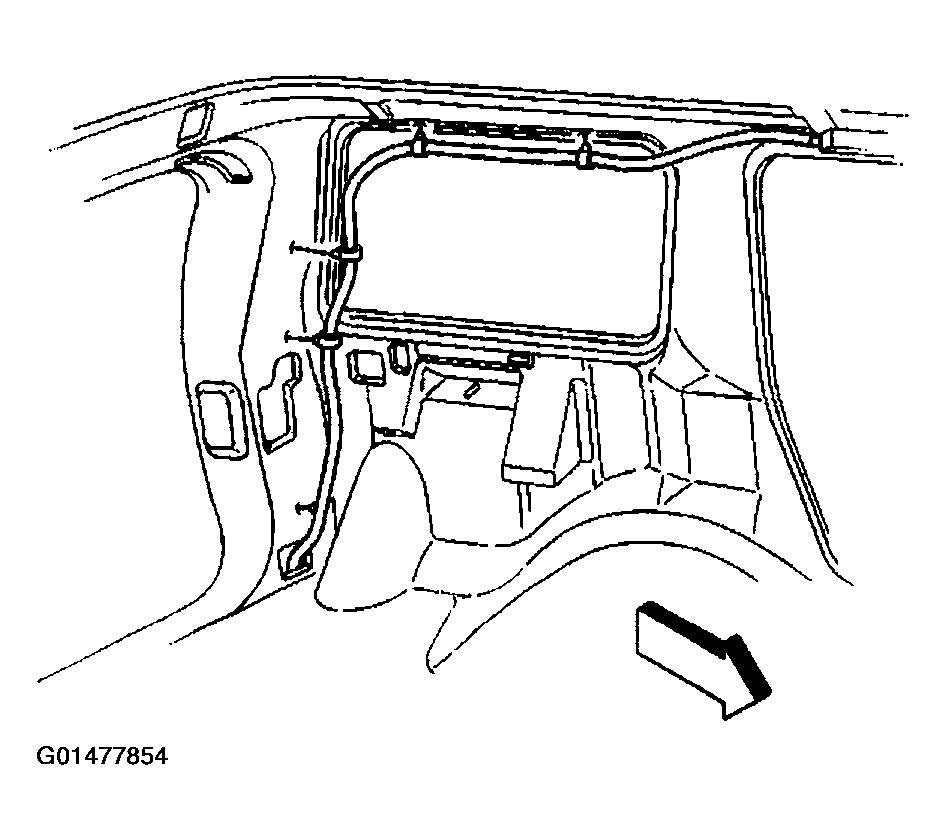

    Fig 2: Installing Rosebud Clips Securing Drain Hose To Vehicle
    G01477854Courtesy of GENERAL MOTORS CORP.
