Removal Procedure

Remove the screws from the luggage carrier end supports.
With an assistant, remove the luggage carrier from the roof as an assembly.
Remove the screws from the side rail supports.
Remove the side rail supports from the side rails.

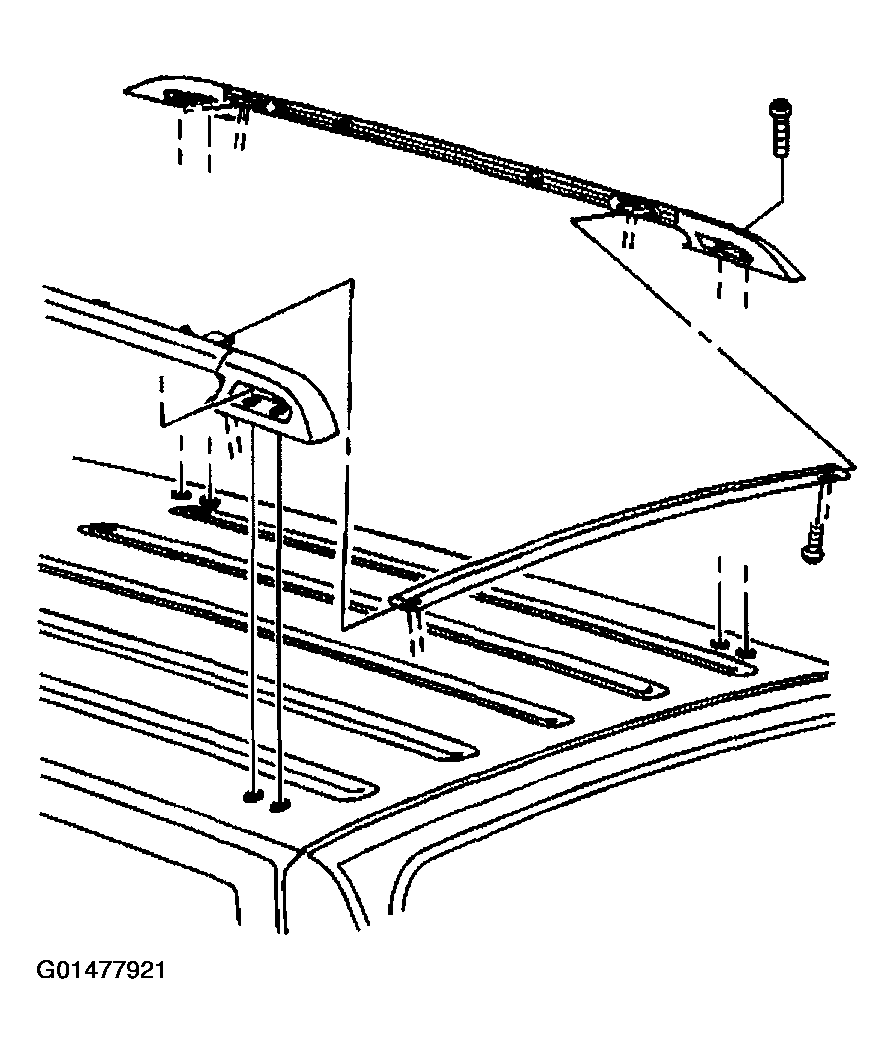

Fig 1: Removing Screws From Luggage Carrier End Supports
Courtesy of GENERAL MOTORS CORP.
Remove the screws from the cross rails.
Remove the cross rails from the sliders.

Fig 2: Removing Screws From Cross Rails
Courtesy of GENERAL MOTORS CORP.
Remove the rubber strips from the cross bar assemblies.
Remove the tap plates from the cross rails.
Loosen the knobs from the sliders and the lock plates in the slide rails.

Fig 3: Removing Tap Plates From Cross Rails
Courtesy of GENERAL MOTORS CORP.
