Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 5. This step tests the integrity of the battery positive voltage circuit not the fuse.

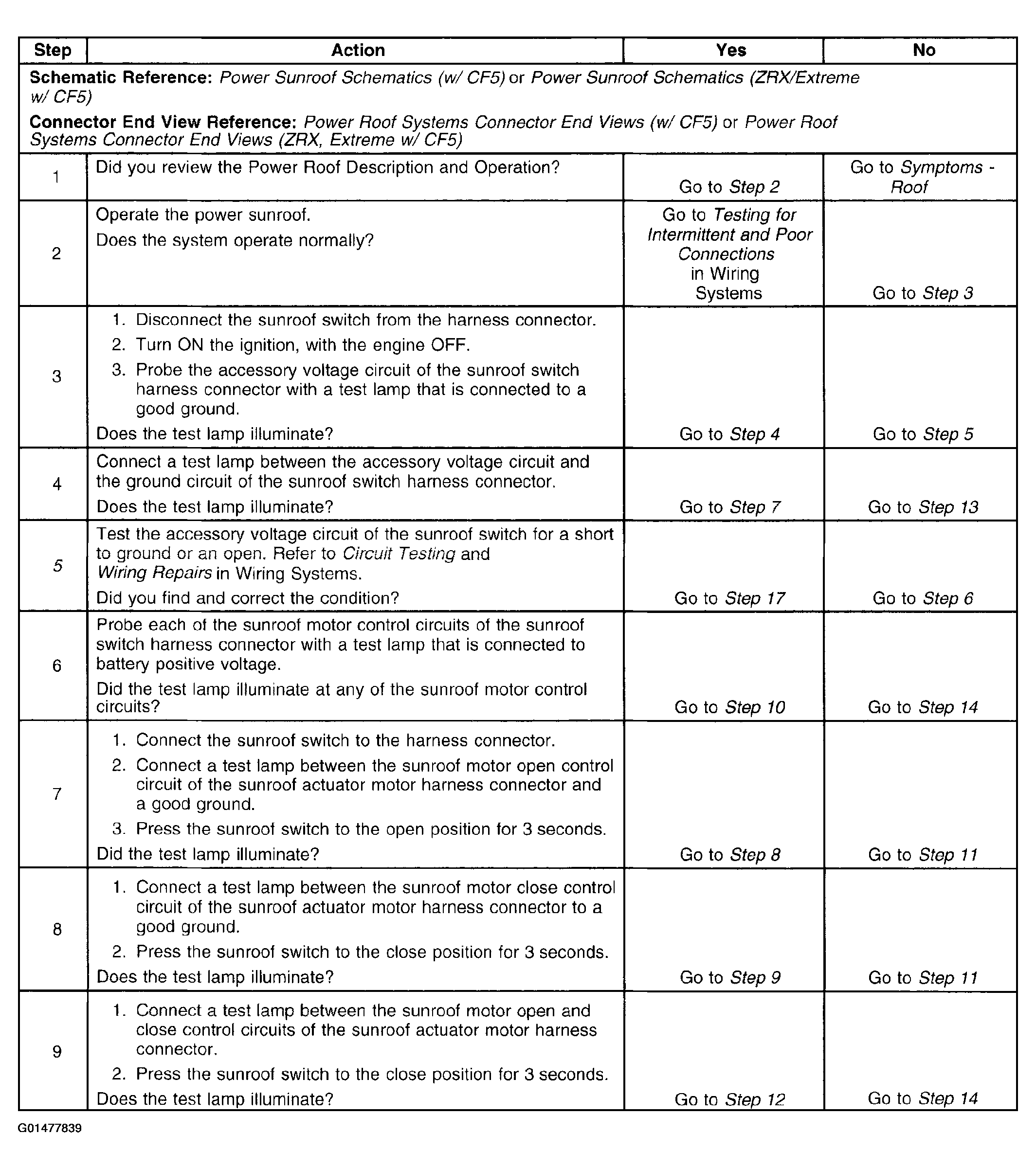

    Fig 1: Power Sunroof Inoperative (ZRX/Extreme) (1 Of 2)
    G01477839Courtesy of GENERAL MOTORS CORP.

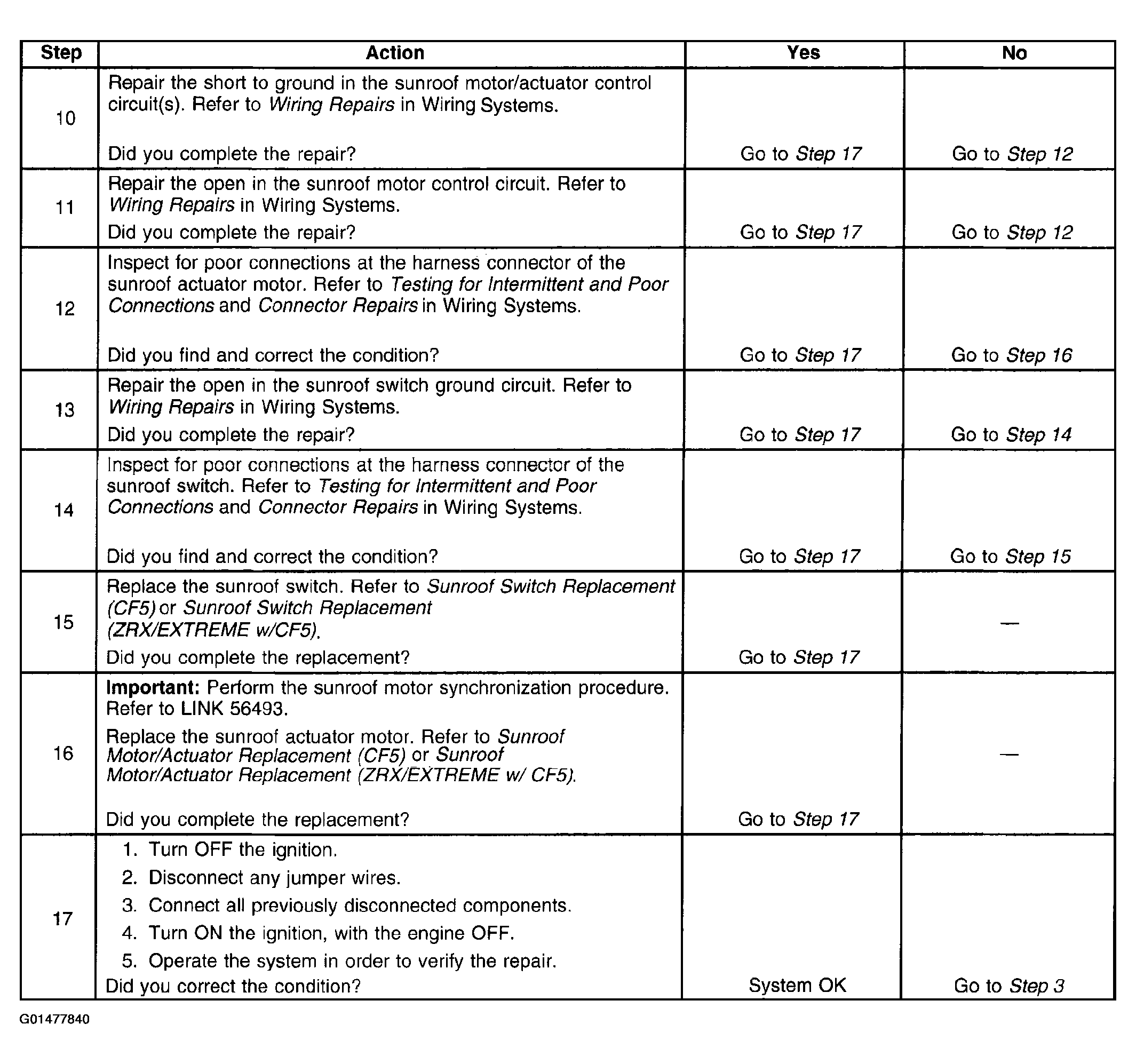

    Fig 2: Power Sunroof Inoperative (ZRX/Extreme) (2 Of 2)
    G01477840Courtesy of GENERAL MOTORS CORP.
