Removal Procedure

  1. With a medium flat-bladed tool, remove the service cover.
  2. Remove the motor/actuator trim cover screw (2).

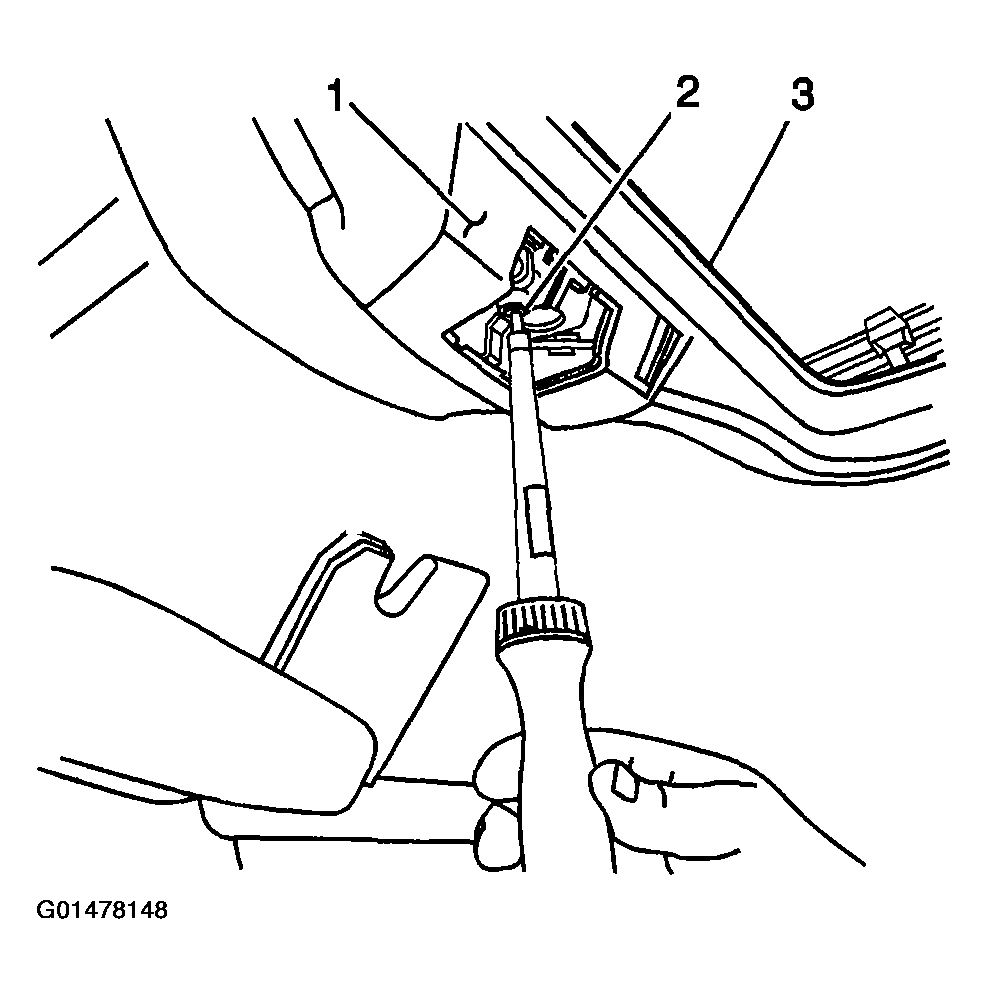

    Fig 1: Motor/Actuator Trim Cover Screw
    G01478148Courtesy of GENERAL MOTORS CORP.
  3. Lower the motor/actuator trim cover and remove the sunroof switch (4) from the cover (5).

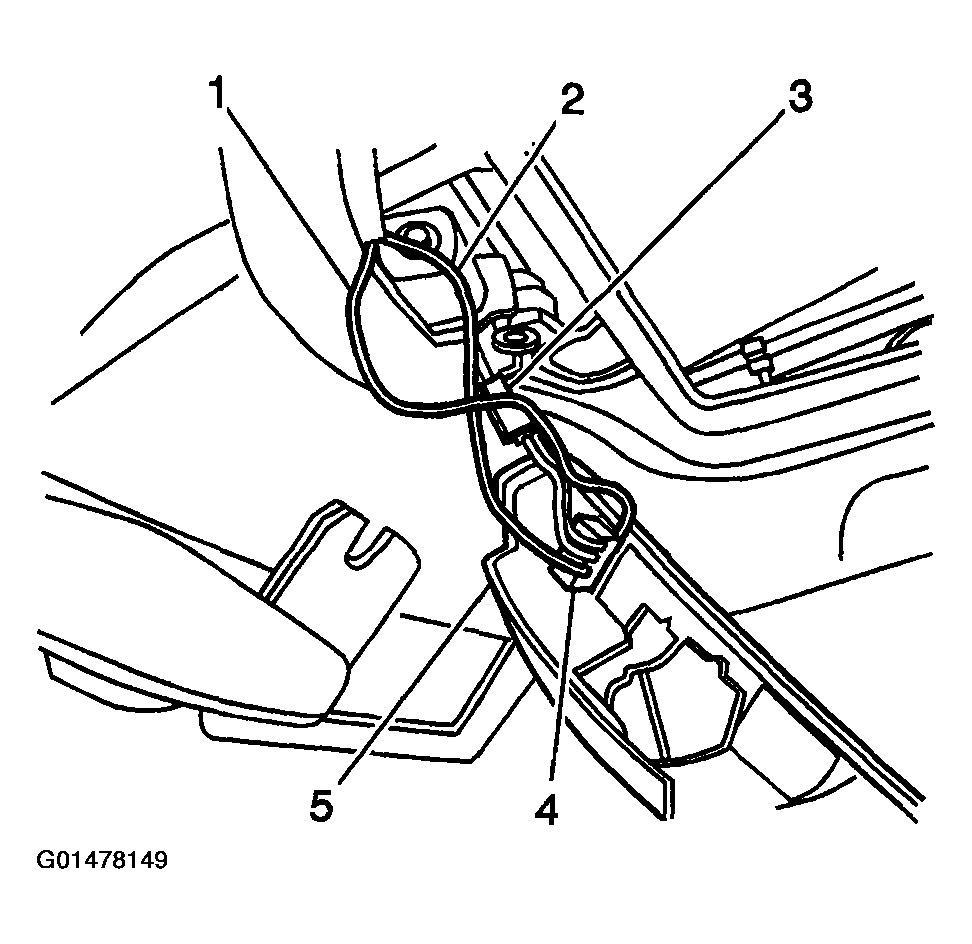

    Fig 2: Sunroof Switch
    G01478149Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 short screws (1,2) from the sunroof panel window garnish molding.
  5. Remove the 8 screw covers (3) from the lower sunroof panel window garnish molding.

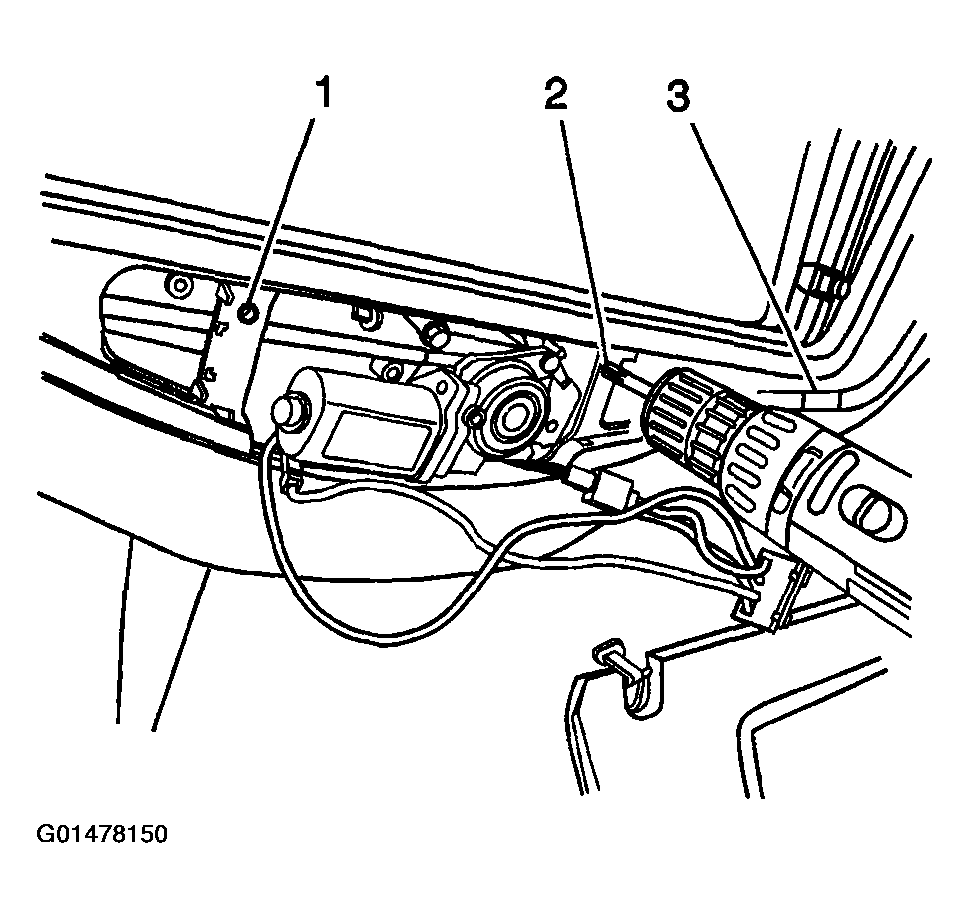

    Fig 3: Garnish Molding
    G01478150Courtesy of GENERAL MOTORS CORP.
  6. Remove the 8 garnish molding screws.
  7. Remove the sunroof panel window garnish molding from the vehicle.

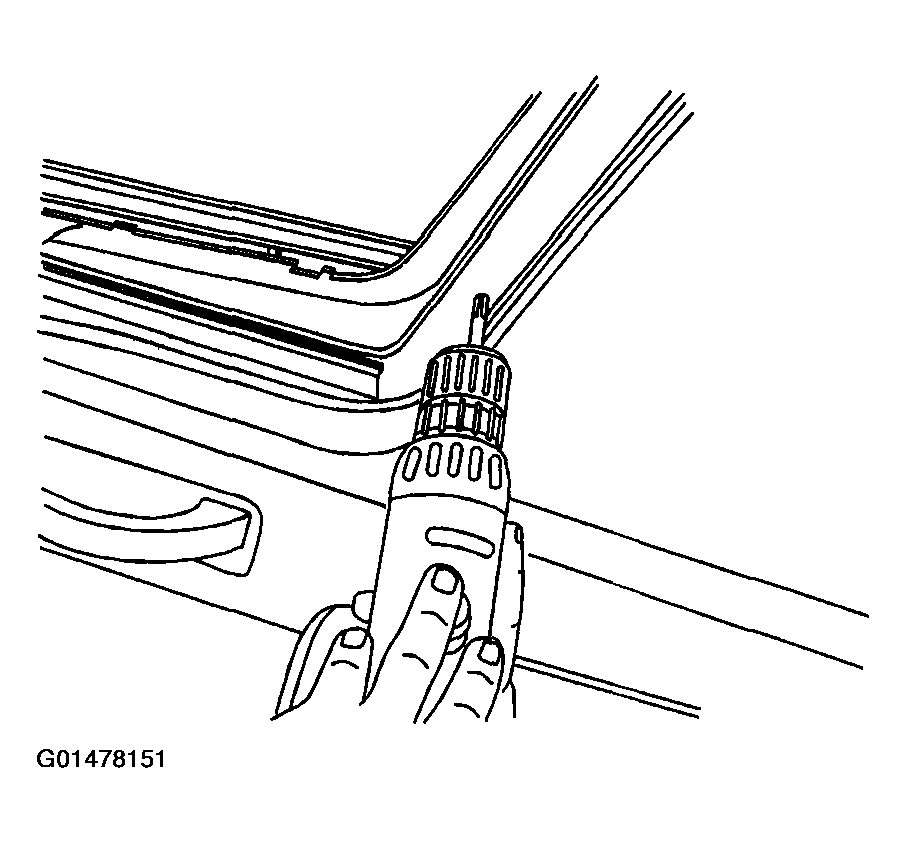

    Fig 4: Removing Sunroof Panel Window Garnish Molding From Vehicle
    G01478151Courtesy of GENERAL MOTORS CORP.
