Removal Procedure

  1. Remove 2 nuts securing the lower flare molding to the front bumper assembly.
  2. Remove the fender. Refer to FENDER REPLACEMENT -- FRONT in Body Front End.
  3. Remove the fender to flare retaining nuts inside of the fender from the flare molding studs.
  4. Remove the flare to fender retaining screws around the wheel opening.
  5. Remove the flare from the fender.

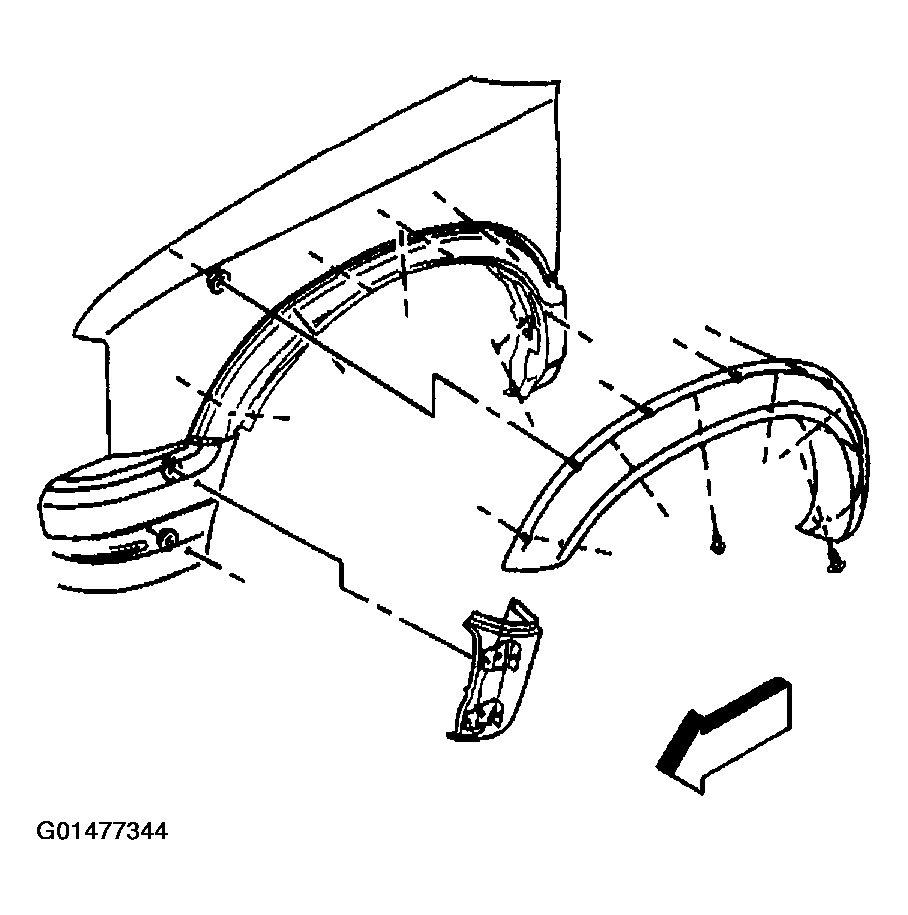

    Fig 1: Removing Flare To Fender Retaining Screws Around Wheel Opening
    G01477344Courtesy of GENERAL MOTORS CORP.
