Mirrors - Automatic Day-Night Inoperative

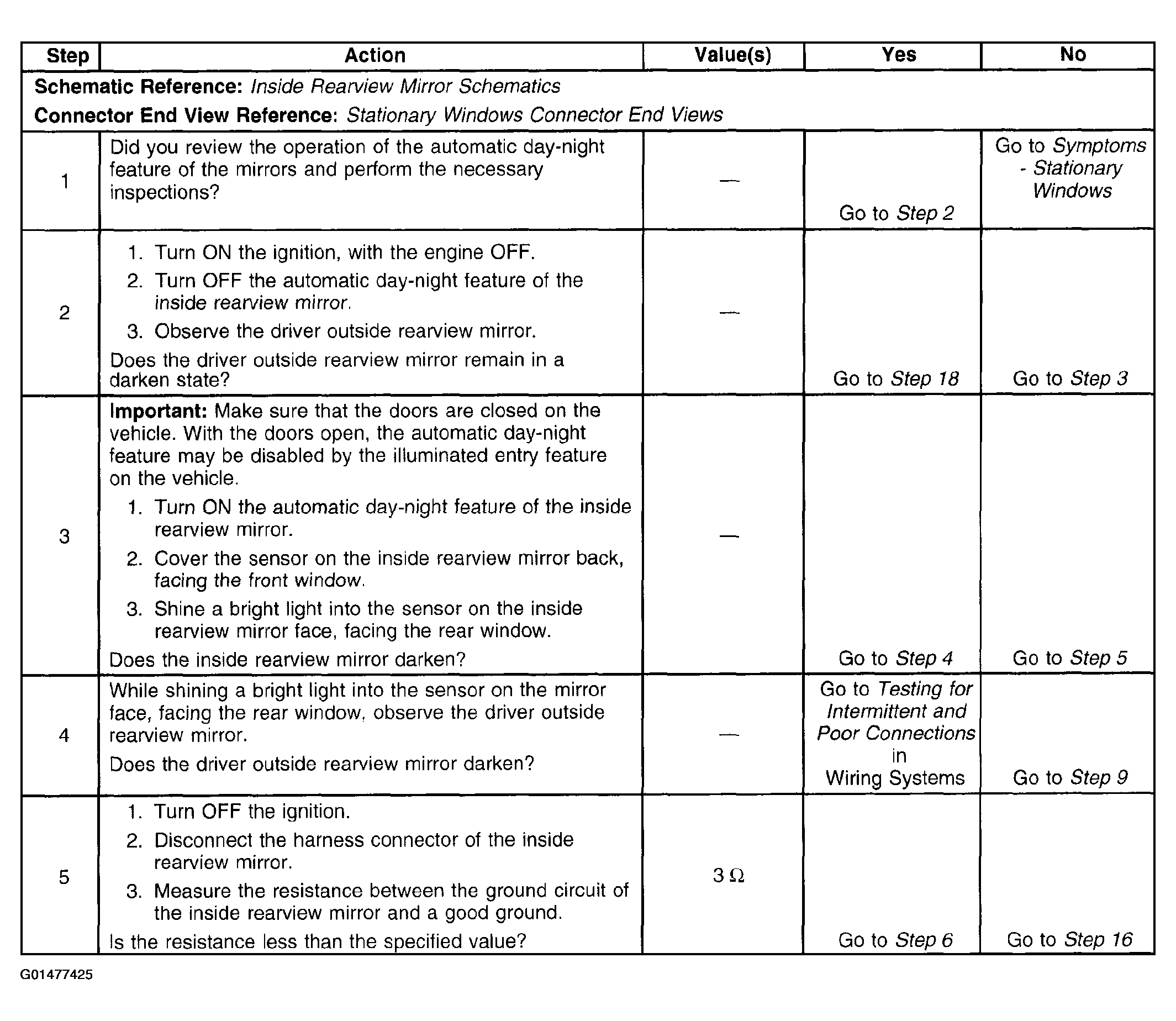

Fig 1: Mirrors - Automatic Day-Night Inoperative (Steps 1 - 5)

Courtesy of GENERAL MOTORS CORP.

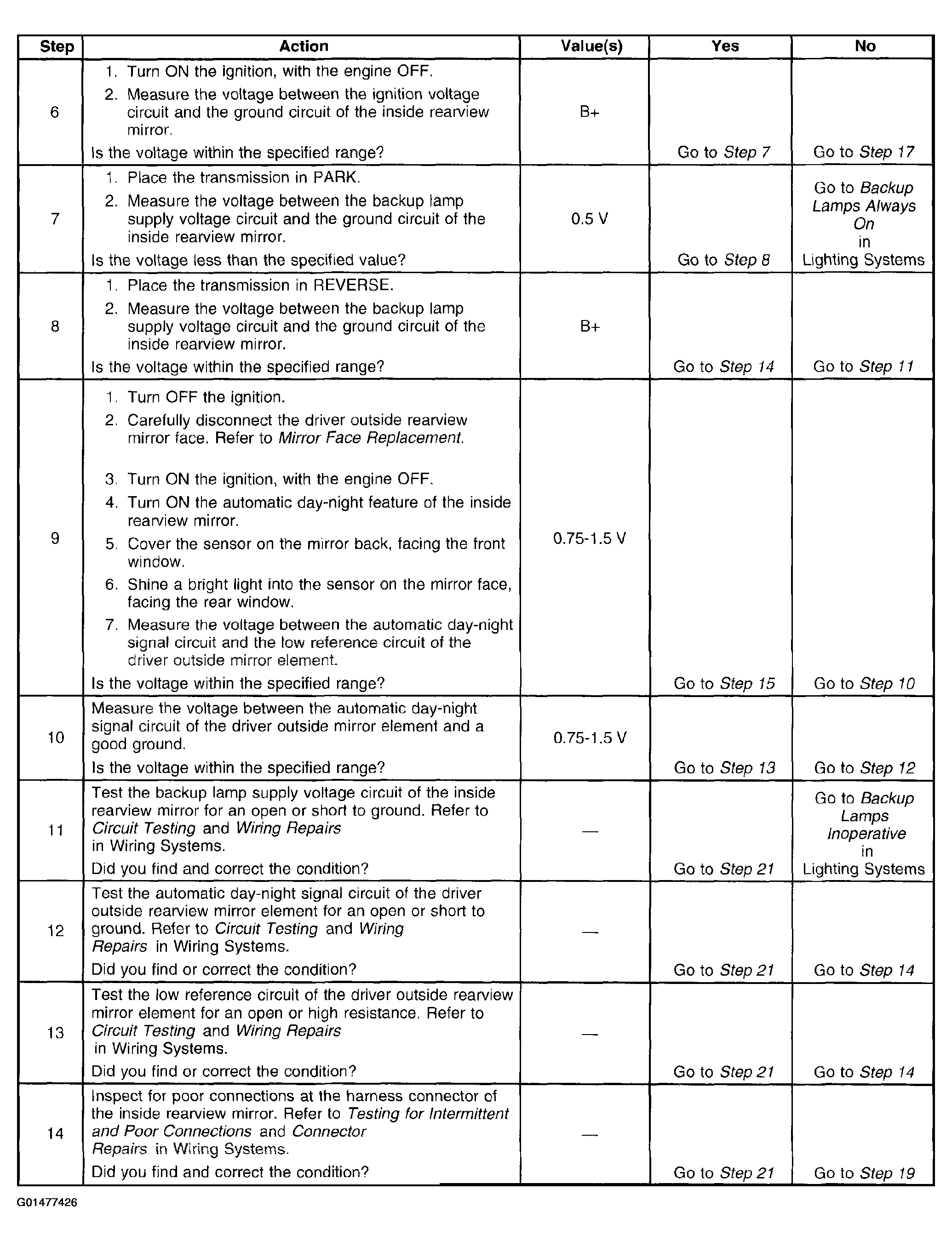

Fig 2: Mirrors - Automatic Day-Night Inoperative (Steps 6 - 14)

Courtesy of GENERAL MOTORS CORP.

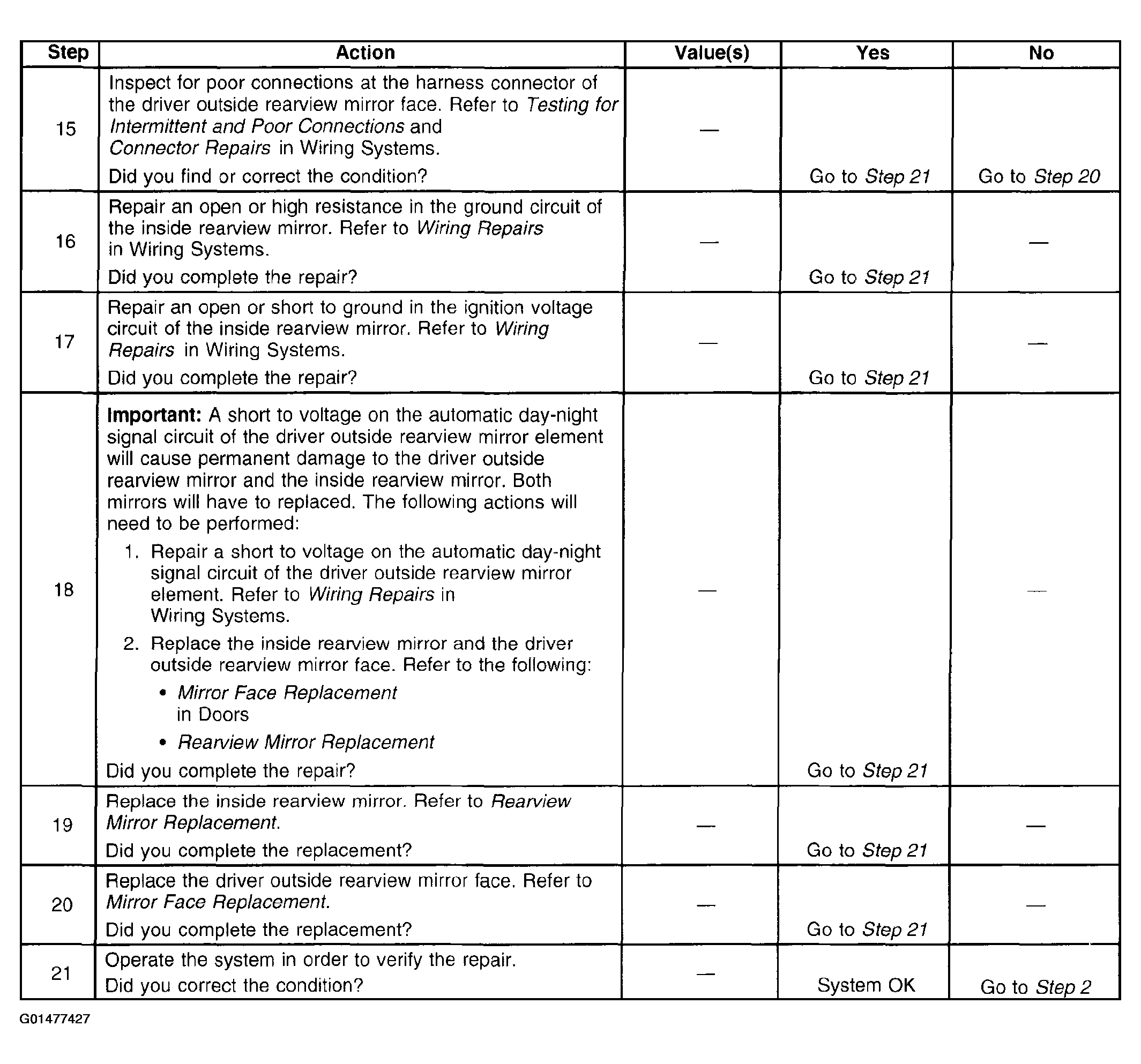

Fig 3: Mirrors - Automatic Day-Night Inoperative (Steps 15 - 21)

Courtesy of GENERAL MOTORS CORP.
