Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Interior/Exterior Trim
>>
Instrument Panel, Gages, And Console
>>
Diagnostic Information and Procedures
>>
Driver Information Center (DIC) Switch(es) Inoperative
Driver Information Center (DIC) Switch(es) Inoperative

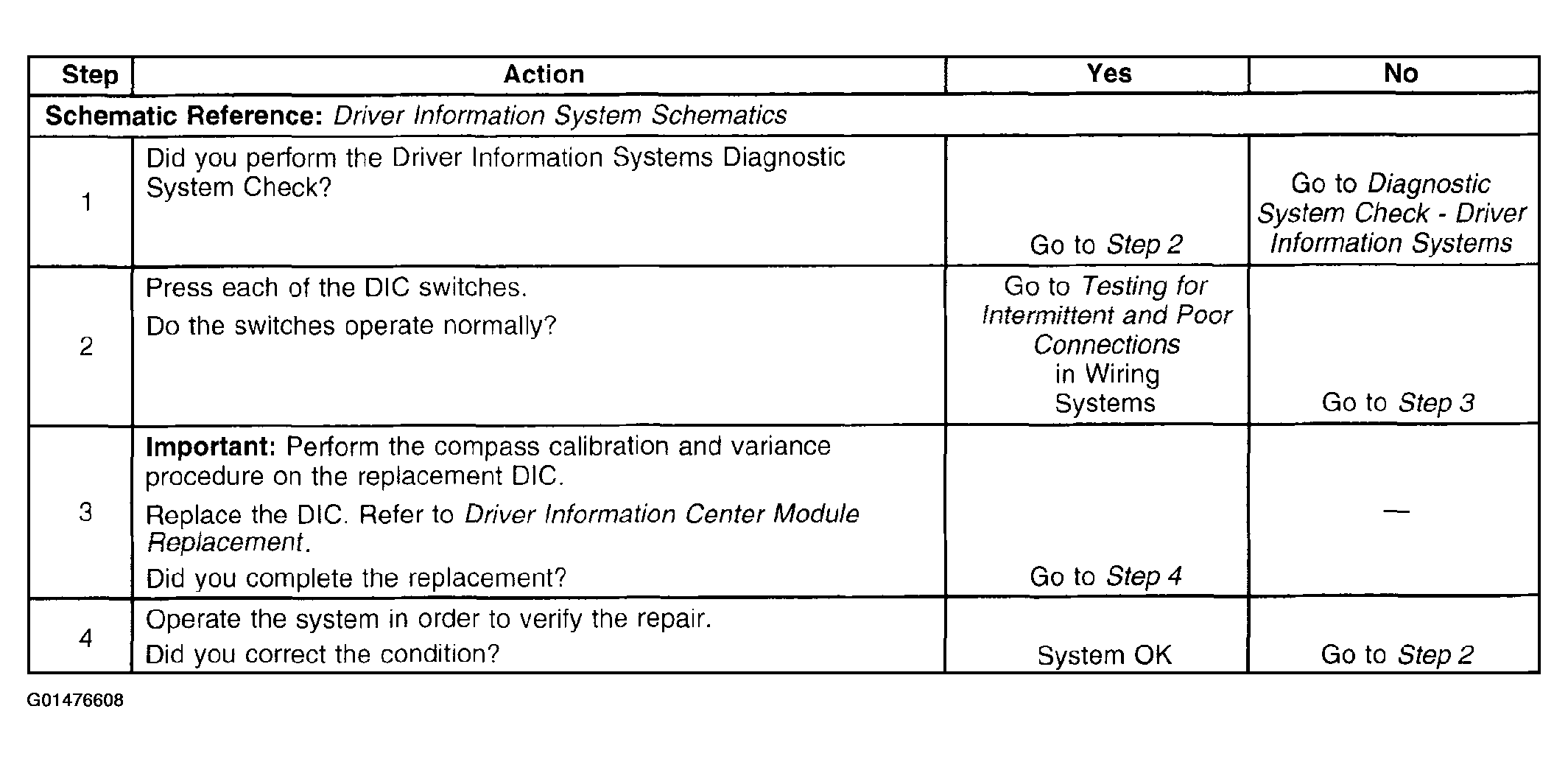

Fig 1: Driver Information Center (DIC) Switch(es) Inoperative
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
