Installation Procedure

  1. Install the instrument panel sound insulator to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws that retain the instrument panel sound insulator to the following components:
    • The instrument panel
    • The cowl

      Tighten

      Tighten the screws to 1.9 N.m (17 lb in).

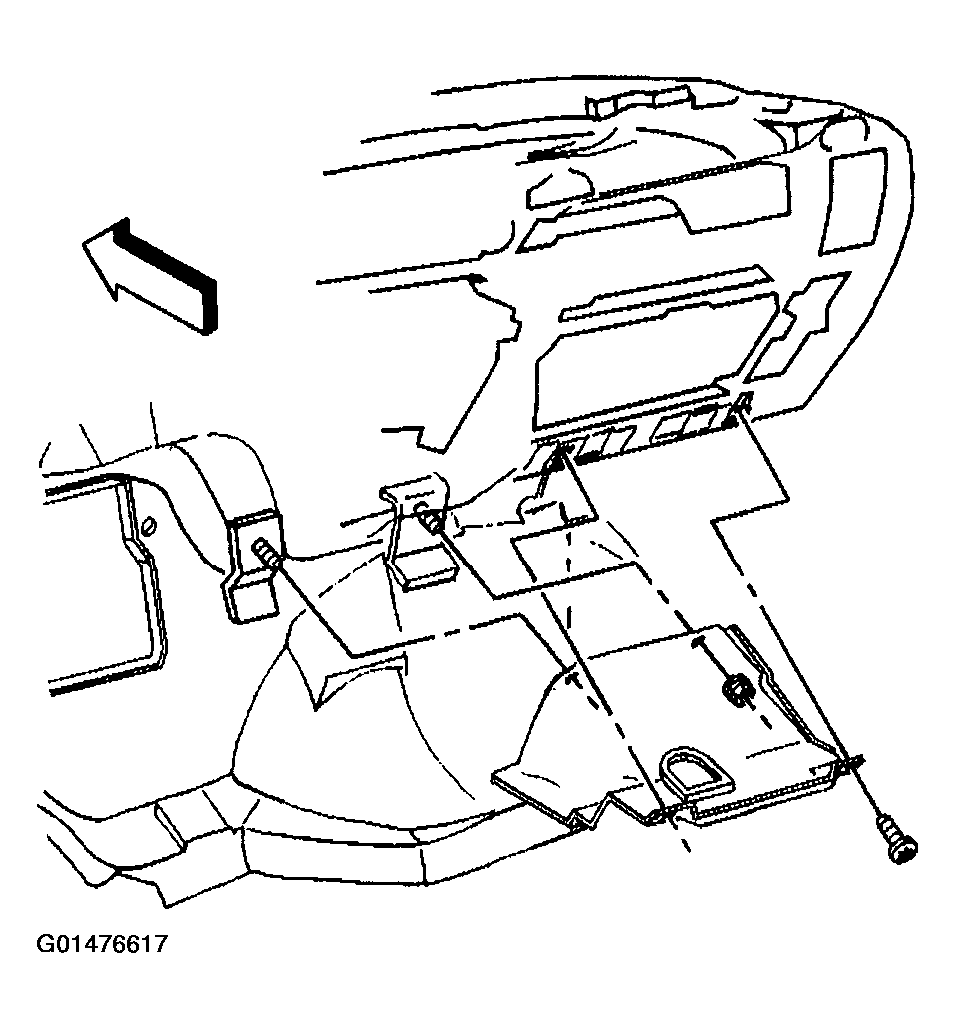

    Fig 1: Installing Instrument Panel Sound Insulator To Vehicle
    G01476617Courtesy of GENERAL MOTORS CORP.
