Indicator/Warning Message Description and Operation: Notes

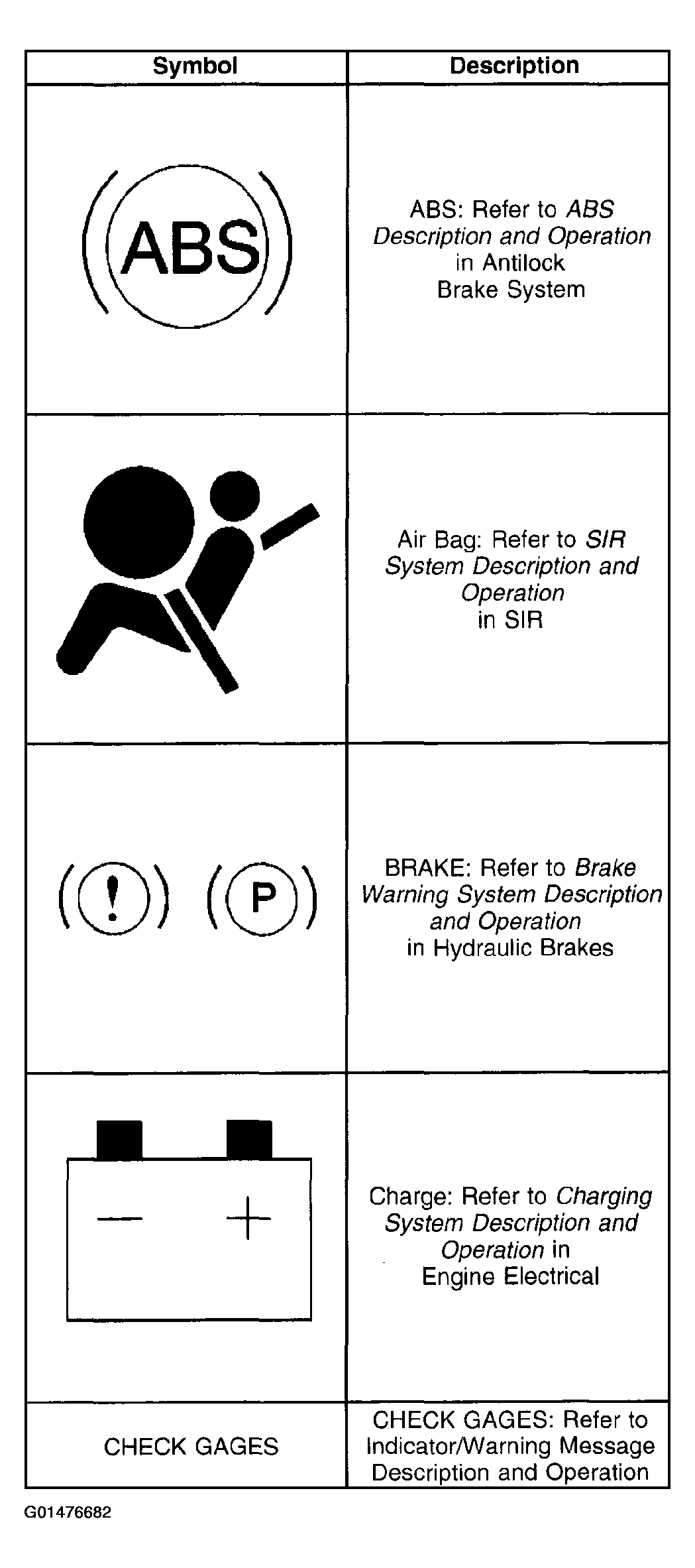

Fig 1: Indicators Description & Operation Chart (1 Of 3)
G01476682Courtesy of GENERAL MOTORS CORP.

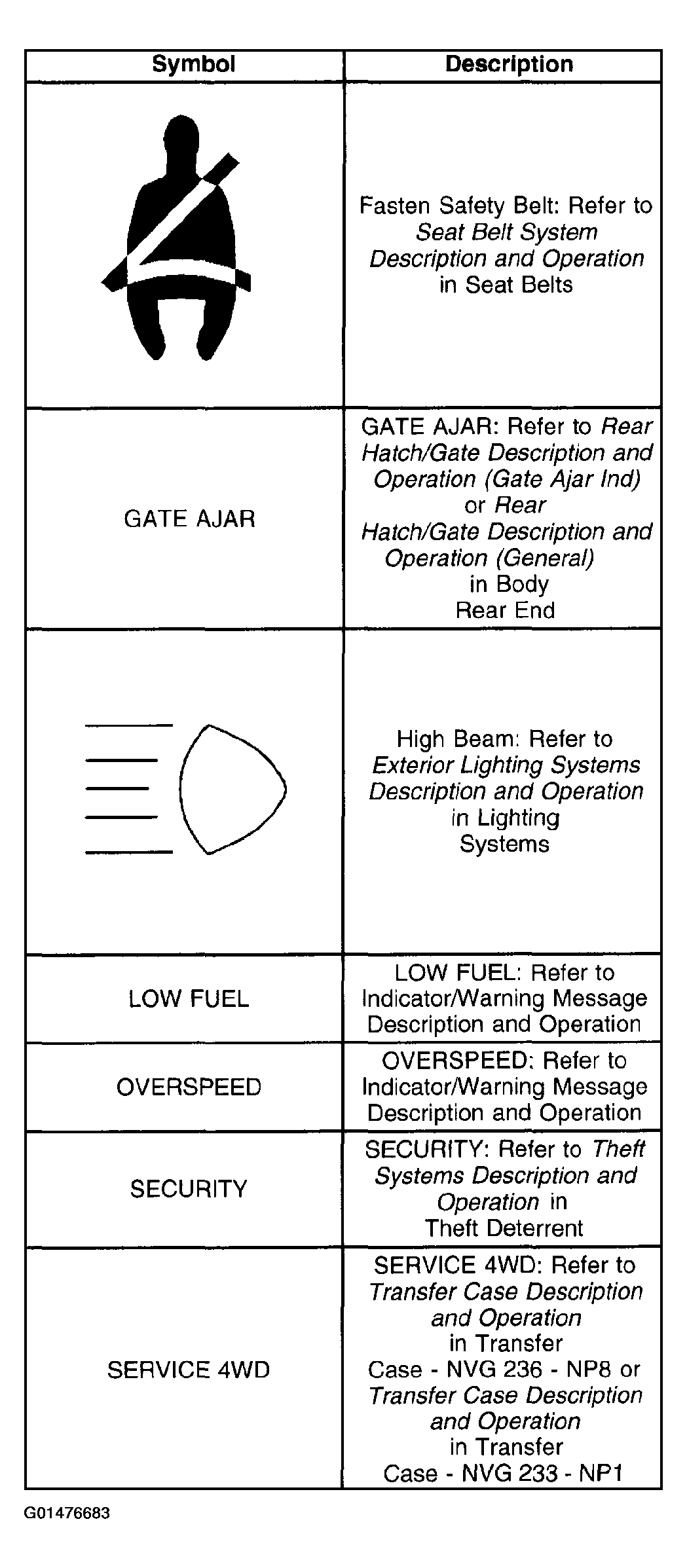

Fig 2: Indicators Description & Operation Chart (2 Of 3)
G01476683Courtesy of GENERAL MOTORS CORP.

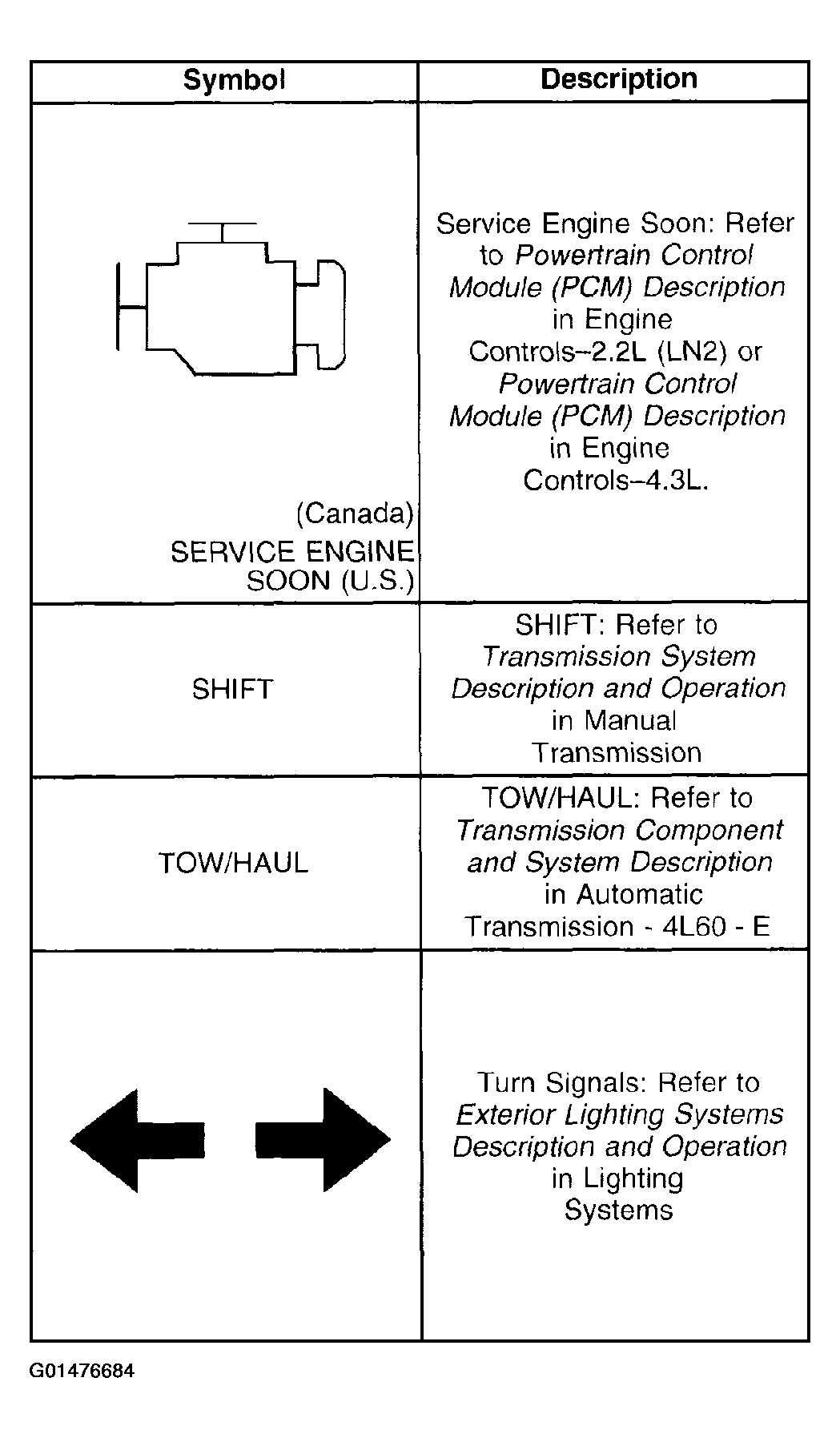

Fig 3: Indicators Description & Operation Chart (3 Of 3)
G01476684Courtesy of GENERAL MOTORS CORP.
