Instrument Panel, Gages, and Console Connector End Views

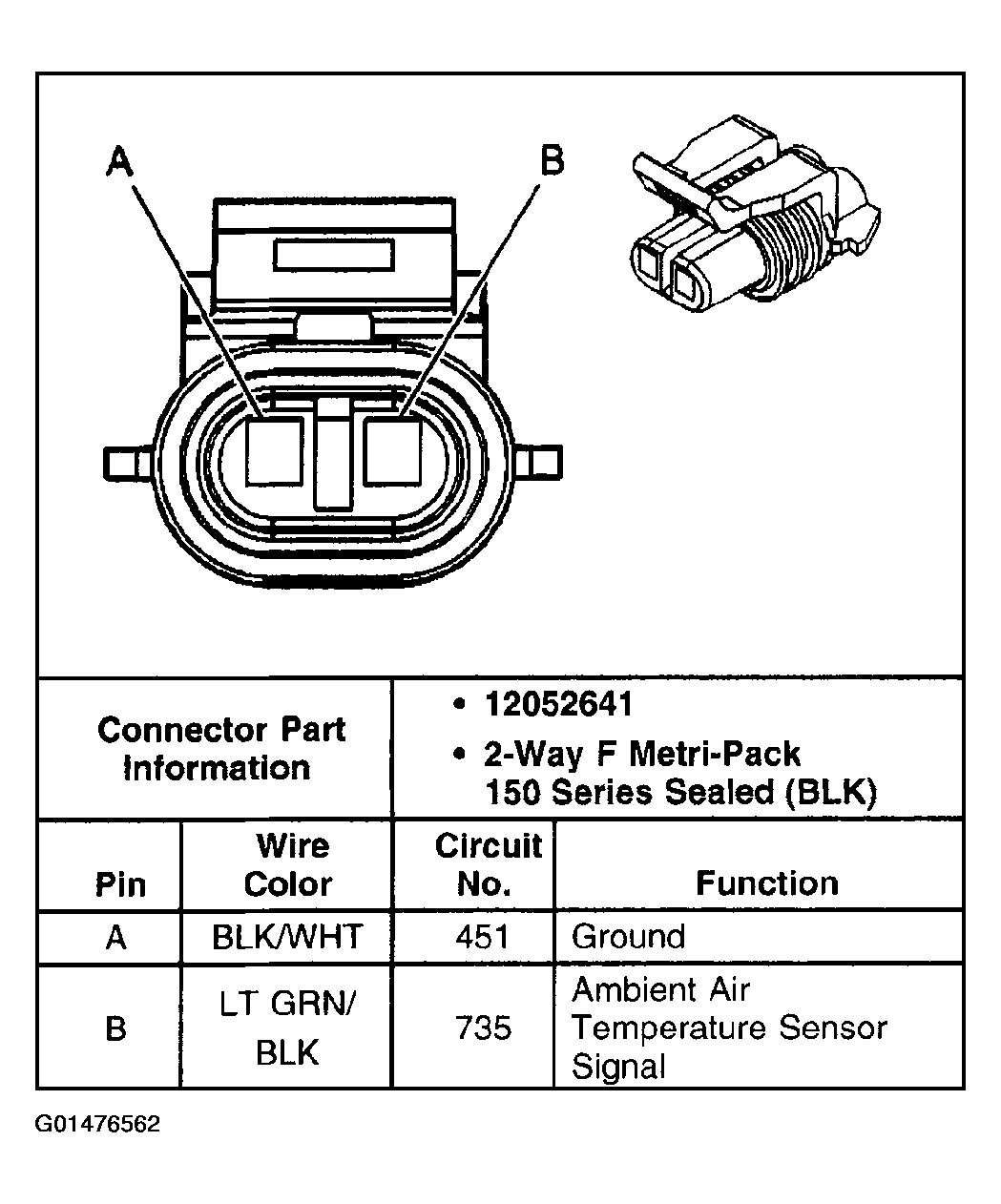

Fig 1: Ambient Air Temperature Sensor (DIC)

Courtesy of GENERAL MOTORS CORP.

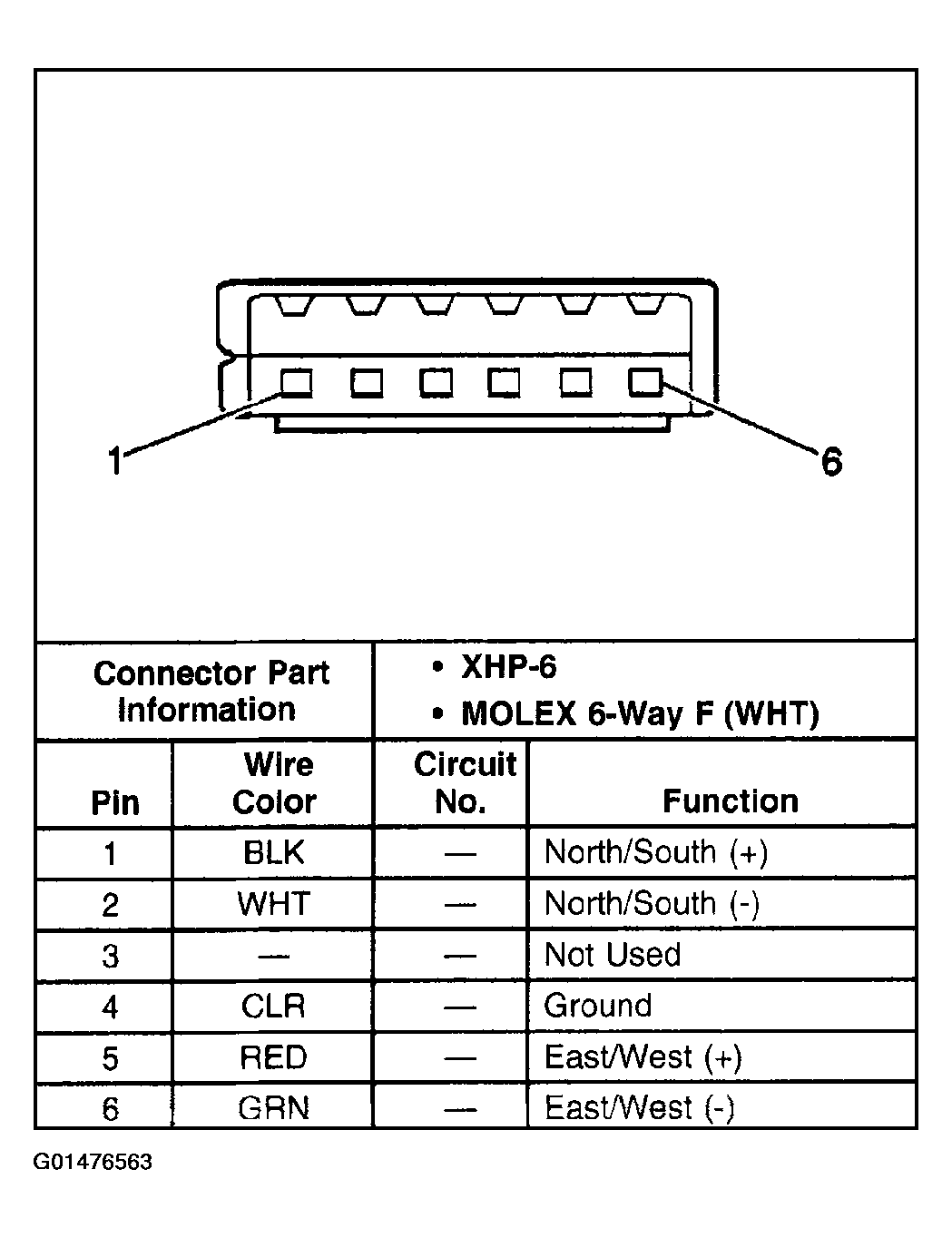

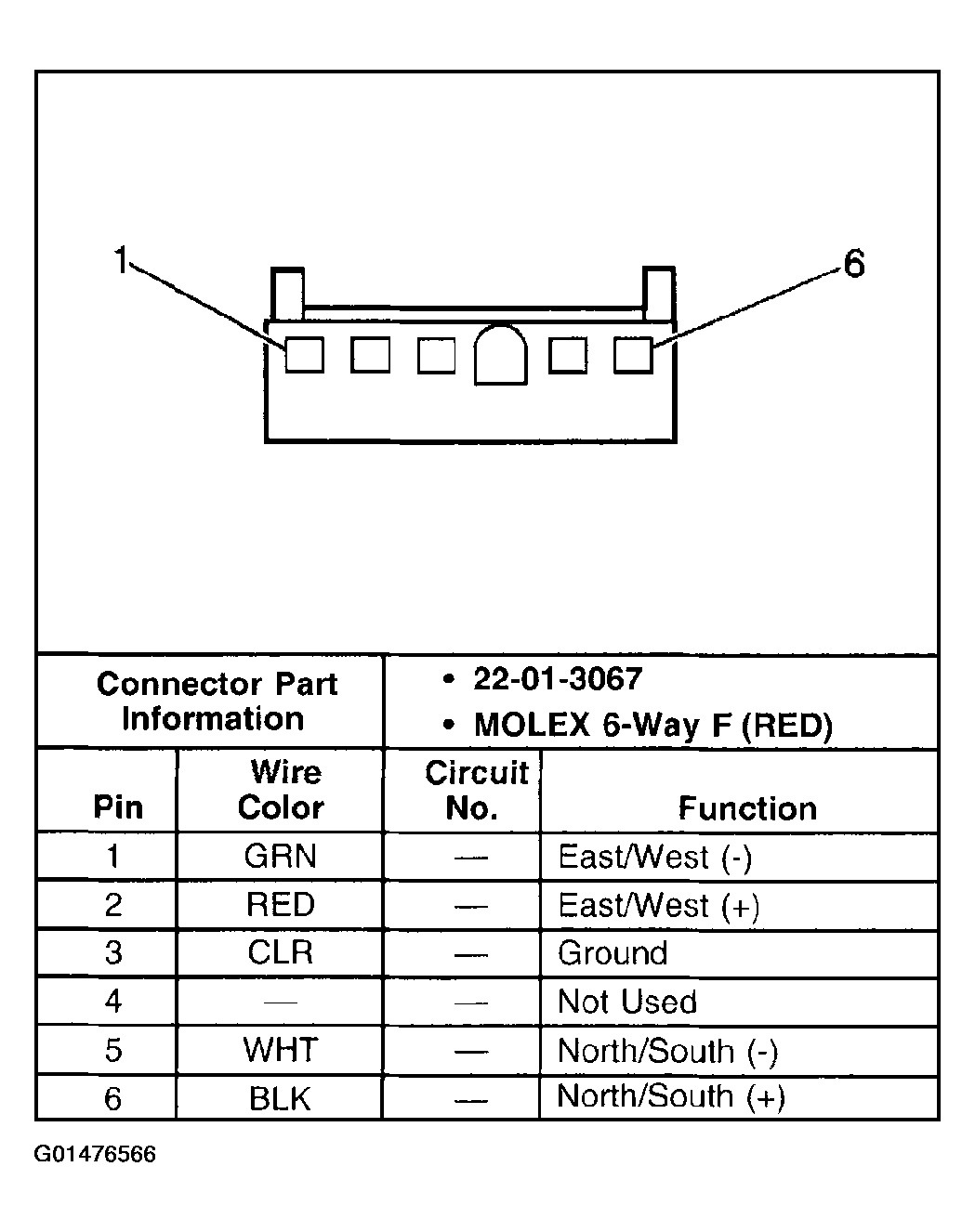

Fig 2: Compass Sensor

Courtesy of GENERAL MOTORS CORP.

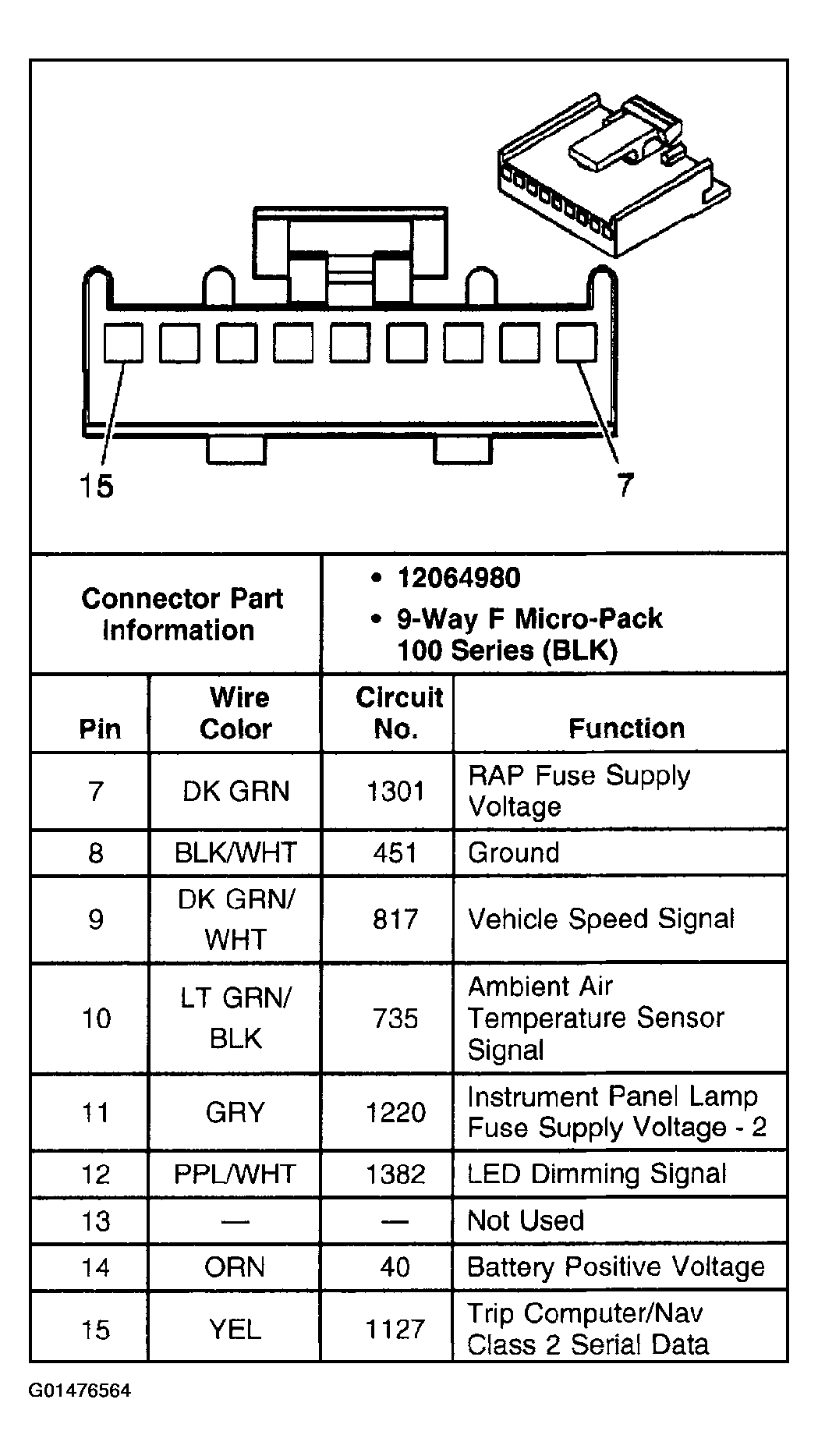

Fig 3: Driver Information Center (DIC) C1 (W/ Trip Computer)

Courtesy of GENERAL MOTORS CORP.

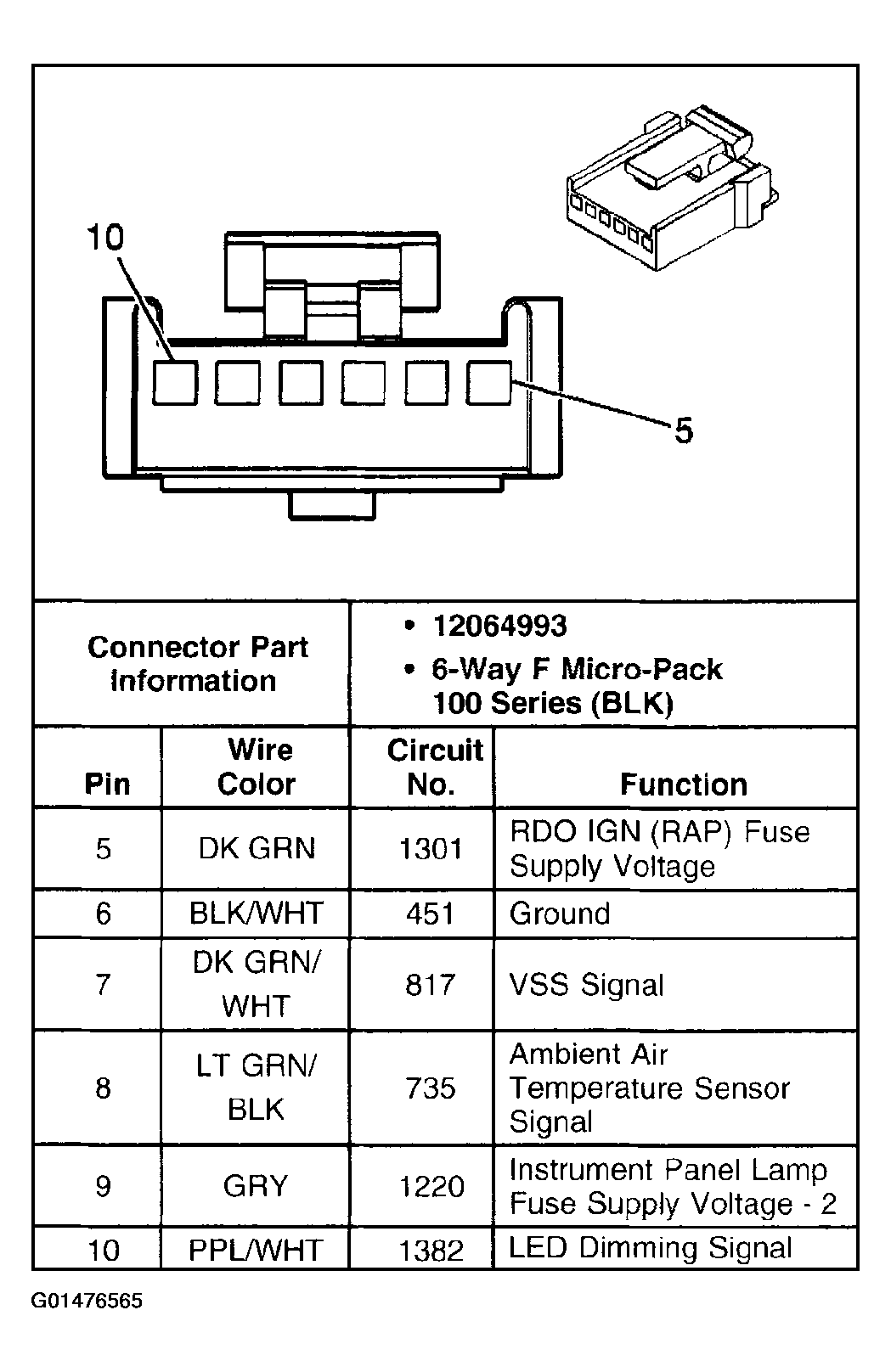

Fig 4: Driver Information Center (DIC) C1 (W/O Trip Computer)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Driver Information Center (DIC) C2 (W/ Short Console)

Courtesy of GENERAL MOTORS CORP.

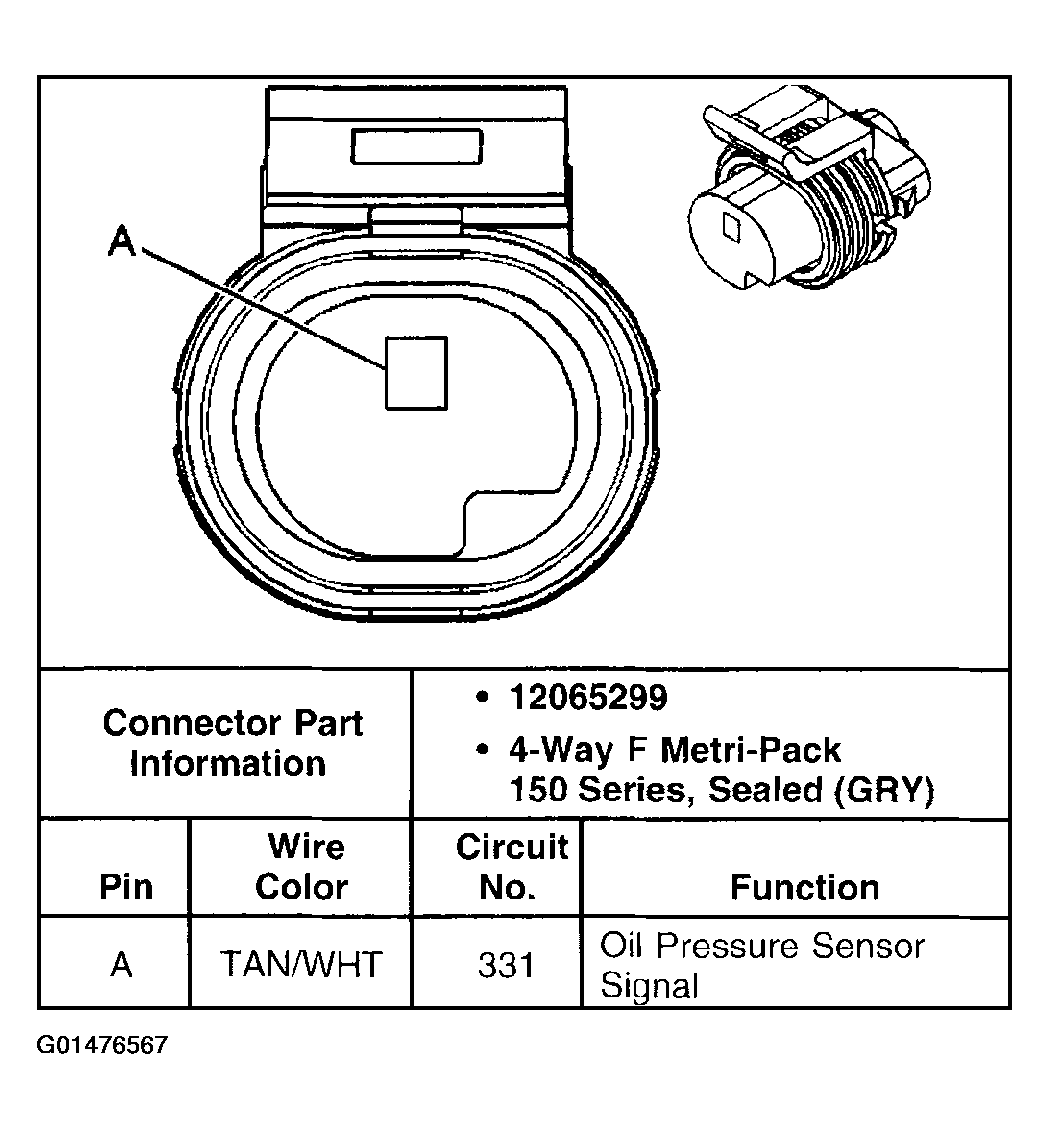

Fig 6: Engine Oil Pressure (EOP) Sensor

Courtesy of GENERAL MOTORS CORP.

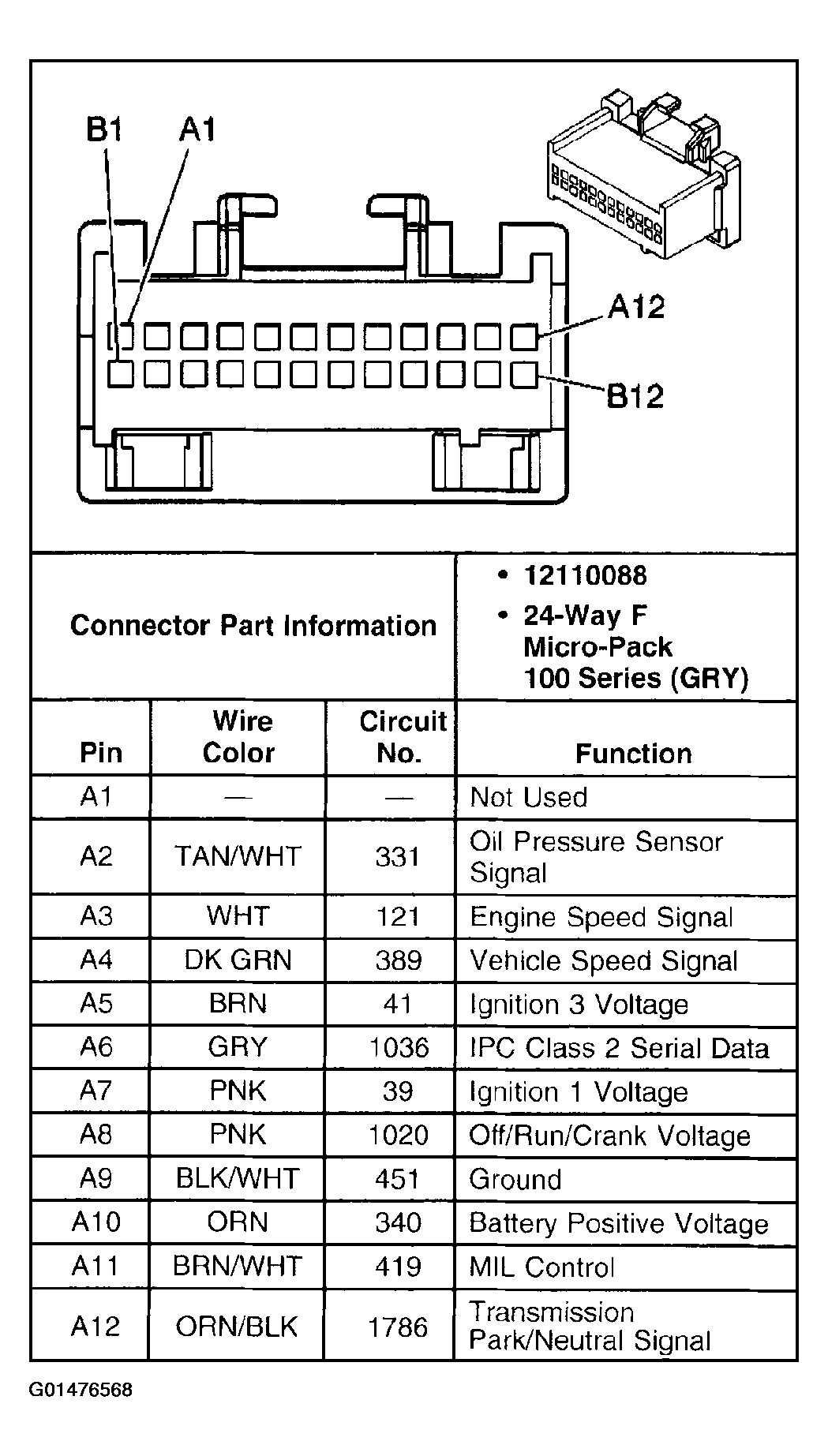

Fig 7: Instrument Panel Cluster (IPC) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

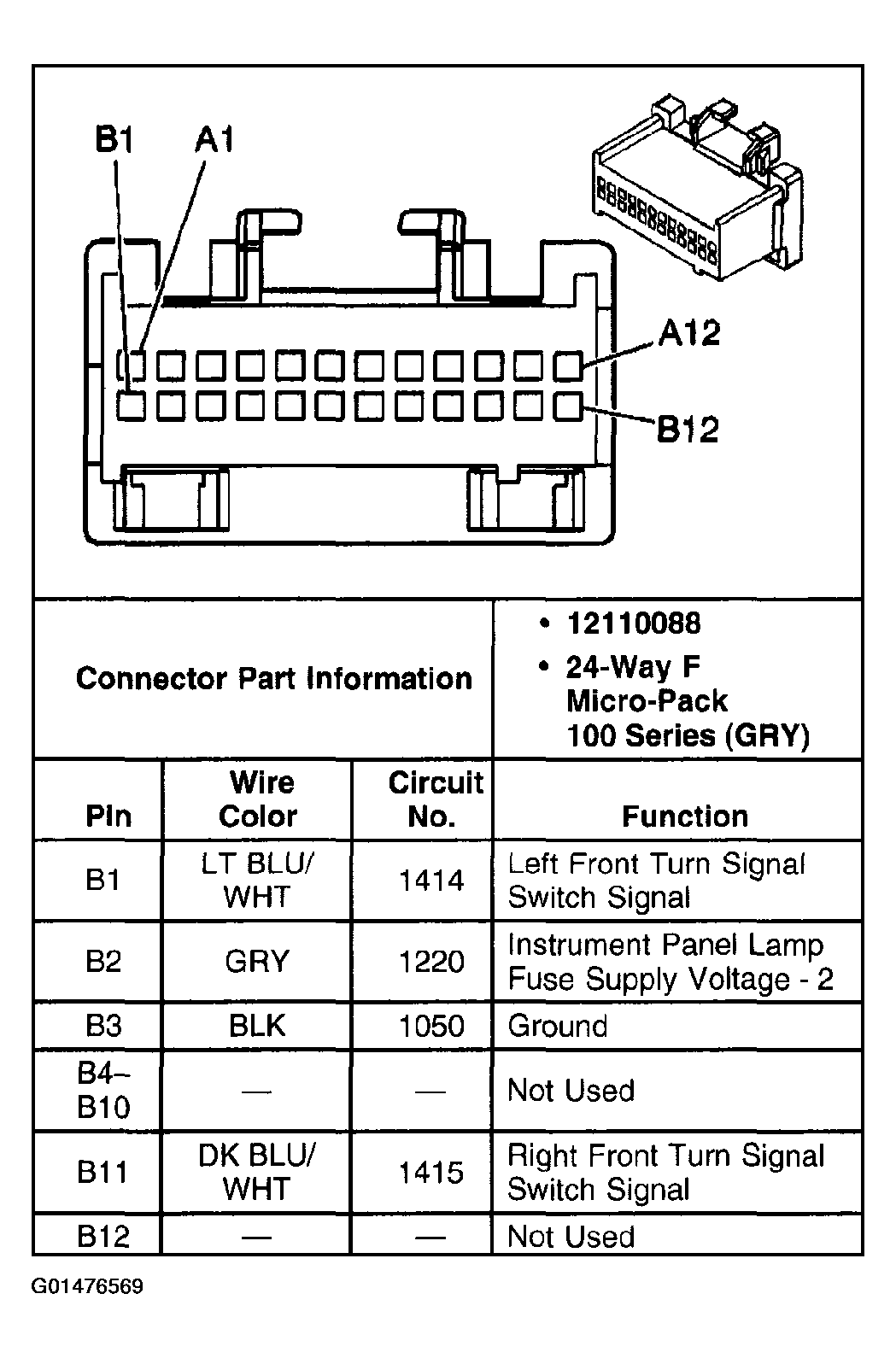

Fig 8: Instrument Panel Cluster (IPC) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
