Removal Procedure

  1. Remove the 3 screws securing the inboard rear seat back hinge cover.

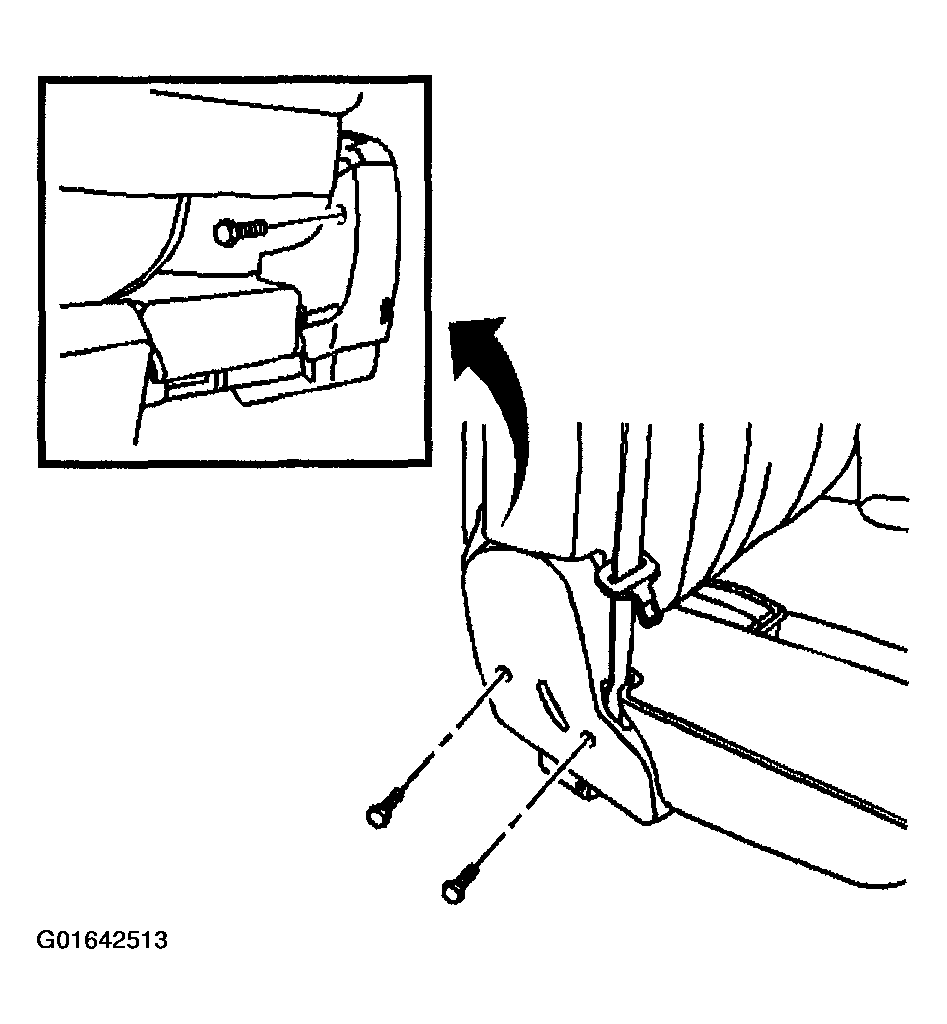

    2. Fig 1: Screws Securing Inboard Rear Seat Back Hinge Cover
    G01642513Courtesy of GENERAL MOTORS CORP.
  2. Remove the seat belt side buckle nut (2).
  3. Remove the seat belt side buckle (1) from the seat.

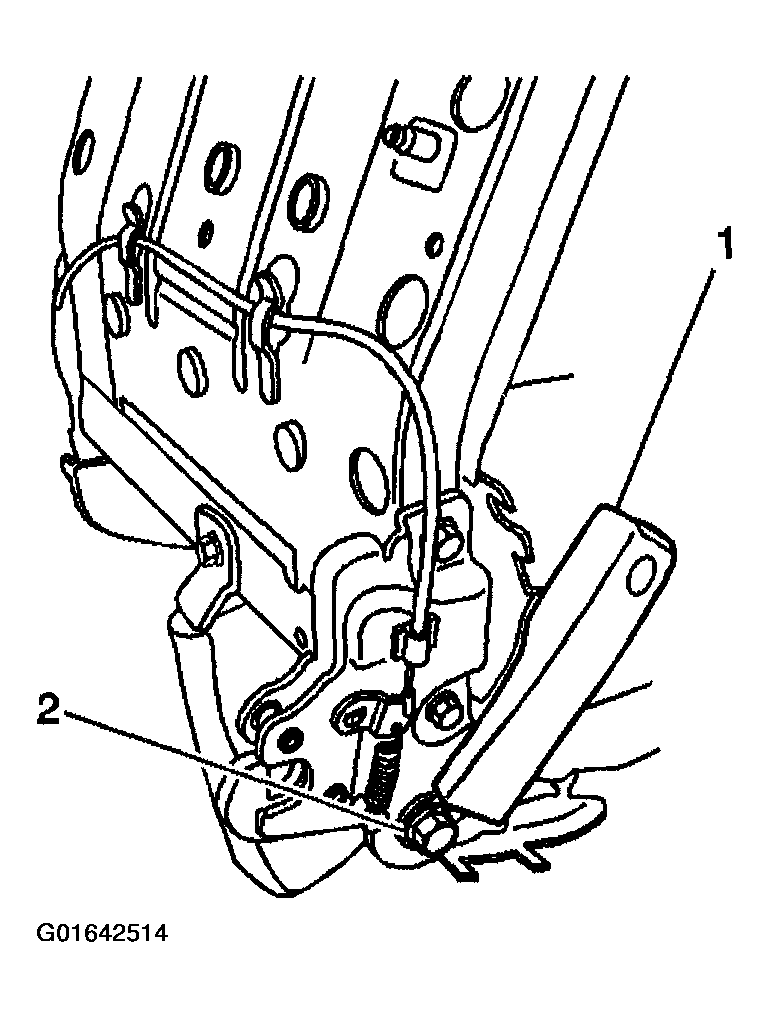

    4. Fig 2: Seat Belt Side Buckle From Seat
    G01642514Courtesy of GENERAL MOTORS CORP.
