Removal Procedure

  1. Remove the rear seat back assembly. Refer to SEAT CUSHION REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) or SEAT BACK REPLACEMENT - REAR NO. 1(TRAILBLAZER EXT & ENVOY XL) in Seats.
  2. Remove the rear seat belt anchor nut from the seat belt buckle bracket.

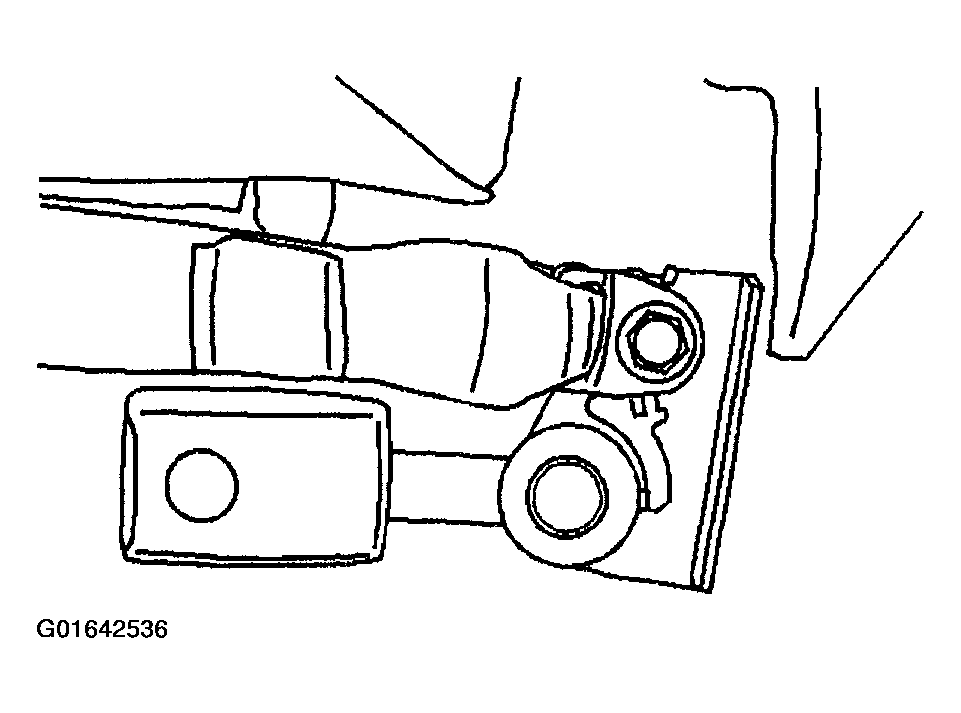

    3. Fig 1: Rear Seat Belt Anchor Nut From Seat Belt Buckle Bracket (TrailBlazer, Envoy & Bravada)
    G01642536Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear seat back seat belt bezel by pressing in the buttons (1) on the plastic retainers.
    4. Fig 2: Rear Seat Back Seat Belt Bezel By Pressing In Buttons On Plastic Retainers (TrailBlazer, Envoy & Bravada)
    G01642537Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat belt bezel from the seat belt.

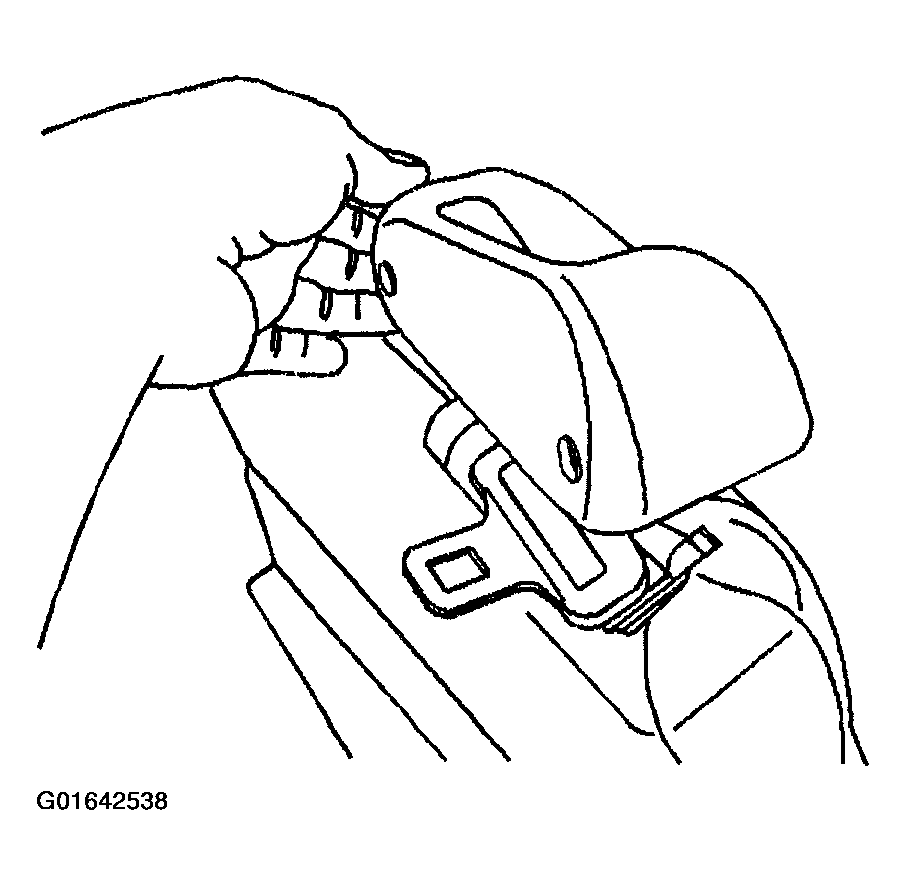

    5. Fig 3: Seat Belt Bezel From Seat Belt (TrailBlazer, Envoy & Bravada)
    G01642538Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) in Seats.
  6. Remove the seat belt from the retractor bracket by guiding it through the slot.
    7. Fig 4: Seat Belt From Retractor Bracket By Guiding It Through Slot (TrailBlazer, Envoy & Bravada)
    G01642539Courtesy of GENERAL MOTORS CORP.
  7. Remove the rear seat belt center retractor retaining nut.
  8. Remove the center retractor assembly by pulling the push pin from the seat back frame.

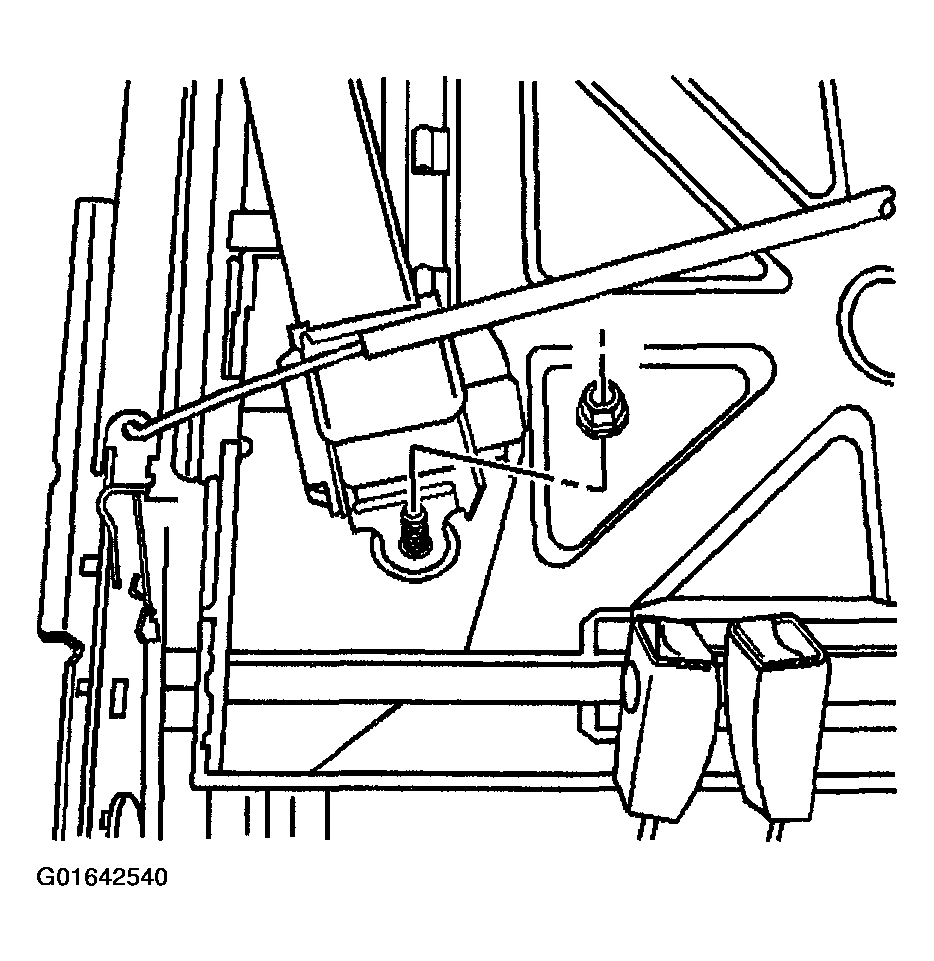

    9. Fig 5: Rear Seat Belt Center Retractor Retaining Nut (TrailBlazer, Envoy & Bravada)
    G01642540Courtesy of GENERAL MOTORS CORP.
  9. Remove the seat belt retractor bracket bolt (1) from the bracket and seat back frame.
  10. Remove the seat belt retractor bracket from the seat back frame.

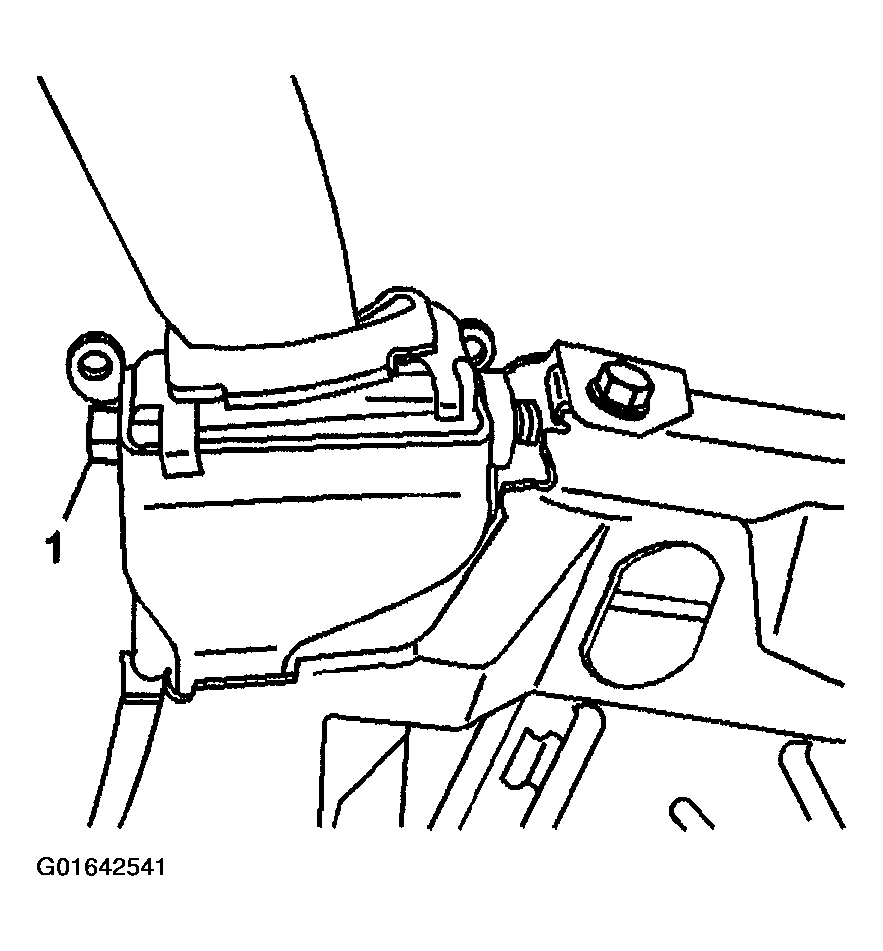

    11. Fig 6: Seat Belt Retractor Bracket Bolt From Bracket And Seat Back Frame (TrailBlazer, Envoy & Bravada)
    G01642541Courtesy of GENERAL MOTORS CORP.
