Removal Procedure

  1. Remove the 3 screws securing the inboard rear seat back cushion latch cover.

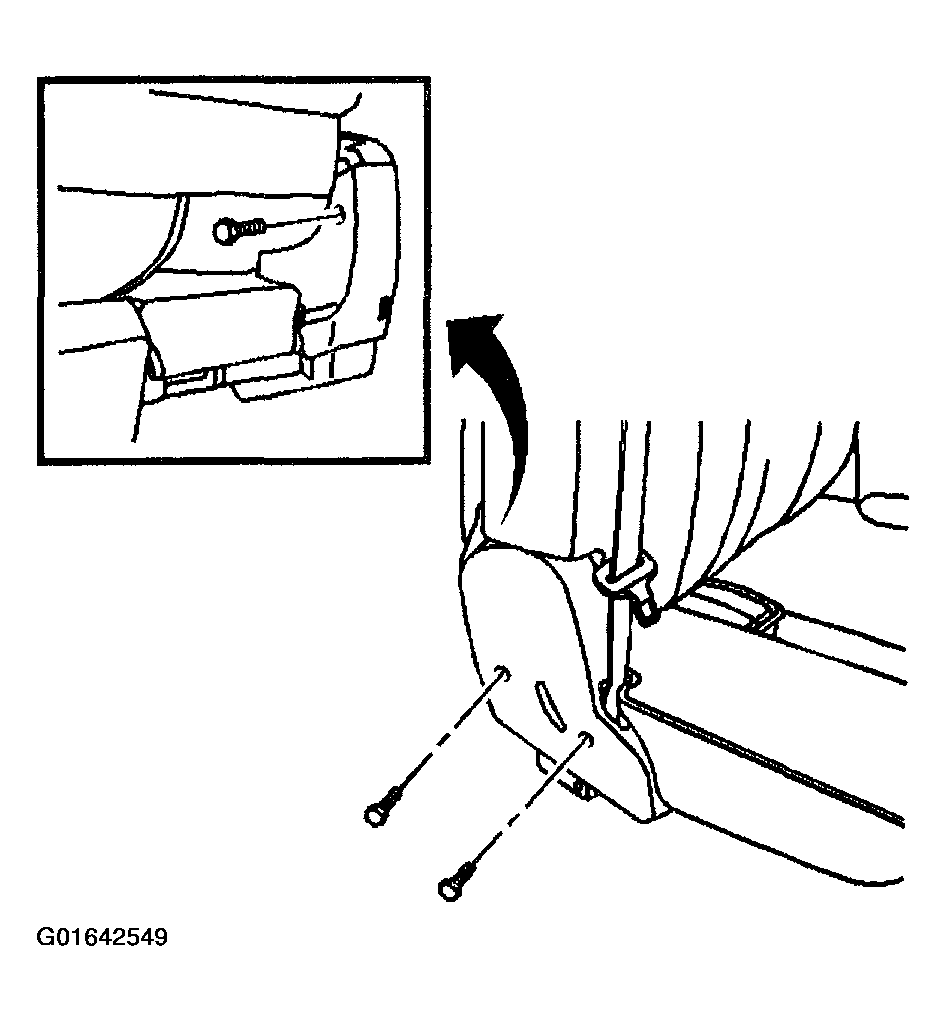

    2. Fig 1: Screws Securing Inboard Rear Seat Back Cushion Latch Cover (TrailBlazer EXT & Envoy XL)
    G01642549Courtesy of GENERAL MOTORS CORP.
  2. Remove the rear seat belt anchor nut (2) securing the seat belt (1) to the seat frame.

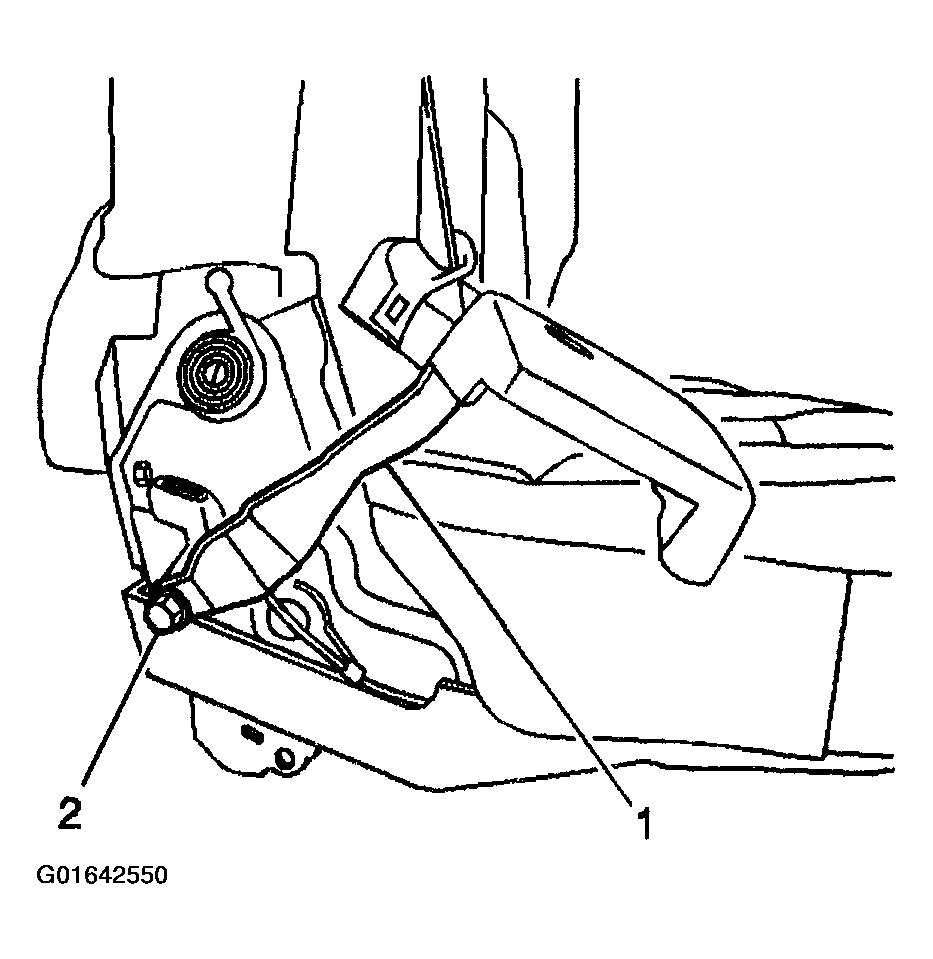

    3. Fig 2: Rear Seat Belt Anchor Nut Securing Seat Belt To Seat Frame (TrailBlazer EXT & Envoy XL)
    G01642550Courtesy of GENERAL MOTORS CORP.
  3. Pull the seat back cover and pad up to expose the seat belt bracket bolts. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER, ENVOY & BRAVADA) or SEAT BACK COVER AND PAD REPLACEMENT - REAR NO. 1 (TRAILBLAZER EXT & ENVOY XL) .
  4. Remove the 2 bolts (2) securing the seat belt bracket (1) to the seat back frame.

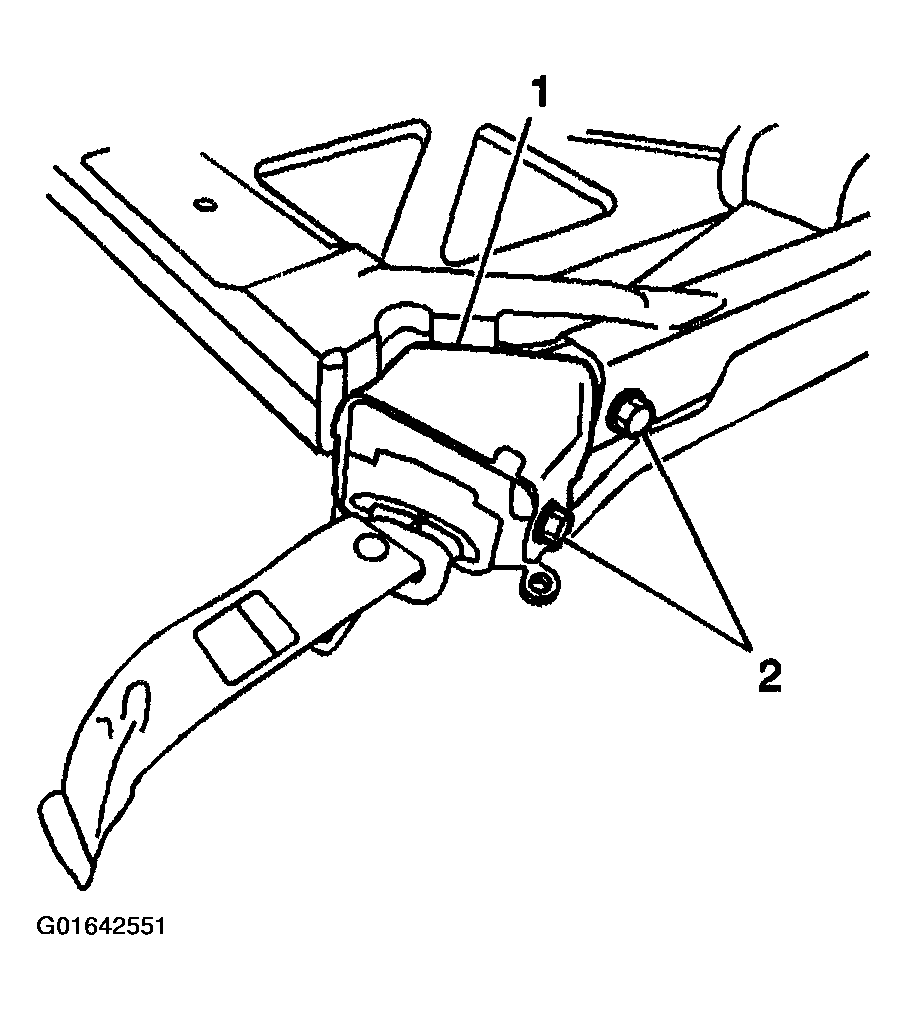

    5. Fig 3: Bolts Securing Seat Belt Bracket To Seat Back Frame (TrailBlazer EXT & Envoy XL)
    G01642551Courtesy of GENERAL MOTORS CORP.
  5. Remove the nut (1) securing the retractor assembly (2) to the seat back frame.

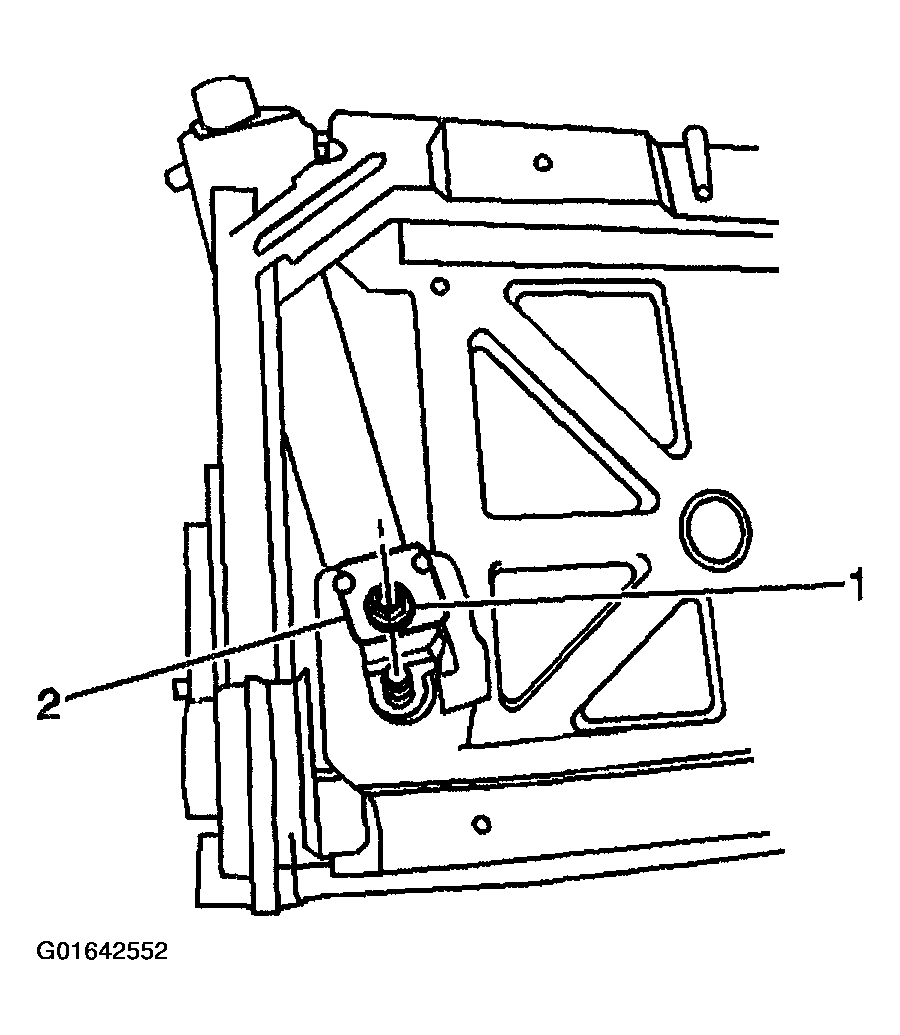

    6. Fig 4: Nut Securing Retractor Assembly To Seat Back Frame (TrailBlazer EXT & Envoy XL)
    G01642552Courtesy of GENERAL MOTORS CORP.
  6. Remove the retractor assembly.
