Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt and the nut from the engine mount strut and the engine mount strut bracket.

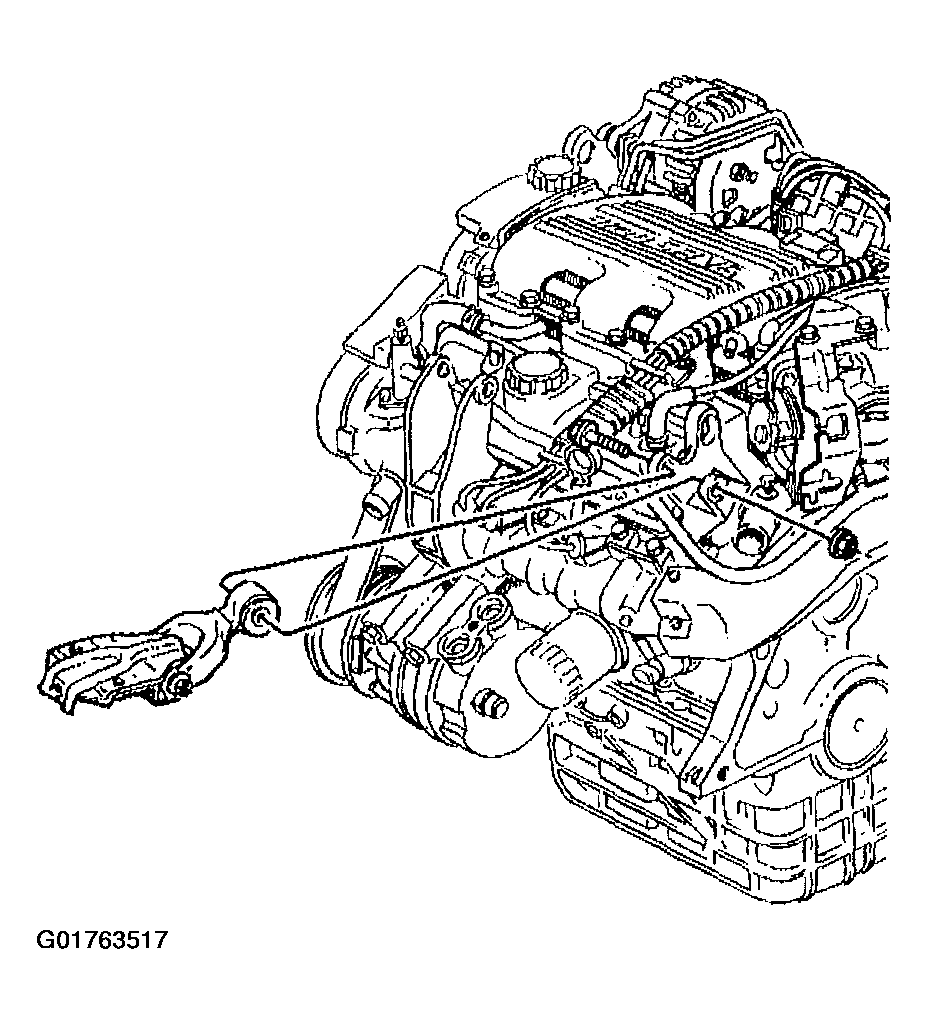

    Fig 1: Engine Mount Strut
    G01763517Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt and the nut from the engine mount strut at the engine mount strut bracket on the upper radiator support.

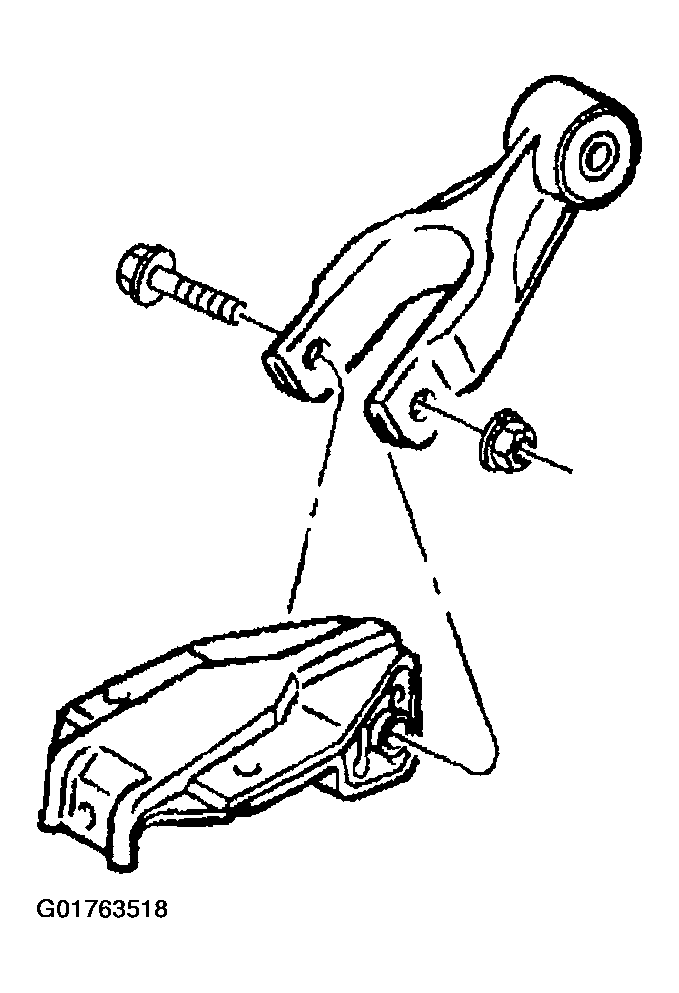

    Fig 2: Bolt And The Nut To The Engine Mount Strut
    G01763518Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking
