Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left engine mount strut bracket.
  2. Install the engine mount strut bracket bolts through the engine mount strut bracket to the cylinder head.

    Tighten:

    Tighten the engine mount strut bracket bolts to 70 N.m (52 ft lbs)

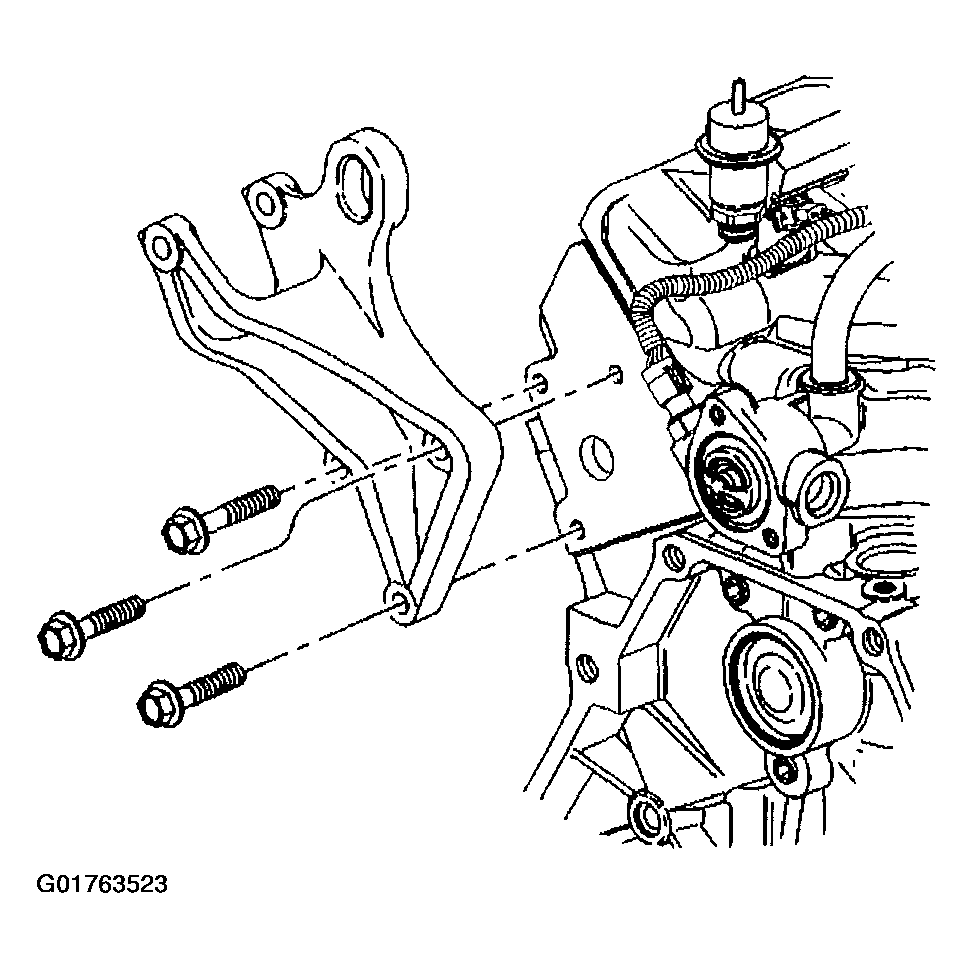

    Fig 1: Left Engine Mount Strut Bracket
    G01763523Courtesy of GENERAL MOTORS CORP.
  3. Install the engine mount strut to the left engine mount strut bracket. Refer to Engine Mount Strut Replacement .
