Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine mount to the engine mount bracket.
Install the engine mount upper nuts.
Tighten:

Tighten the engine mount upper nuts to 47 N.m (35 ft lbs)

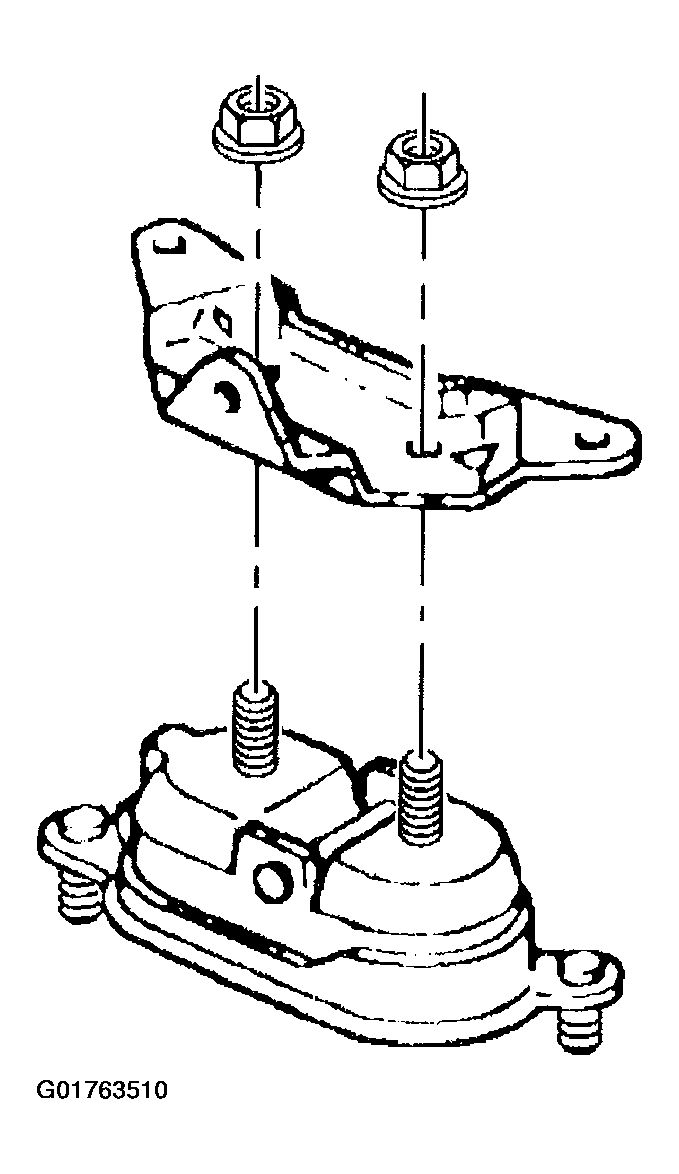

Fig 1: Engine Mount Upper Nuts
Courtesy of GENERAL MOTORS CORP.
Install the engine mount bracket with the engine mount to the oil pan.
Install the engine mount bracket-to-oil pan bolts.
Tighten:

Tighten the engine mount bracket bolts to 58 N.m (43 ft lbs)

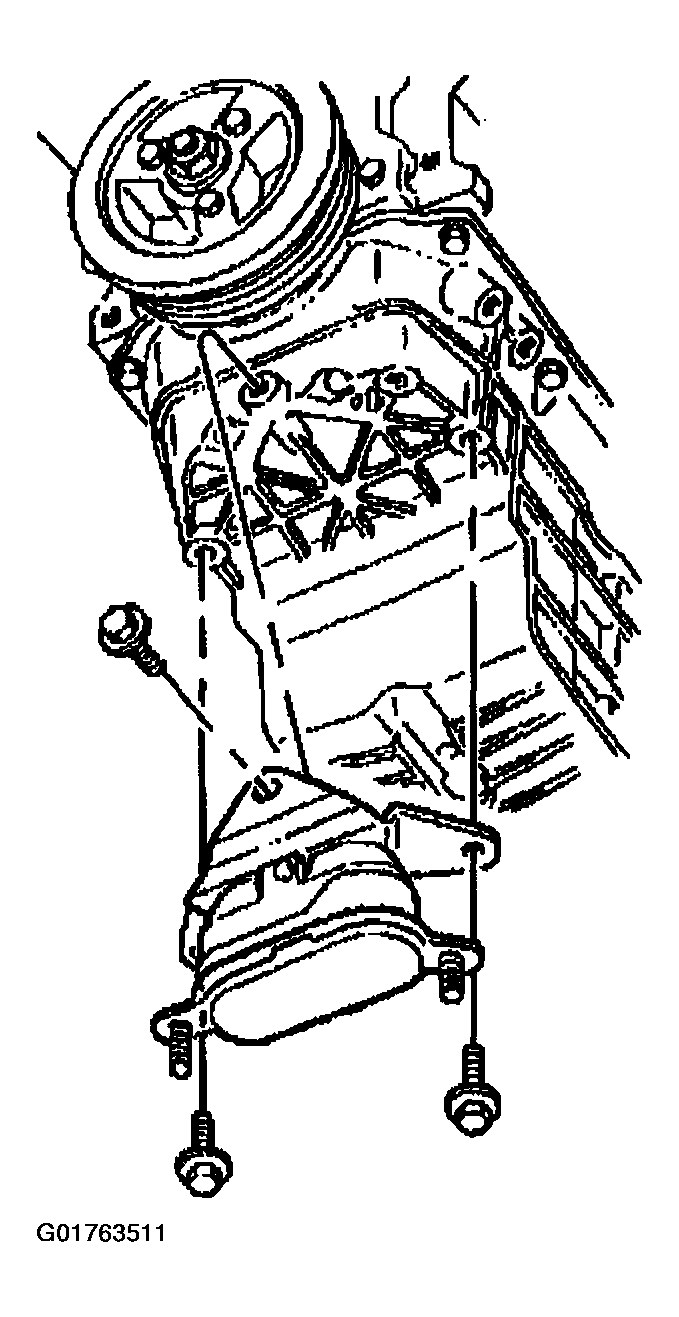

Fig 2: Engine Mount Bracket-To-Oil Pan Bolts
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
Lower the engine.
Raise and suitably support the vehicle.
Install the engine mount lower nuts.
Tighten:

Tighten the engine mount lower nuts to 43 N.m (32 ft lbs)

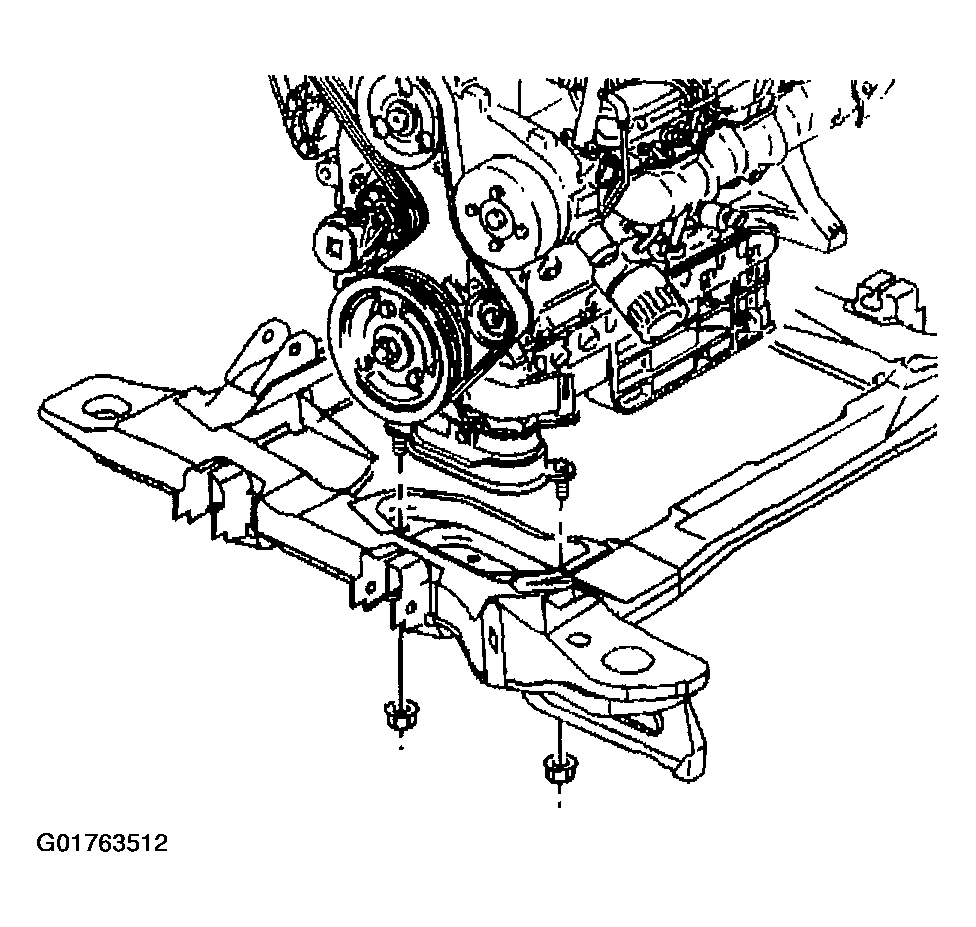

Fig 3: Engine Mount Lower Nuts
Courtesy of GENERAL MOTORS CORP.
Install the right engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE in BODY FRONT END .
Install the right front wheel and tire.
Connect the three-way catalytic converter pipe to the right (rear) exhaust manifold. Refer to CATALYTIC CONVERTER REPLACEMENT (3.1L) in AUTOMATIC TRANSAXLE SERVICING .
Lower the vehicle.
Remove the engine support fixture.
Install the engine mount struts. Refer to Engine Mount Strut Replacement .
Install the throttle body air inlet duct.
Connect the battery ground (negative) cable.
