Removal Procedure

  1. Open the hood.

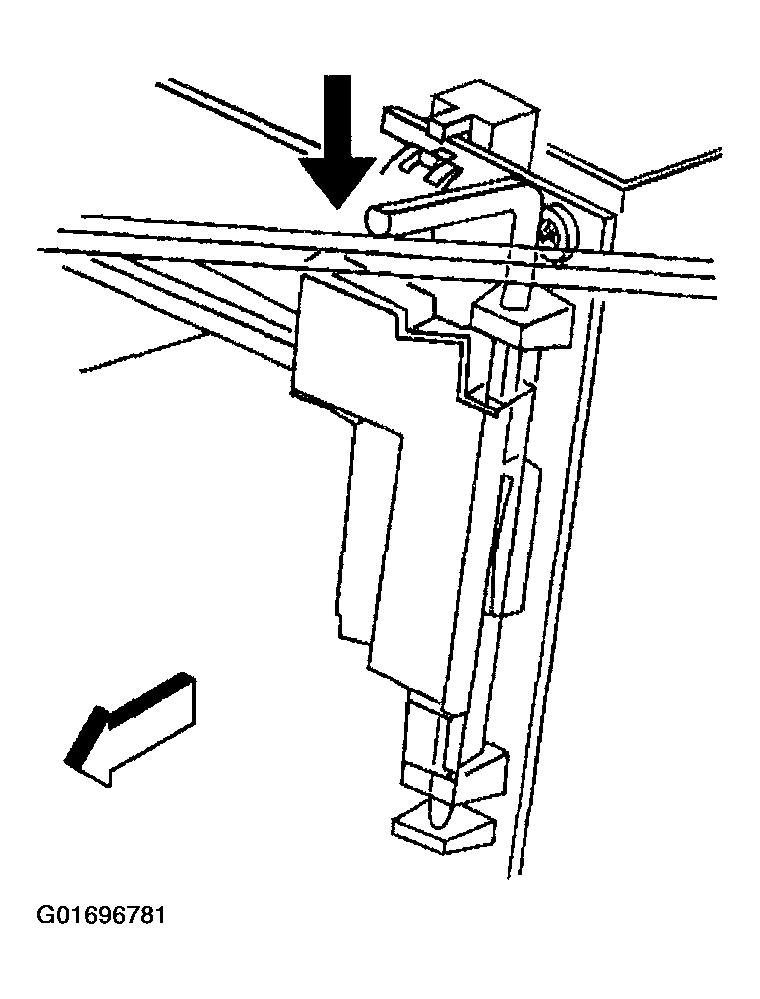

    2. Fig 1: Park/Turn Retainer Pins
    G01696781Courtesy of GENERAL MOTORS CORP.
  2. Rotate the park/turn retainer pins.
  3. Remove the park/turn retainer pins.

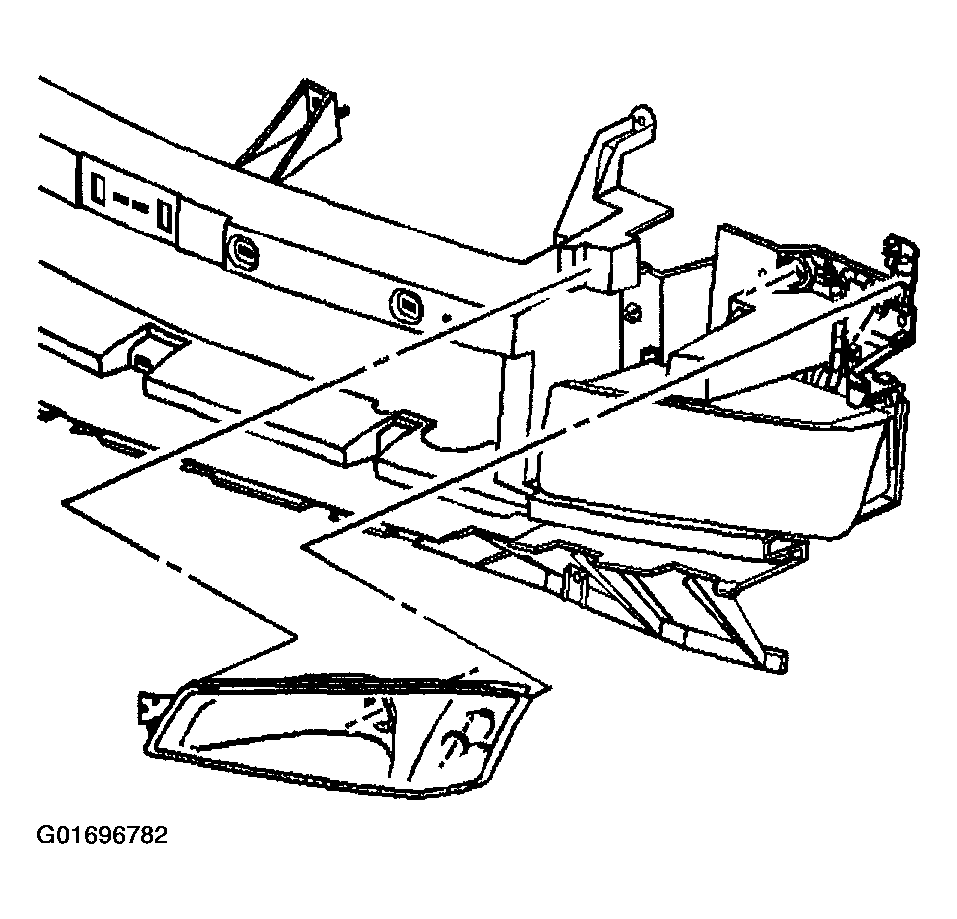

    4. Fig 2: Park/Turn Assembly
    G01696782Courtesy of GENERAL MOTORS CORP.
  4. Pull out the park/turn assembly in order to access the electrical connector.
  5. Disconnect the electrical connector.

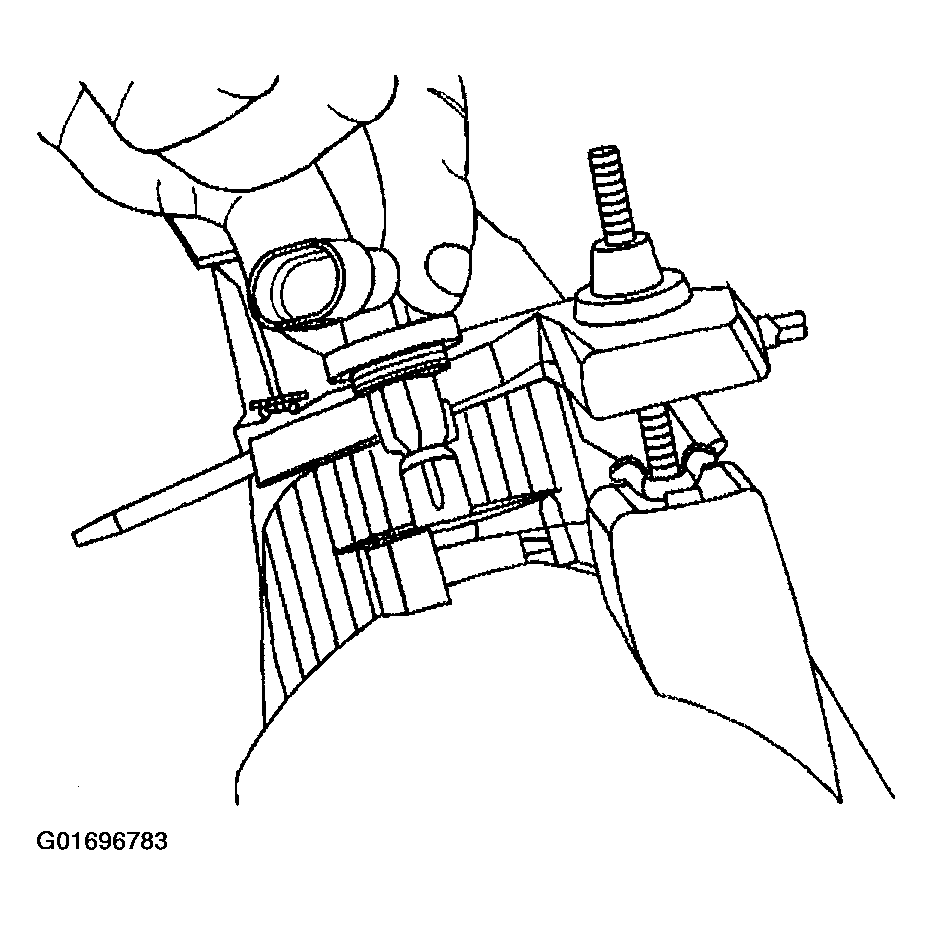

    6. Fig 3: Park/Turn Assembly Bulb
    G01696783Courtesy of GENERAL MOTORS CORP.
  6. Remove the bulb from the park/turn assembly by twisting the bulb counterclockwise.
