Test Description

The number below refers to the step number on the diagnostic table.

1. 3.  Tests for the proper operation of the circuit in the high voltage range.

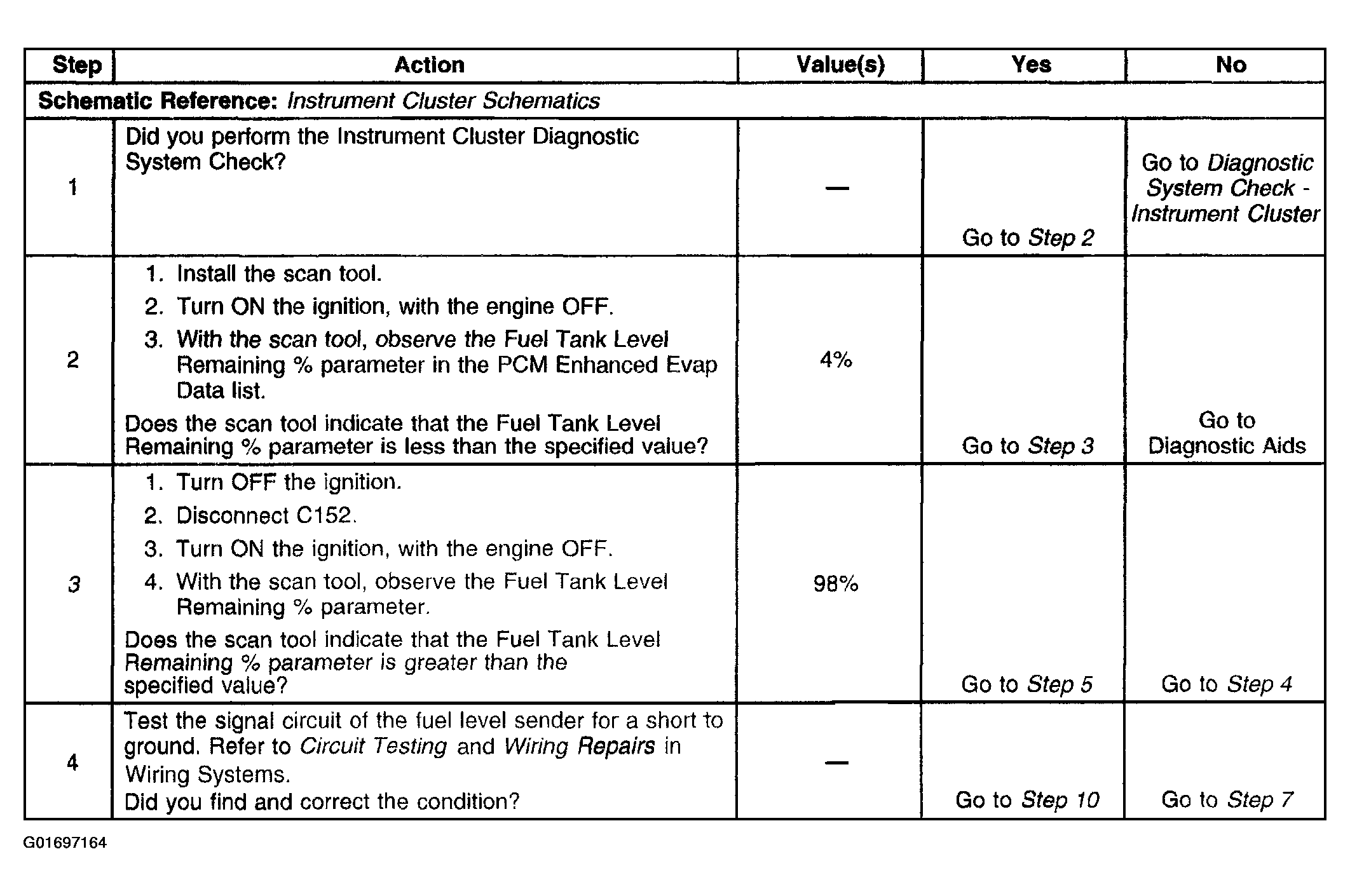

Fig 1: DTC P0462: Detects Fuel Level Signal Is Less Than 3.5% (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

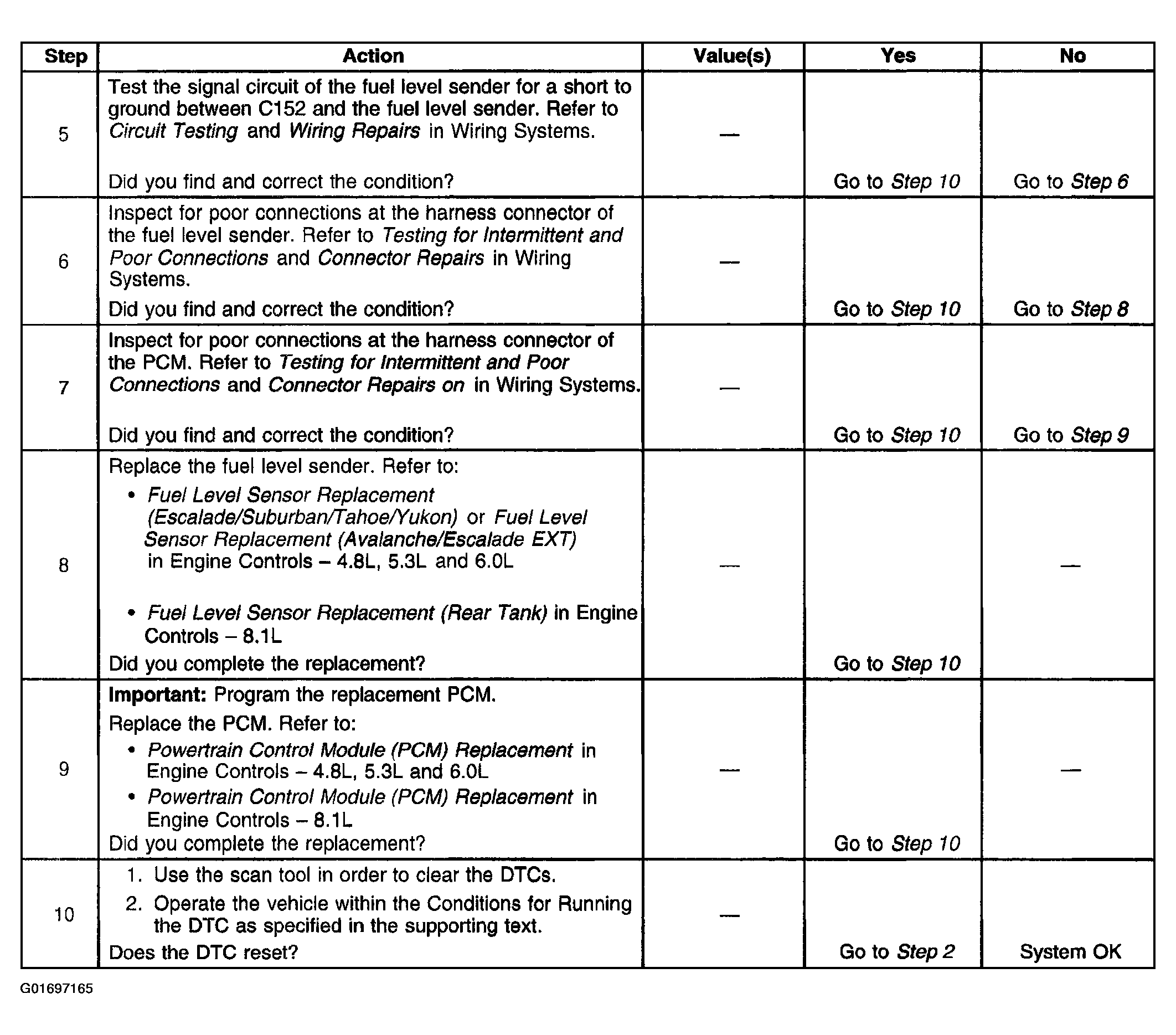

Fig 2: DTC P0462: Detects Fuel Level Signal Is Less Than 3.5% (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
