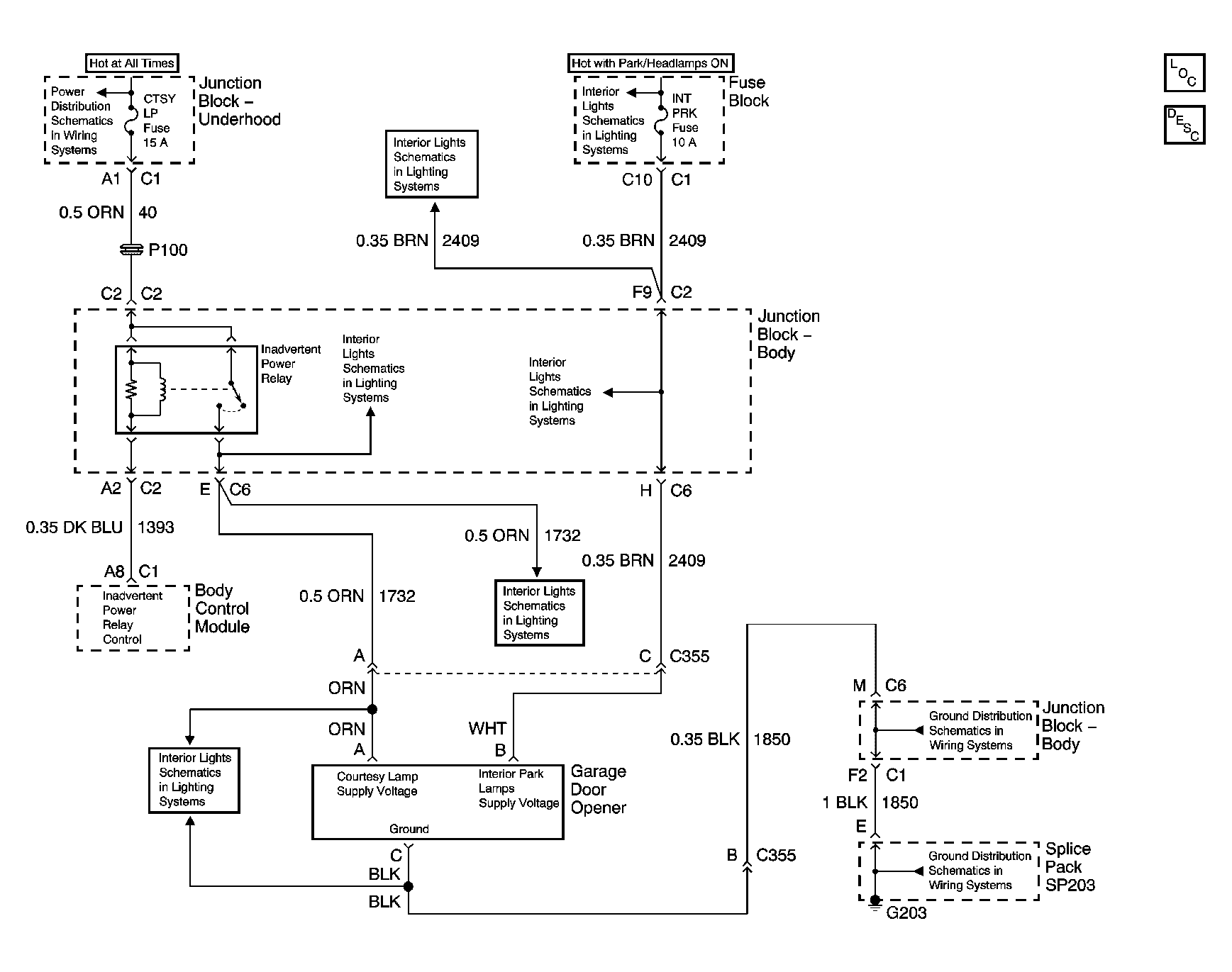

Home >> GMC >> 2002 >> Yukon Denali >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Accessories Control Systems >> Garage Door Opener >> Schematic and Routing Diagrams >> Garage Door Opener Schematics
