Ride Diagnosis - Too Soft
Ride Diagnosis - Too Soft

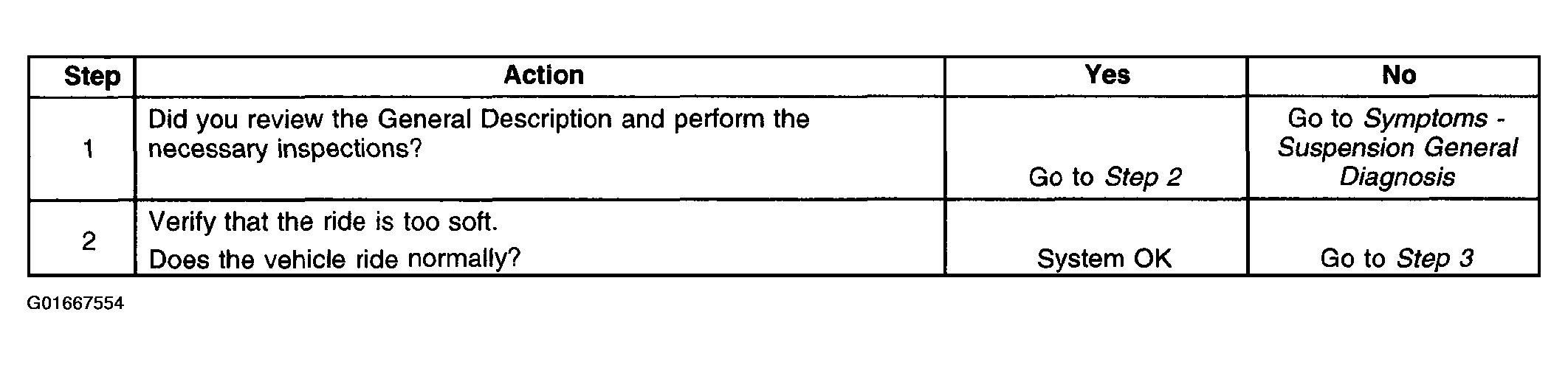

Fig 1: Ride Diagnosis - Too Soft Diagnosis (Steps 1-2)
Courtesy of GENERAL MOTORS CORP.

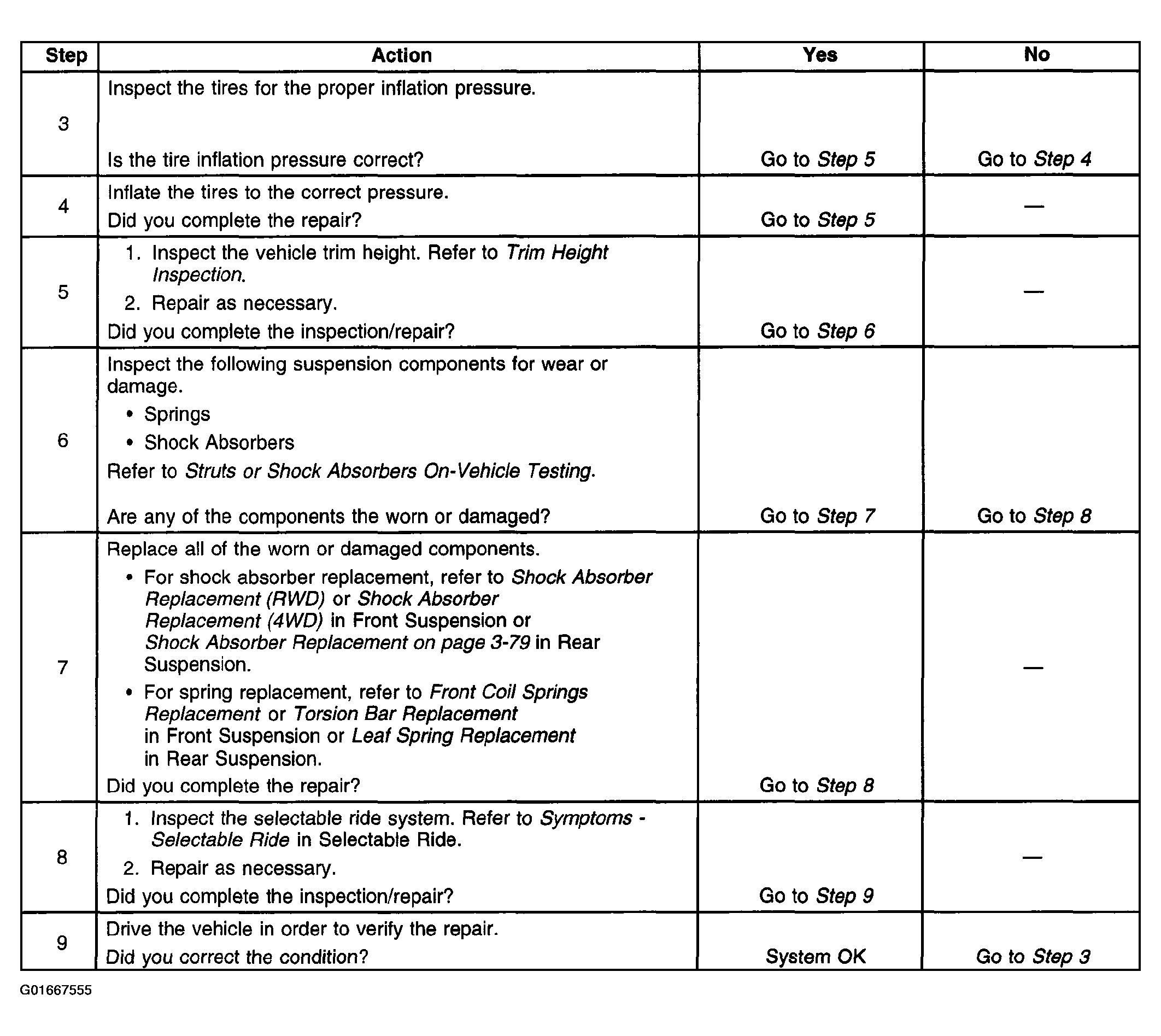

Fig 2: Ride Diagnosis - Too Soft Diagnosis (Steps 3-9)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
