Poor Directional Stability

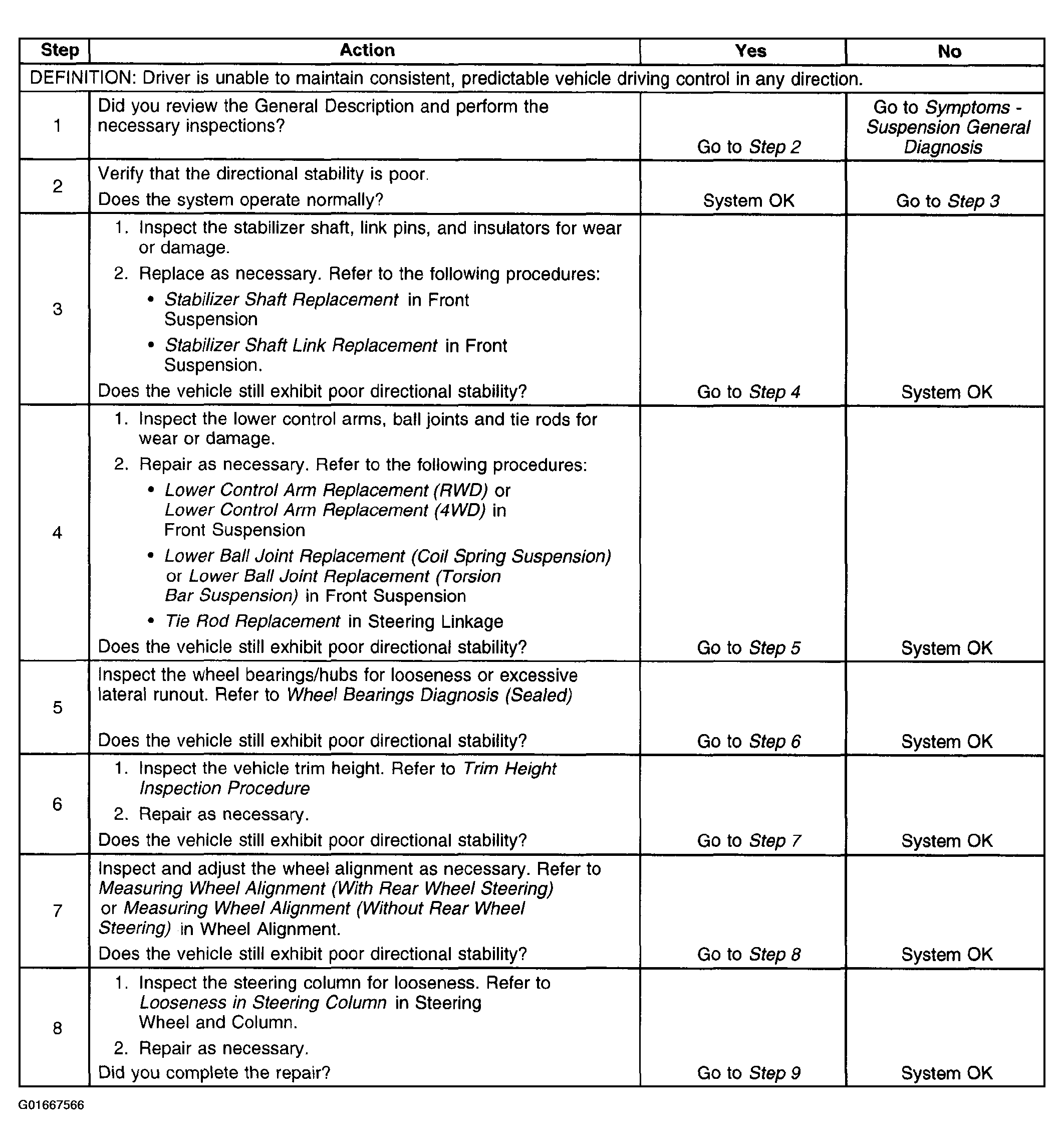

Fig 1: Poor Directional Stability Diagnosis (Steps 1-8)
G01667566Courtesy of GENERAL MOTORS CORP.

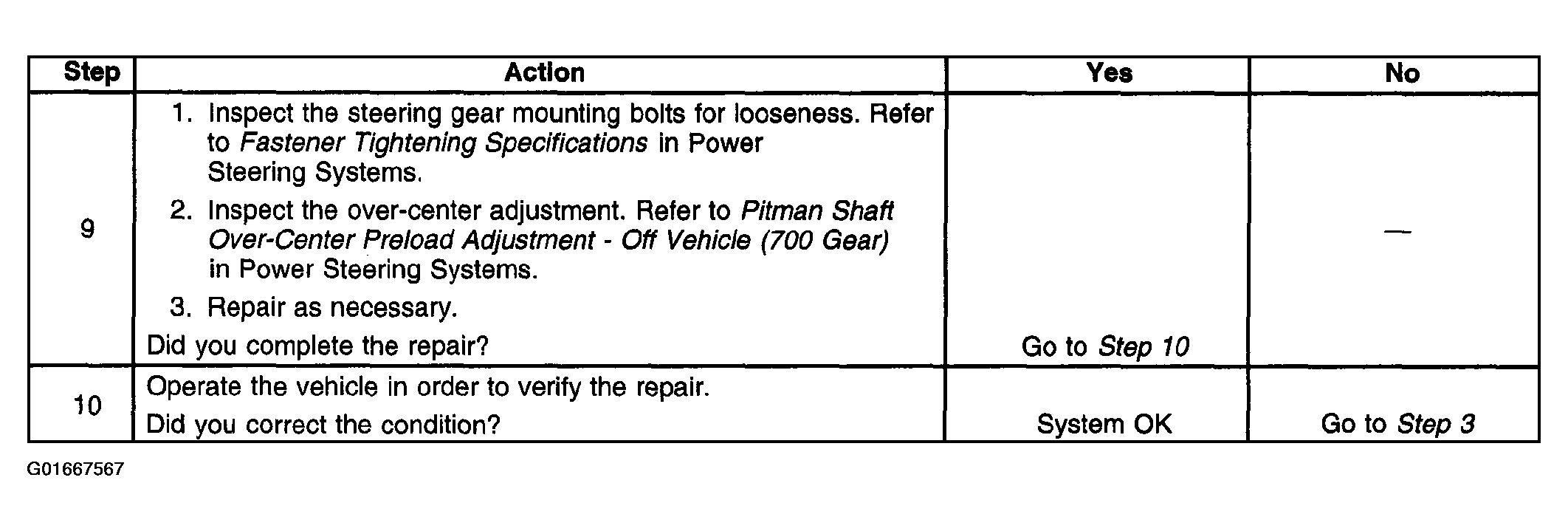

Fig 2: Poor Directional Stability Diagnosis (Steps 9-10)
G01667567Courtesy of GENERAL MOTORS CORP.
