Noise Diagnosis - Front Suspension

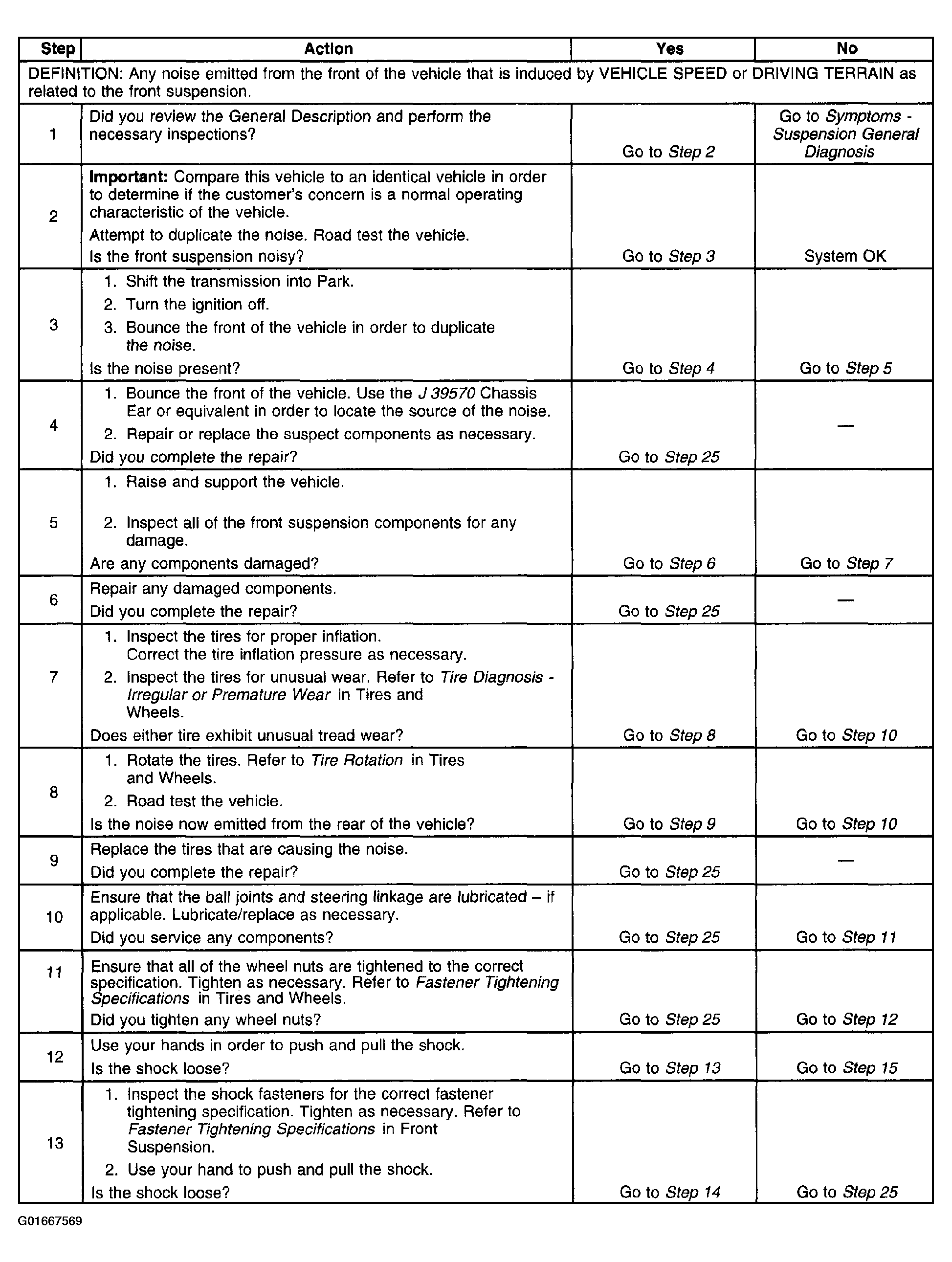

Fig 1: Noise Diagnosis - Front Suspension Diagnosis (Steps 1-13)
G01667569Courtesy of GENERAL MOTORS CORP.

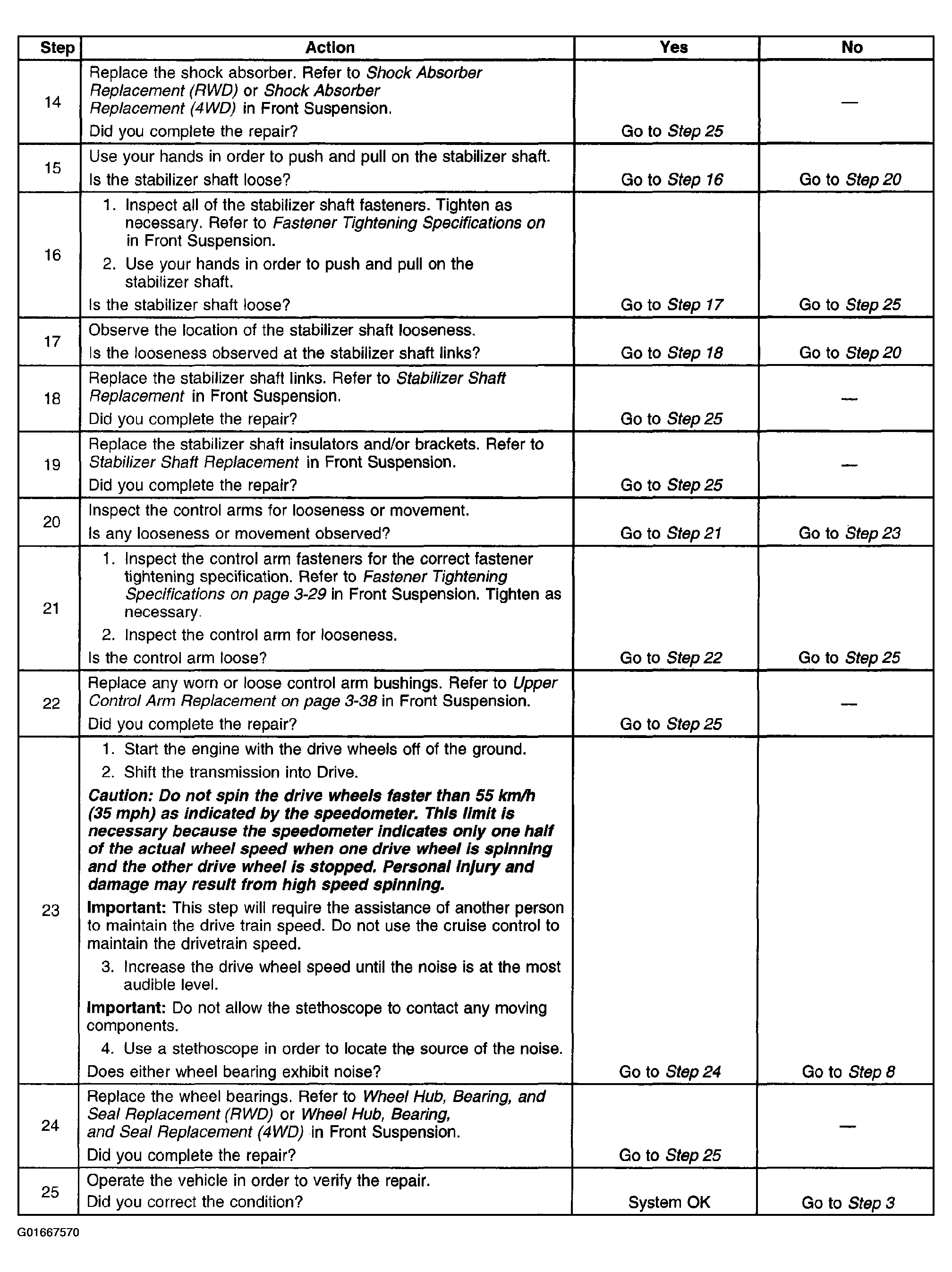

Fig 2: Noise Diagnosis - Front Suspension Diagnosis (Steps 14-25)
G01667570Courtesy of GENERAL MOTORS CORP.
