Ride Diagnosis - Too Hard

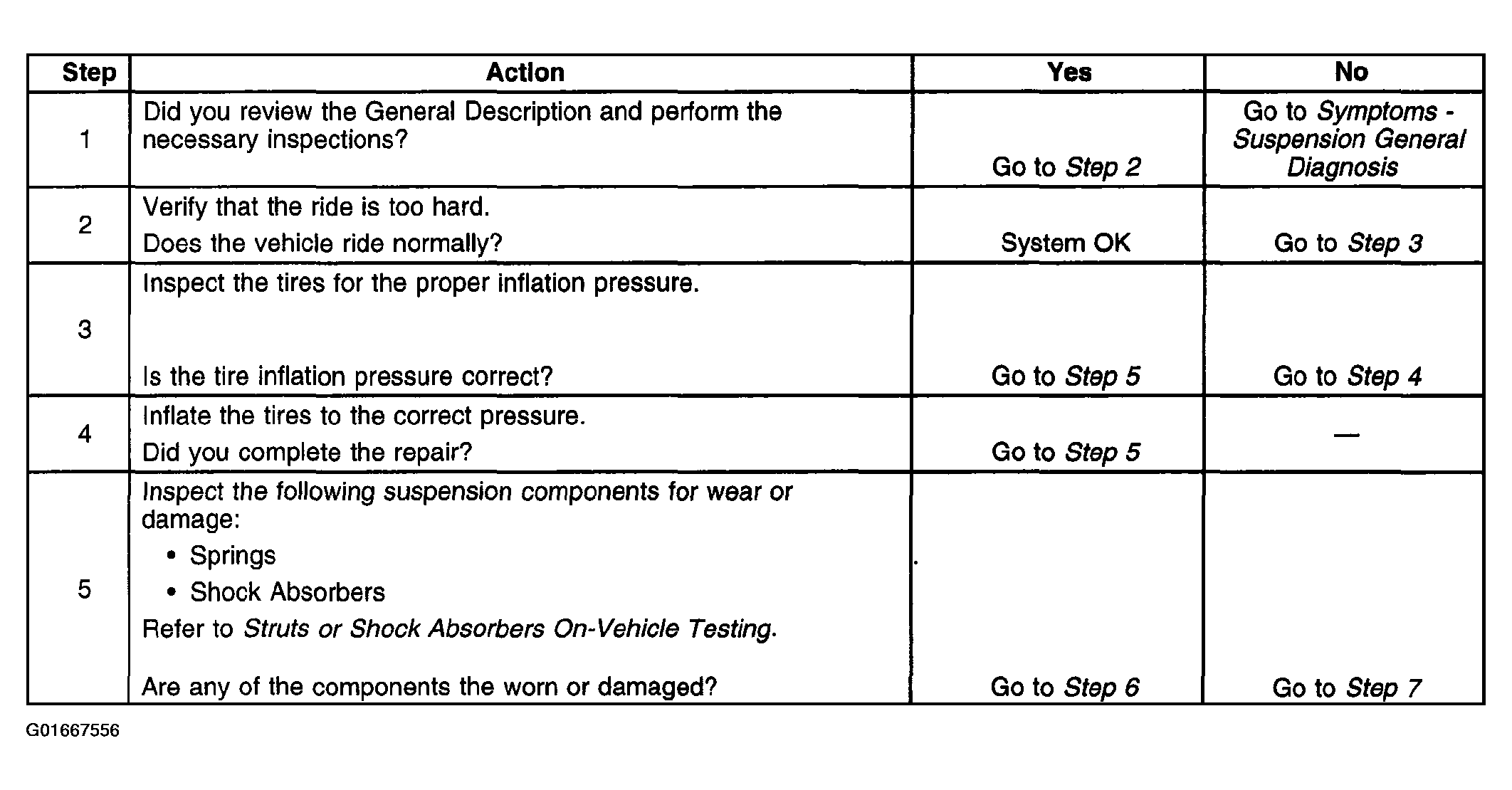

Fig 1: Ride Diagnosis - Too Hard Diagnosis (Steps 1-5)

G01667556

Courtesy of GENERAL MOTORS CORP.

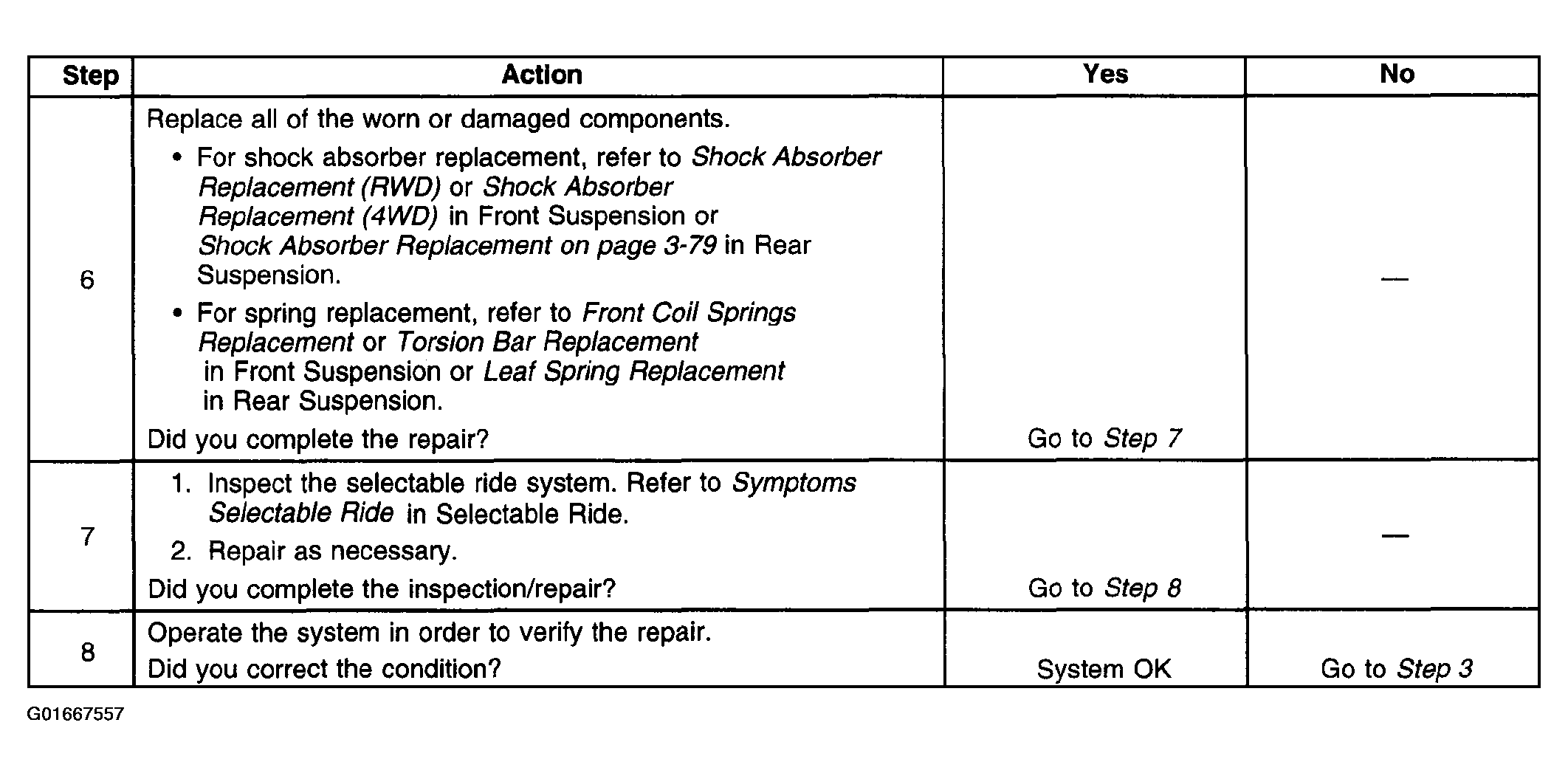

Fig 2: Ride Diagnosis - Too Hard Diagnosis (Steps 6-7)

G01667557

Courtesy of GENERAL MOTORS CORP.
