Fuel Injection Control Module Installation

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fuel injection control module bracket.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fuel injection control module bracket bolts.

    Tighten:  Tighten the fuel injection control module bracket bolts to 21 N.m (15 lb ft).

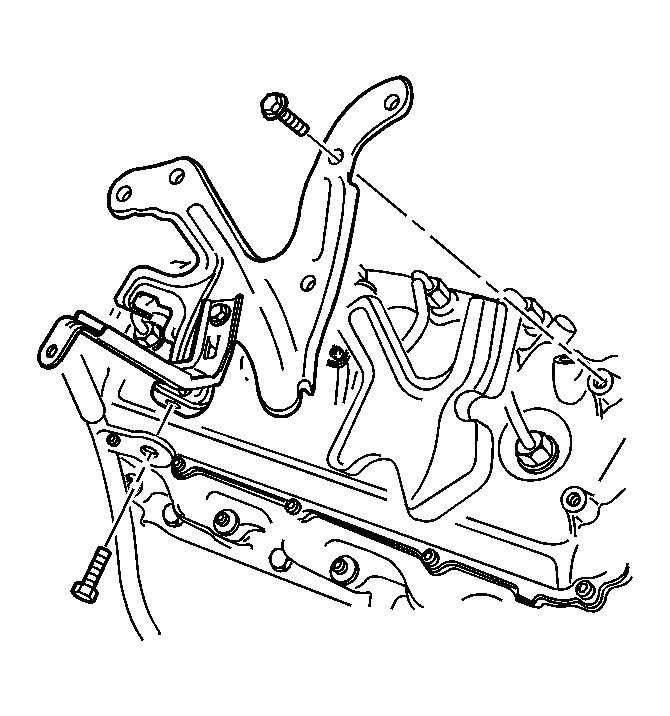

    3. Fig 1: View Of Fuel Injection Control Module Bracket
    GM660361Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel injection control module (6) with mounting insulators (2).
  4. Install the fuel injection control module bolts (5).

    Tighten:  Tighten the fuel injection control module bolts to 20 N.m (14 lb ft).

  5. Install the eye bolts (4), washers and spacers to the fuel injection control module cooling hoses (3).

    Lubricate the washers with diesel fuel before installing.

    Tighten:  Tighten the eye bolts to 34 N.m (25 lb ft).

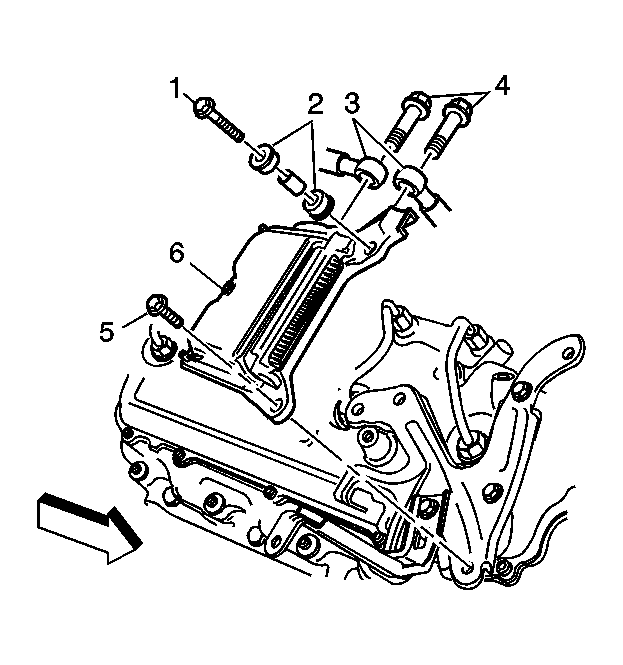

    6. Fig 2: View Of Fuel Injection Control Module & Bolts
    GM660358Courtesy of GENERAL MOTORS CORP.
