Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the engine oil drain plug and drain the engine oil.

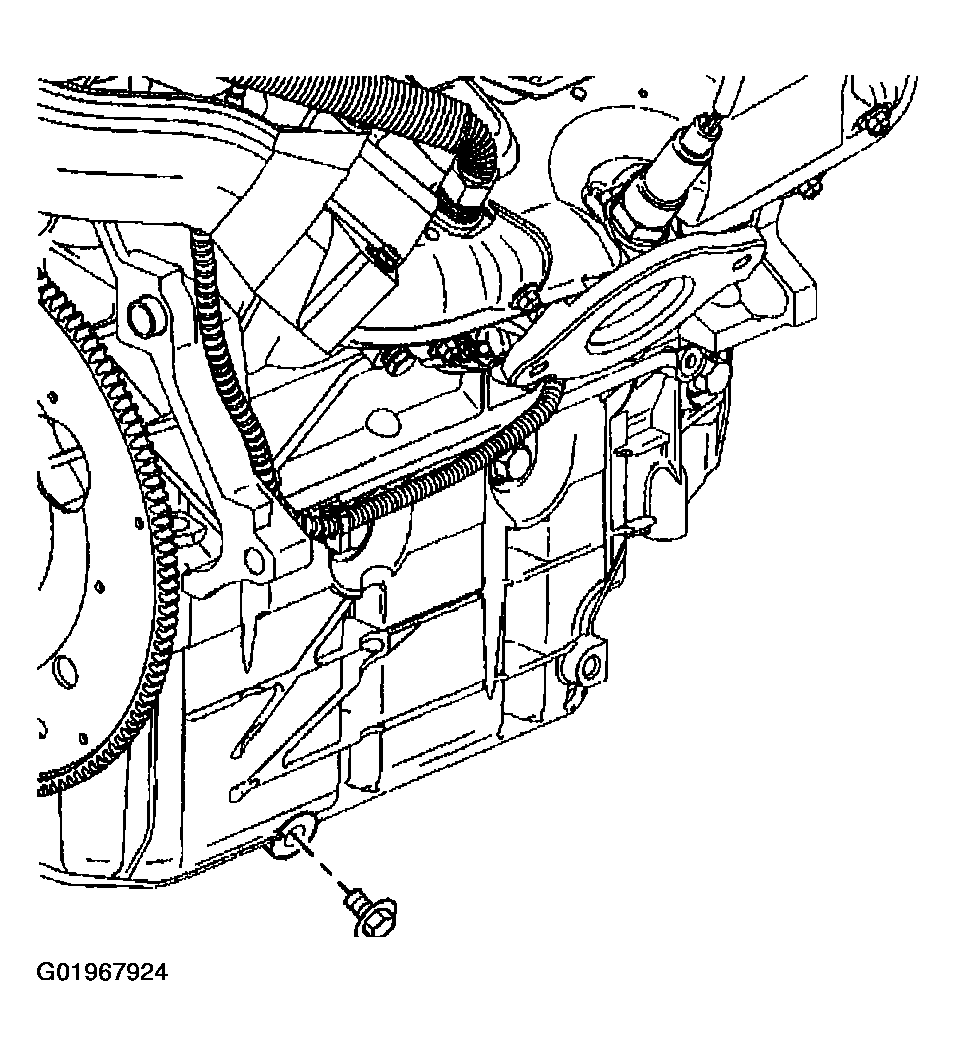

    Fig 1: Removing Engine Oil Drain Plug
    G01967924Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the engine oil level sensor electrical connector.

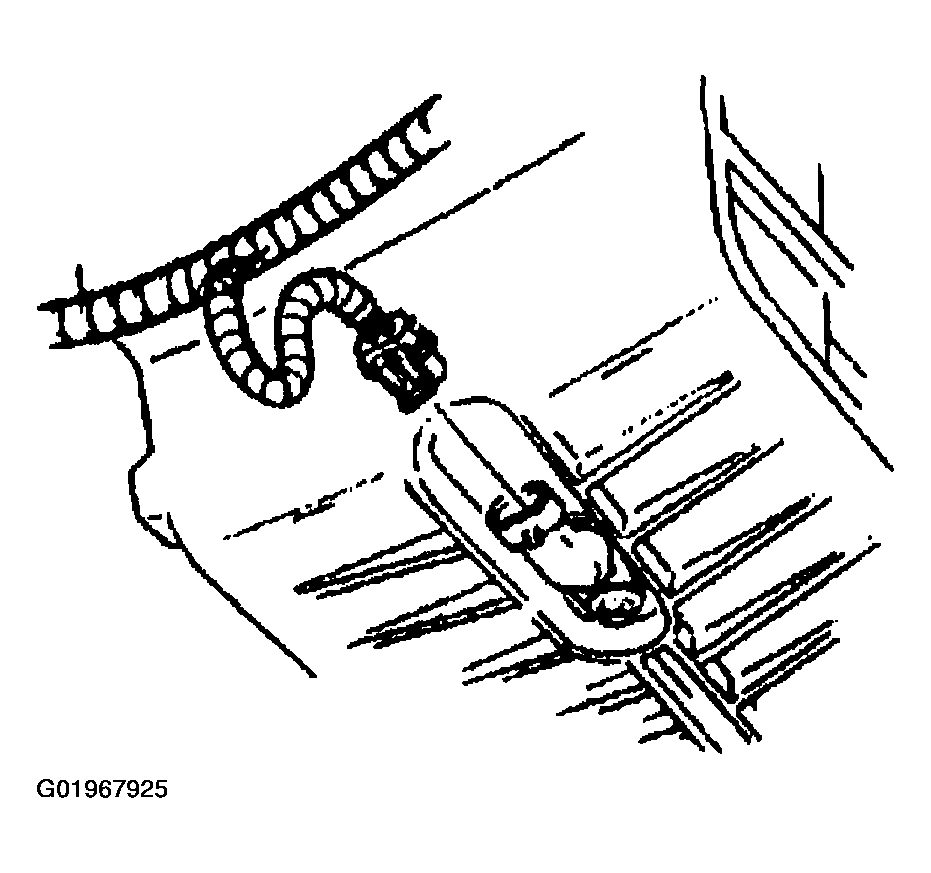

    Fig 2: Disconnecting Engine Oil Level Sensor Electrical Connector
    G01967925Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt from the engine oil level sensor.
  5. Remove the engine oil level sensor from the oil pan.
