Disassembled Views

WARNING: This page is about a different car, the 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

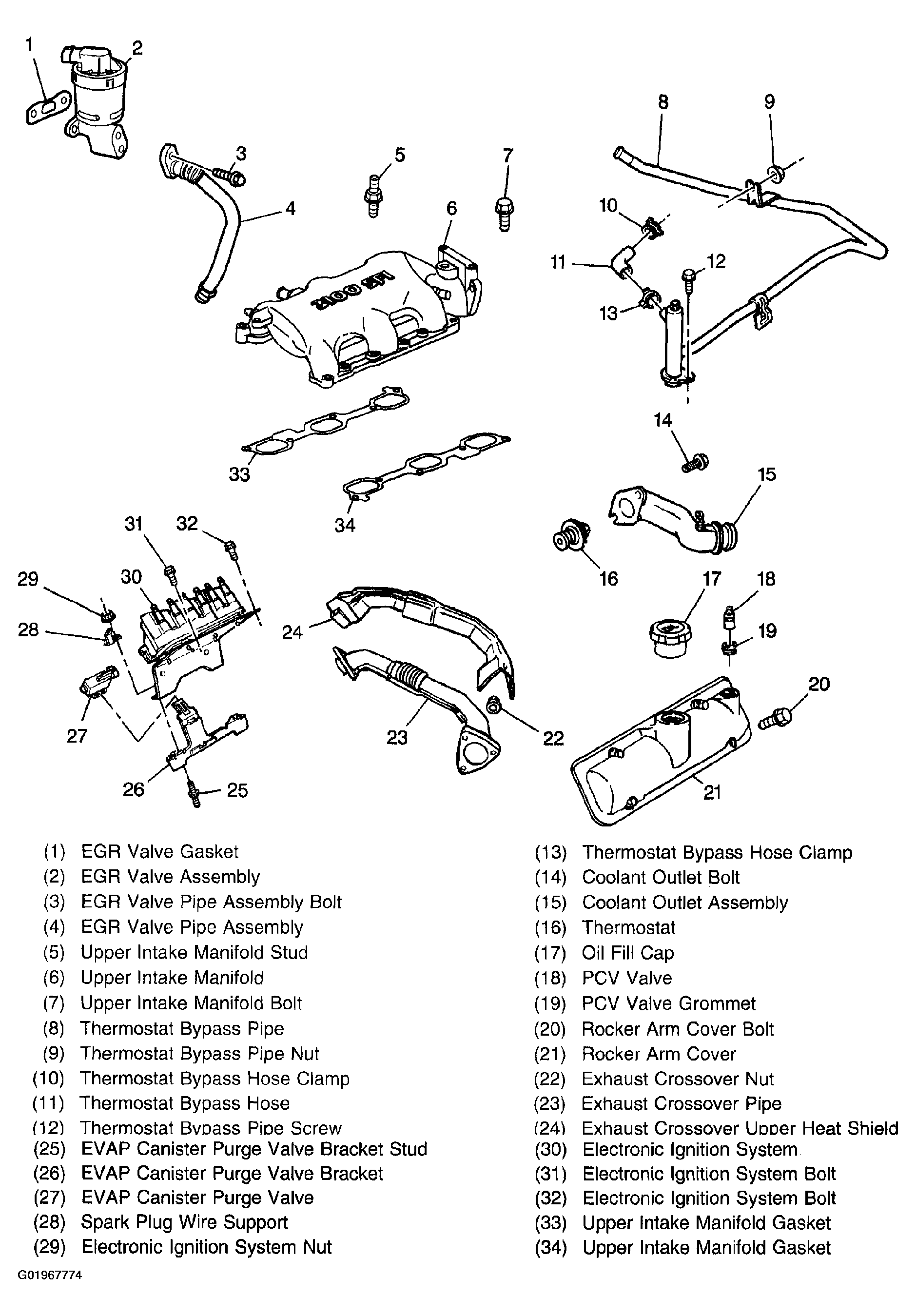

Fig 1: Exploded View Of Upper Intake Manifold & Components

Courtesy of GENERAL MOTORS CORP.

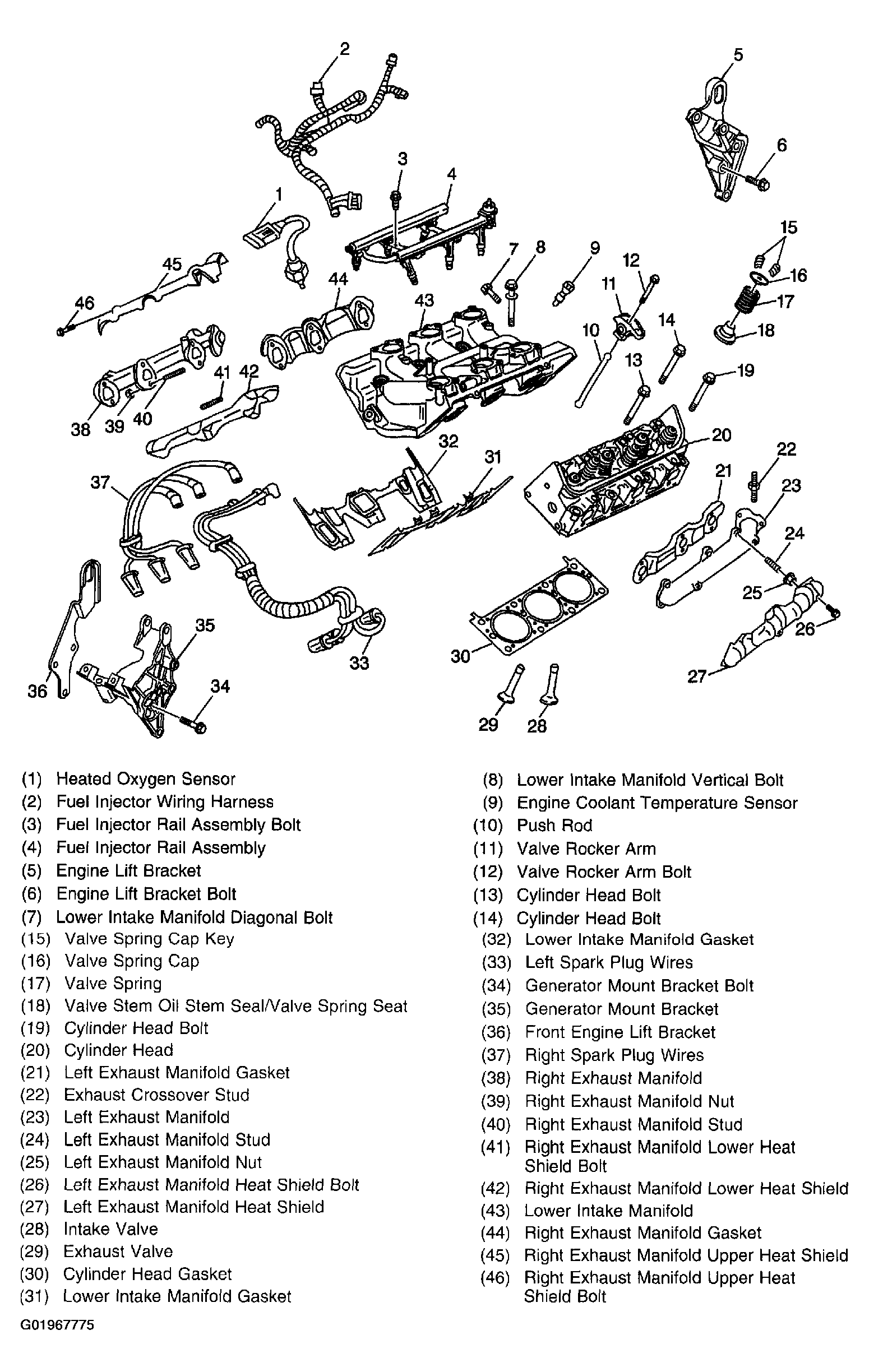

Fig 2: Exploded View Of Lower Intake Manifold, Cylinder Head, & Components

Courtesy of GENERAL MOTORS CORP.

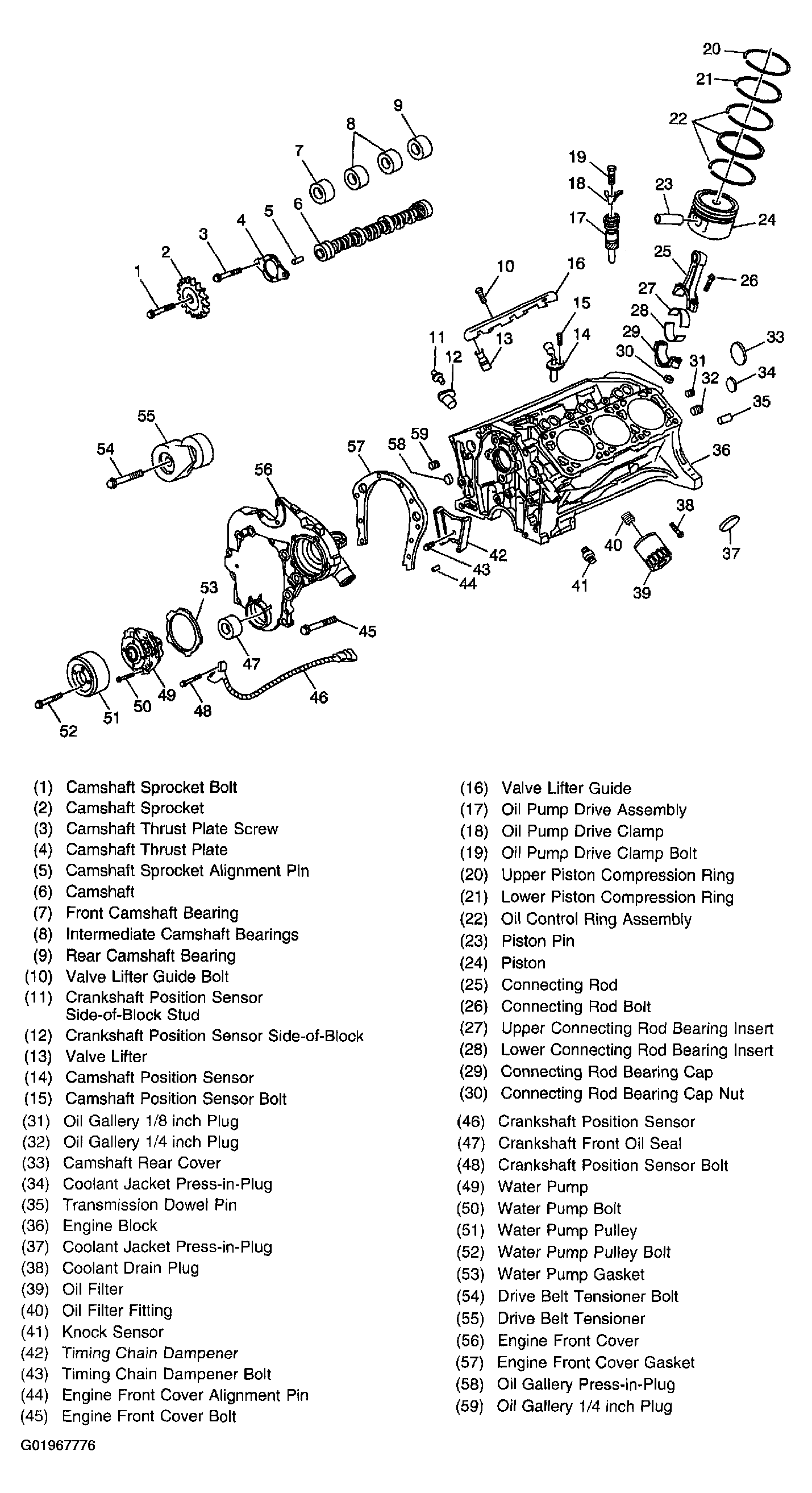

Fig 3: Exploded View Of Engine Block & Components

Courtesy of GENERAL MOTORS CORP.

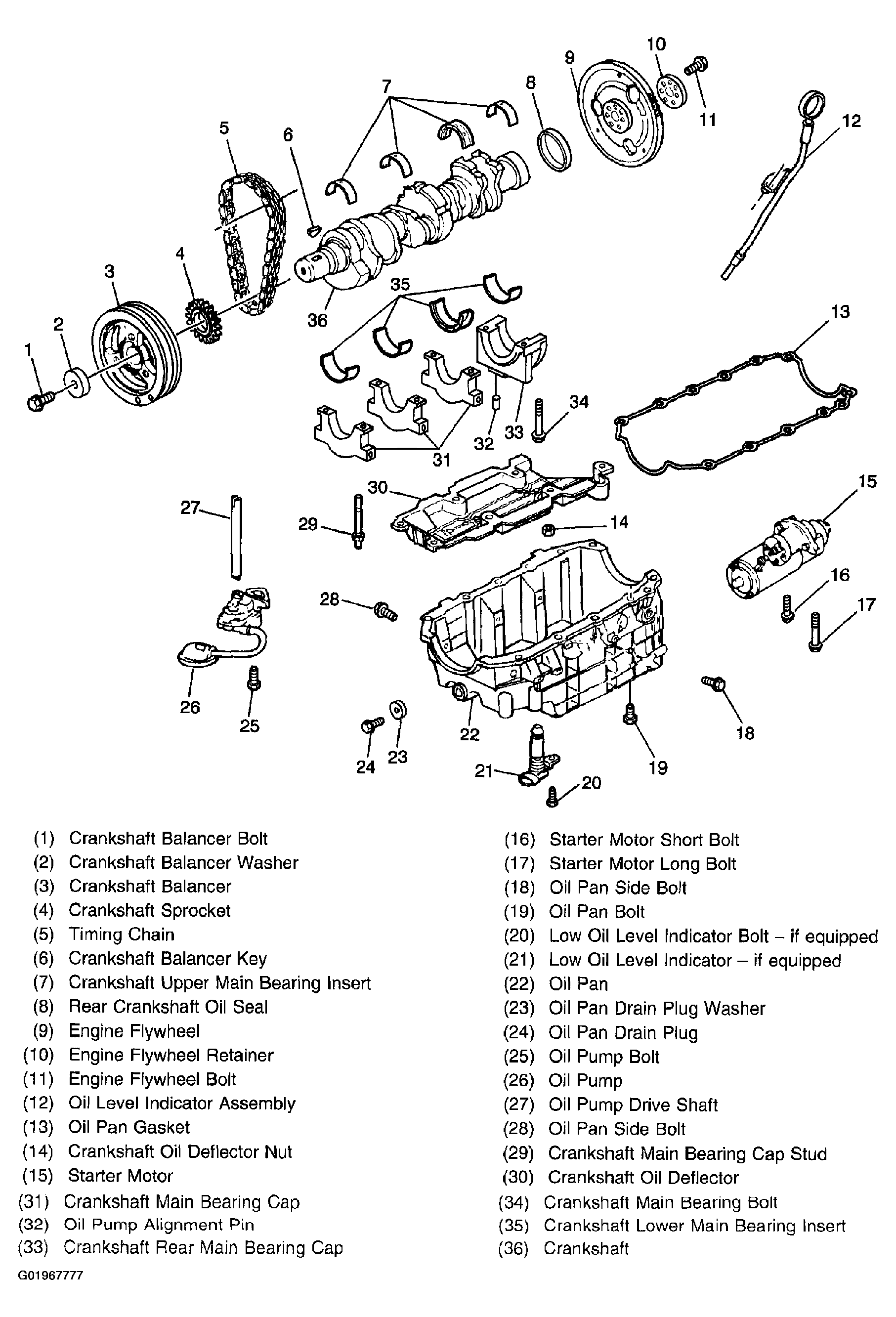

Fig 4: Exploded View Of Crankshaft & Components

Courtesy of GENERAL MOTORS CORP.
