Connector Identification

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2003 Hummer H2, 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 GMC Sierra, and 2003 GMC Cab & Chassis Sierra. However, it is still accessible from the selected car via links, so may be relevant.

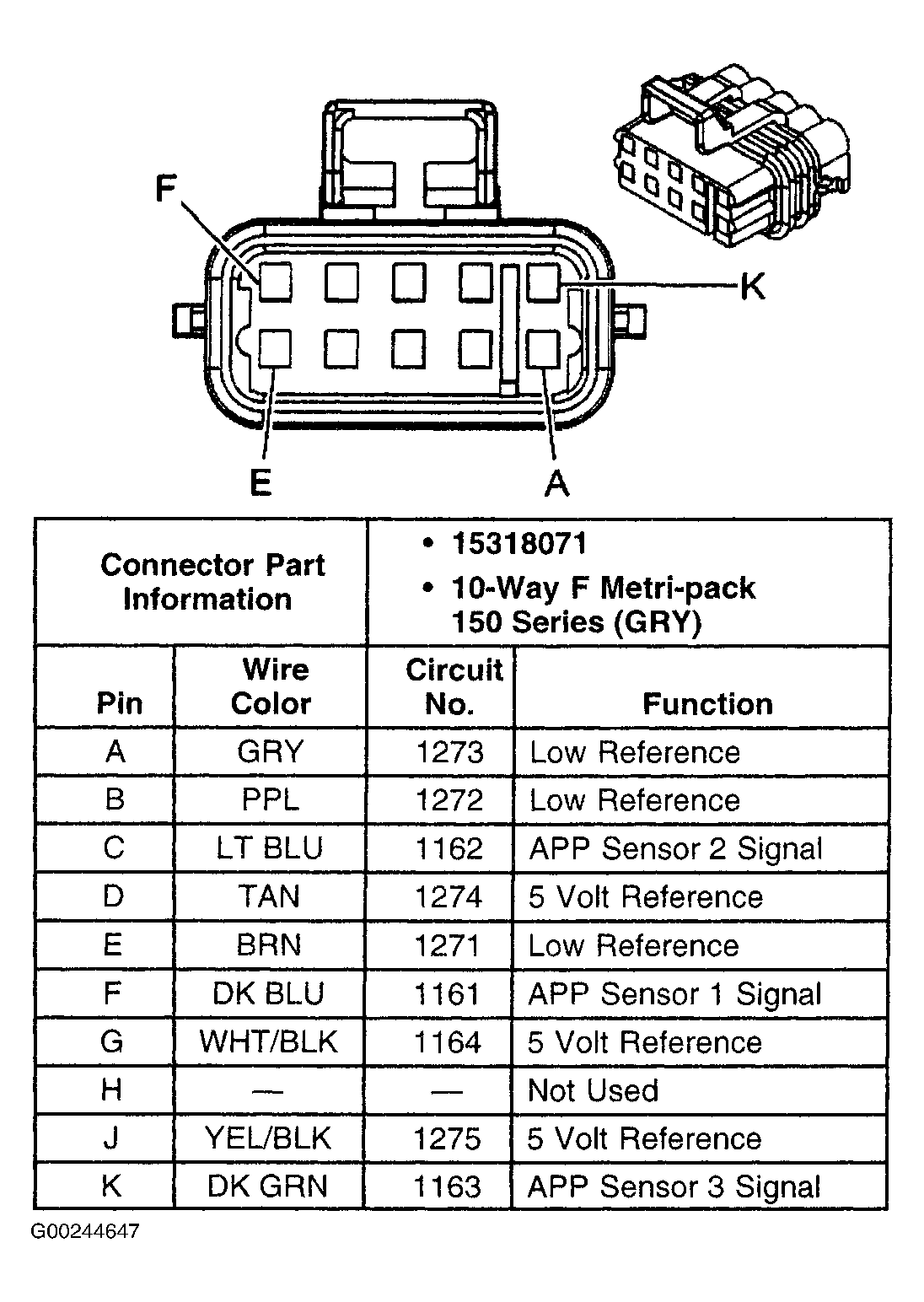

Fig 1: Identifying Accelerator Pedal Position Sensor Connector Terminals (Except Hummer H2)
G00244647Courtesy of GENERAL MOTORS CORP.

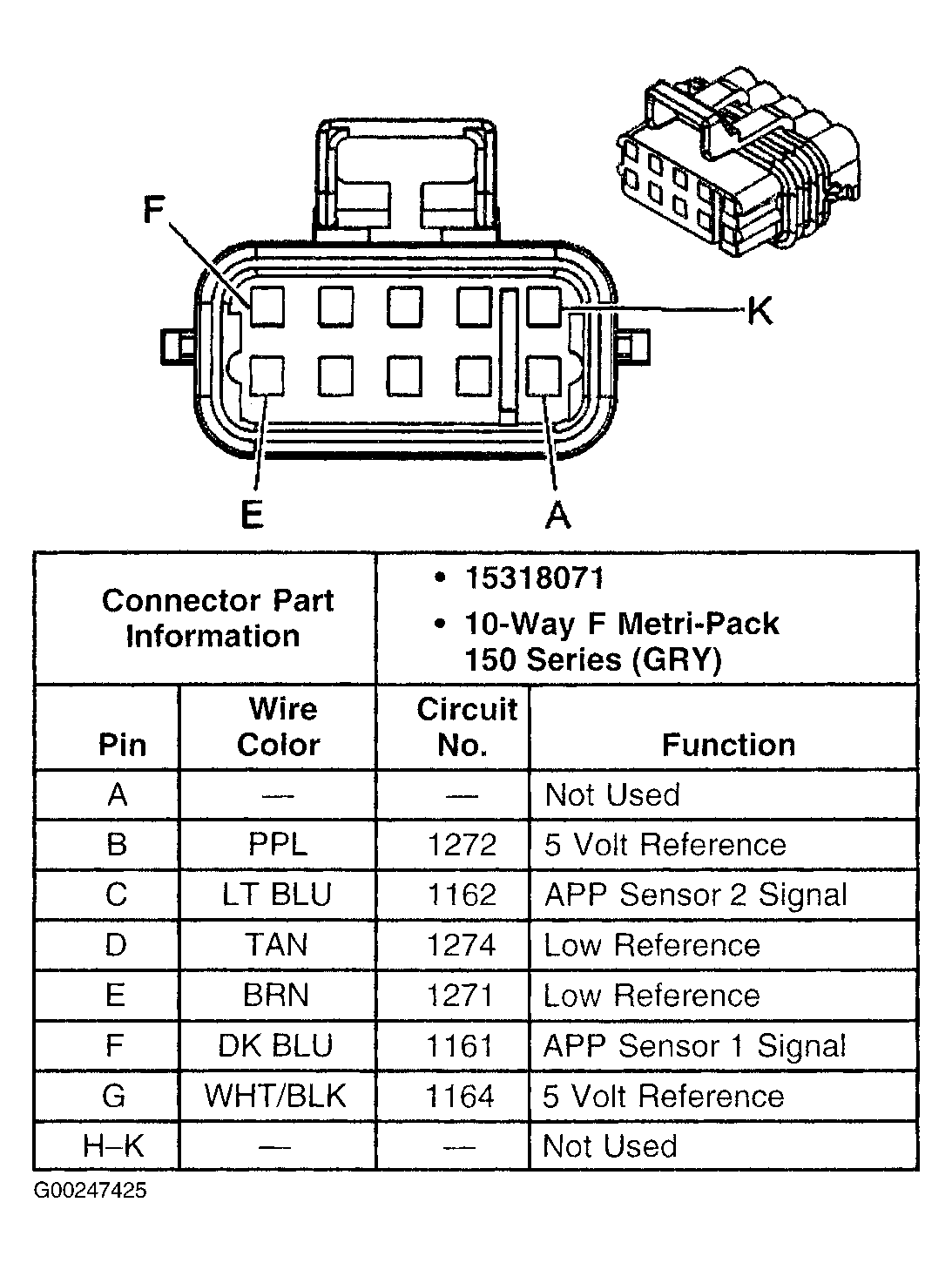

Fig 2: Identifying Accelerator Pedal Position Sensor Connector Terminals (Hummer H2)
G00247425Courtesy of GENERAL MOTORS CORP.

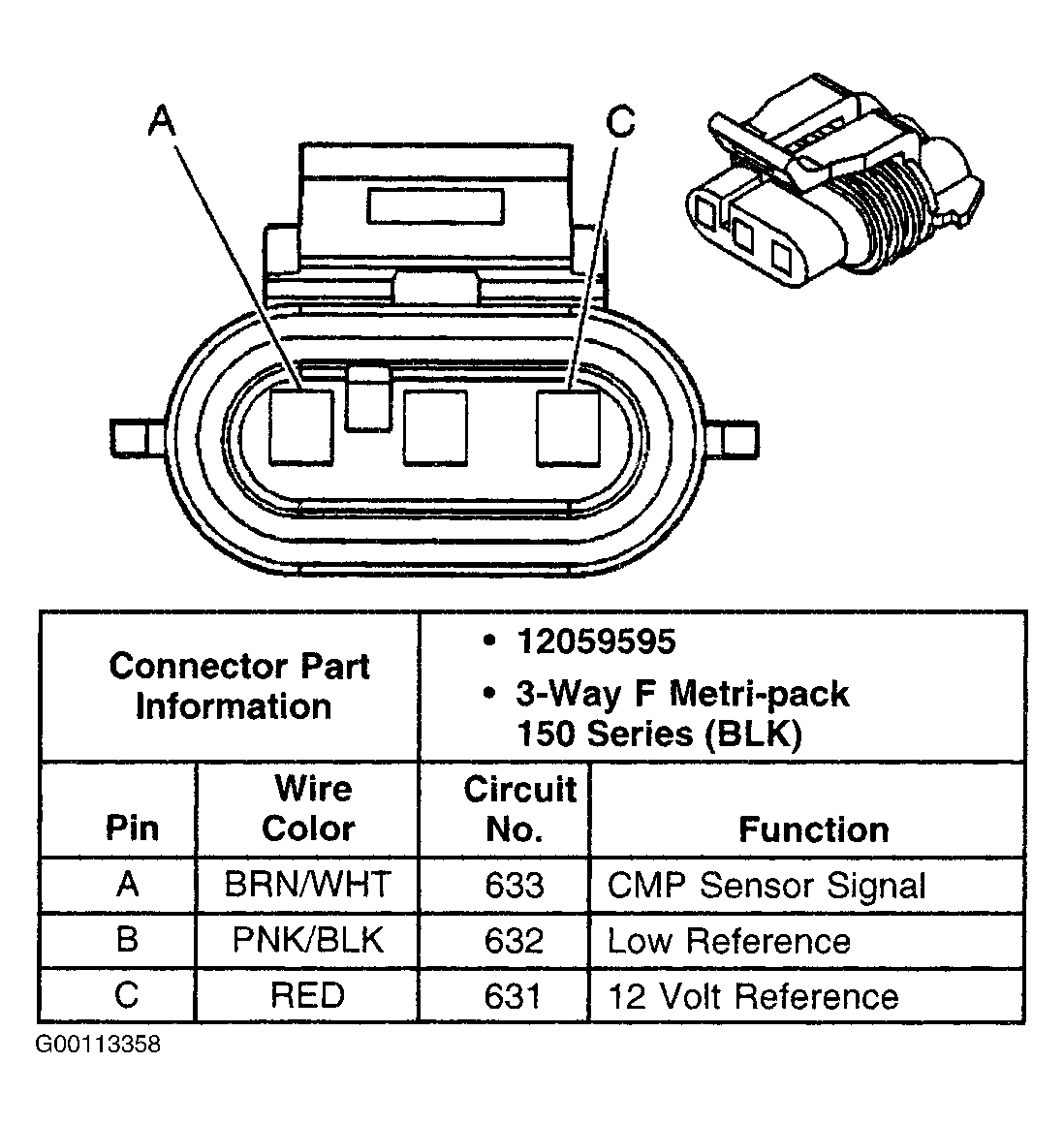

Fig 3: Identifying Camshaft Position Sensor Connector Terminals
G00113358Courtesy of GENERAL MOTORS CORP.

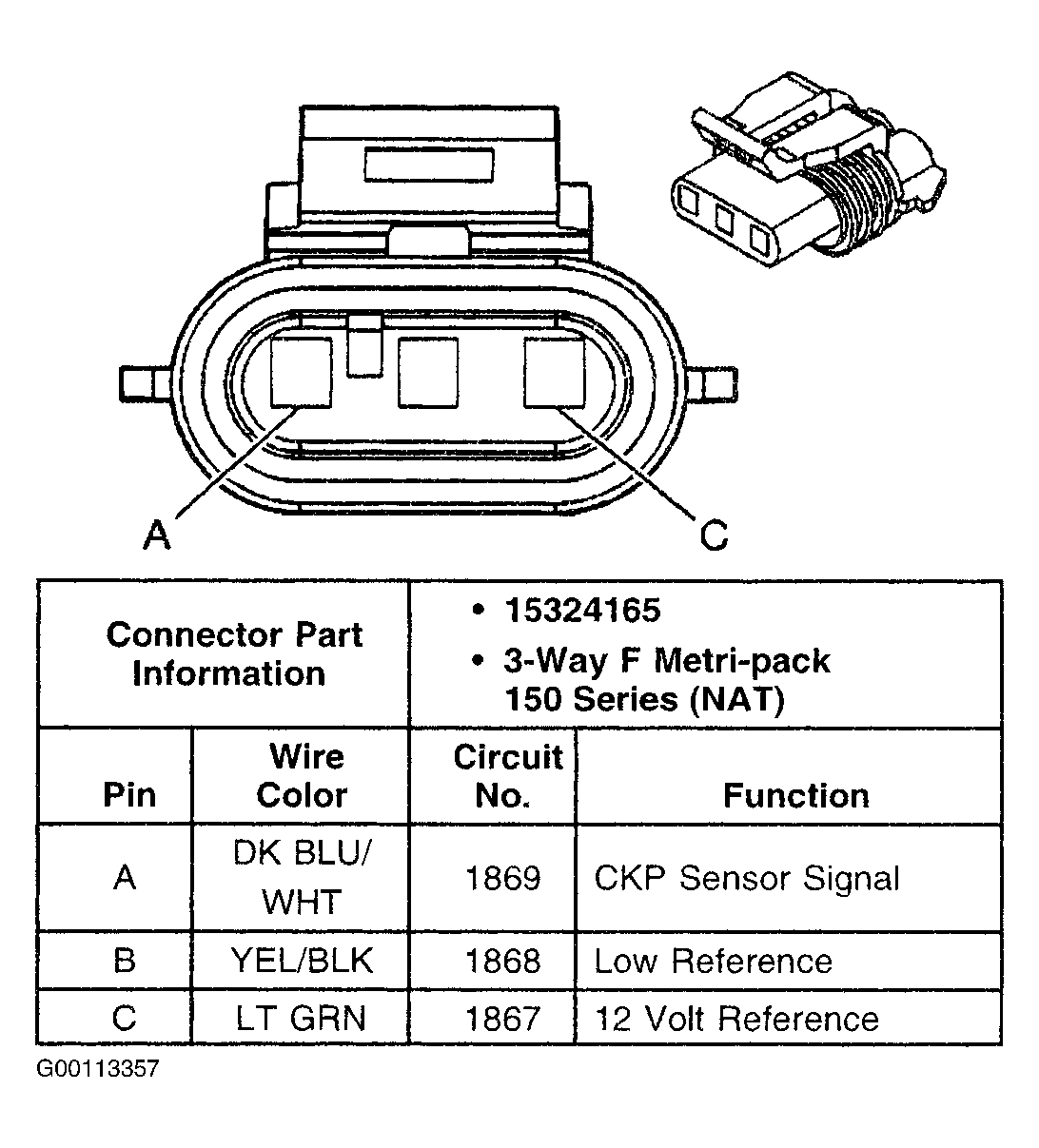

Fig 4: Identifying Crankshaft Position Sensor Connector Terminals
G00113357Courtesy of GENERAL MOTORS CORP.

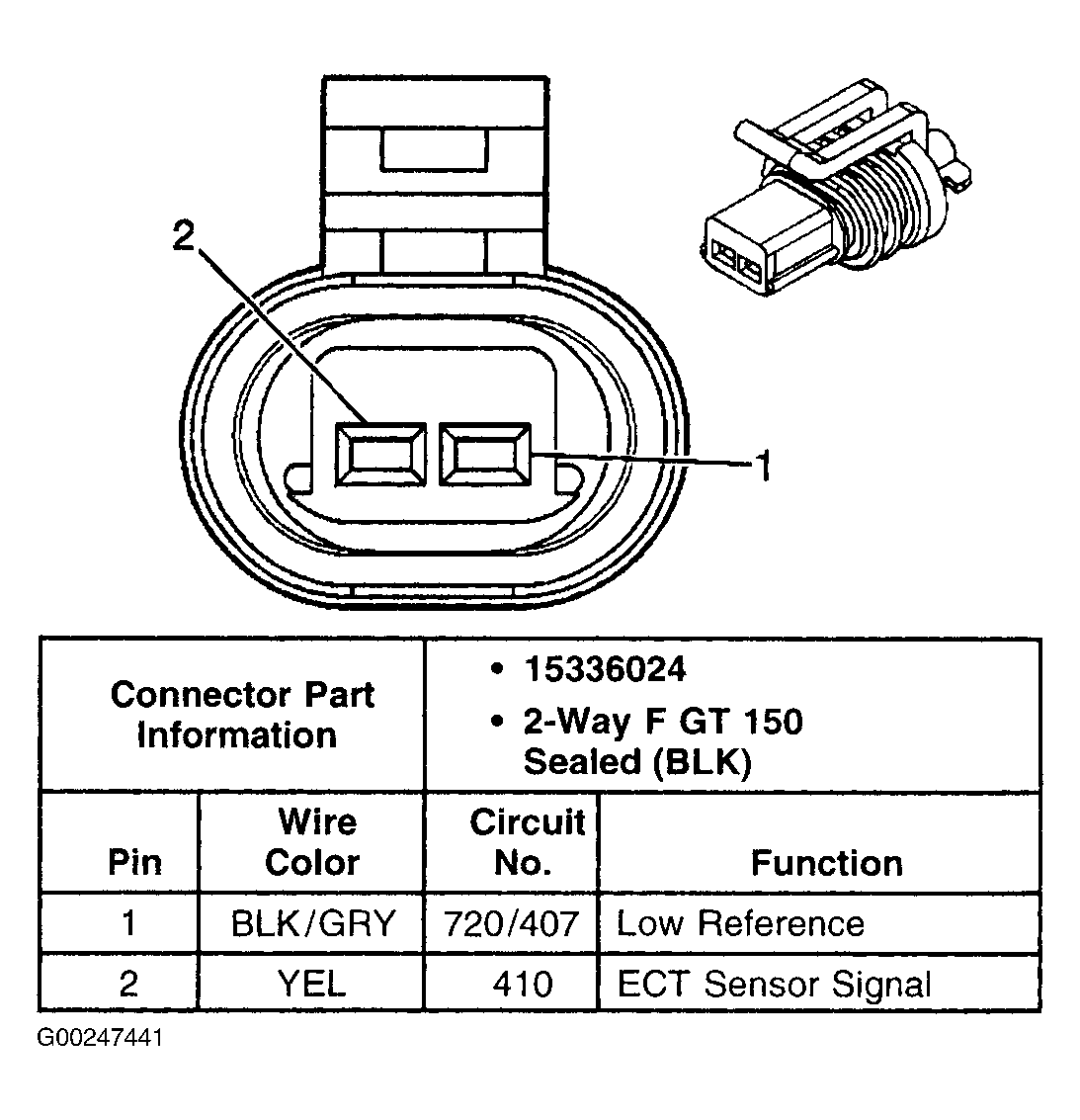

Fig 5: Locating Engine Coolant Temperature Sensor Connector Terminals
G00247441Courtesy of GENERAL MOTORS CORP.

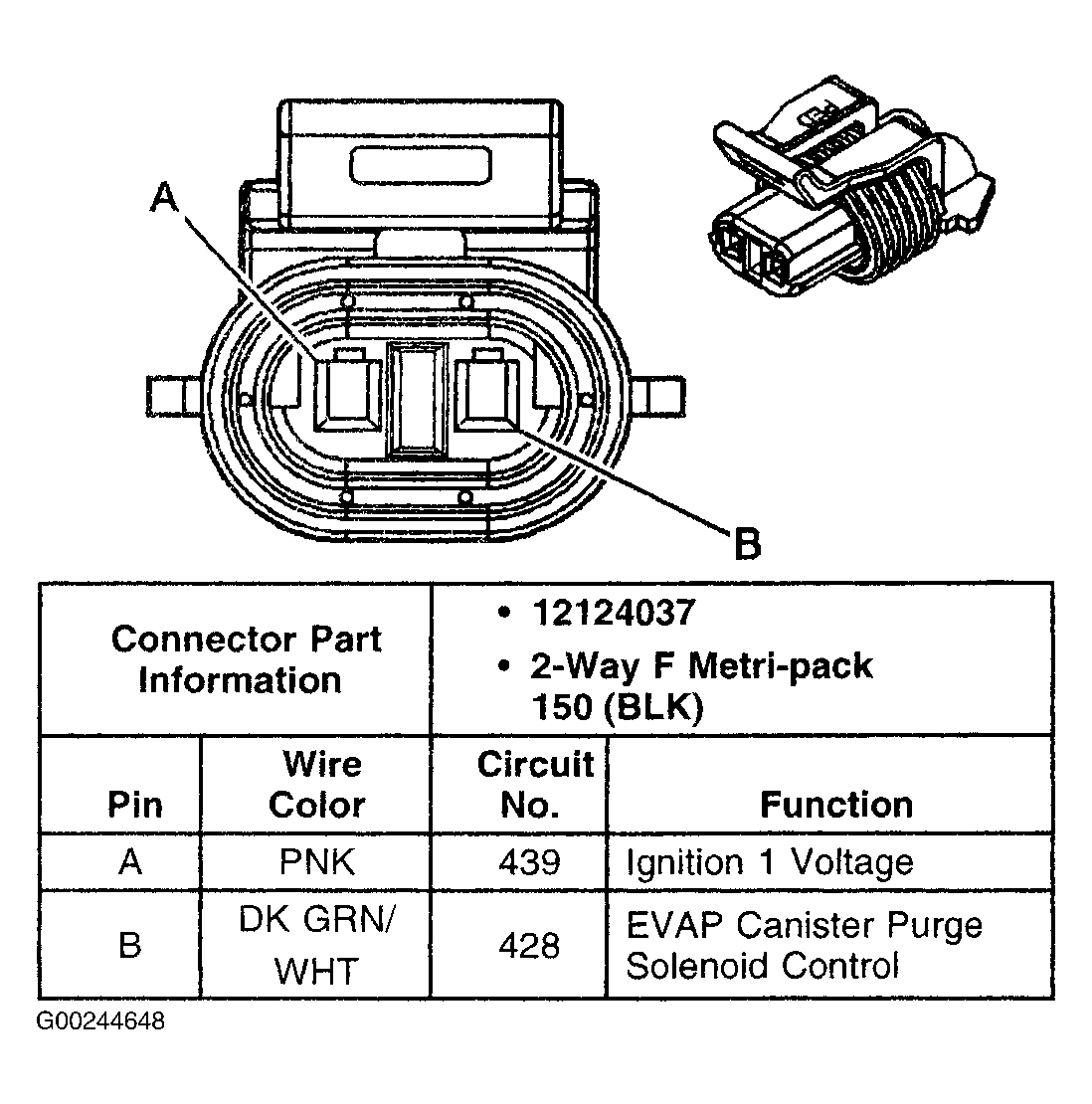

Fig 6: Identifying EVAP Canister Purge Solenoid Connector Terminals
G00244648Courtesy of GENERAL MOTORS CORP.

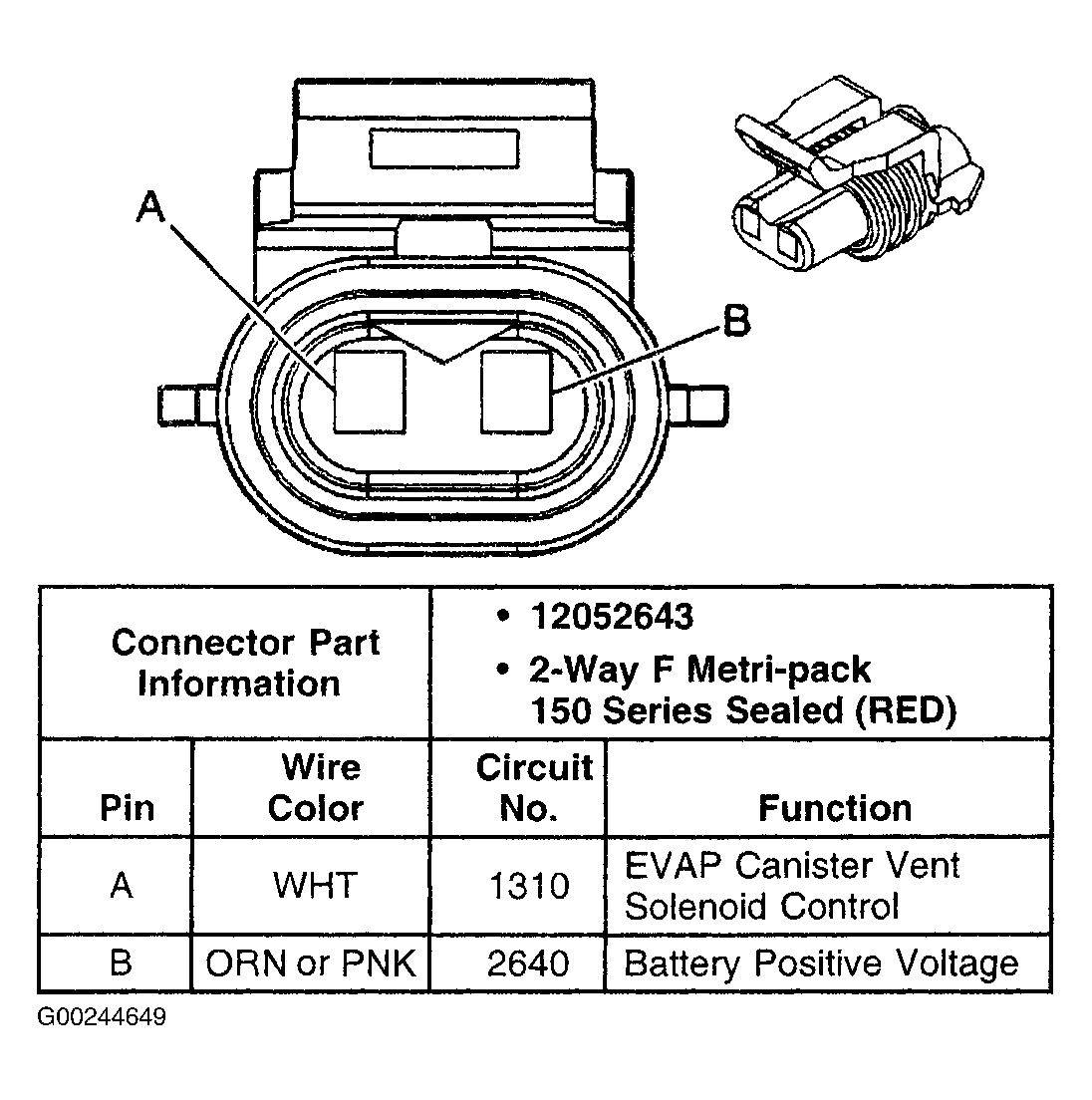

Fig 7: Identifying EVAP Canister Vent Solenoid Connector Terminals
G00244649Courtesy of GENERAL MOTORS CORP.

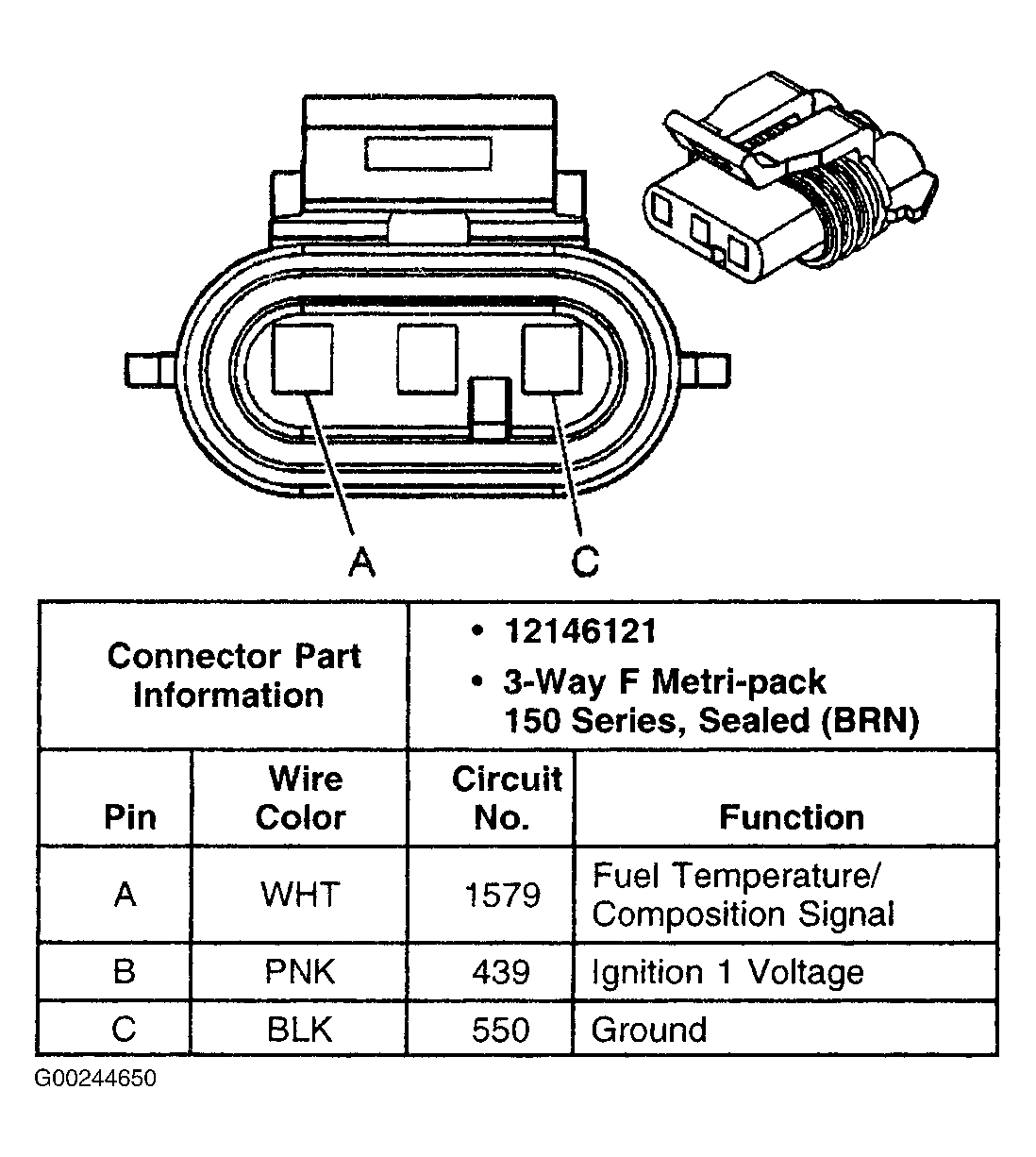

Fig 8: Identifying Fuel Composition Sensor Connector Terminals (5.3L Flex-Fuel)
G00244650Courtesy of GENERAL MOTORS CORP.

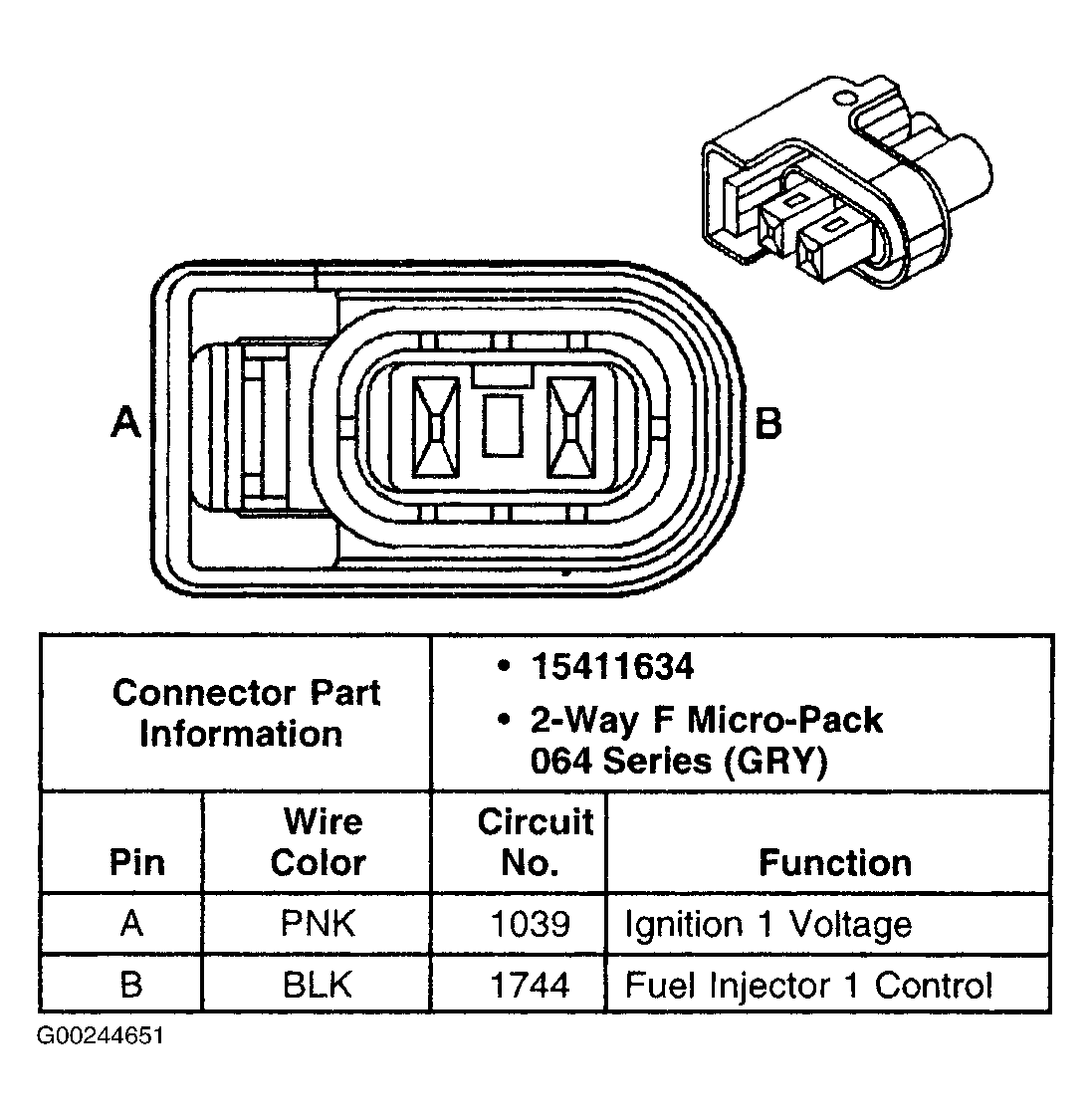

Fig 9: Identifying Fuel Injector 1 Connector Terminals (Except 5.3L Flex-Fuel)
G00244651Courtesy of GENERAL MOTORS CORP.

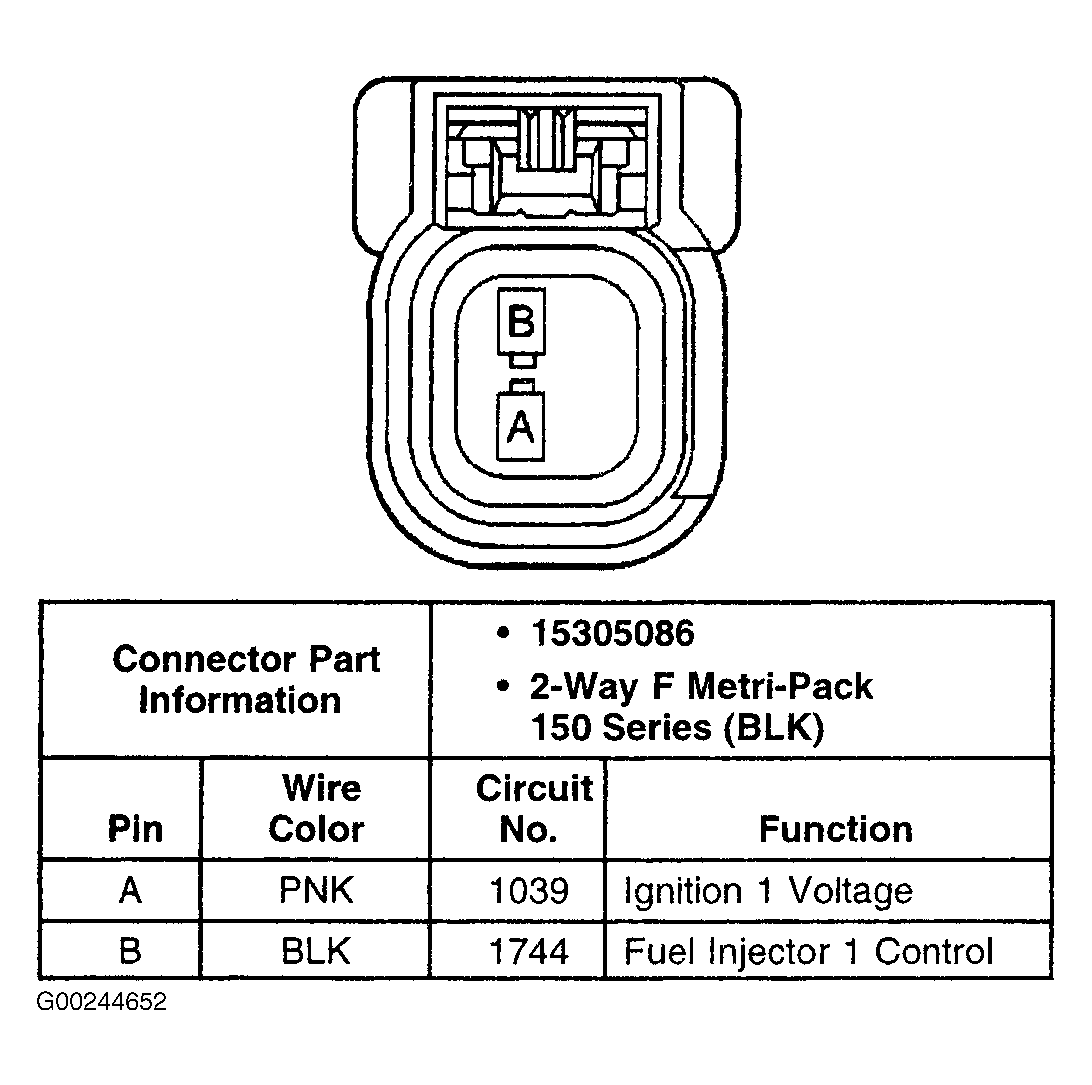

Fig 10: Identifying Fuel Injector 1 Connector Terminals (5.3L Flex-Fuel)
G00244652Courtesy of GENERAL MOTORS CORP.

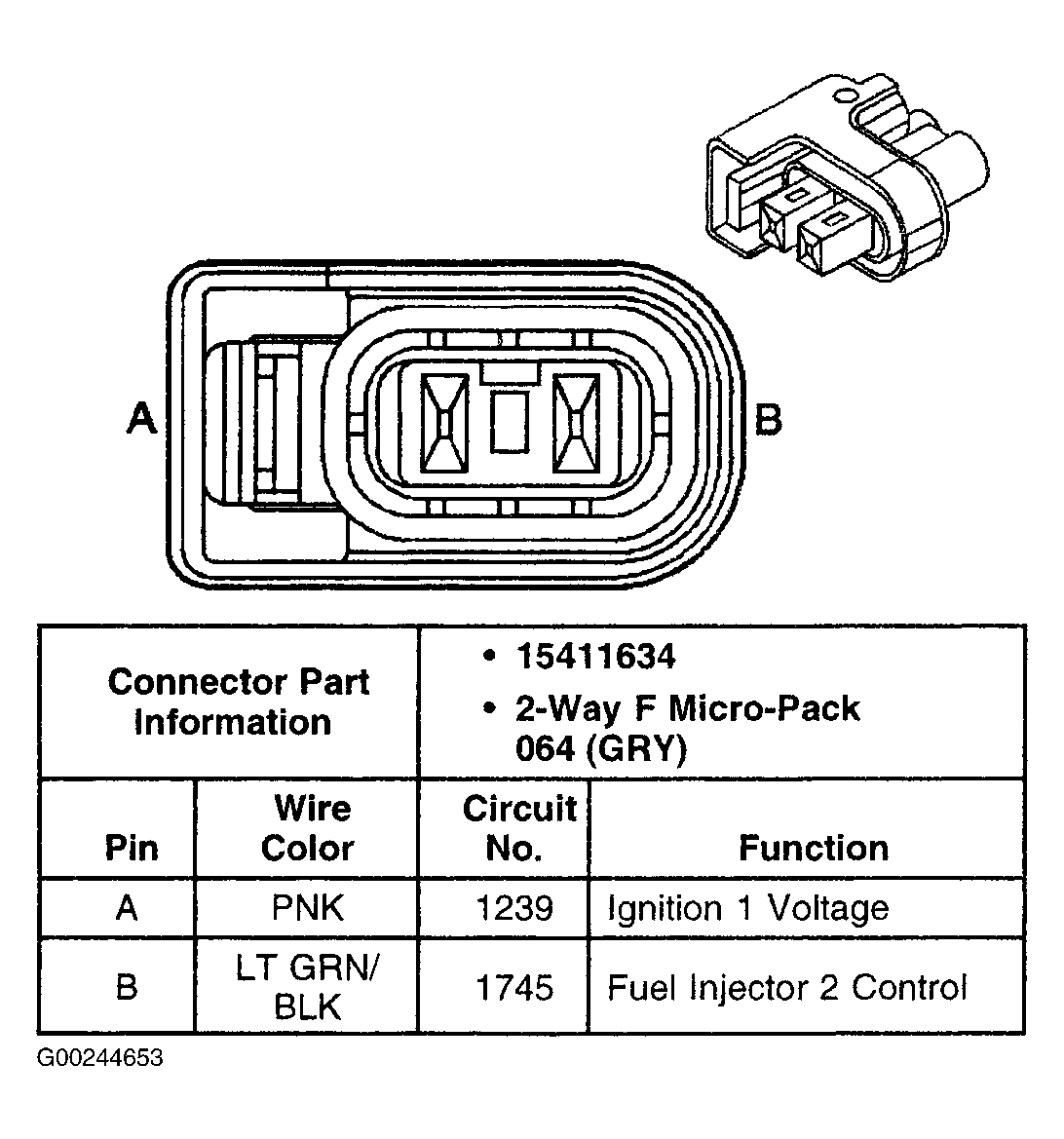

Fig 11: Identifying Fuel Injector 2 Connector Terminals (Except 5.3L Flex-Fuel)
G00244653Courtesy of GENERAL MOTORS CORP.

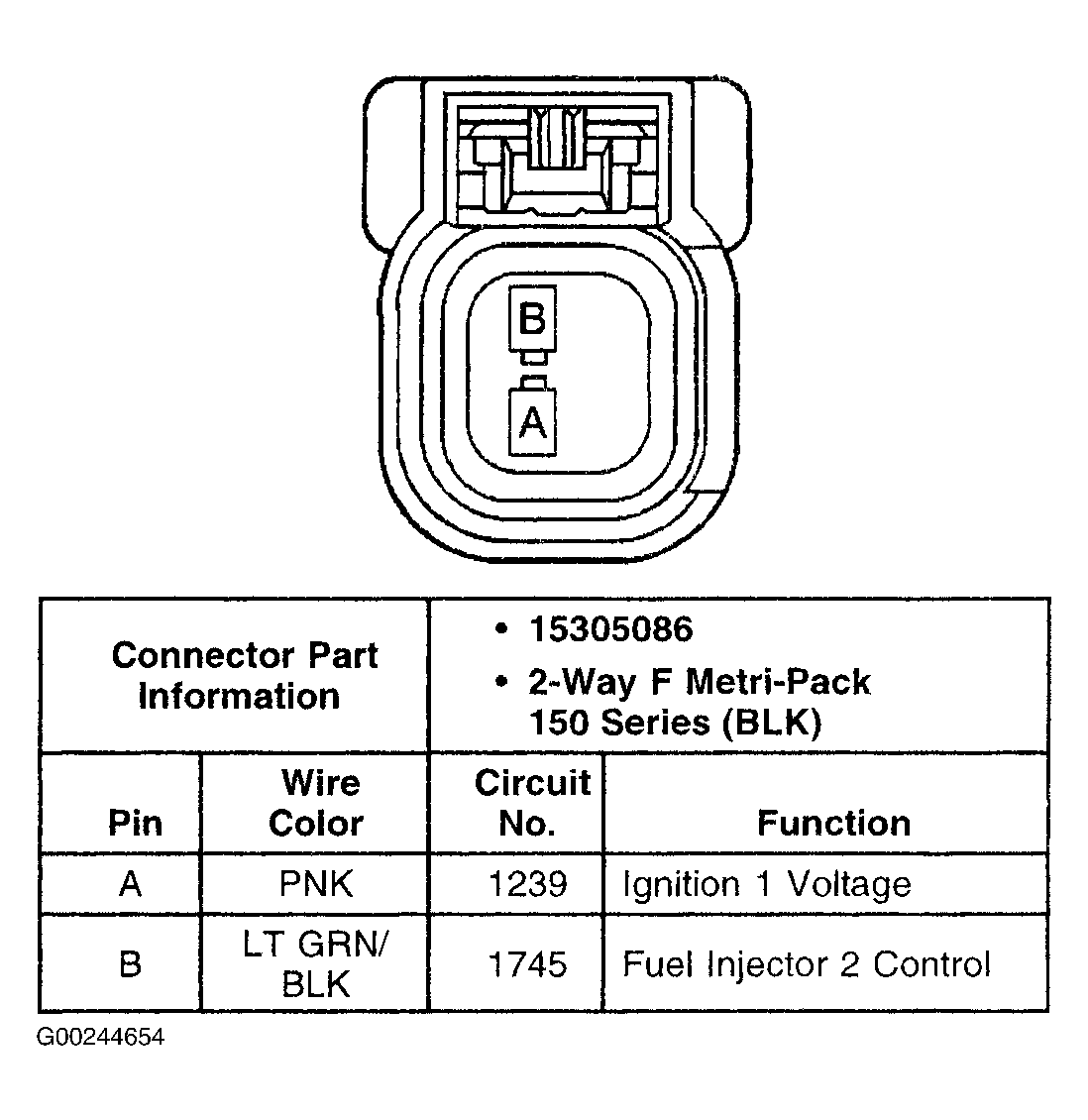

Fig 12: Identifying Fuel Injector 2 Connector Terminals (5.3L Flex-Fuel)
G00244654Courtesy of GENERAL MOTORS CORP.

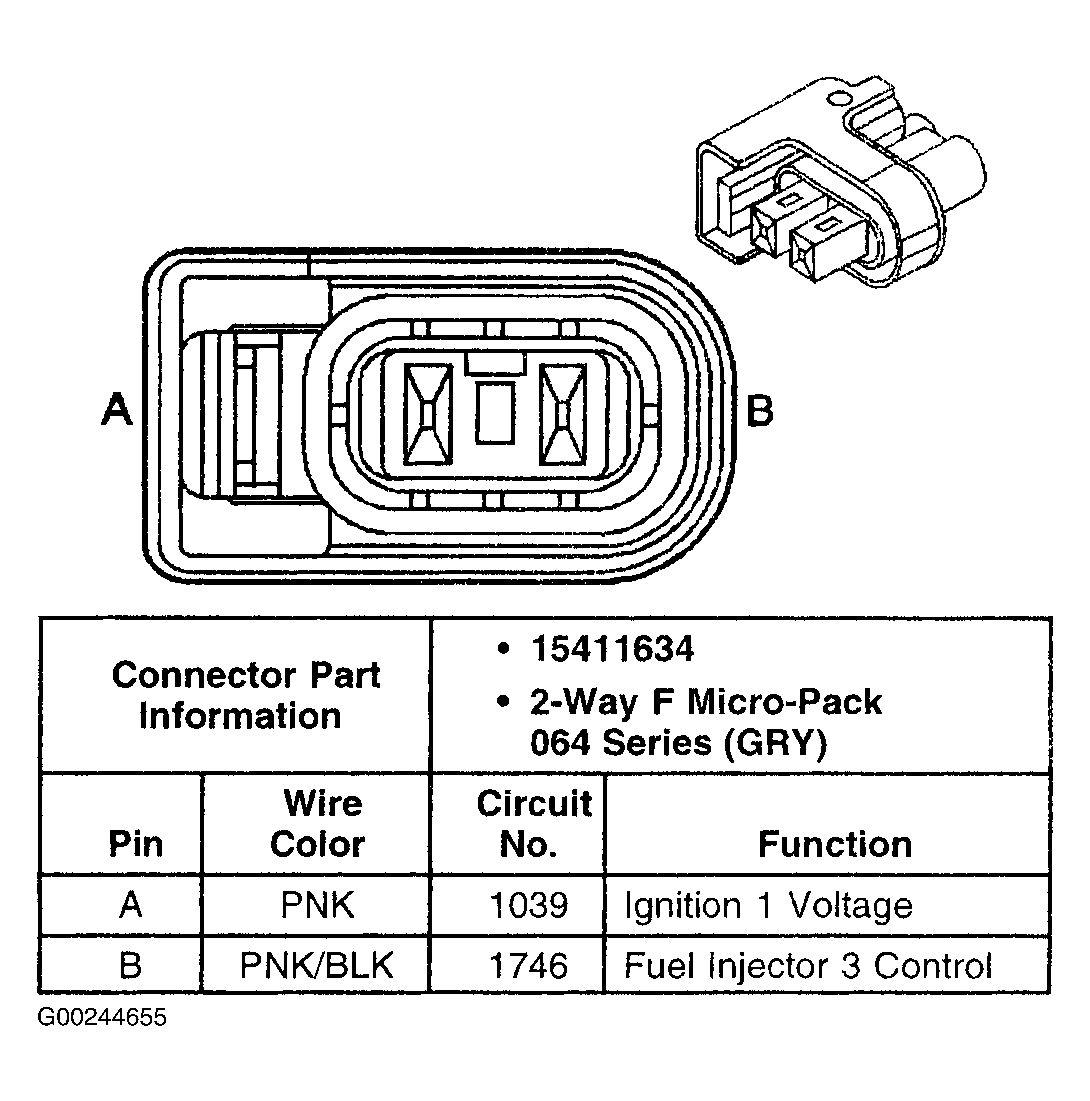

Fig 13: Identifying Fuel Injector 3 Connector Terminals (Except 5.3L Flex-Fuel)
G00244655Courtesy of GENERAL MOTORS CORP.

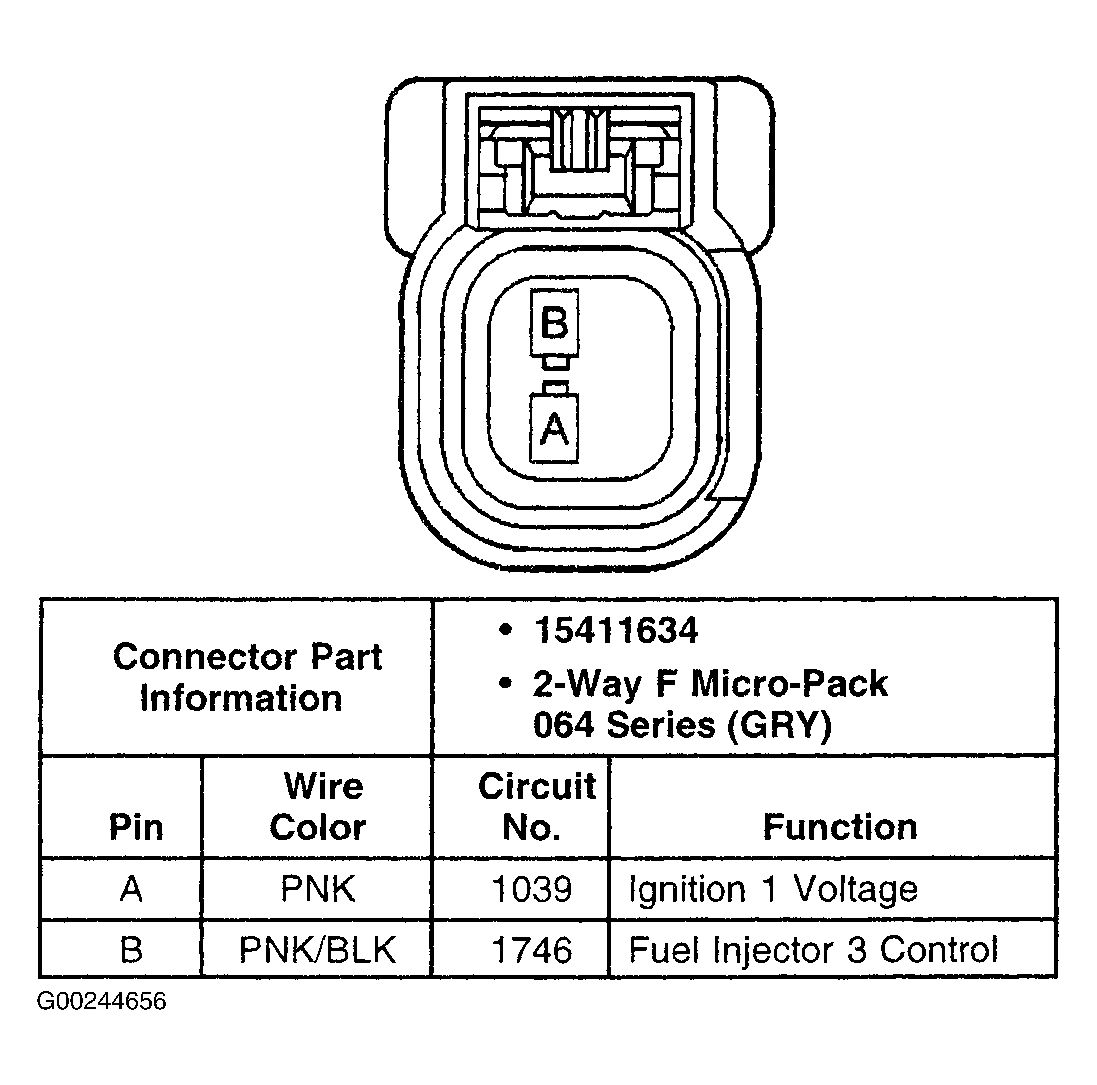

Fig 14: Identifying Fuel Injector 3 Connector Terminals (5.3L Flex-Fuel)
G00244656Courtesy of GENERAL MOTORS CORP.
Fig 15: Identifying Fuel Injector 4 Connector Terminals (Except 5.3L Flex-Fuel)
G00244657Courtesy of GENERAL MOTORS CORP.

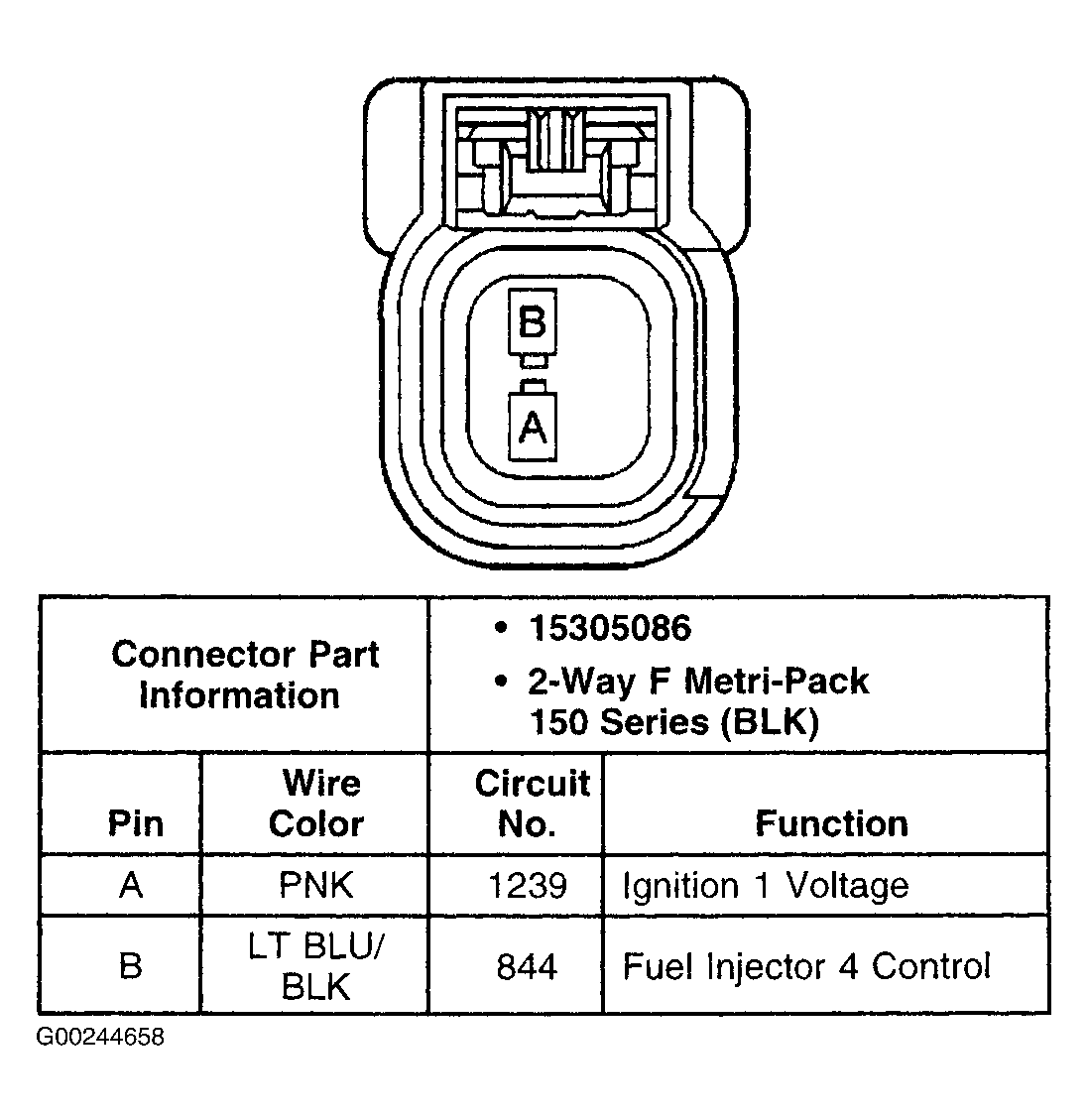

Fig 16: Identifying Fuel Injector 4 Connector Terminals (5.3L Flex-Fuel)
G00244658Courtesy of GENERAL MOTORS CORP.

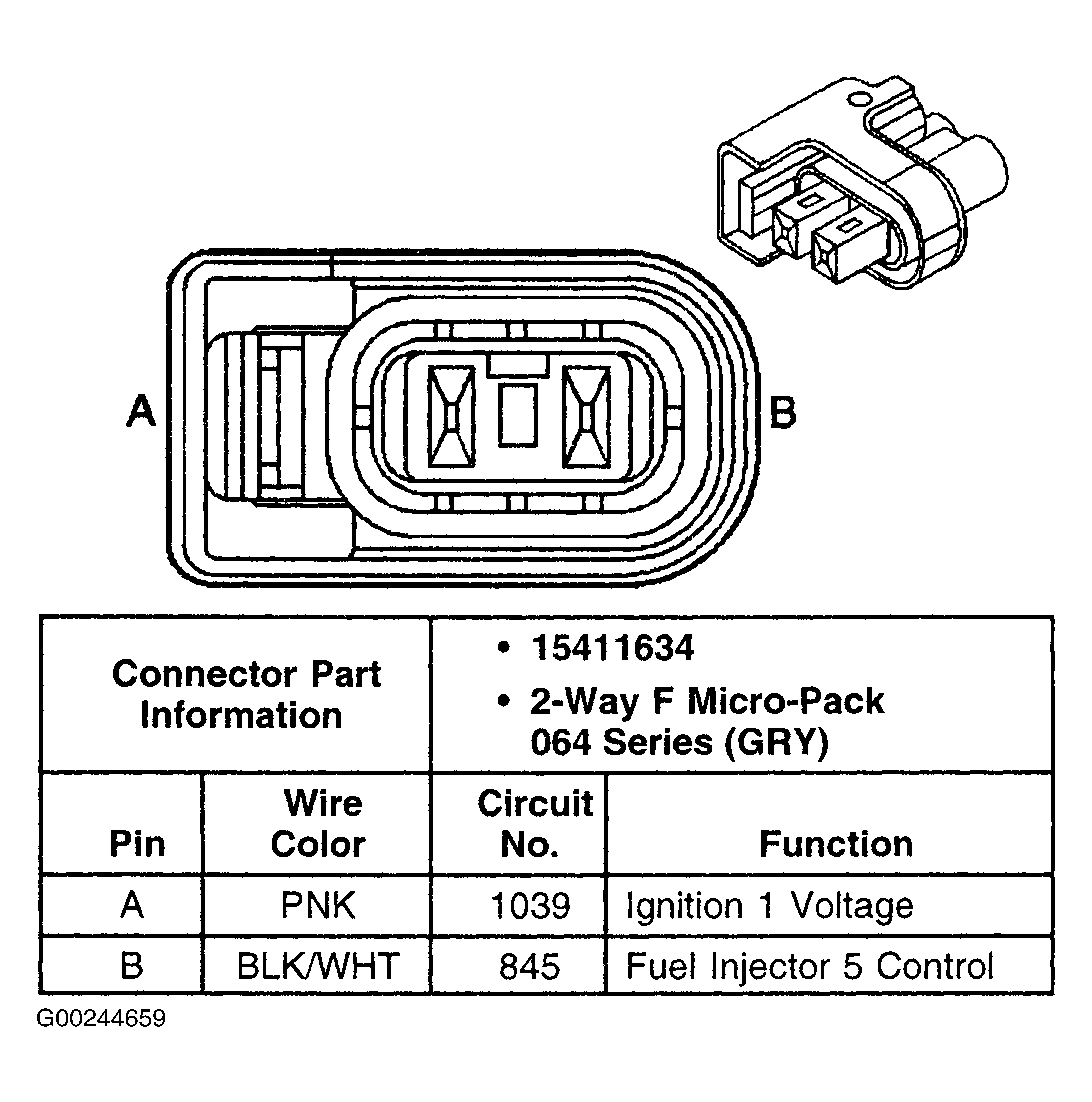

Fig 17: Identifying Fuel Injector 5 Connector Terminals (Except 5.3L Flex-Fuel)
G00244659Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying Fuel Injector 5 Connector Terminals (5.3L Flex-Fuel)
G00244660Courtesy of GENERAL MOTORS CORP.

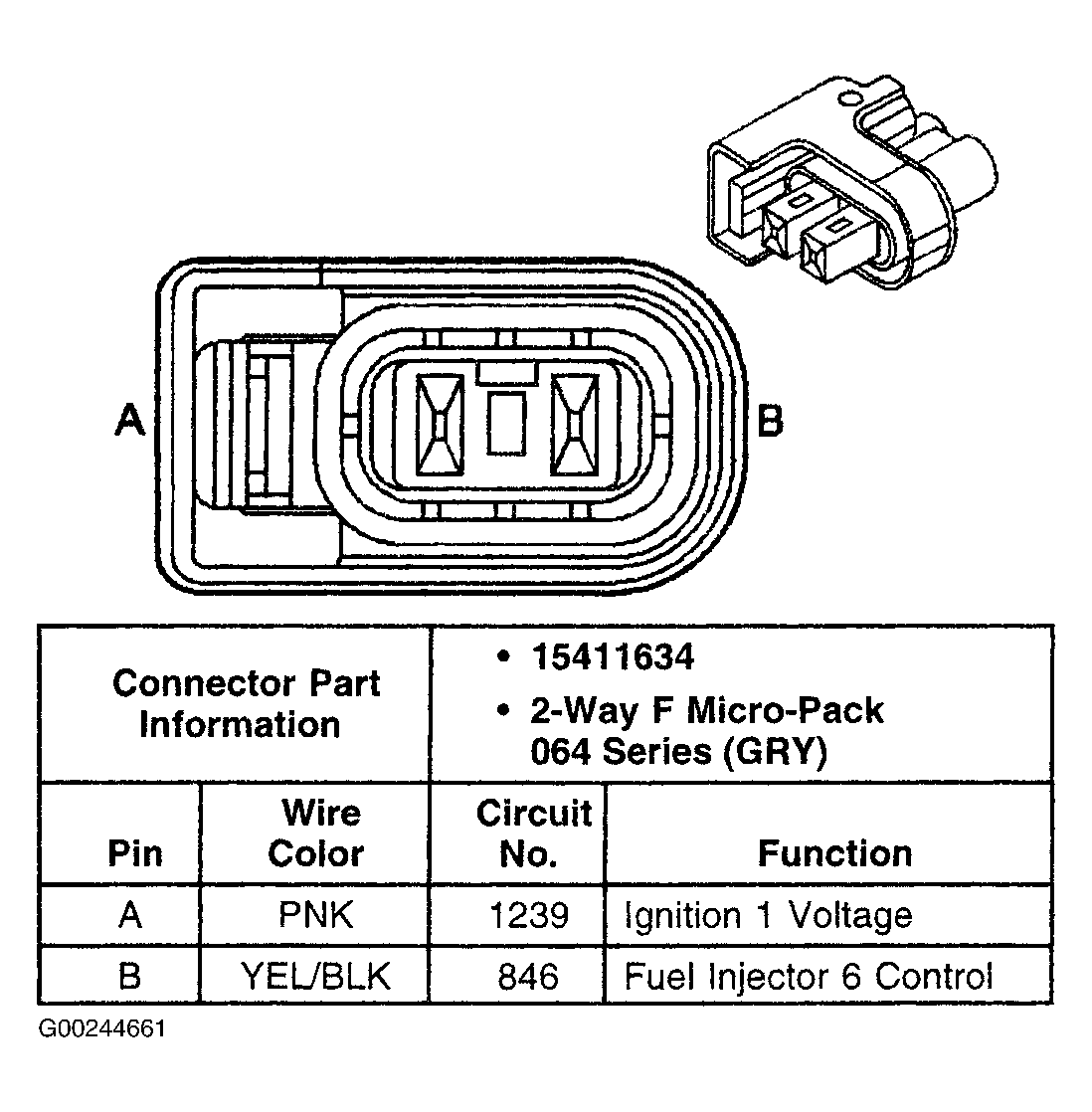

Fig 19: Identifying Fuel Injector 6 Connector Terminals (Except 5.3L Flex-Fuel)
G00244661Courtesy of GENERAL MOTORS CORP.

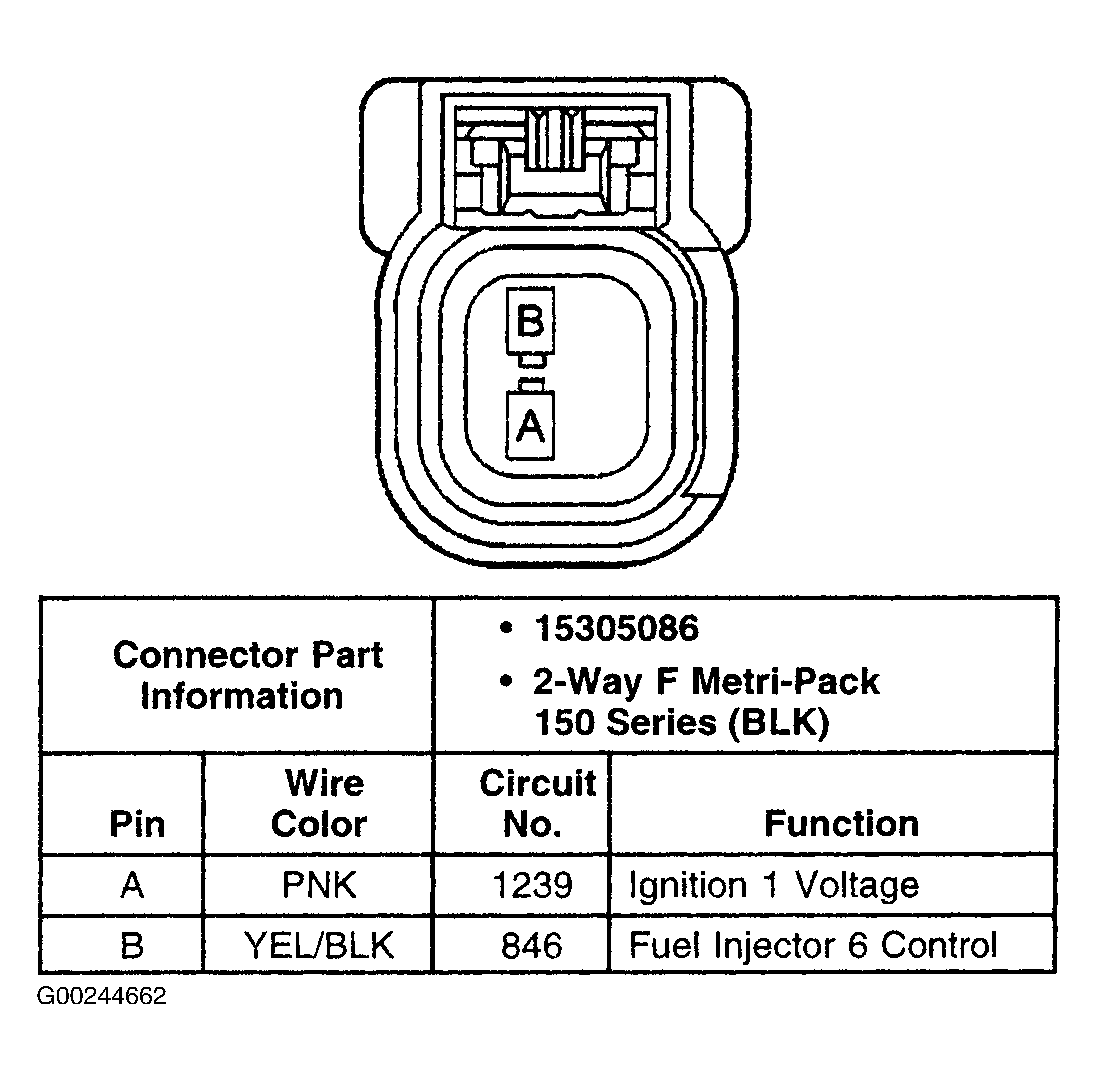

Fig 20: Identifying Fuel Injector 6 Connector Terminals (5.3L Flex-Fuel)
G00244662Courtesy of GENERAL MOTORS CORP.

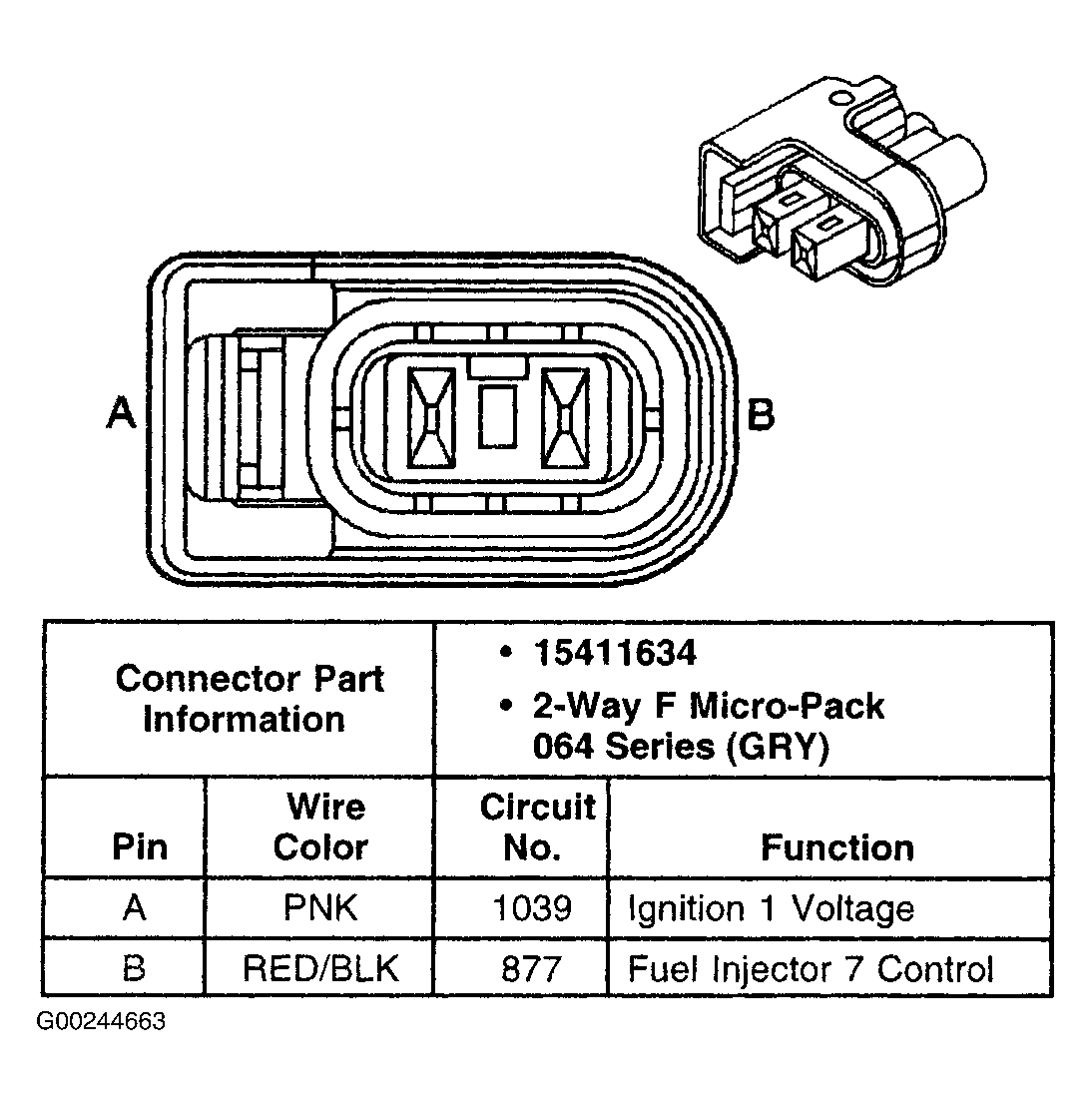

Fig 21: Identifying Fuel Injector 7 Connector Terminals (Except 5.3L Flex-Fuel)
G00244663Courtesy of GENERAL MOTORS CORP.

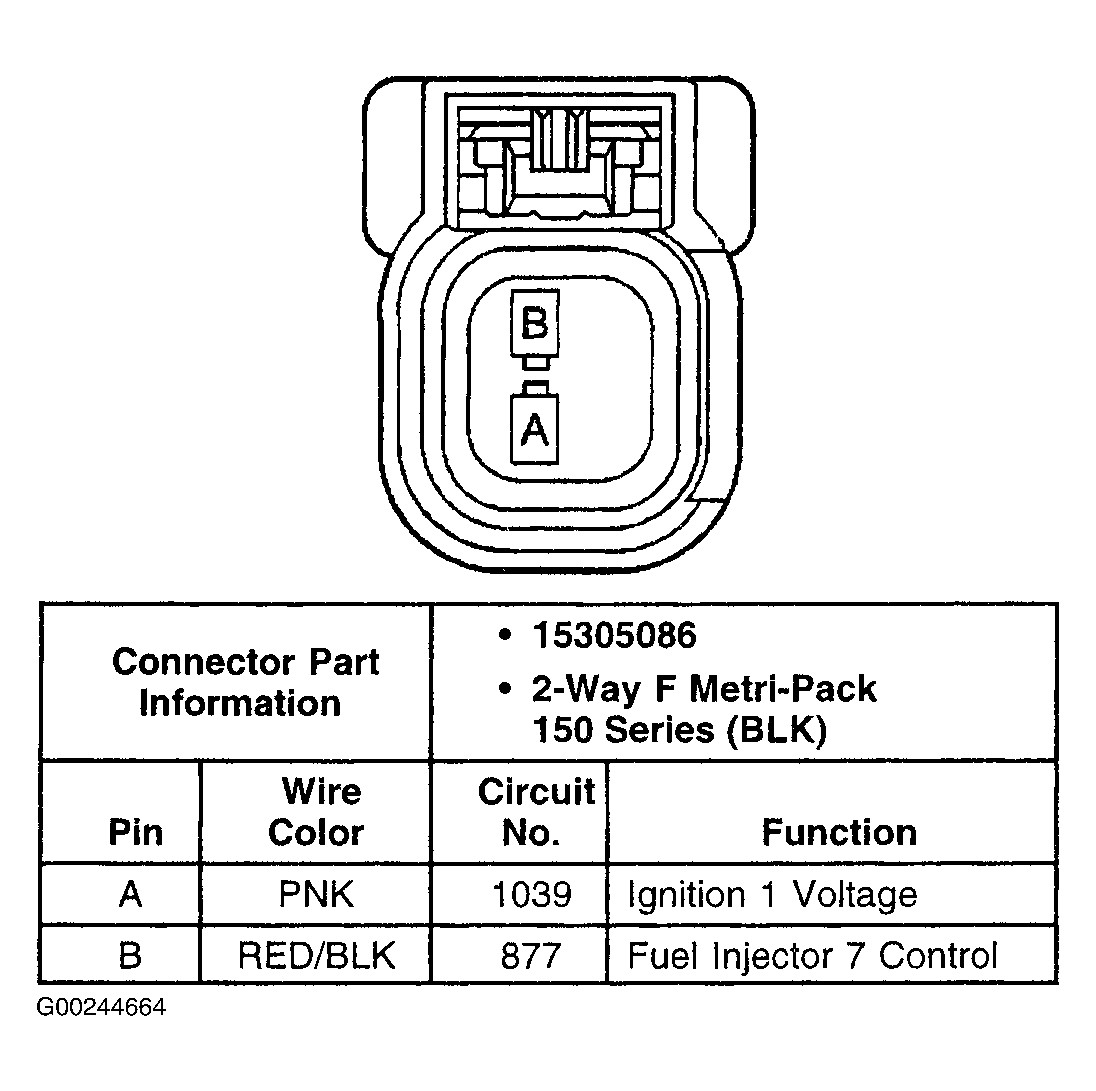

Fig 22: Identifying Fuel Injector 7 Connector Terminals (5.3L Flex-Fuel)
G00244664Courtesy of GENERAL MOTORS CORP.

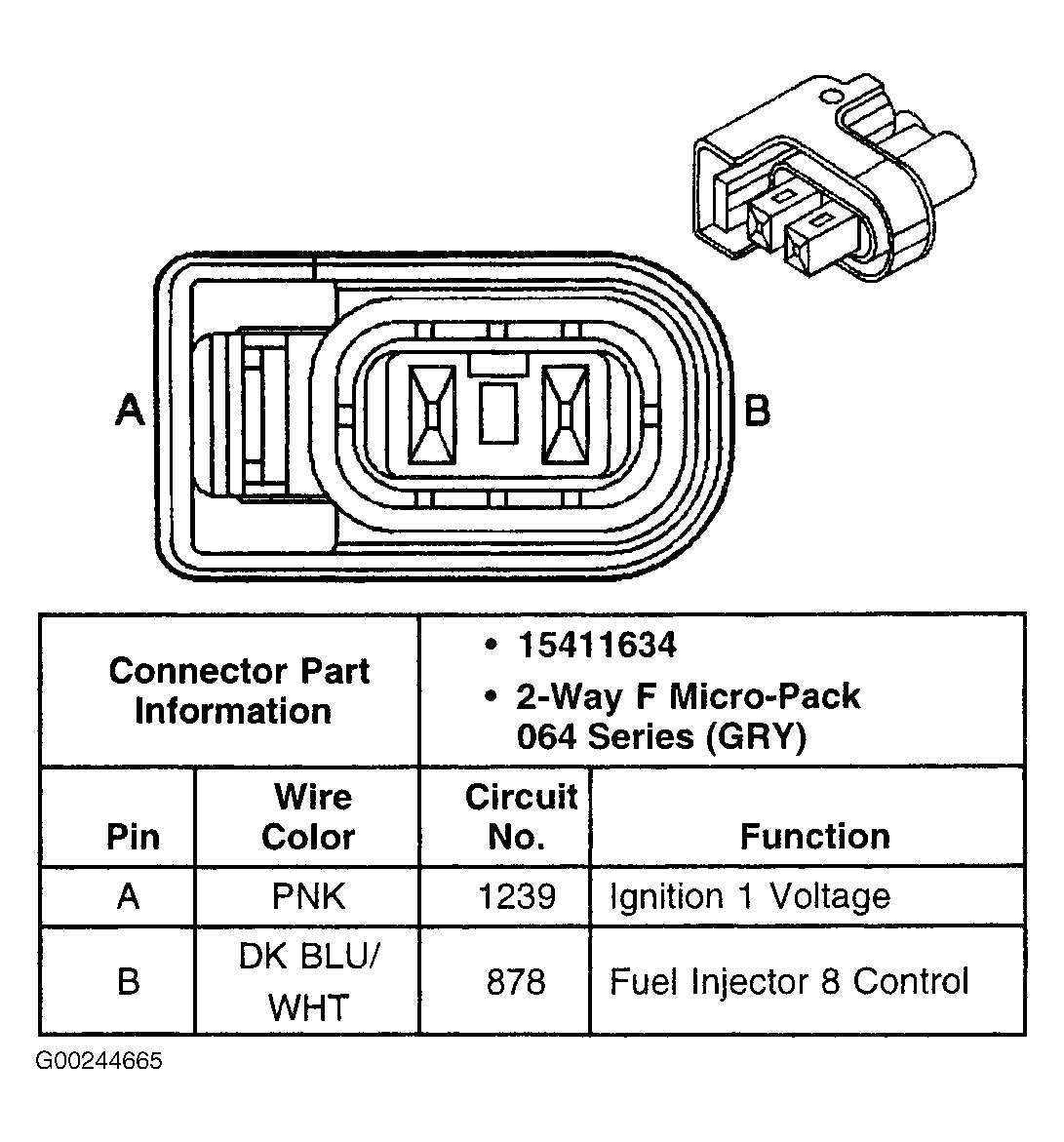

Fig 23: Identifying Fuel Injector 8 Connector Terminals (Except 5.3L Flex-Fuel)
G00244665Courtesy of GENERAL MOTORS CORP.
Fig 24: Identifying Fuel Injector 8 Connector Terminals (5.3L Flex-Fuel)
G00244666Courtesy of GENERAL MOTORS CORP.

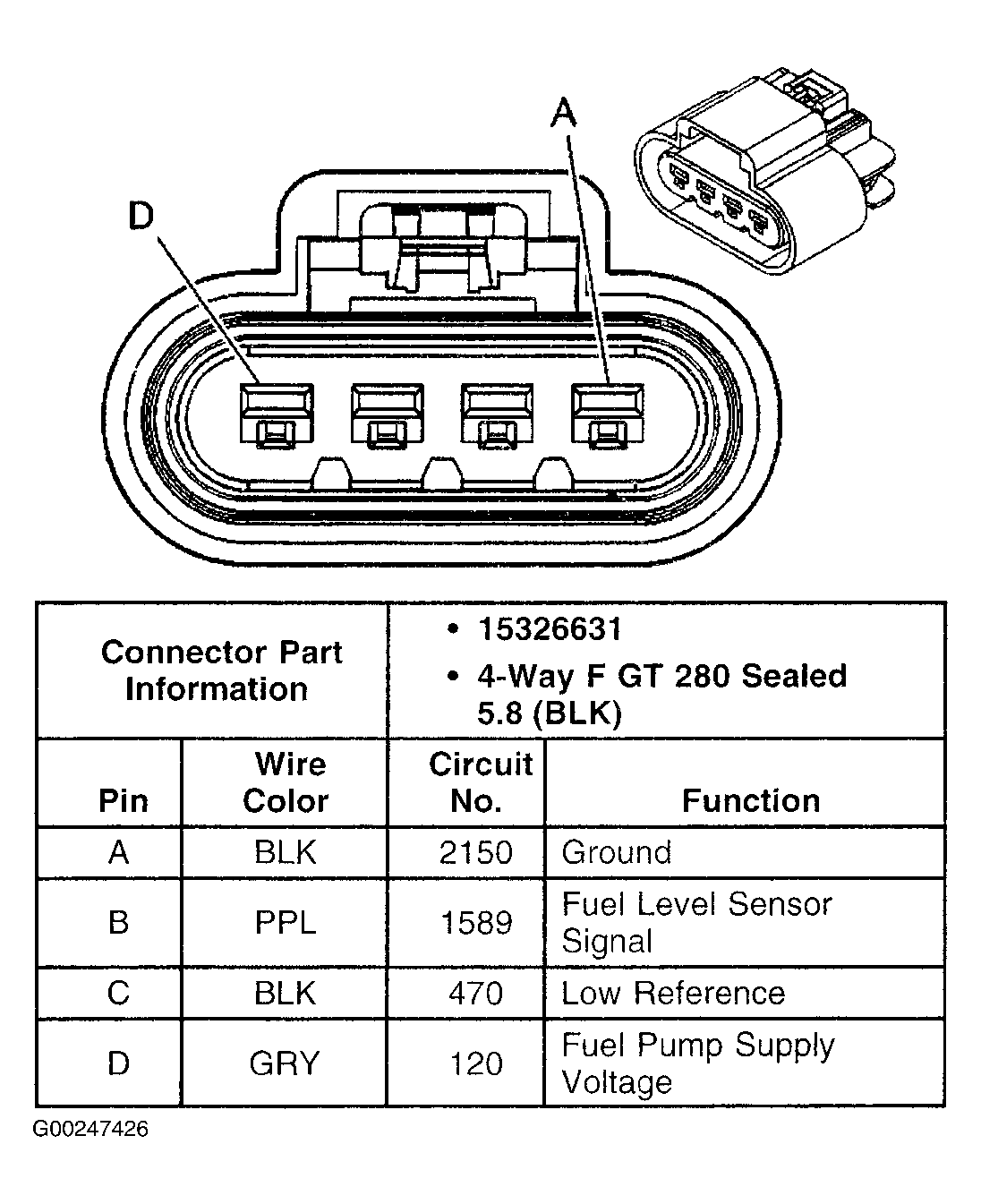

Fig 25: Identifying Fuel Pump & Sender Assembly Connector Terminals (Hummer H2)
G00247426Courtesy of GENERAL MOTORS CORP.

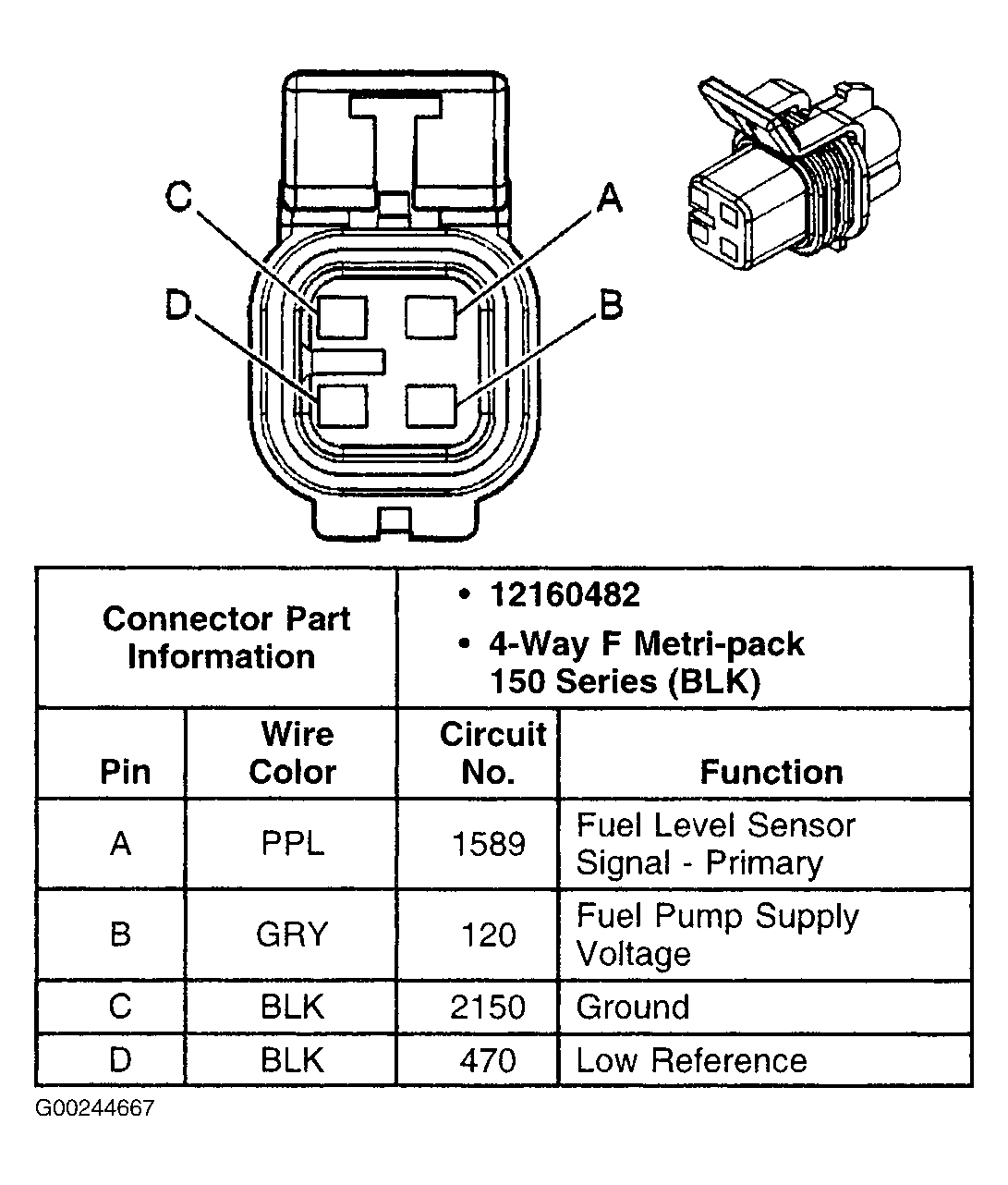

Fig 26: Identifying Primary Fuel Pump & Sender Assembly Connector Terminals (Except 5.3L Flex-Fuel & Hummer H2)
G00244667Courtesy of GENERAL MOTORS CORP.

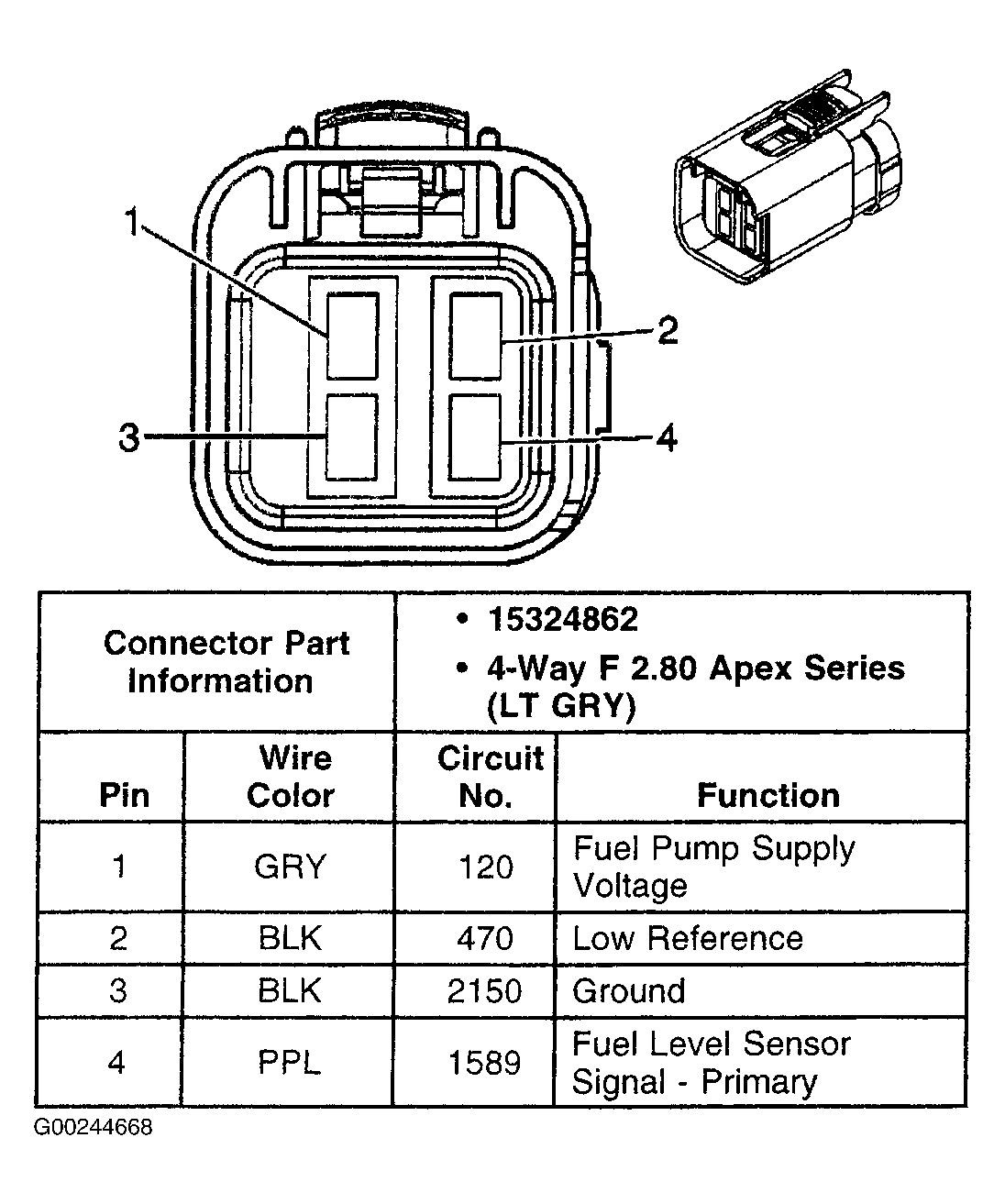

Fig 27: Identifying Primary Fuel Pump & Sender Assembly Connector Terminals (5.3L Flex-Fuel)
G00244668Courtesy of GENERAL MOTORS CORP.

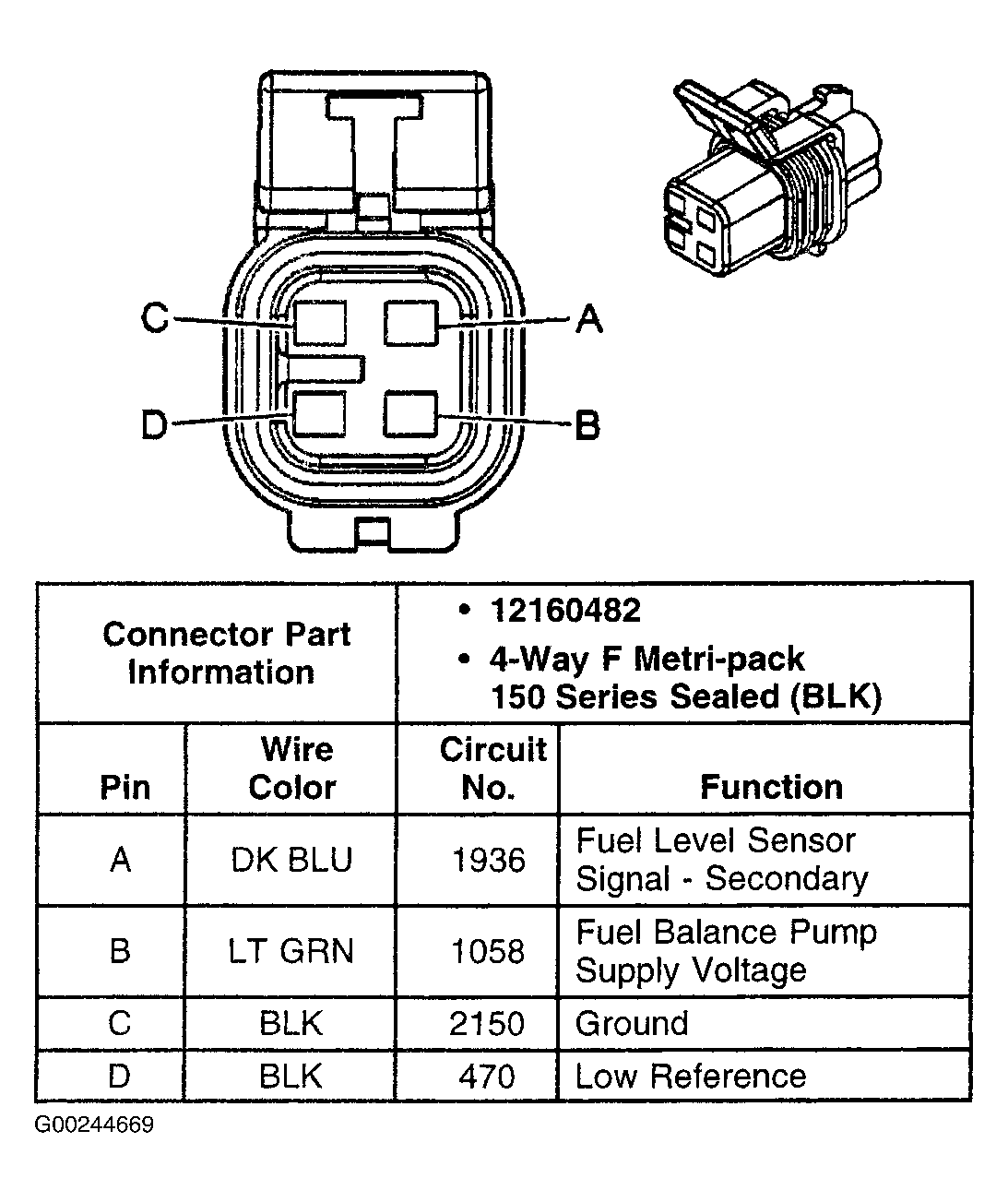

Fig 28: Identifying Secondary Fuel Pump & Sender Assembly Connector Terminals (Models With Dual Tanks)
G00244669Courtesy of GENERAL MOTORS CORP.

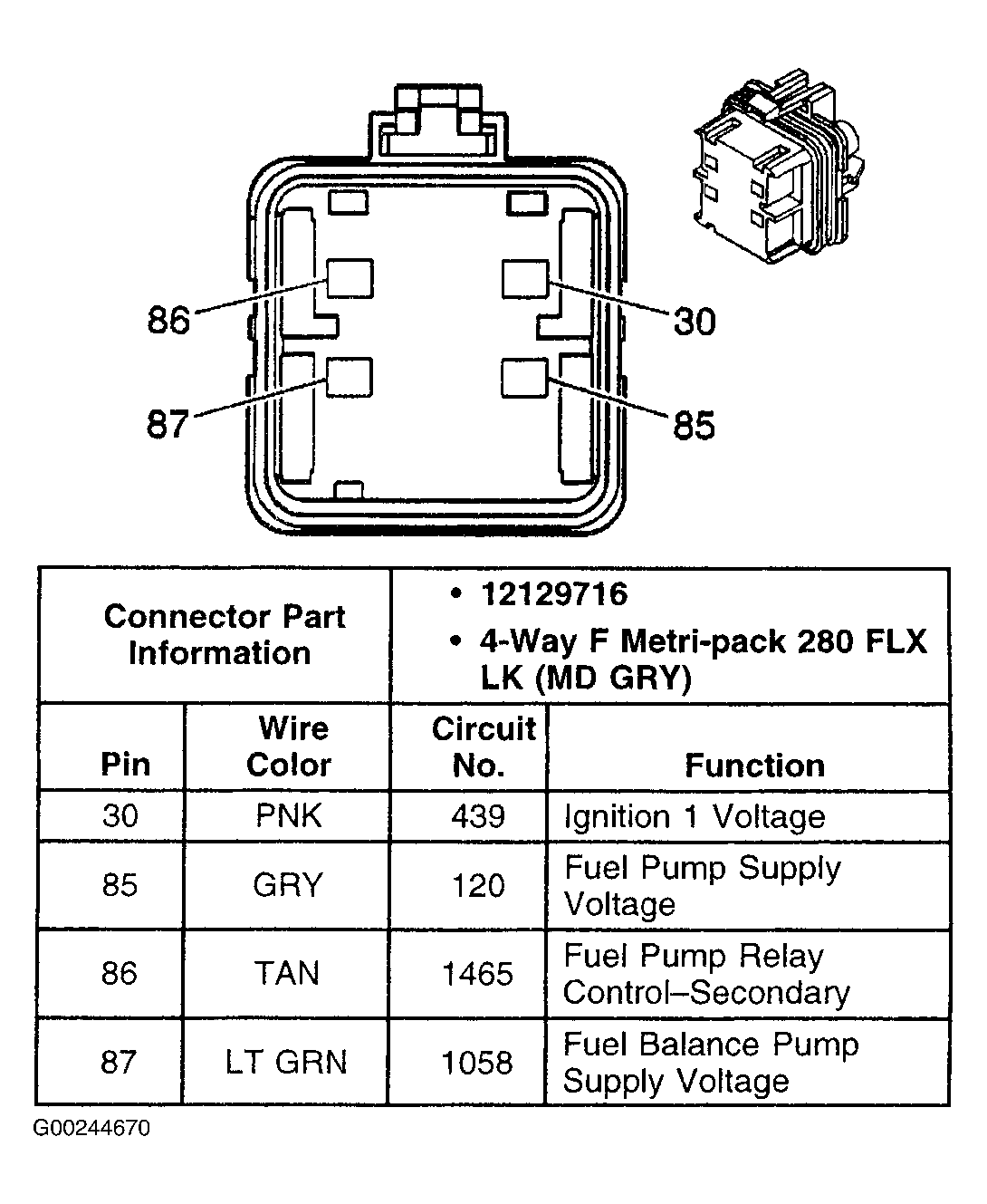

Fig 29: Identifying Secondary Fuel Pump Relay Connector Terminals (Models With Dual Tanks)
G00244670Courtesy of GENERAL MOTORS CORP.

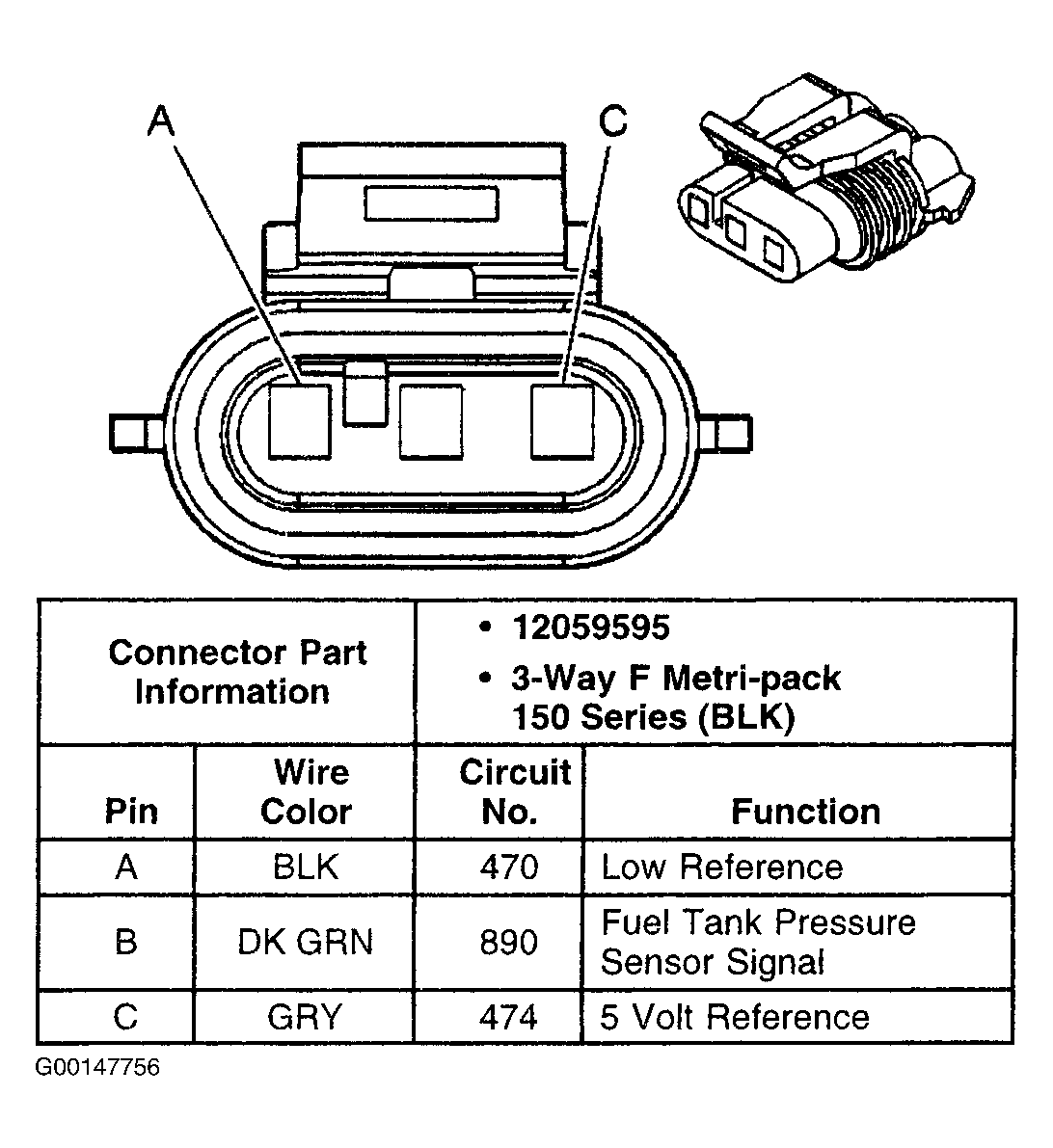

Fig 30: Identifying Fuel Tank Pressure Sensor Connector Terminals
G00147756Courtesy of GENERAL MOTORS CORP.

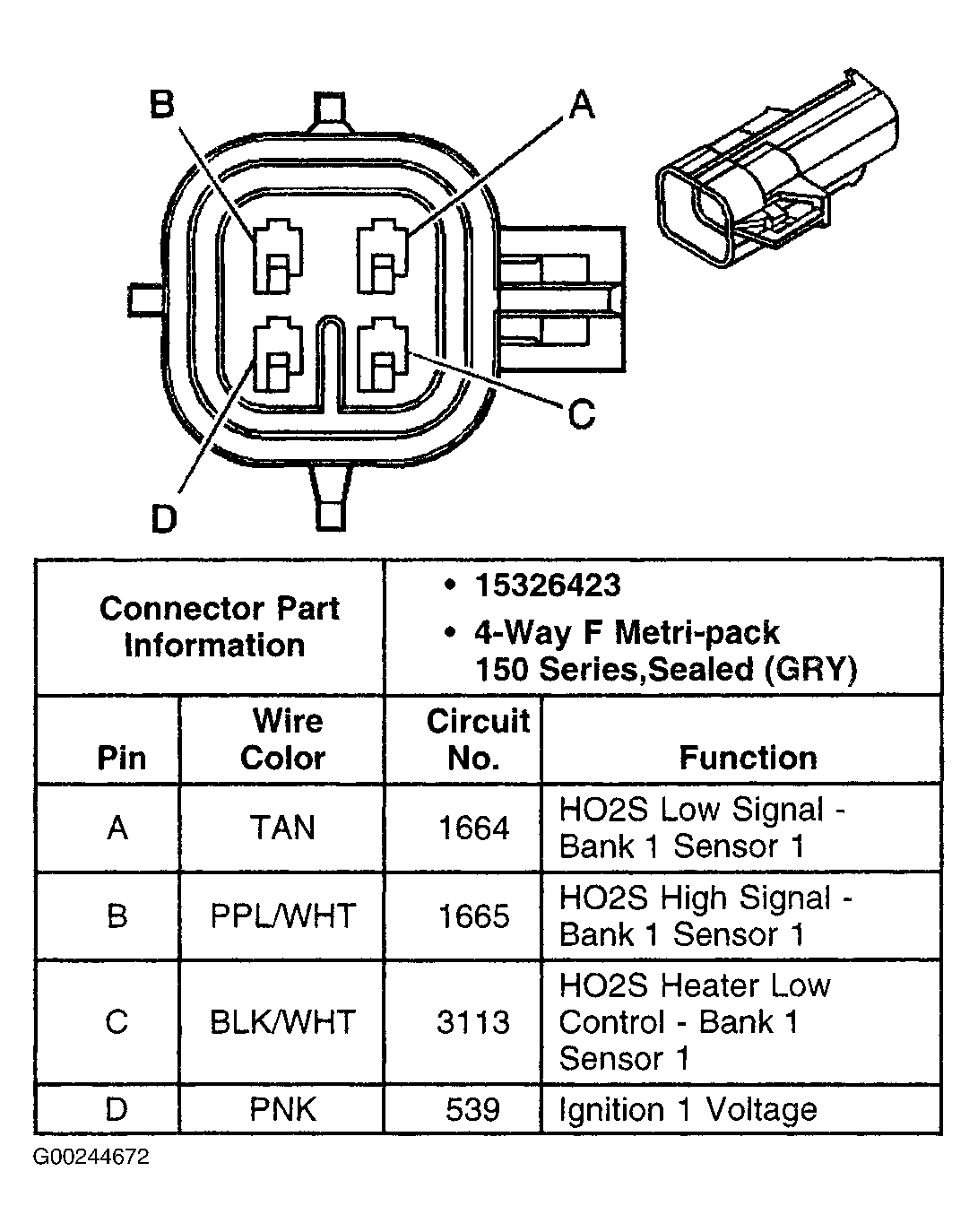

Fig 31: Identifying Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector Terminals (4.8L)
G00244672Courtesy of GENERAL MOTORS CORP.

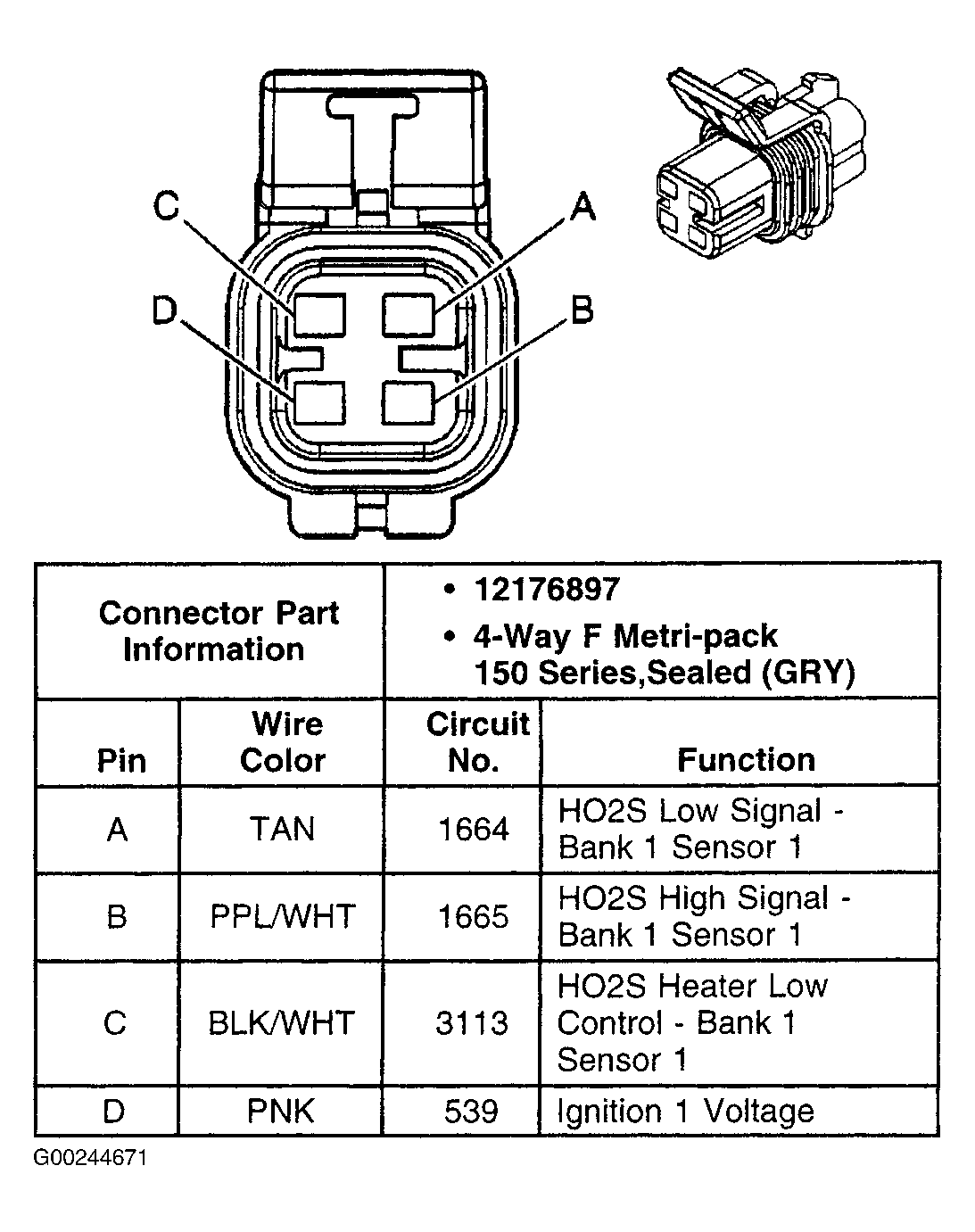

Fig 32: Identifying Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector Terminals (5.3L)
G00244671Courtesy of GENERAL MOTORS CORP.

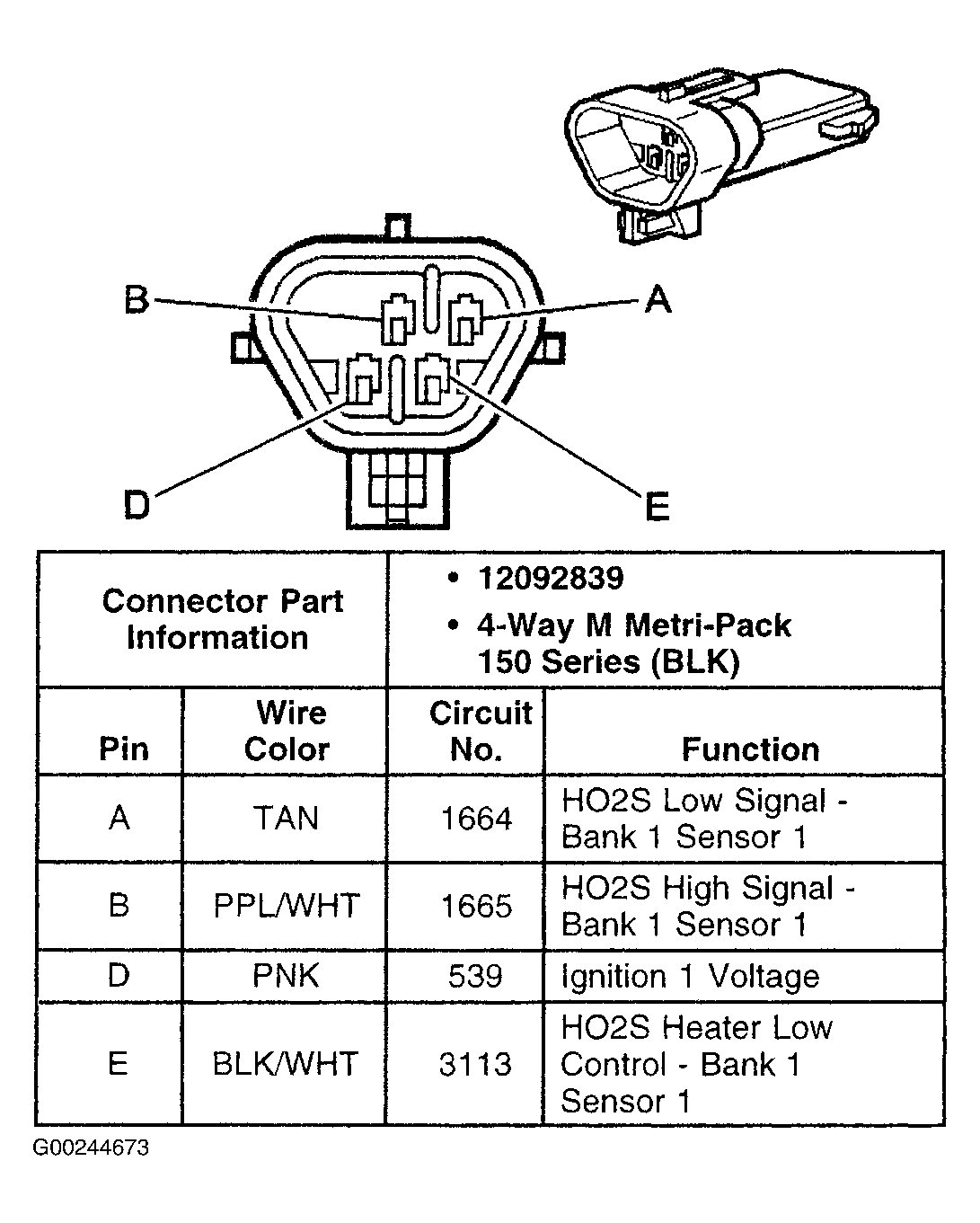

Fig 33: Identifying Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector Terminals (6.0L)
G00244673Courtesy of GENERAL MOTORS CORP.

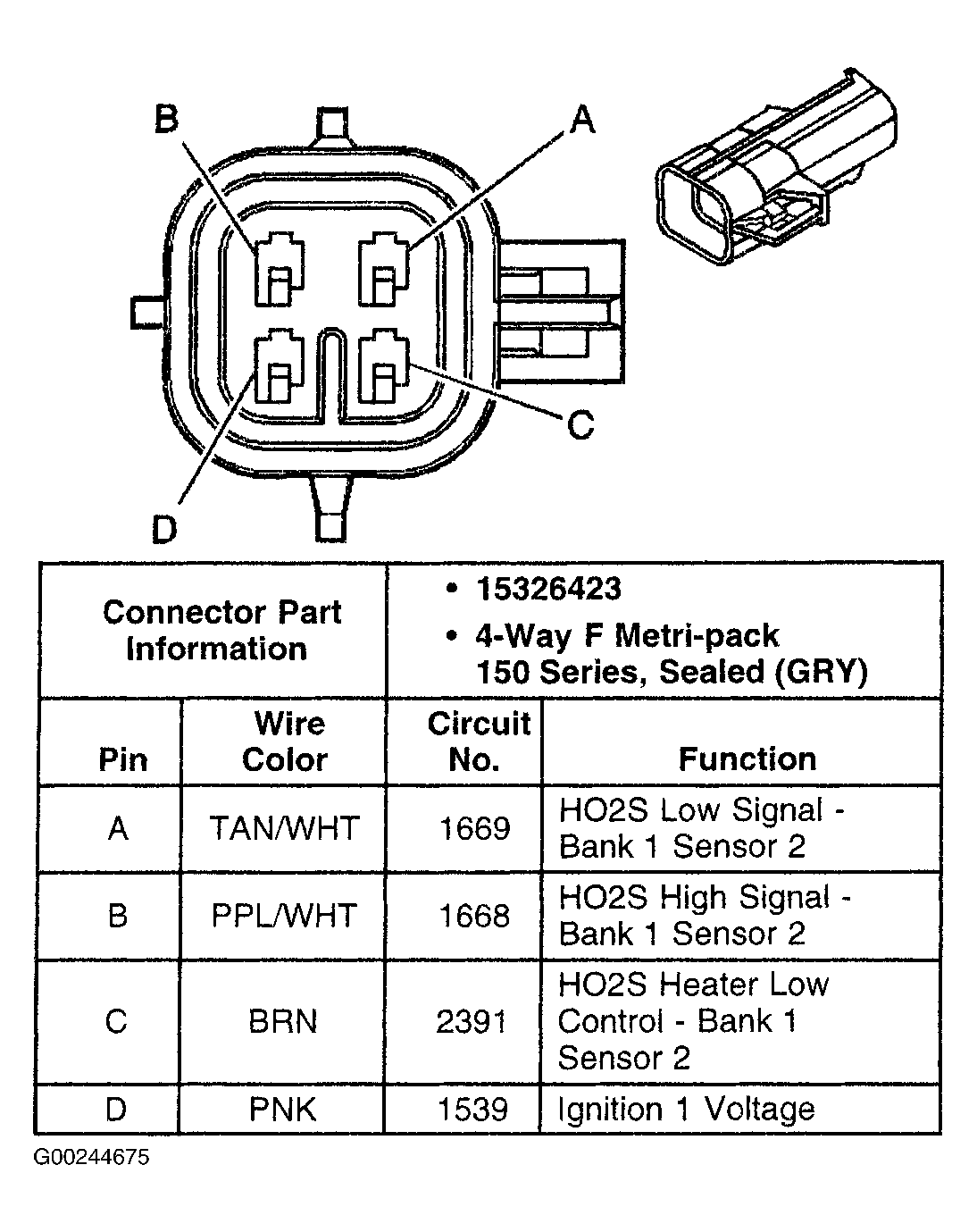

Fig 34: Identifying Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 Connector Terminals (4.8L & 6.0L)
G00244675Courtesy of GENERAL MOTORS CORP.

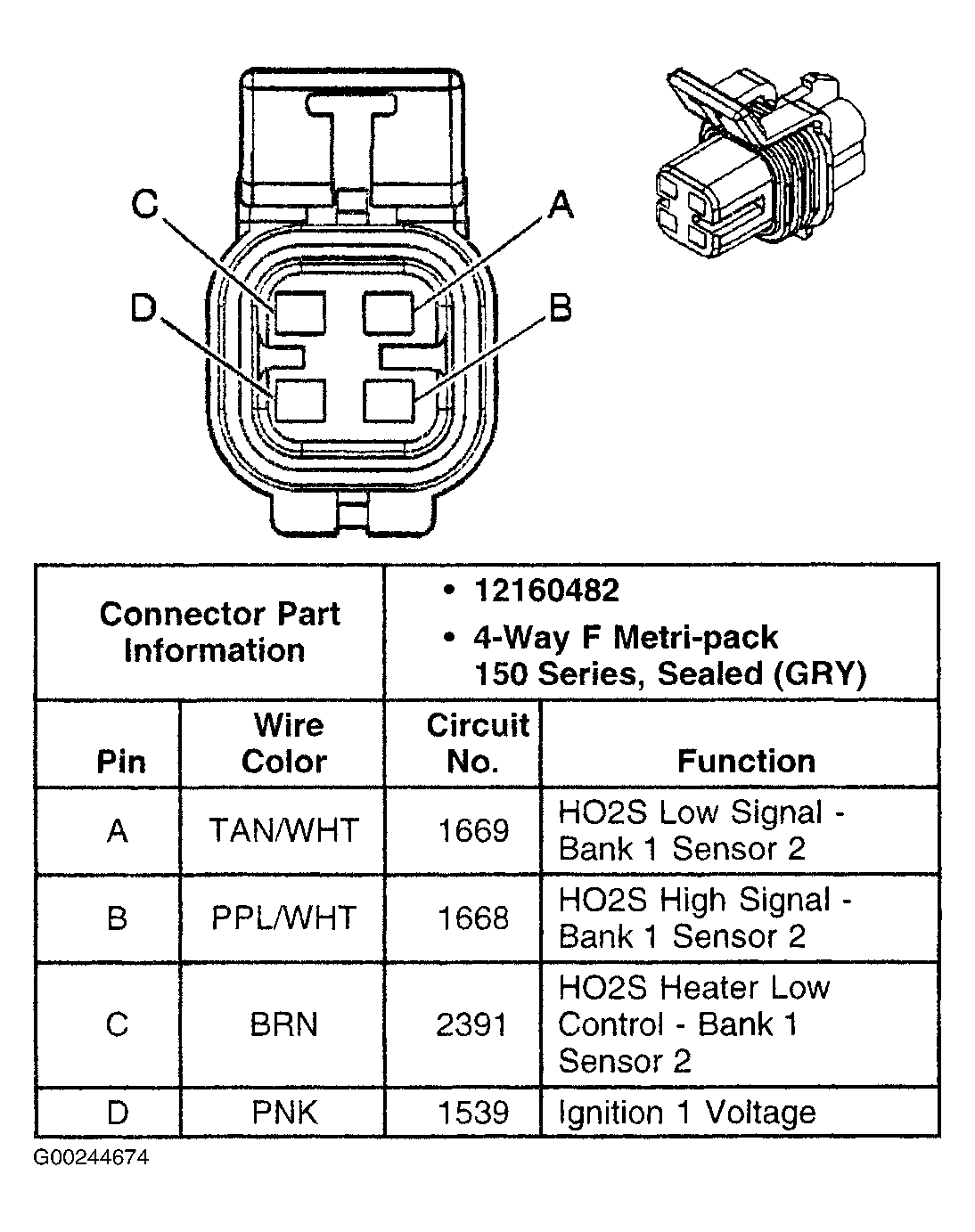

Fig 35: Identifying Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 Connector Terminals (5.3L)
G00244674Courtesy of GENERAL MOTORS CORP.

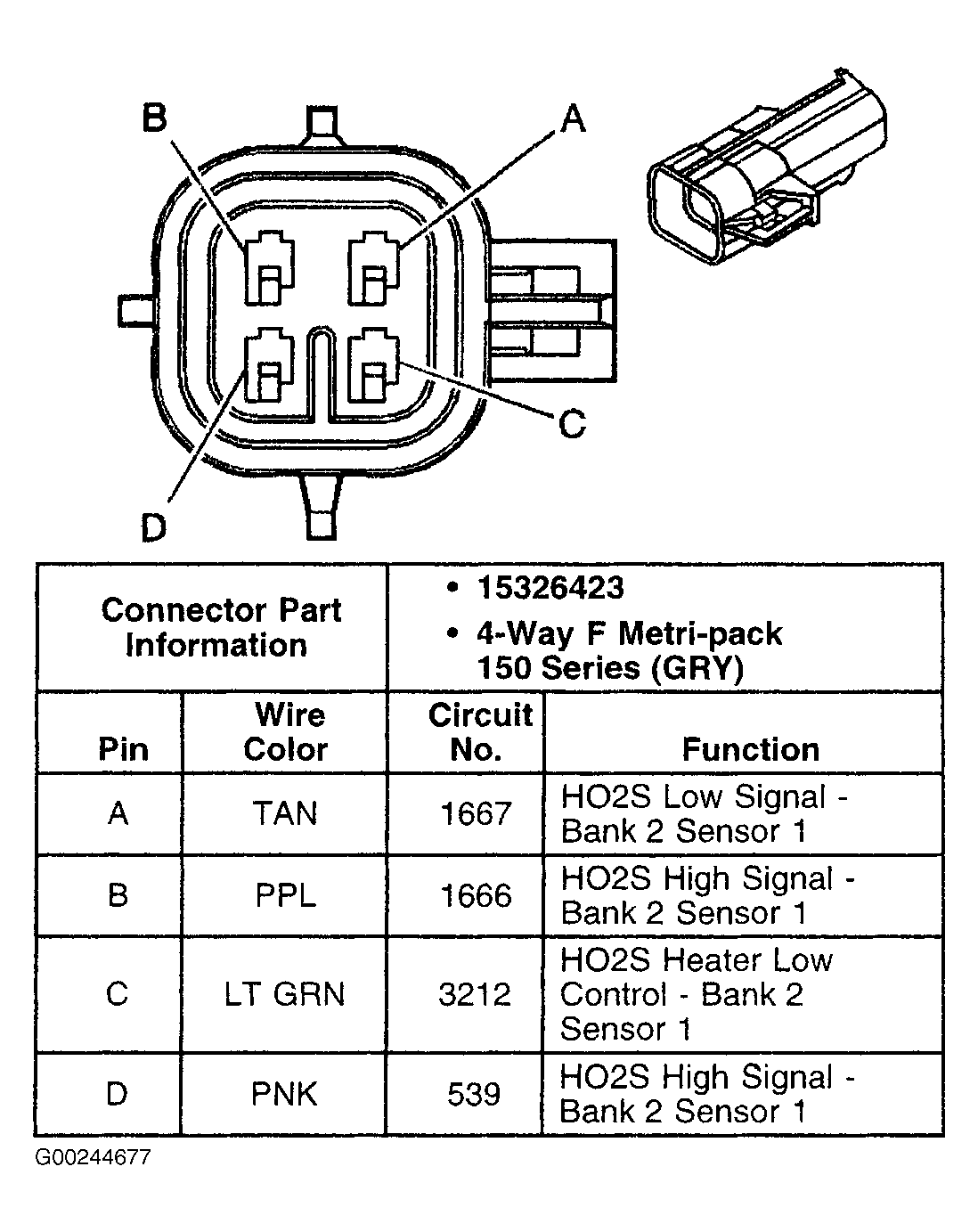

Fig 36: Identifying Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector Terminals (4.8L)
G00244677Courtesy of GENERAL MOTORS CORP.

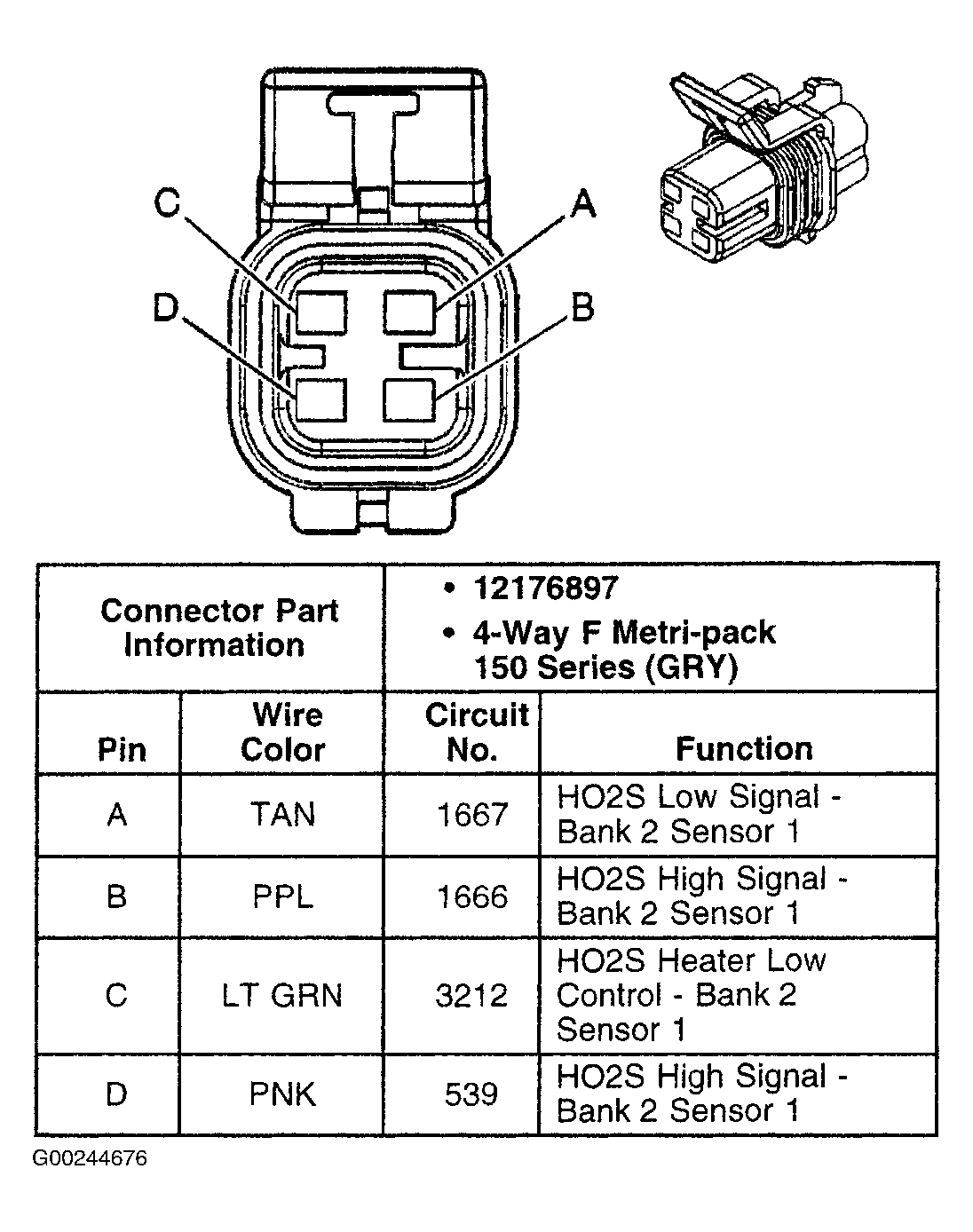

Fig 37: Identifying Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector Terminals (5.3L)
G00244676Courtesy of GENERAL MOTORS CORP.

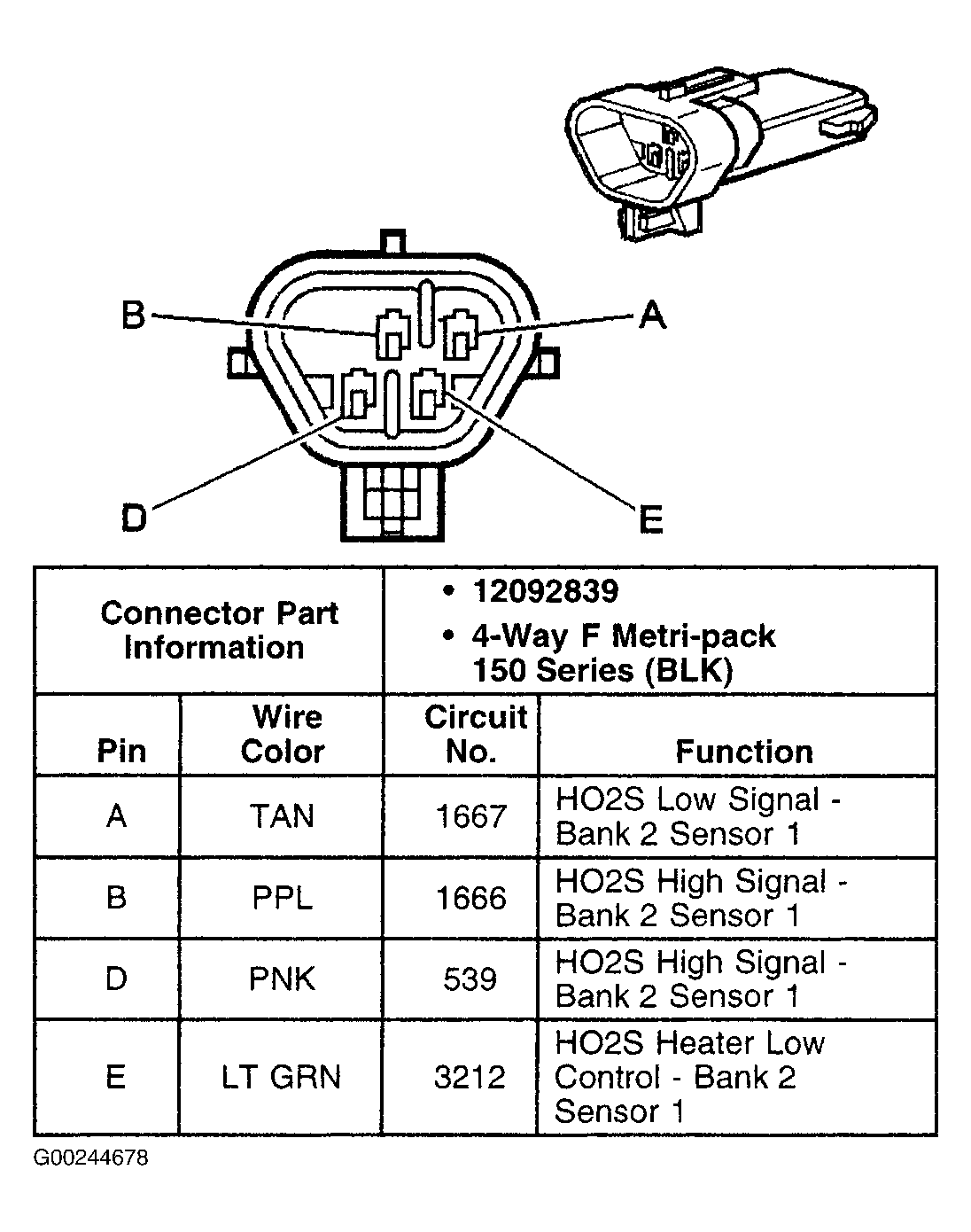

Fig 38: Identifying Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 Connector Terminals (6.0L)
G00244678Courtesy of GENERAL MOTORS CORP.

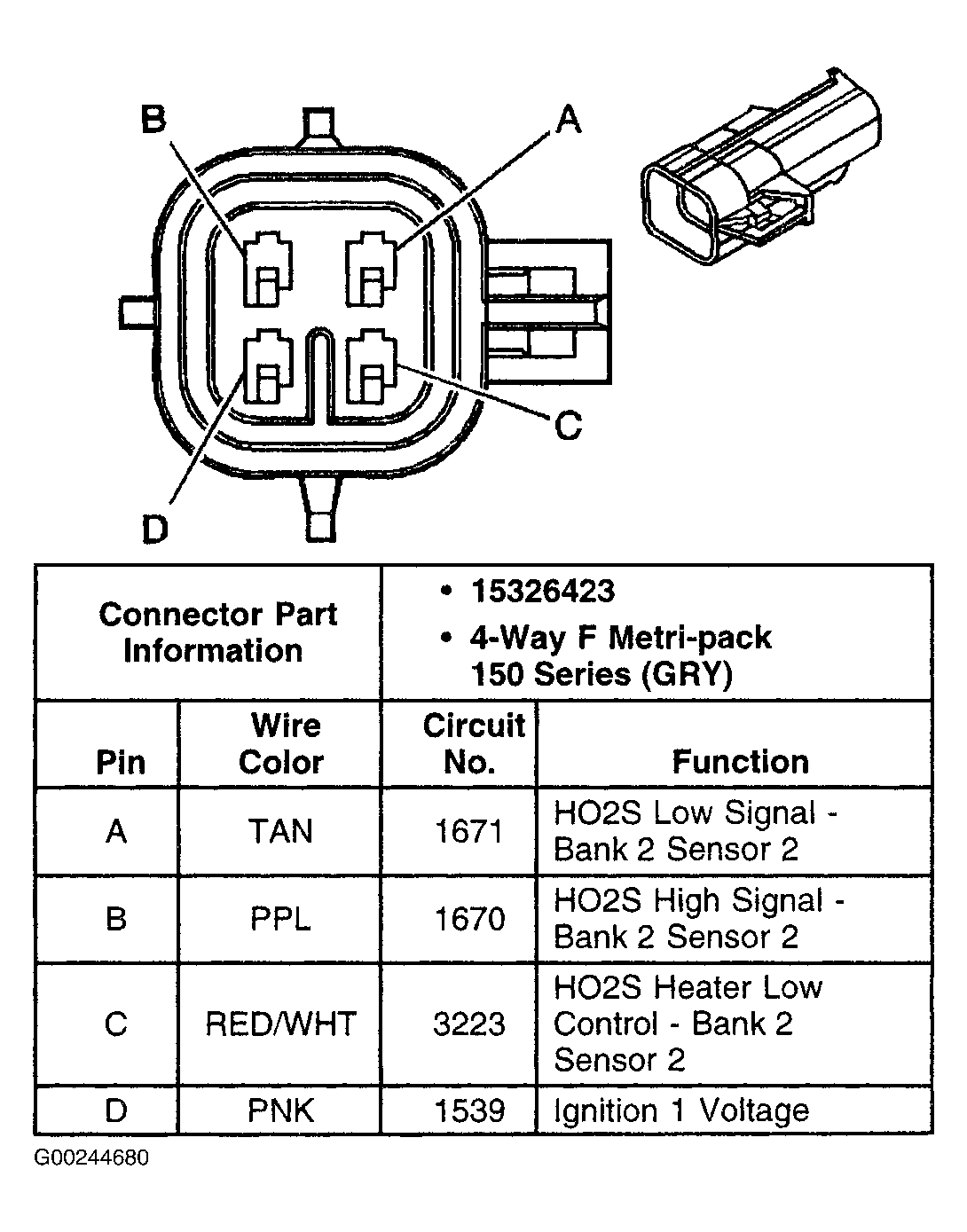

Fig 39: Identifying Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 Connector Terminals (4.8L & 6.0L)
G00244680Courtesy of GENERAL MOTORS CORP.

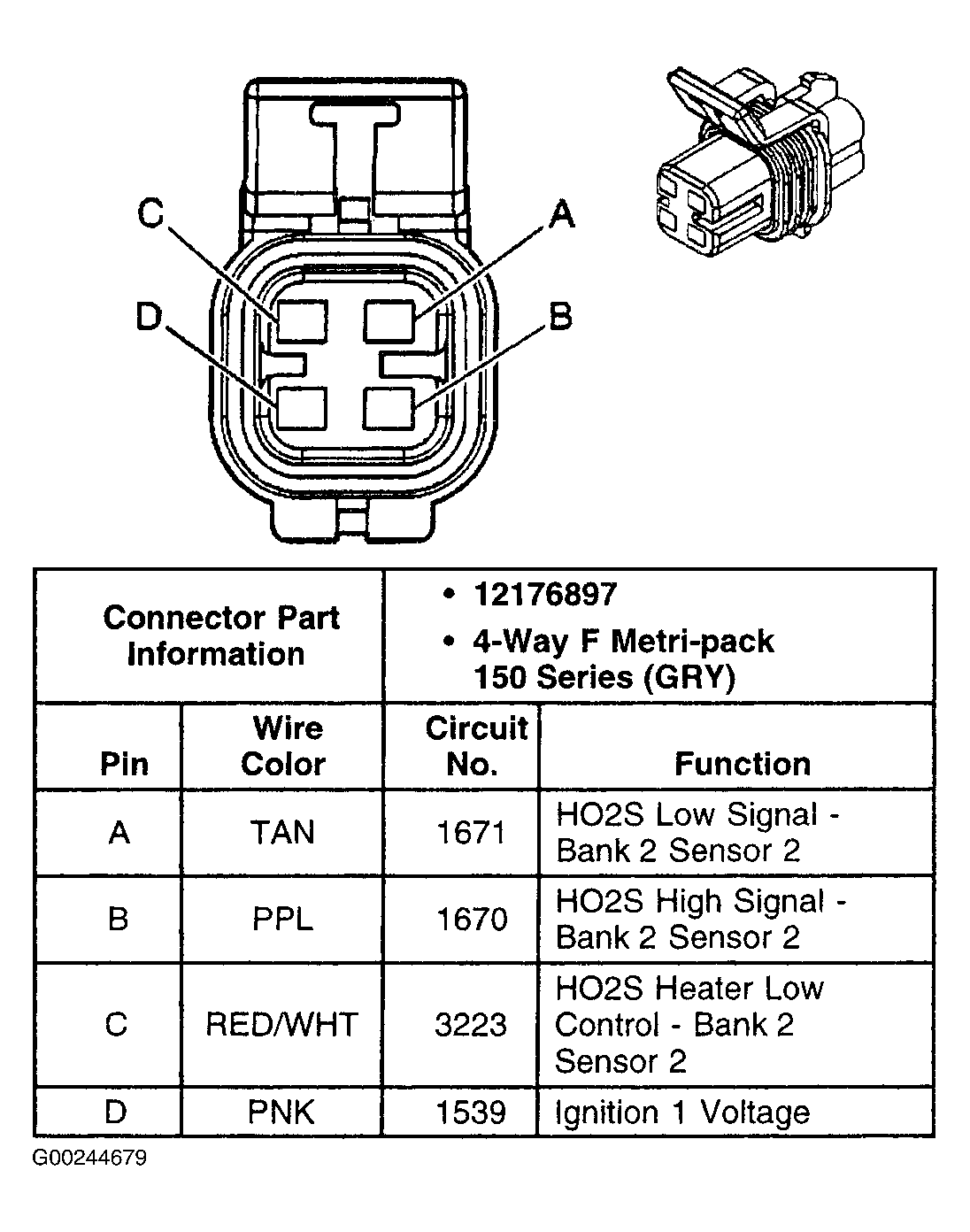

Fig 40: Identifying Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 Connector Terminals (5.3L)
G00244679Courtesy of GENERAL MOTORS CORP.
Fig 41: Identifying Ignition Coil 1 Connector Terminals
G00244681Courtesy of GENERAL MOTORS CORP.

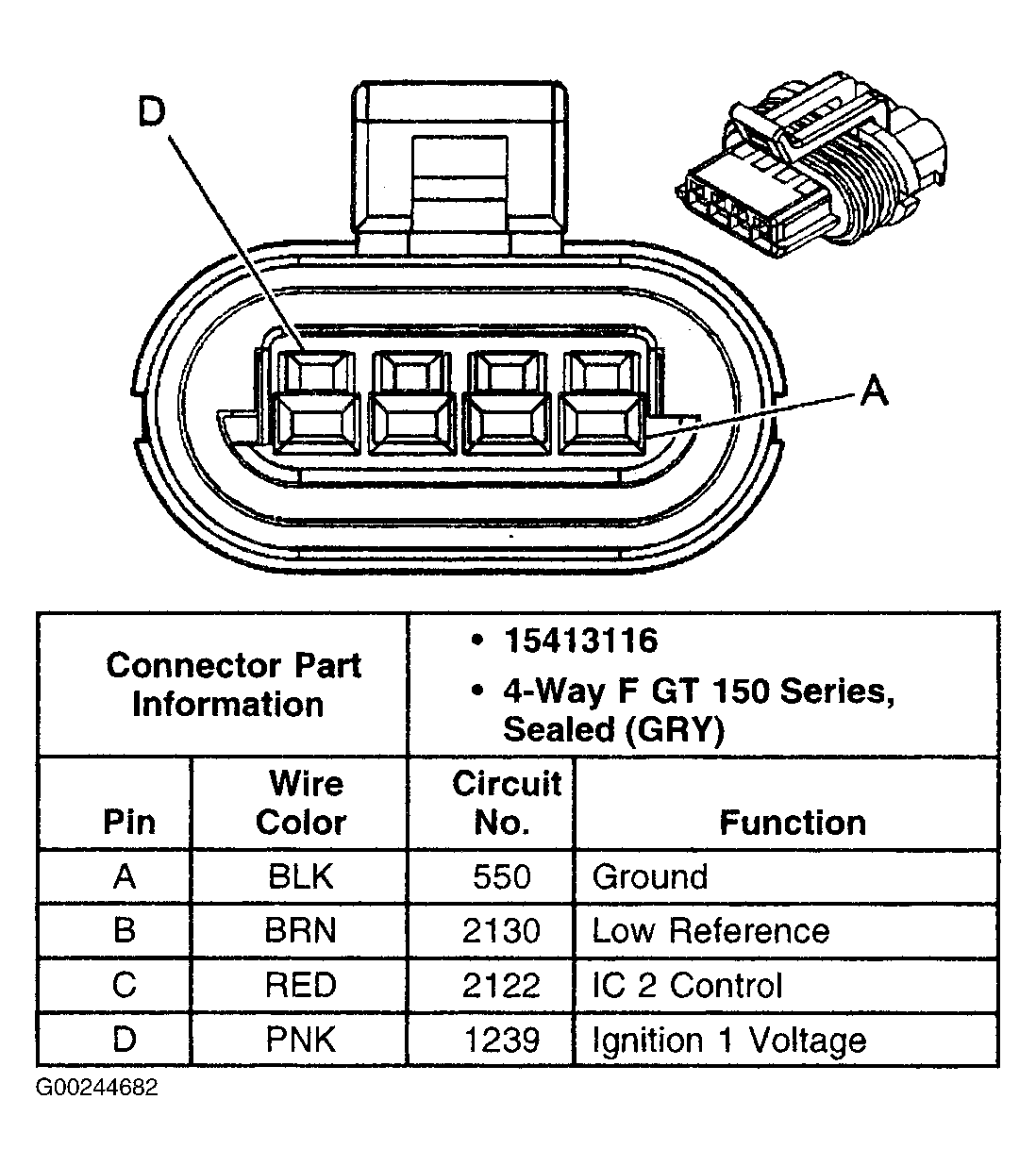

Fig 42: Identifying Ignition Coil 2 Connector Terminals
G00244682Courtesy of GENERAL MOTORS CORP.
Fig 43: Identifying Ignition Coil 3 Connector Terminals
G00244683Courtesy of GENERAL MOTORS CORP.

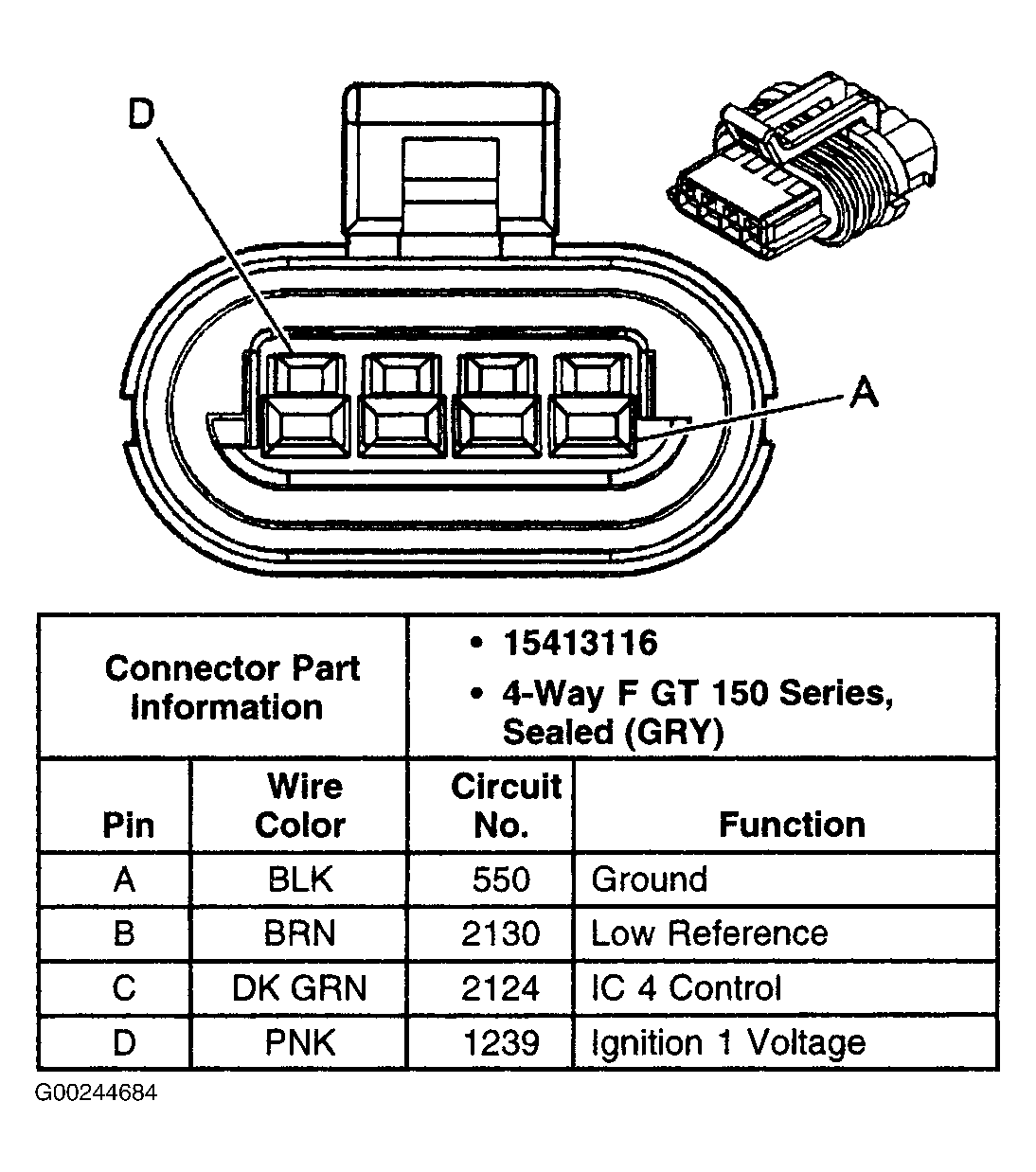

Fig 44: Identifying Ignition Coil 4 Connector Terminals
G00244684Courtesy of GENERAL MOTORS CORP.
Fig 45: Identifying Ignition Coil 5 Connector Terminals
G00244685Courtesy of GENERAL MOTORS CORP.
Fig 46: Identifying Ignition Coil 6 Connector Terminals
G00244686Courtesy of GENERAL MOTORS CORP.

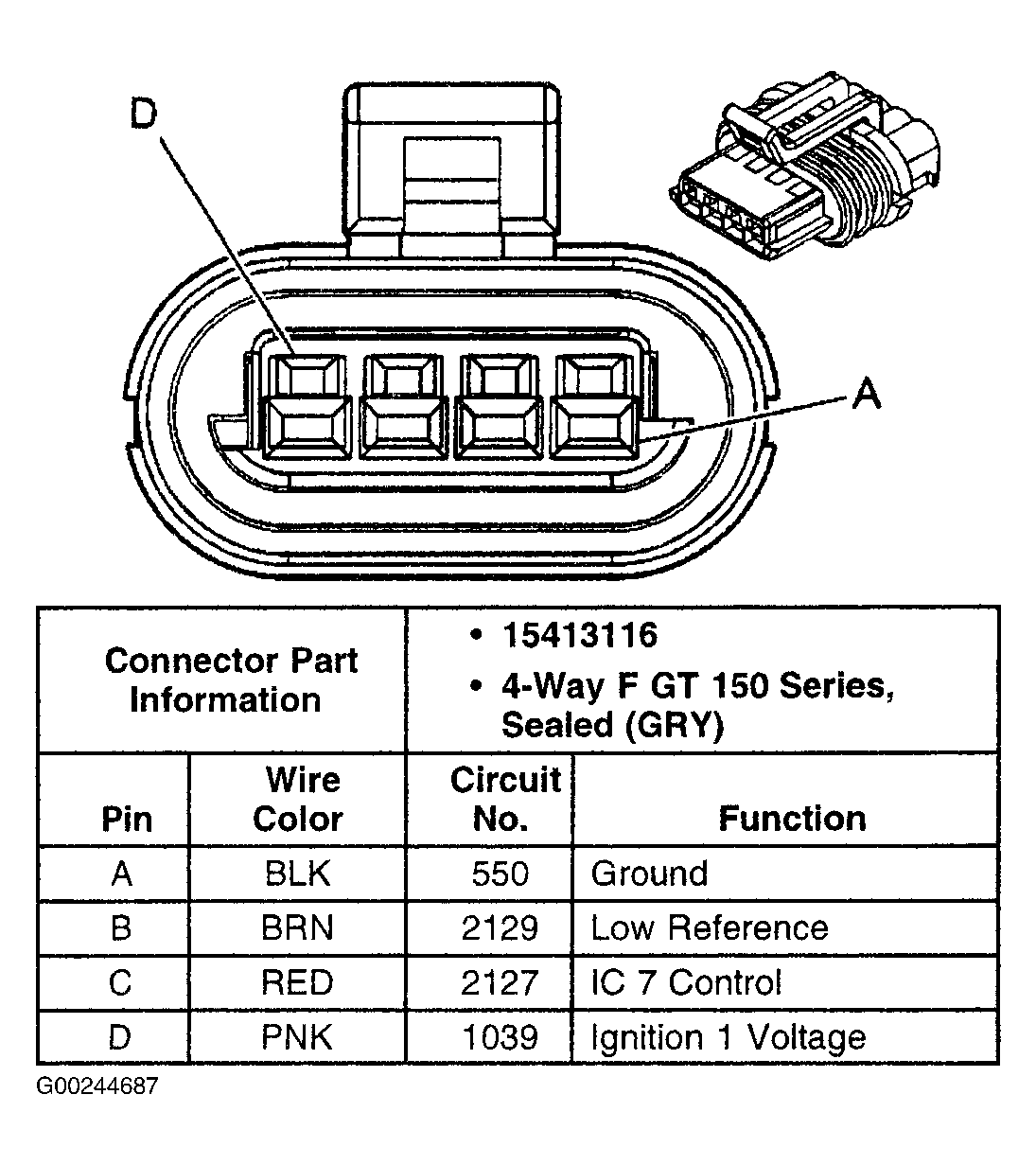

Fig 47: Identifying Ignition Coil 7 Connector Terminals
G00244687Courtesy of GENERAL MOTORS CORP.

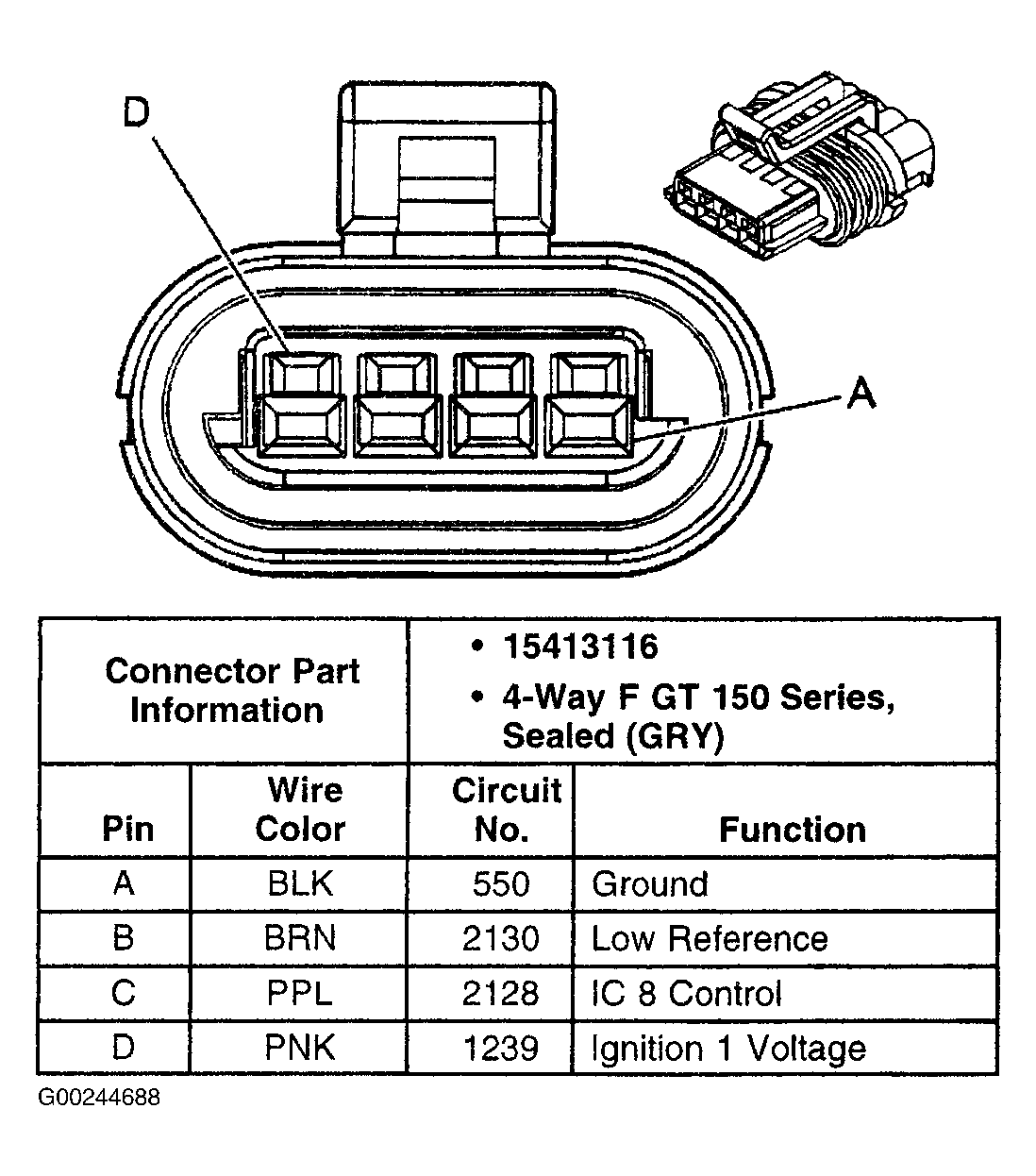

Fig 48: Identifying Ignition Coil 8 Connector Terminals
G00244688Courtesy of GENERAL MOTORS CORP.

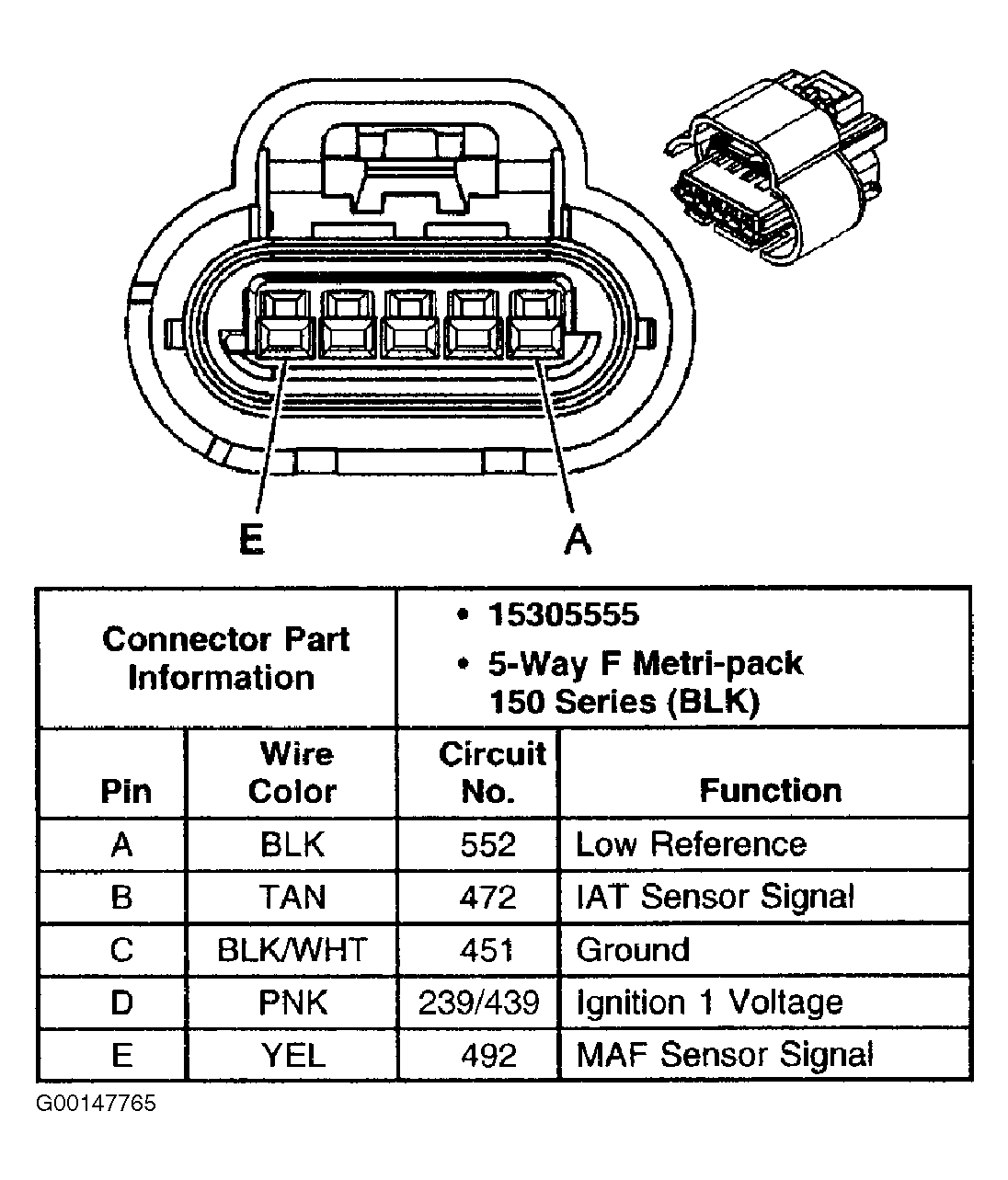

Fig 49: Identifying IAT Sensor Connector Terminals
G00147765Courtesy of GENERAL MOTORS CORP.
Fig 50: Identifying Knock Sensor Connector Terminals (Except Hummer H2)
G00113376Courtesy of GENERAL MOTORS CORP.

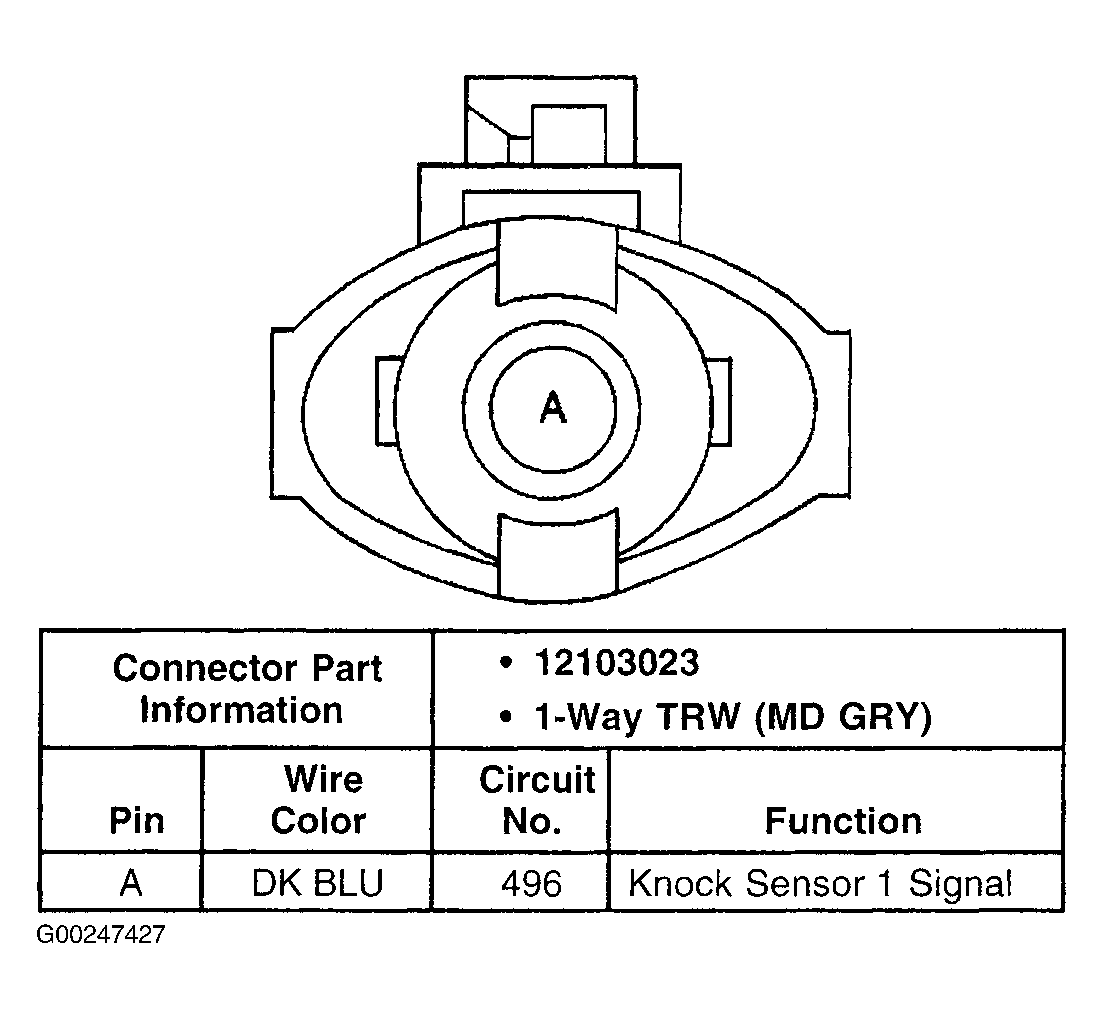

Fig 51: Identifying Front Knock Sensor Connector (Hummer H2)
G00247427Courtesy of GENERAL MOTORS CORP.

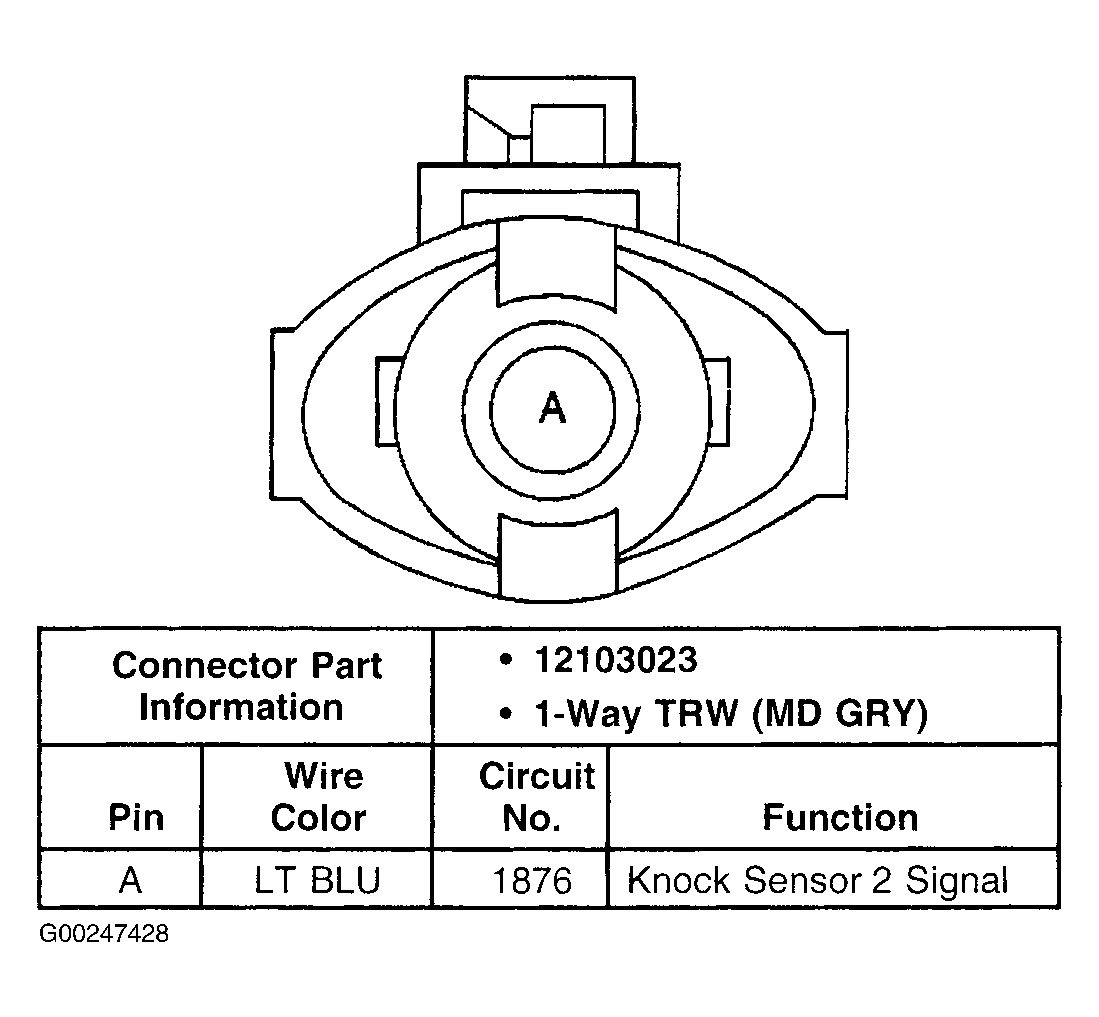

Fig 52: Identifying Rear Knock Sensor Connector (Hummer H2)
G00247428Courtesy of GENERAL MOTORS CORP.

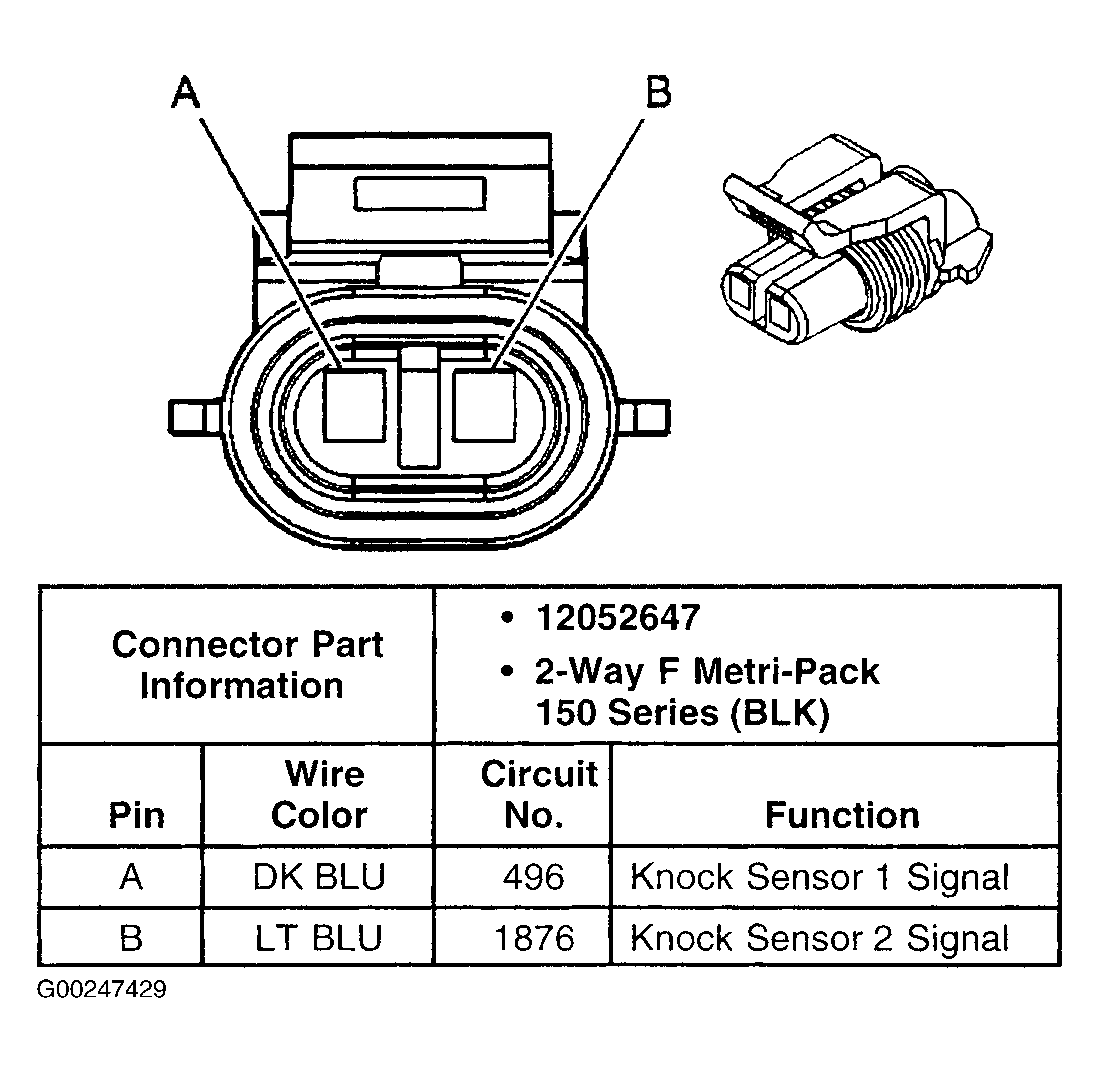

Fig 53: Identifying Knock Sensor Jumper Connector Terminals (Hummer H2)
G00247429Courtesy of GENERAL MOTORS CORP.

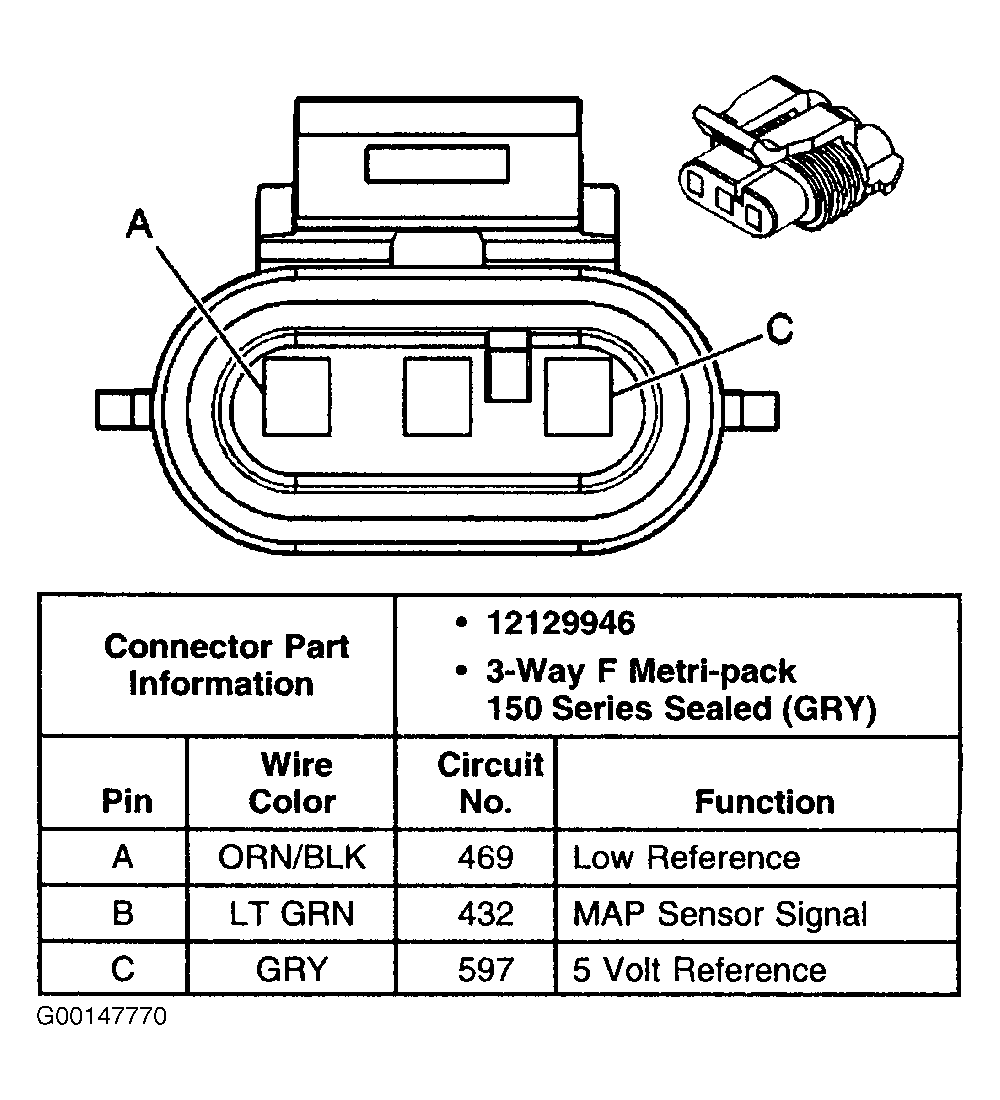

Fig 54: Identifying MAP Sensor Connector Terminals
G00147770Courtesy of GENERAL MOTORS CORP.

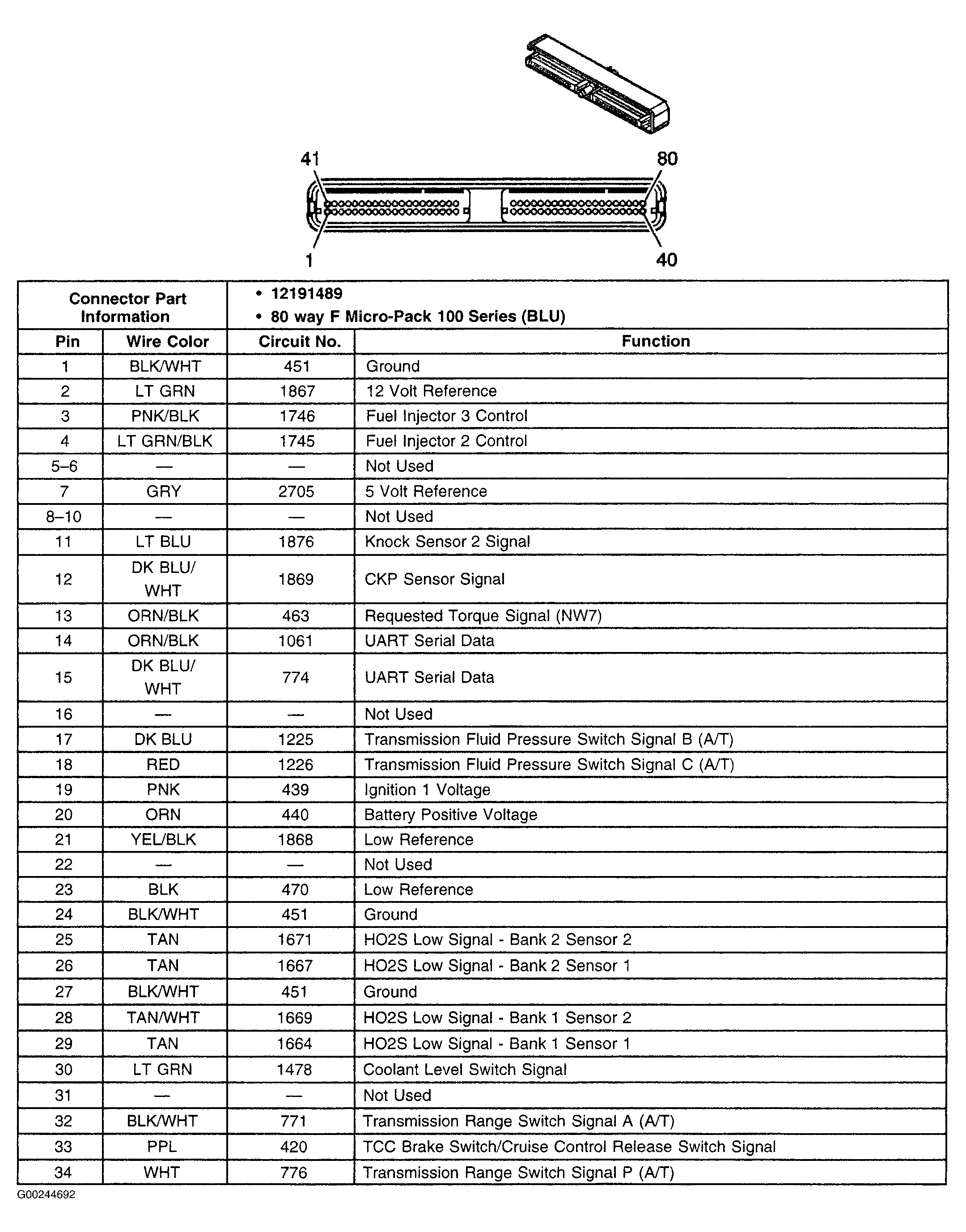

Fig 55: Identifying PCM (C1) Connector Terminals (Except Hummer H2 - 1 Of 3)
G00244692Courtesy of GENERAL MOTORS CORP.

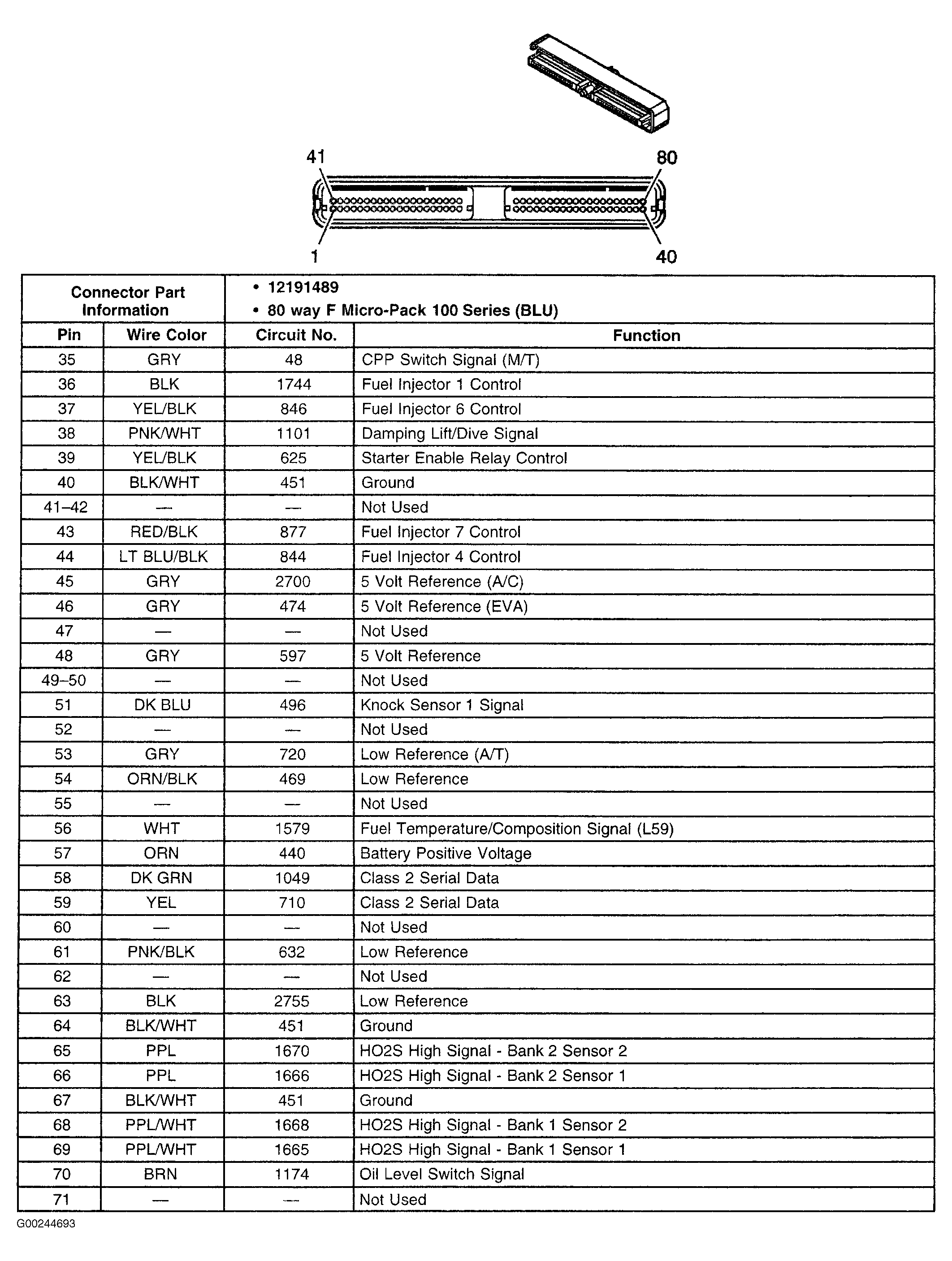

Fig 56: Identifying PCM (C1) Connector Terminals (Except Hummer H2 - 2 Of 3)
G00244693Courtesy of GENERAL MOTORS CORP.

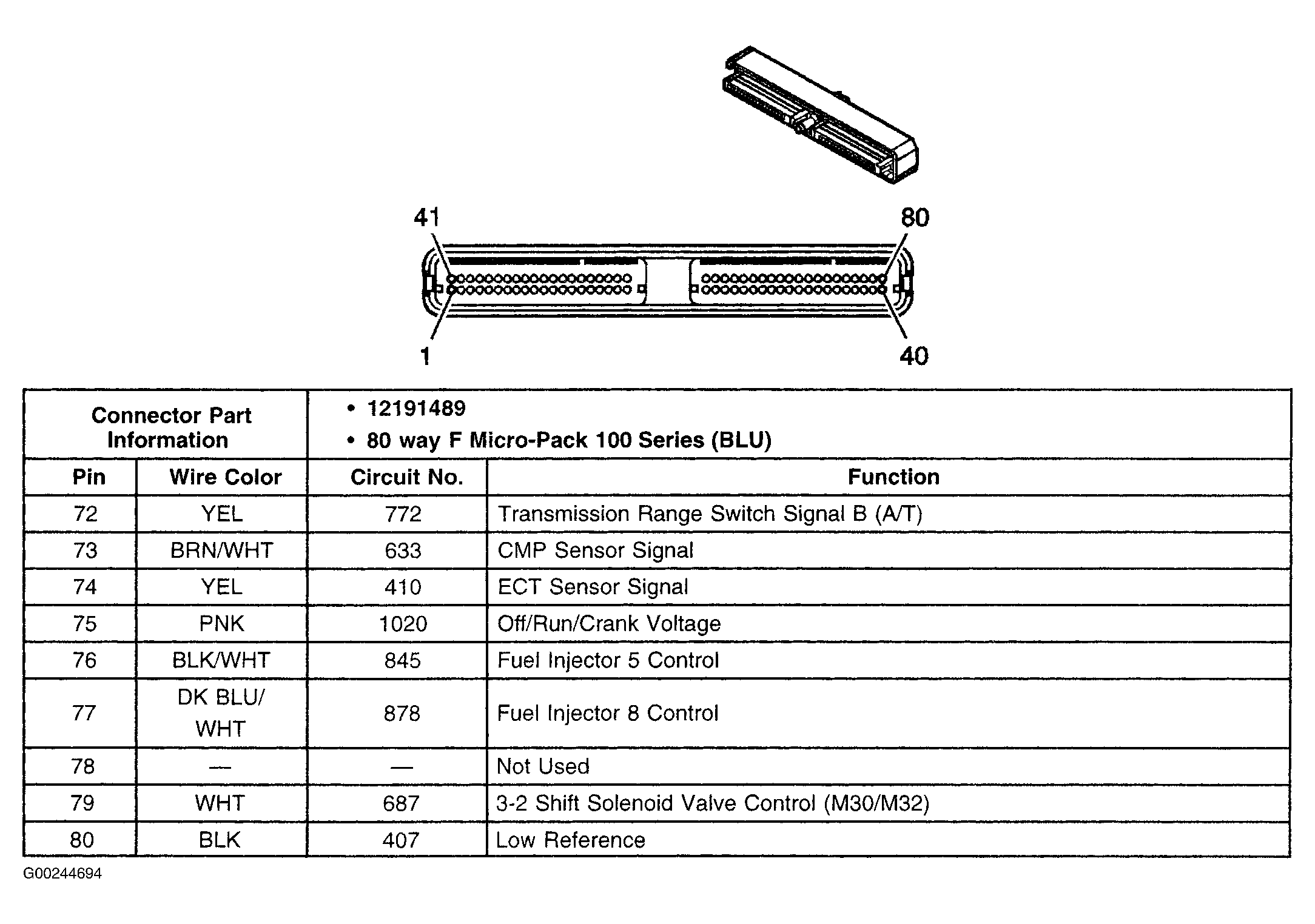

Fig 57: Identifying PCM (C1) Connector Terminals (Except Hummer H2 - 3 Of 3)
G00244694Courtesy of GENERAL MOTORS CORP.

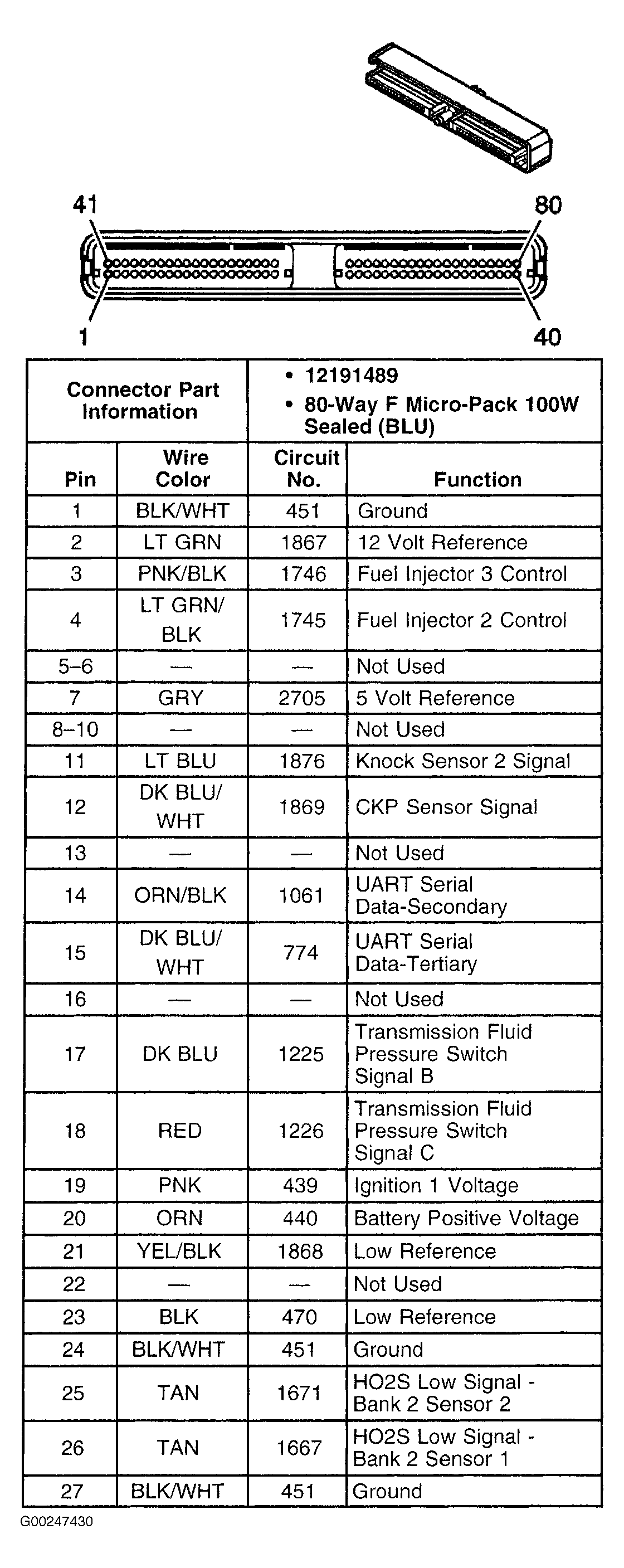

Fig 58: Identifying PCM (C1) Connector Terminals (Hummer H2 - 1 Of 3)
G00247430Courtesy of GENERAL MOTORS CORP.

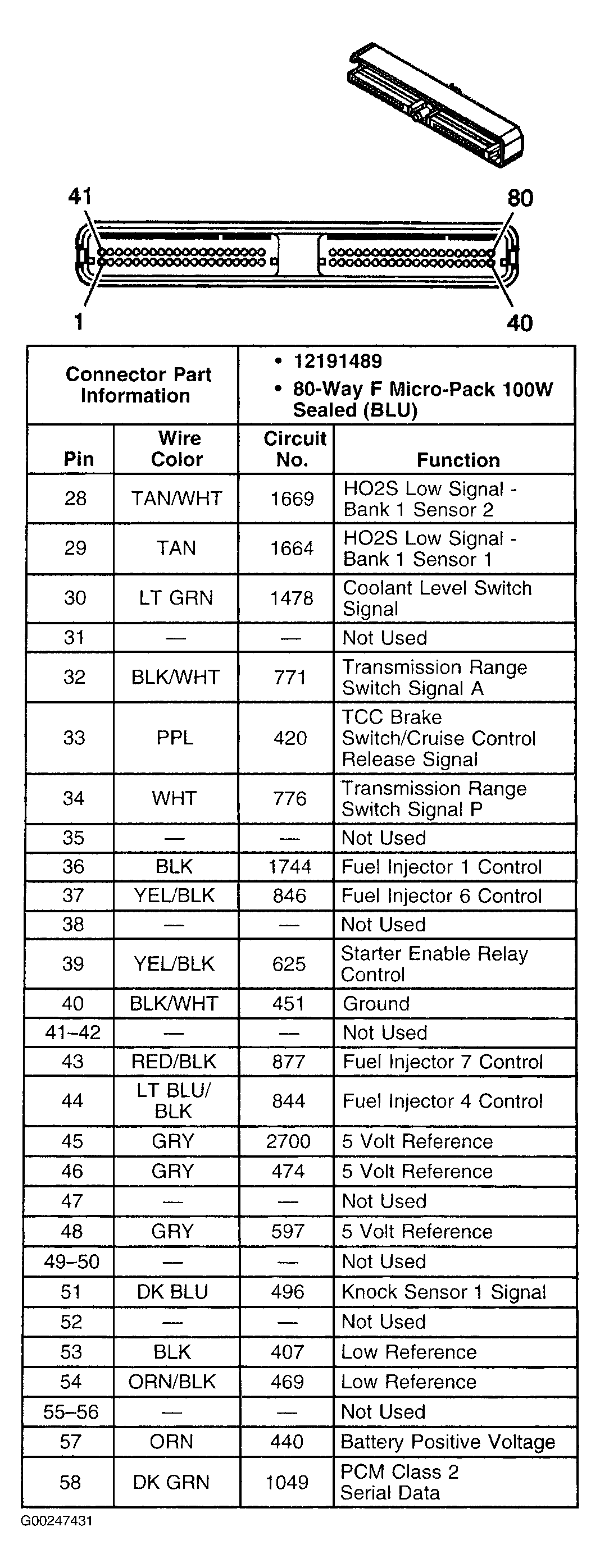

Fig 59: Identifying PCM (C1) Connector Terminals (Hummer H2 - 2 Of 3)
G00247431Courtesy of GENERAL MOTORS CORP.

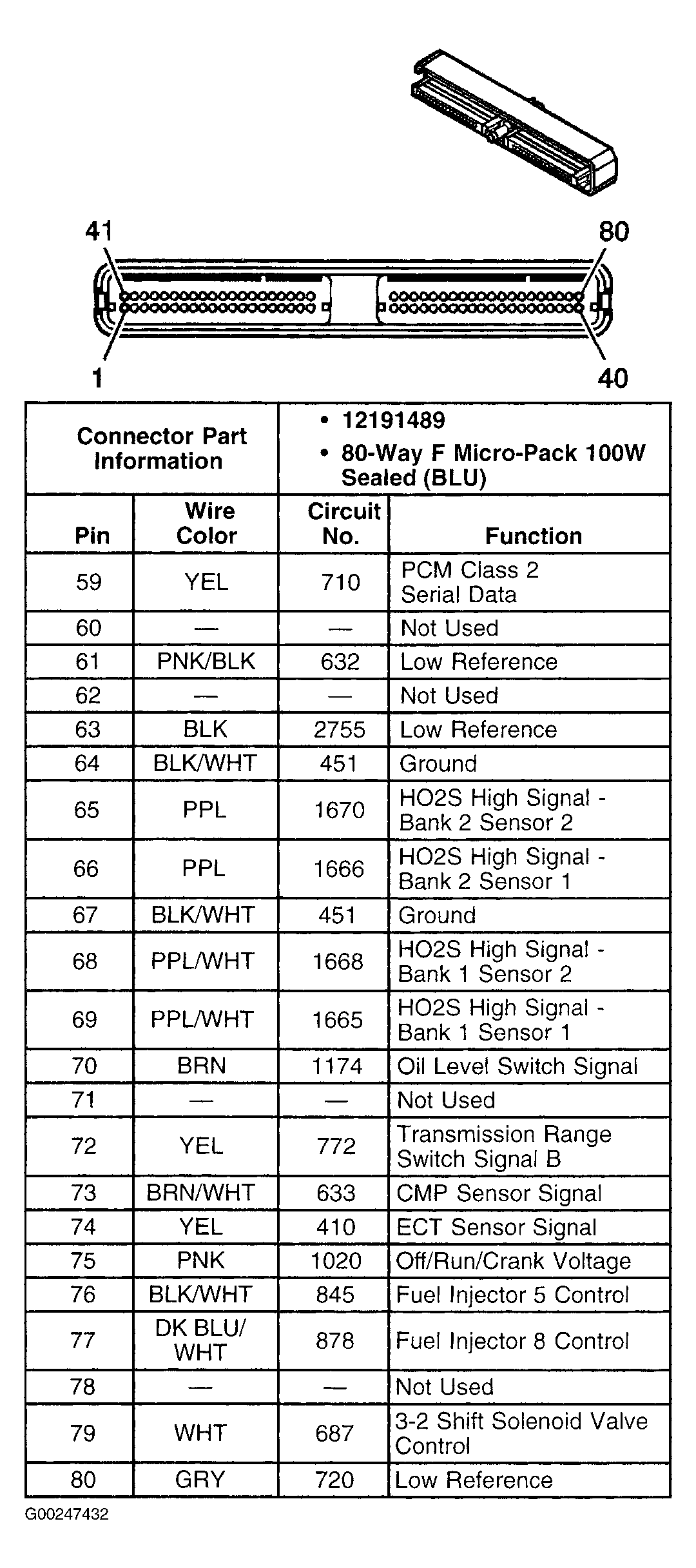

Fig 60: Identifying PCM (C2) Connector Terminals (Hummer H2 - 3 Of 3)
G00247432Courtesy of GENERAL MOTORS CORP.

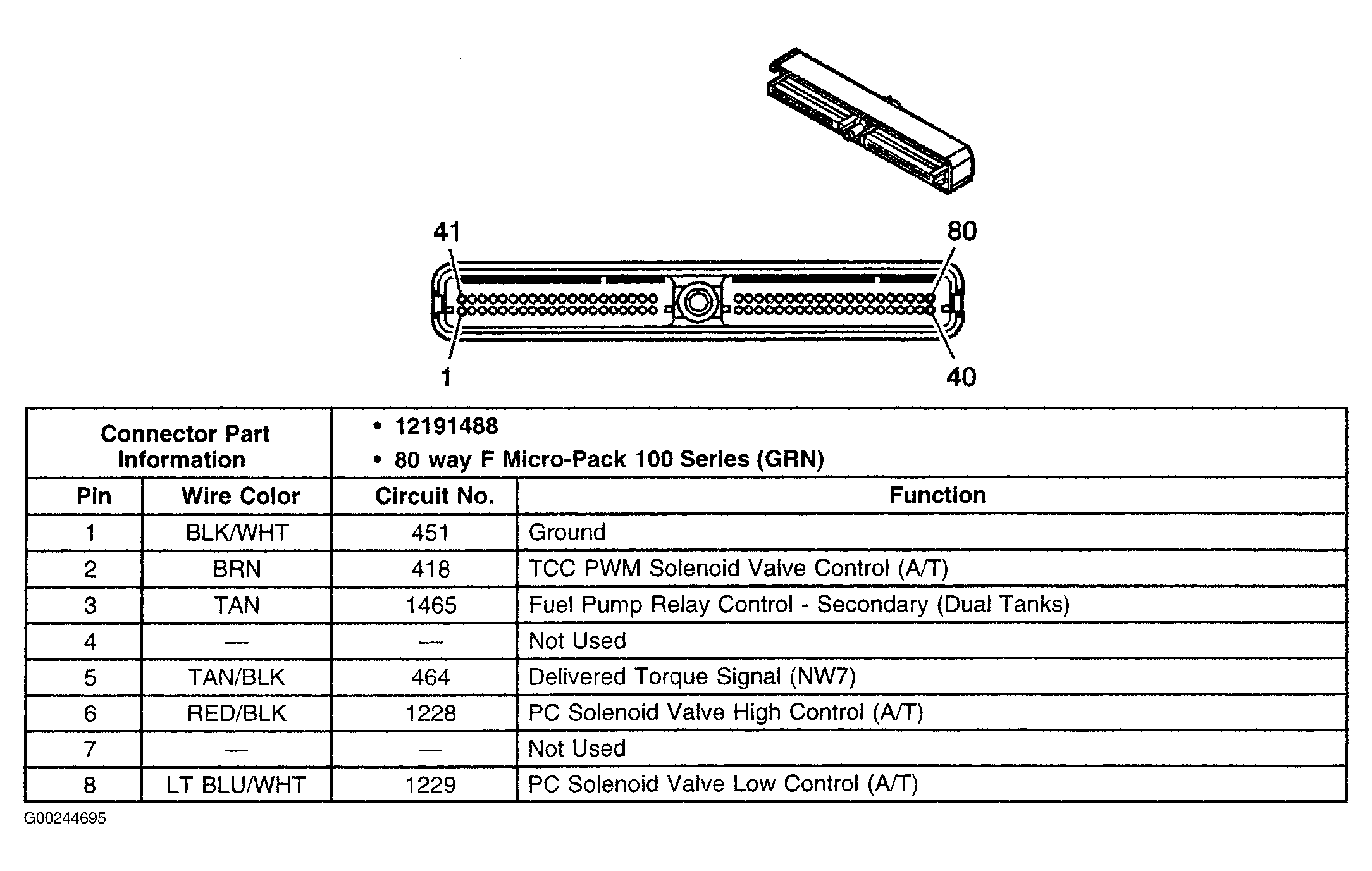

Fig 61: Identifying PCM (C2) Connector Terminals (Except Hummer H2 - 1 Of 3)
G00244695Courtesy of GENERAL MOTORS CORP.

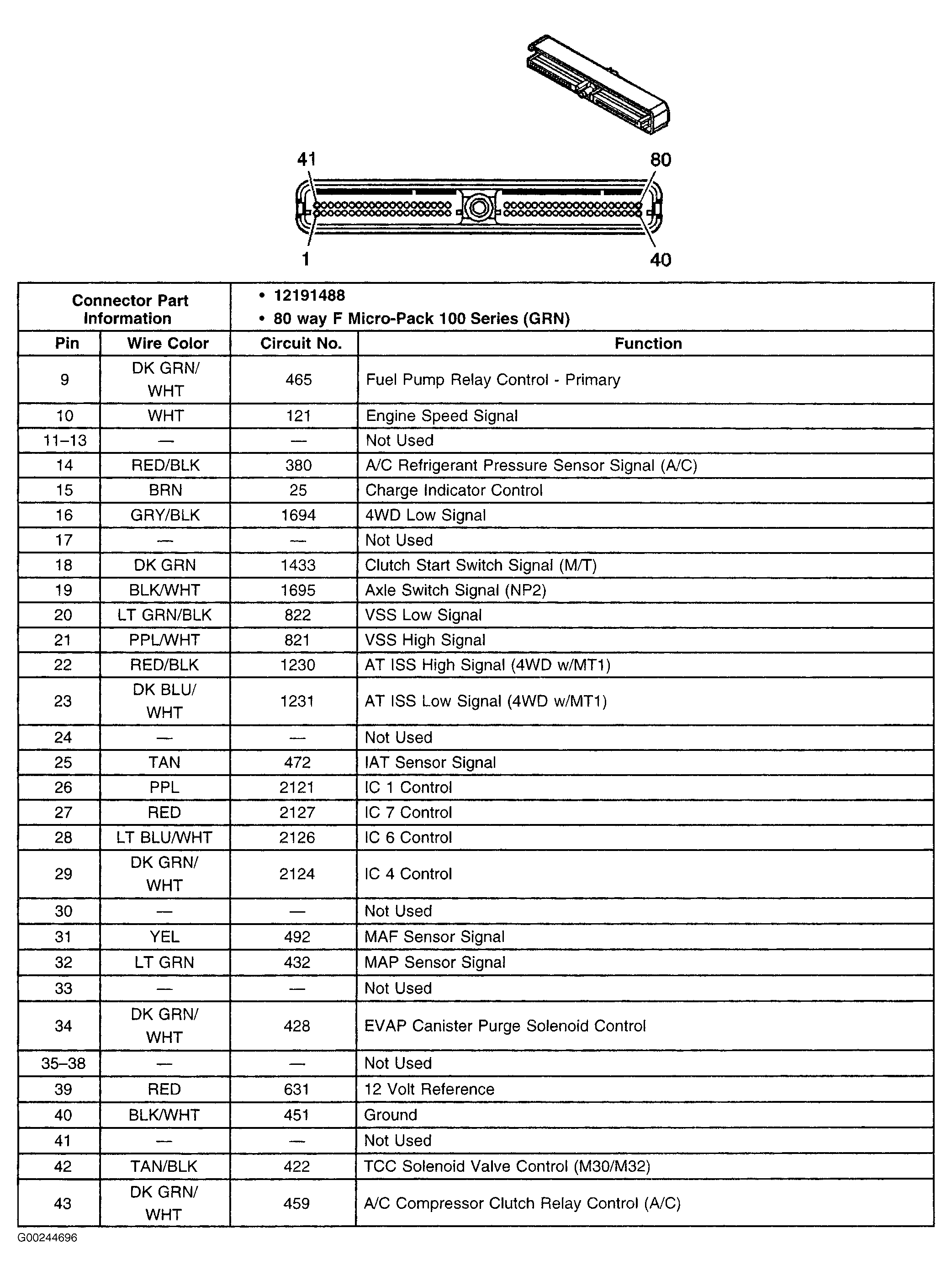

Fig 62: Identifying PCM (C2) Connector Terminals (Except Hummer H2 - 2 Of 3)
G00244696Courtesy of GENERAL MOTORS CORP.

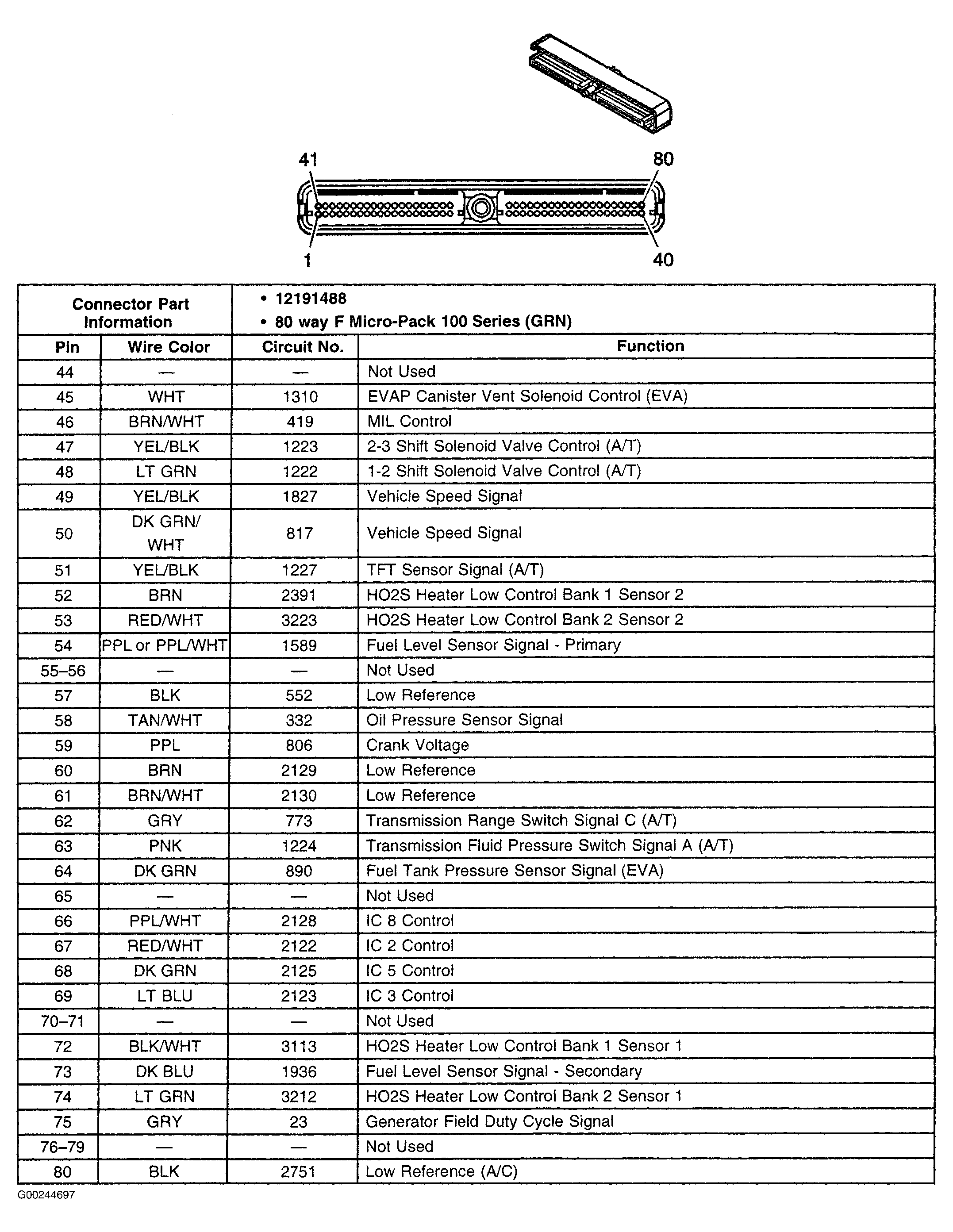

Fig 63: Identifying PCM (C2) Connector Terminals (Except Hummer H2 - 3 Of 3)
G00244697Courtesy of GENERAL MOTORS CORP.

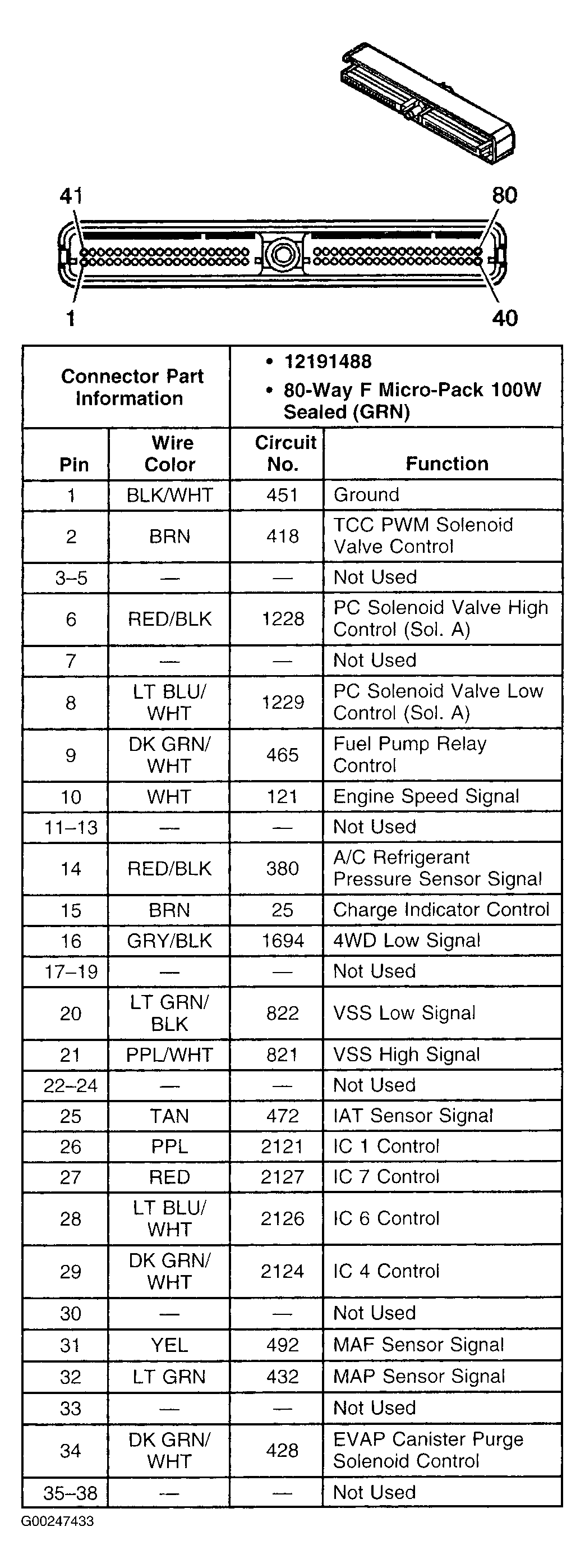

Fig 64: Identifying PCM (C2) Connector Terminals (Hummer H2 - 1 Of 3)
G00247433Courtesy of GENERAL MOTORS CORP.

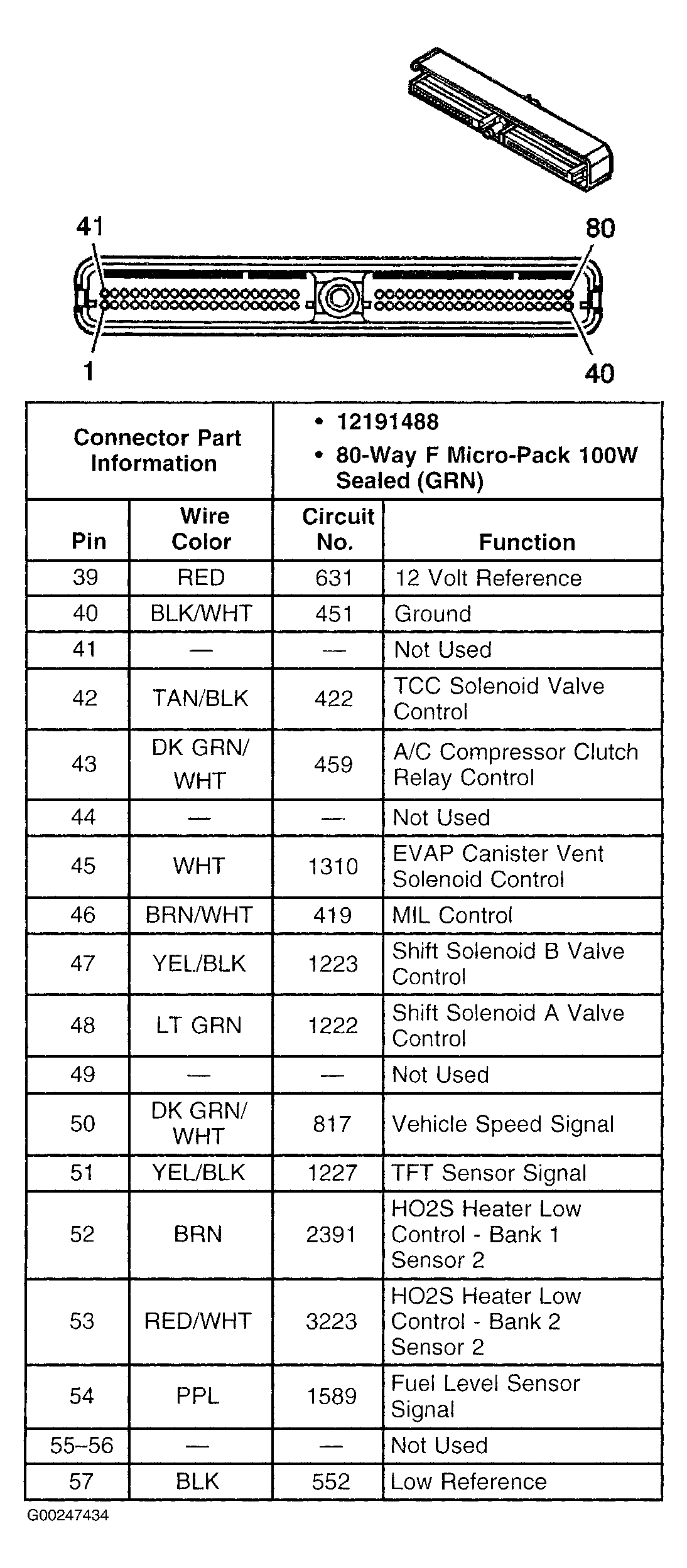

Fig 65: Identifying PCM (C2) Connector Terminals (Hummer H2 - 2 Of 3)
G00247434Courtesy of GENERAL MOTORS CORP.

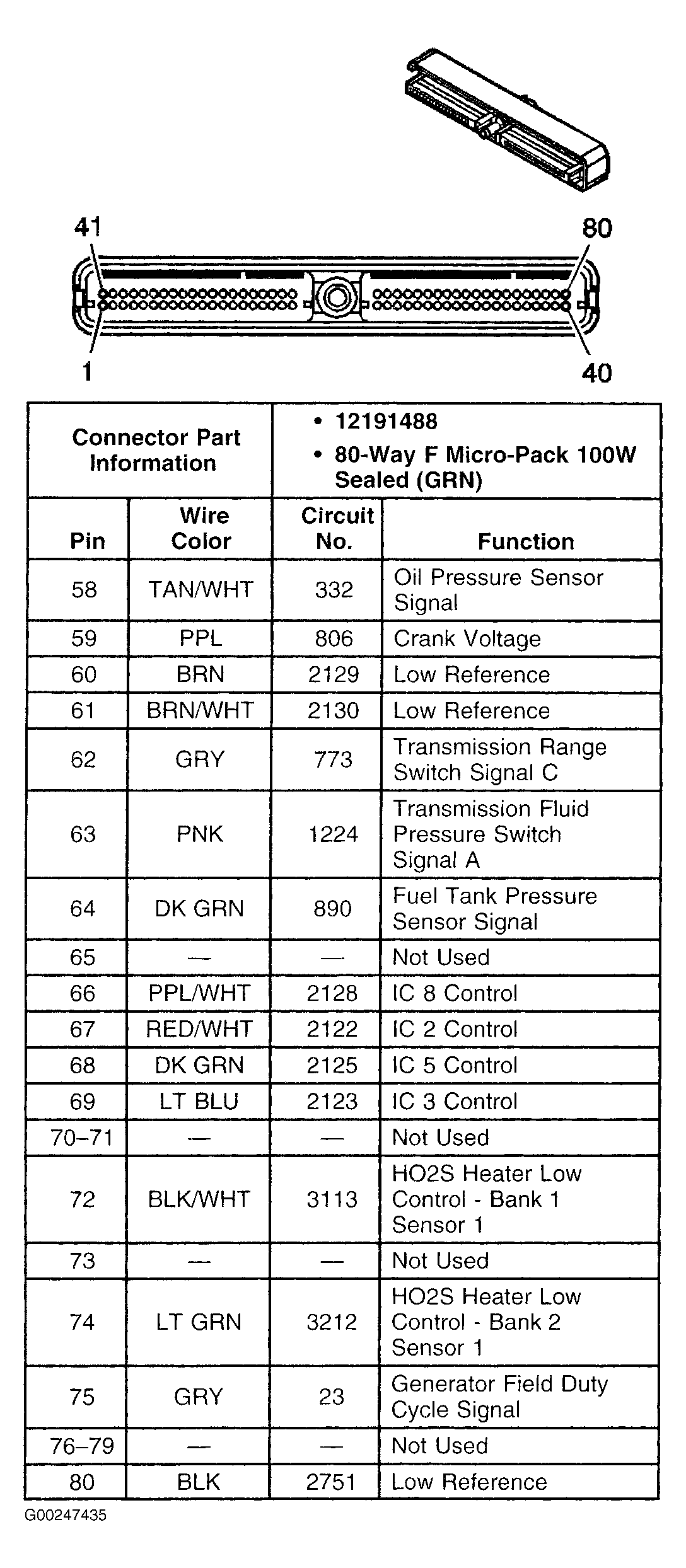

Fig 66: Identifying PCM (C2) Connector Terminals (Hummer H2 - 3 Of 3)
G00247435Courtesy of GENERAL MOTORS CORP.

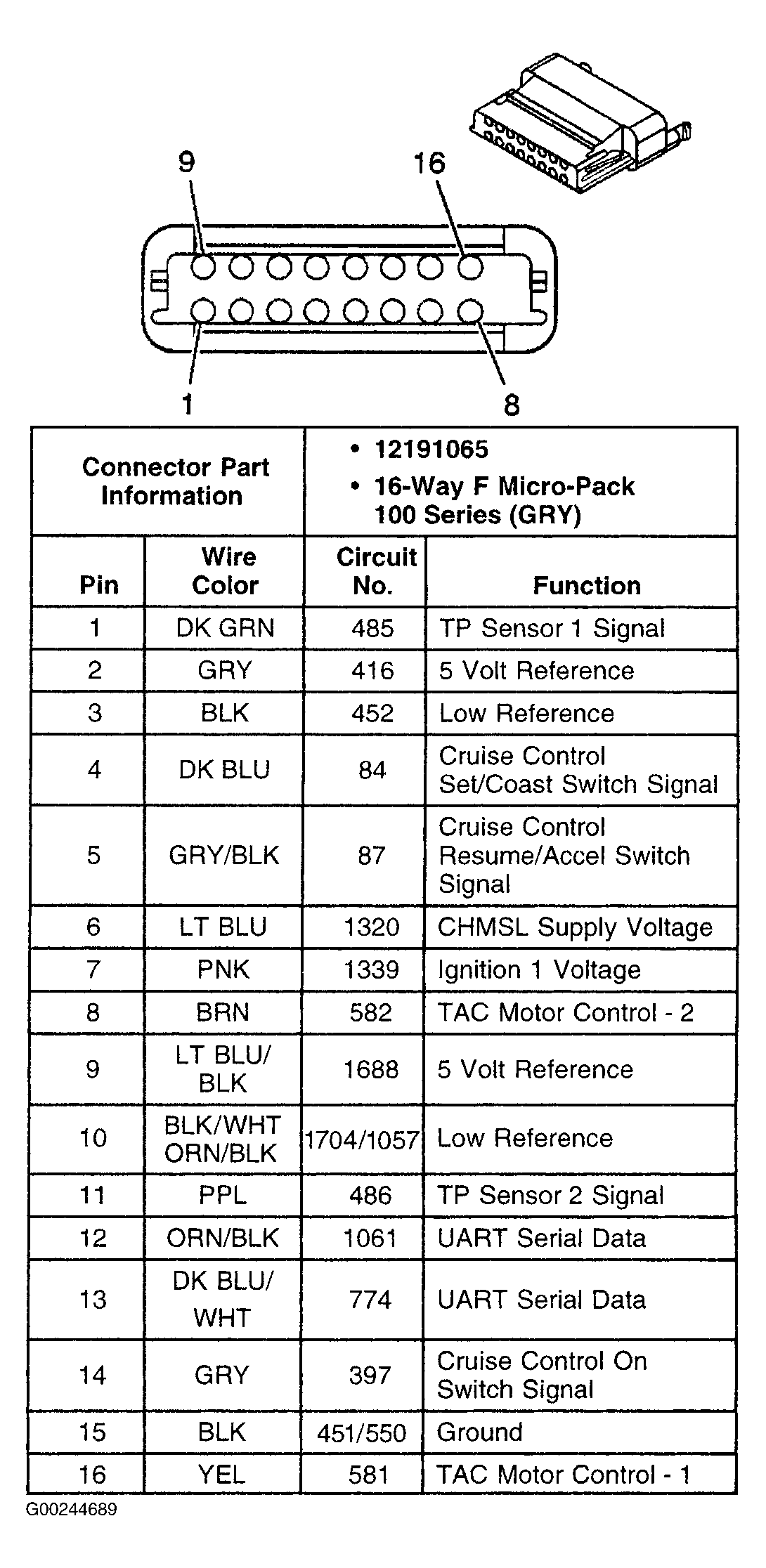

Fig 67: Identifying Throttle Actuator Control Module C1 Connector Terminals
G00244689Courtesy of GENERAL MOTORS CORP.

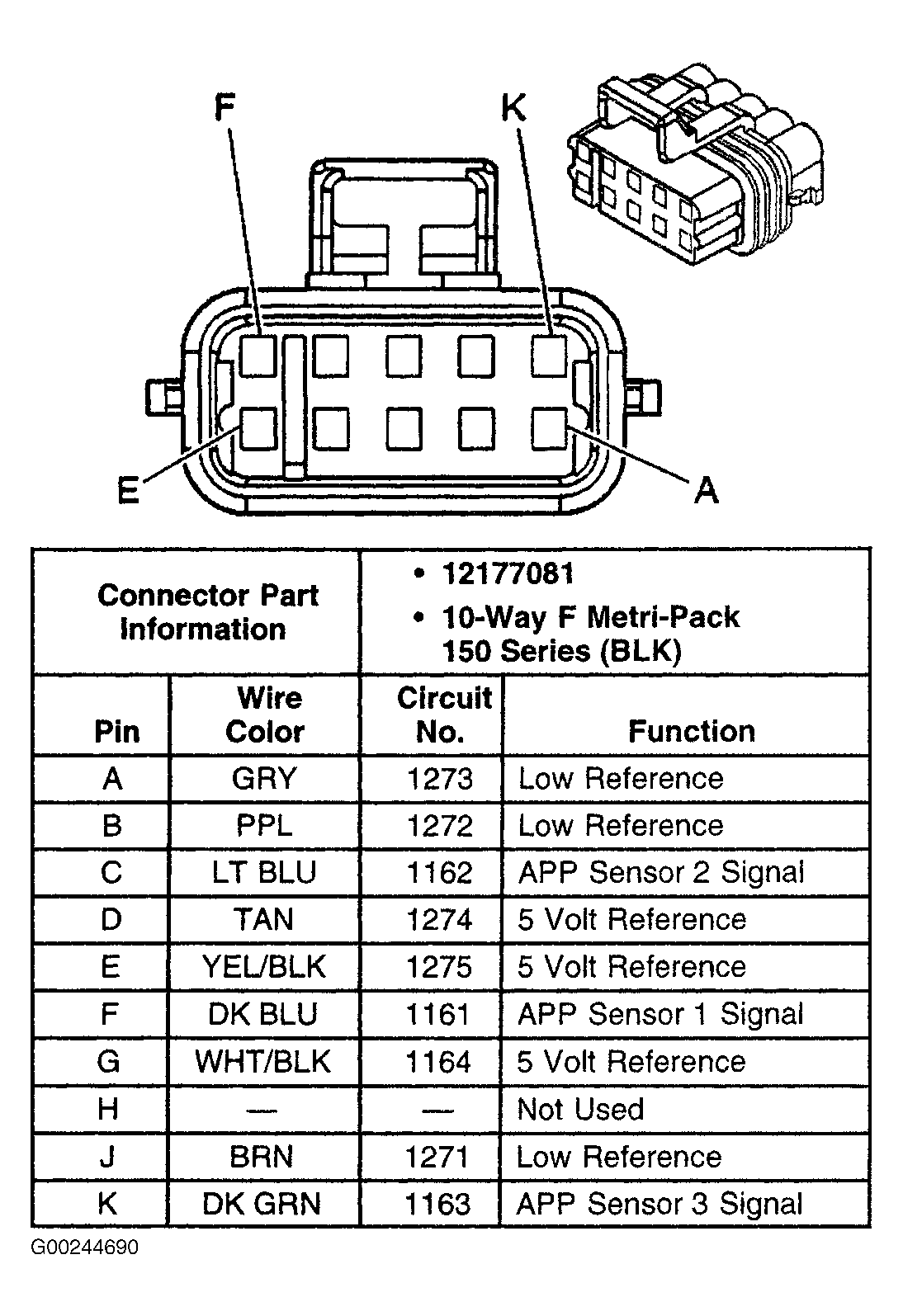

Fig 68: Identifying Throttle Actuator Control Module C2 Connector Terminals (Except Hummer H2)
G00244690Courtesy of GENERAL MOTORS CORP.

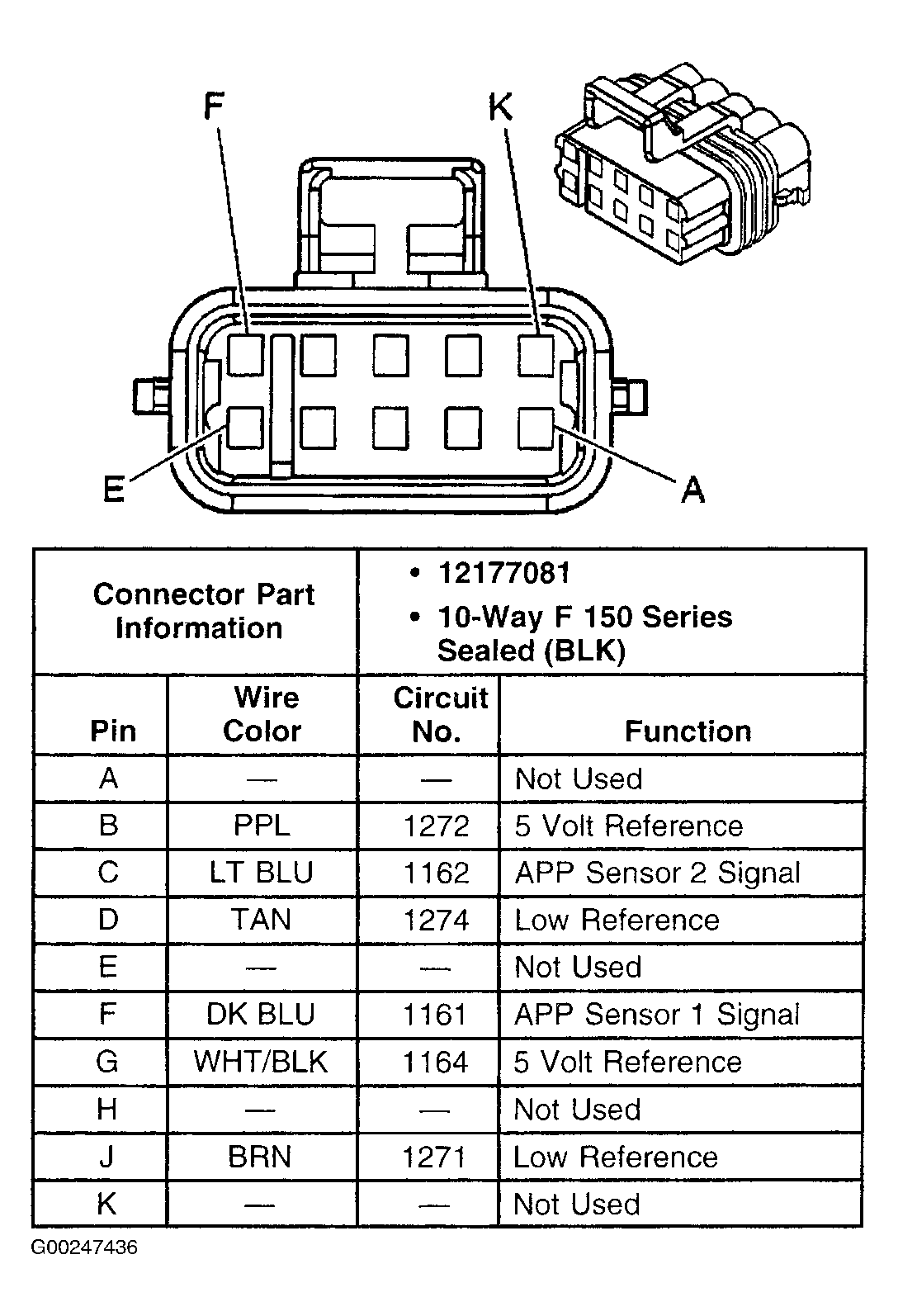

Fig 69: Identifying Throttle Actuator Control Module C2 Connector Terminals (Hummer H2)
G00247436Courtesy of GENERAL MOTORS CORP.

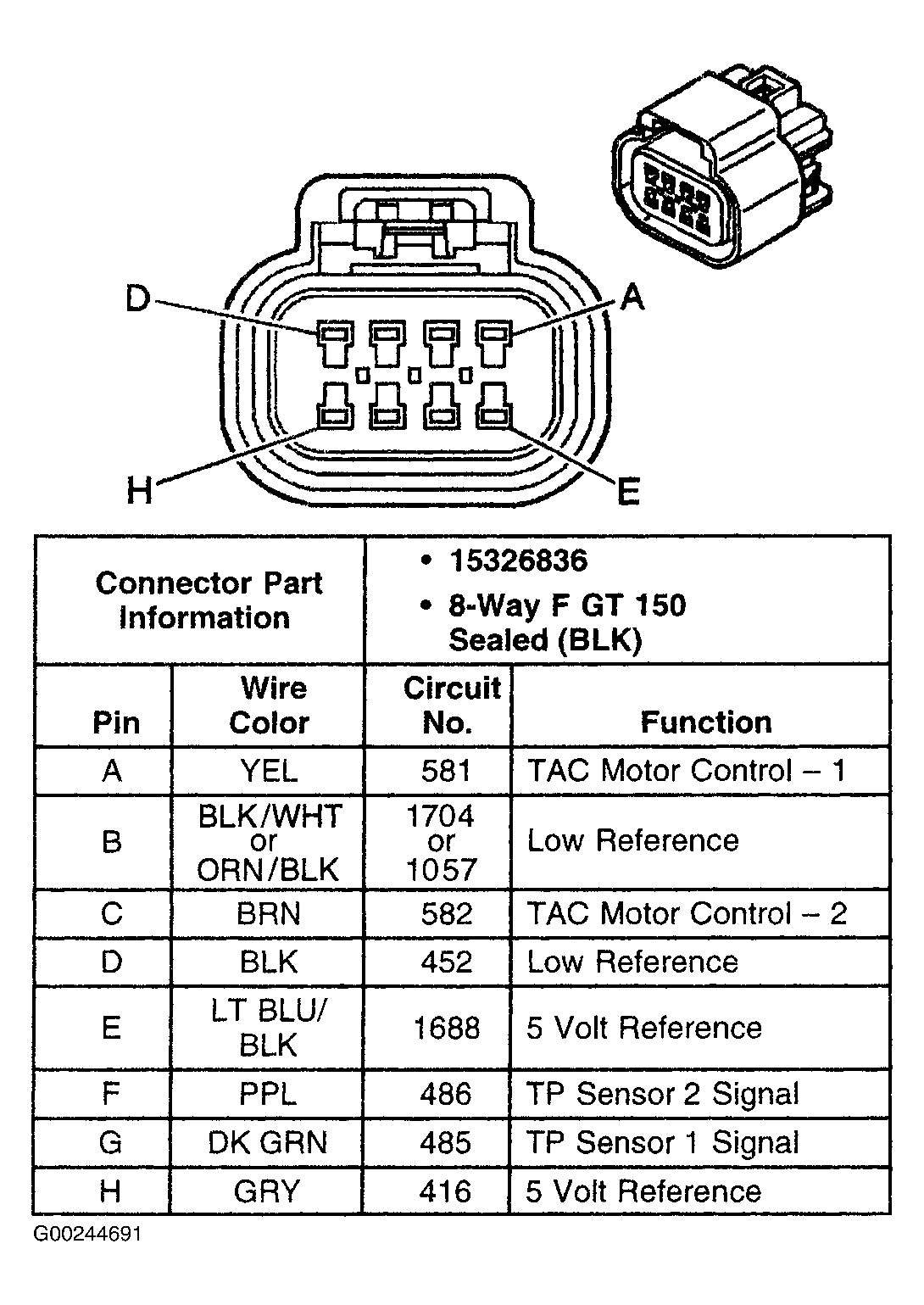

Fig 70: Identifying Throttle Body Connector Terminals
G00244691Courtesy of GENERAL MOTORS CORP.
