Engine Support Fixture

Tools Required:

• J 28467-B  Universal Engine Support Fixture
• J 36462-A  Engine Support Adapter Leg Set
• J-28467-501  Engine Support Fixture Adapters

1. Disconnect the negative battery cable.
2. Remove the left engine mount strut and the bracket from the upper radiator support. Refer to Engine Mount Strut Bracket Replacement - Upper Radiator Support .

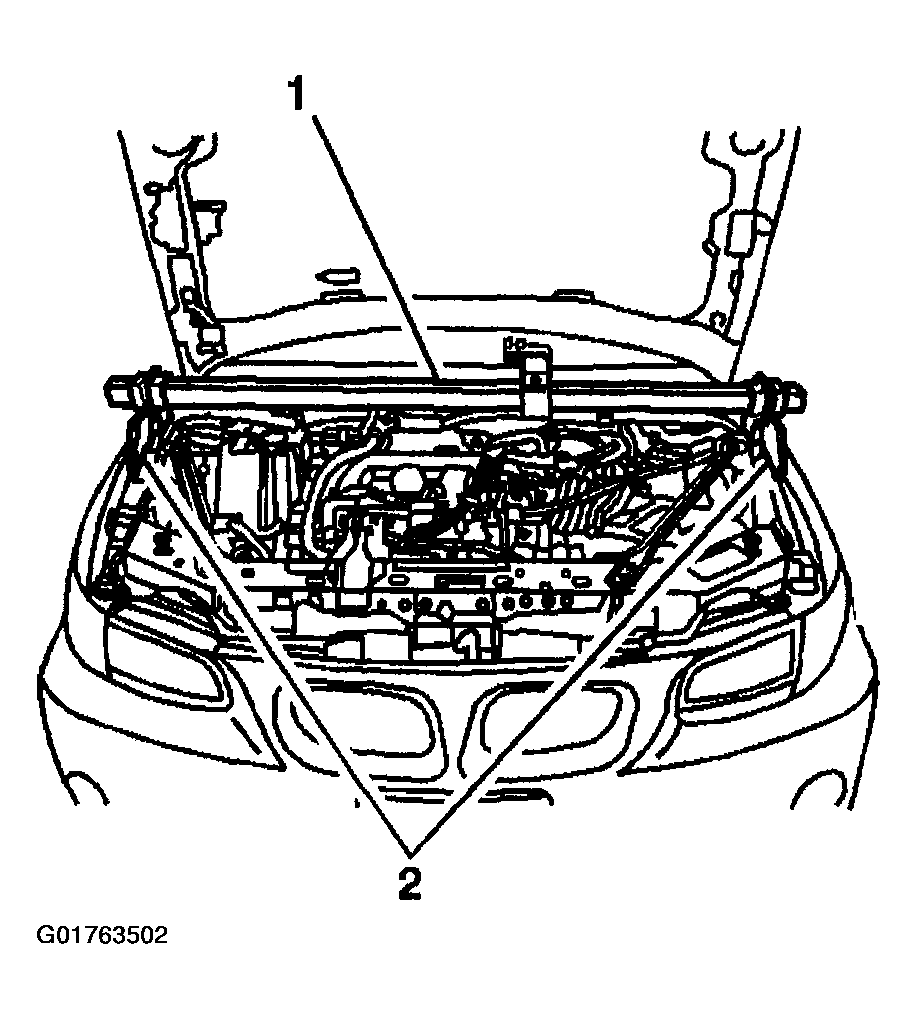

3. Assemble the J-28467-501 (2) to the J 28467-B cross bar (1).
4. Install the J 28467-B (1) and the J-28467-501 (2) to the fender rails.
   Fig 1: Installing Special Tools

   Courtesy of GENERAL MOTORS CORP.

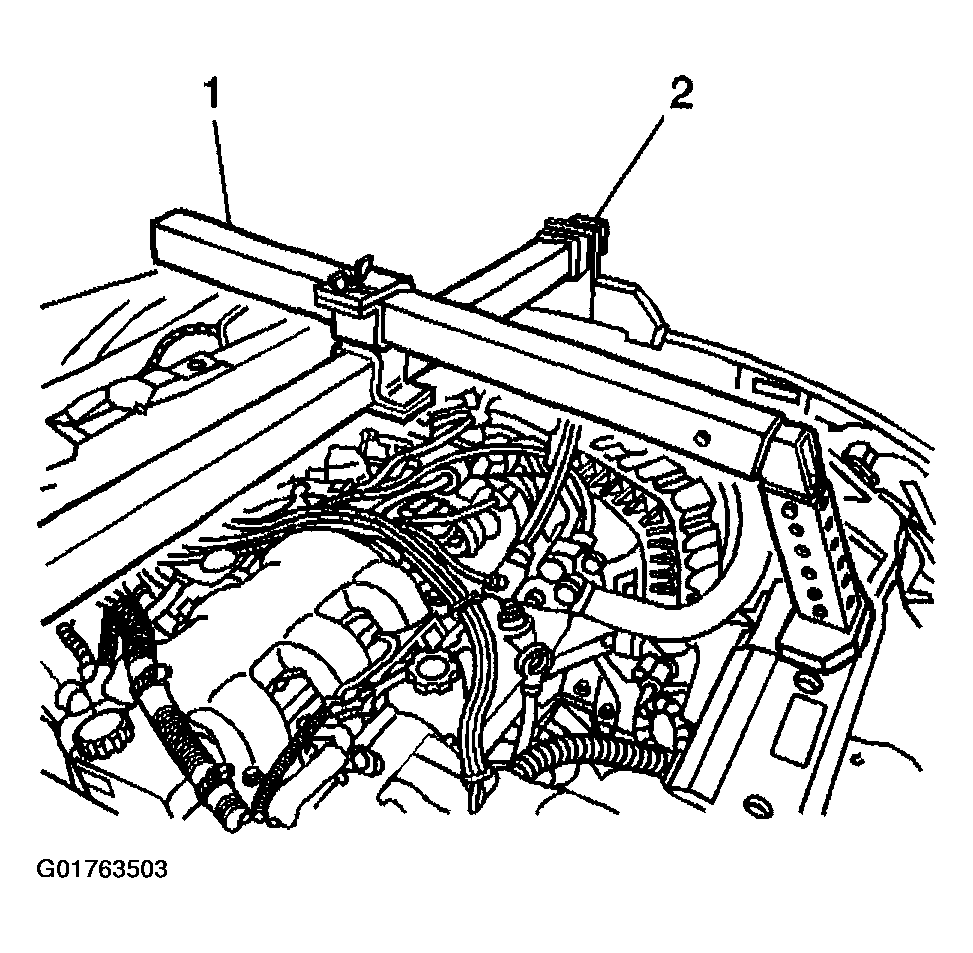

5. Install the J 36462-A (1) to the cross bar (2).
   Fig 2: Special Tool J 36462-A To Cross Bar

   Courtesy of GENERAL MOTORS CORP.

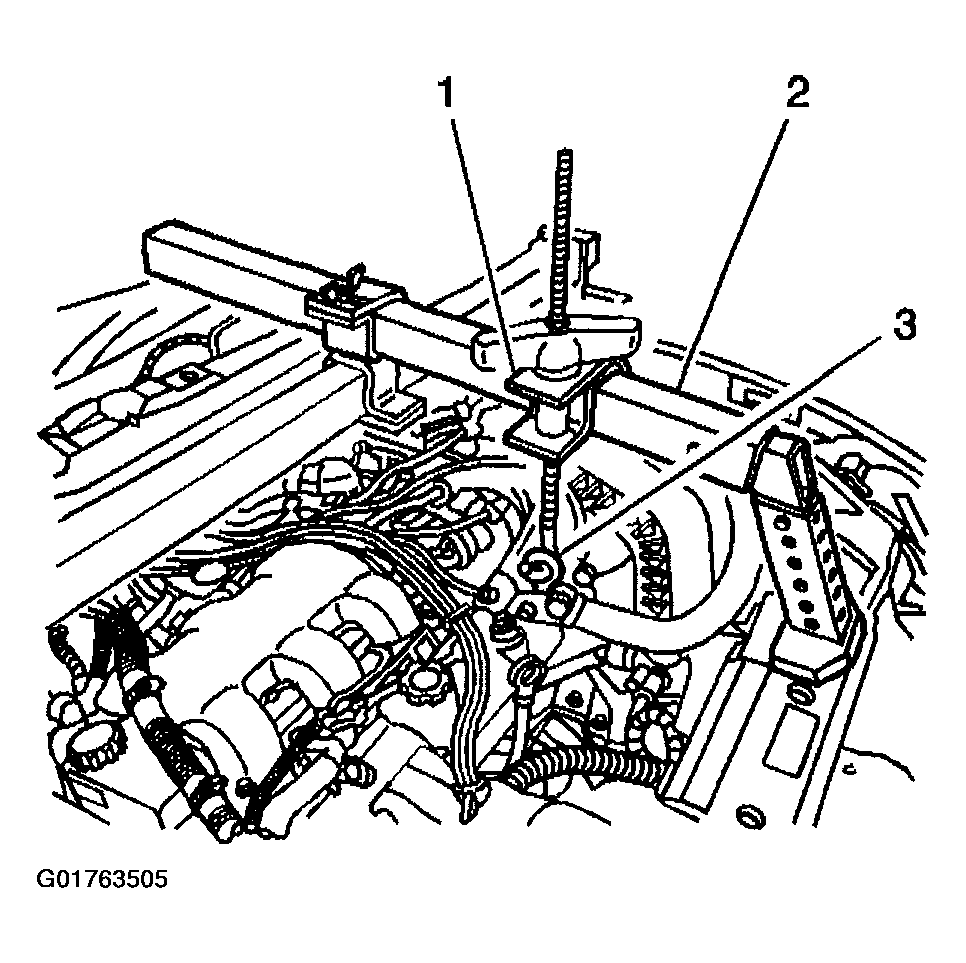

6. Install the support lift hook (1) to the cross bar (2).
7. Install the support hook (1) to the right engine lift hook (3).
   Fig 3: Support Hook And Cross Bar To Right Engine Lift Hook

   Courtesy of GENERAL MOTORS CORP.

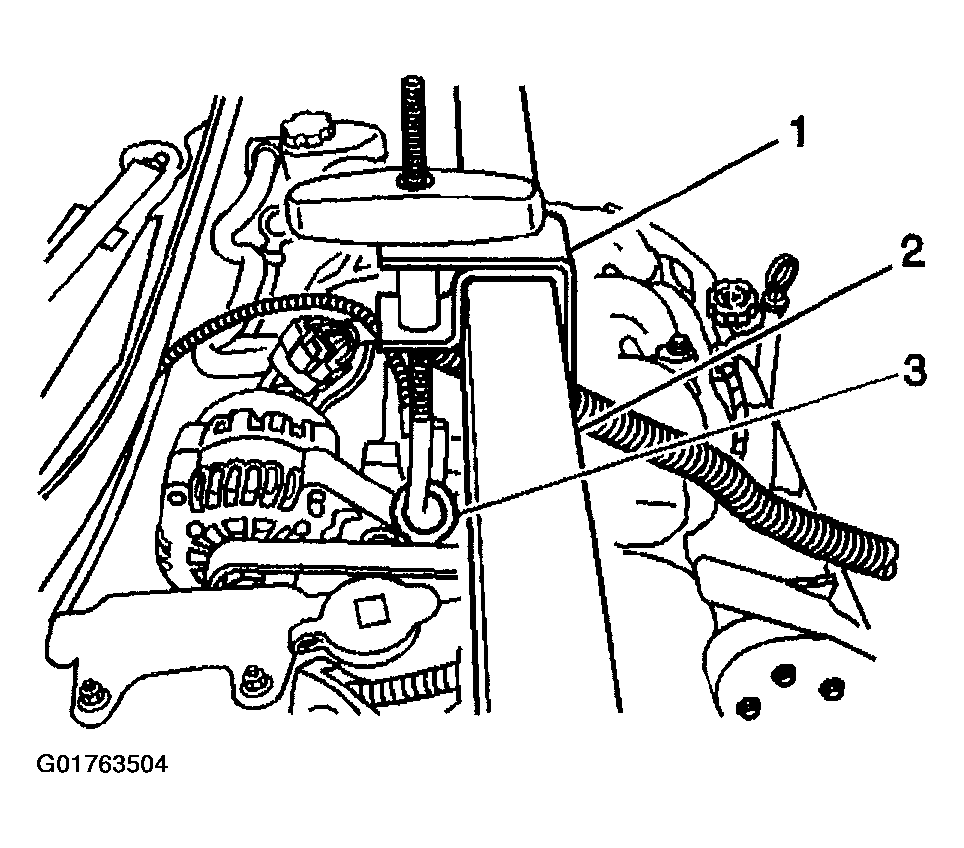

8. Install the support hook (1) to the J 36462-A (2).
9. Install the support hook (1) to the left engine lift hook (3).
   Fig 4: Support Hook And Tool J 36462-A To Left Engine Lift Hook

   Courtesy of GENERAL MOTORS CORP.

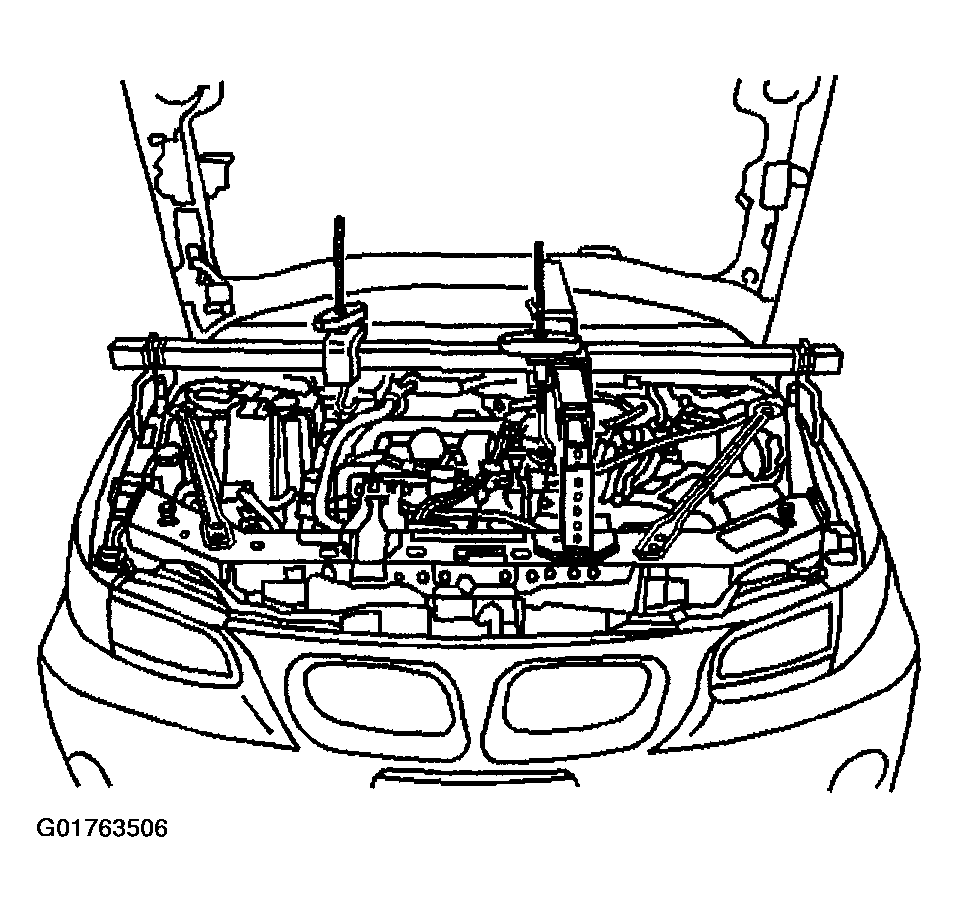

10. Raise the engine to release the pressure off of the engine mounts.
    Fig 5: Raising Engine

    Courtesy of GENERAL MOTORS CORP.
