Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount strut from the engine mount strut bracket at the upper radiator support. Refer to Engine Mount Strut Bracket Replacement - Left  or Engine Mount Strut Bracket Replacement - Right  .
  2. Remove the horizontal engine mount strut bracket bolt from the engine mount strut bracket.
  3. Remove the vertical engine mount strut bracket bolts from the engine mount strut bracket.
  4. Remove the engine mount strut bracket from the upper radiator support.

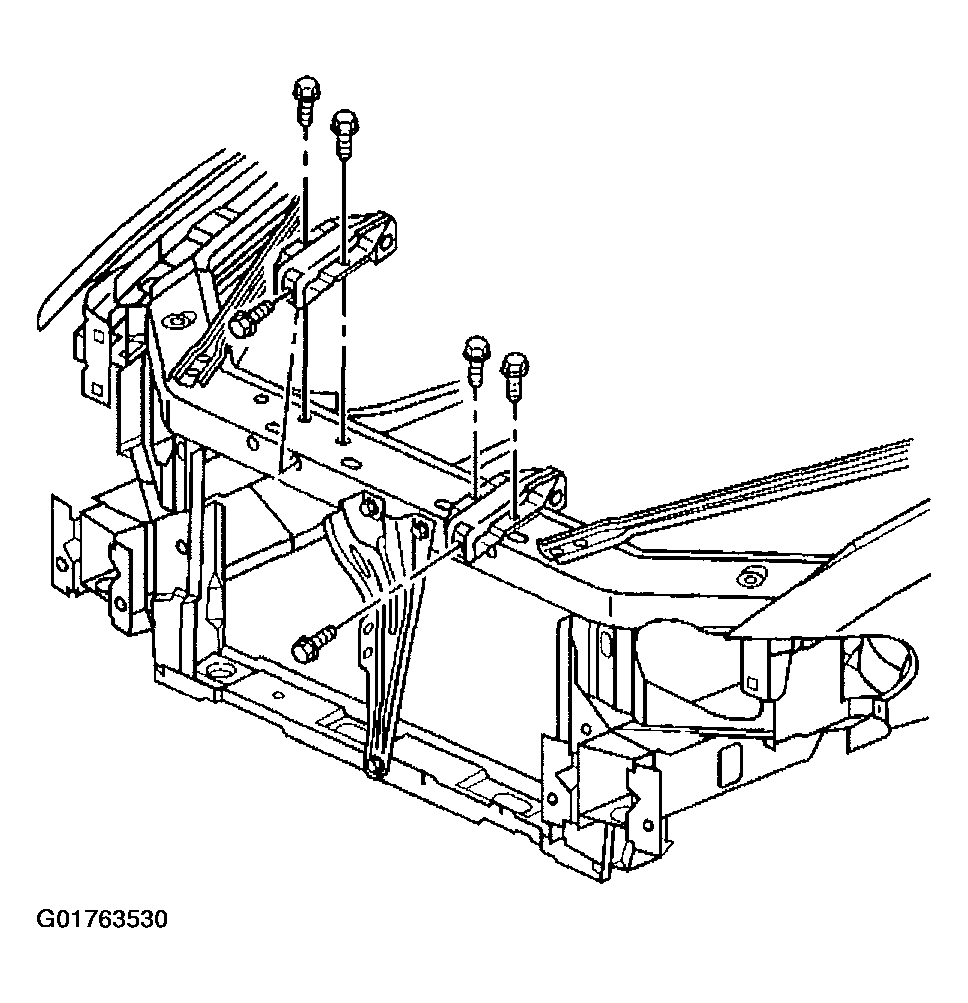

    Fig 1: Engine Mount Strut Bracket And Mounting Bolts
    G01763530Courtesy of GENERAL MOTORS CORP.
