Connector Identification

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, 2002 Chevrolet RV Cutaway, and 2002 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Transmission In-line 20-Way Connector Terminals (Engine Side)

G00080134

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Transmission In-line 20-Way Connector Terminals (Transmission Side)

G00080092

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying TFP Manual Valve Position Switch Connector Terminals (Harness Side)

G00080093

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying 1-2 Shift Solenoid Valve Connector Terminals (Harness Side)

G00080095

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying 2-3 Shift Solenoid Valve Connector Terminals (Harness Side)

G00080094

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying TCC PWM Solenoid Valve Connector Terminals (Harness Side)

G00080096

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Pressure Control Solenoid Valve Connector Terminals (Harness Side)

G00080097

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Input Shaft Speed Sensor Connector Terminals (Harness Side)

G00080098

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Output Shaft Speed Sensor Connector Terminals (Harness Side)

G00080100

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Transmission Fluid Temperature Sensor Connector Terminals (Harness Side)

G00080099

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Transmission Range Switch Connector C1 Terminals (Harness Side)

G00080135

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying Transmission Range Switch Connector C2 Terminals (Harness Side)

G00080101

Courtesy of GENERAL MOTORS CORP.

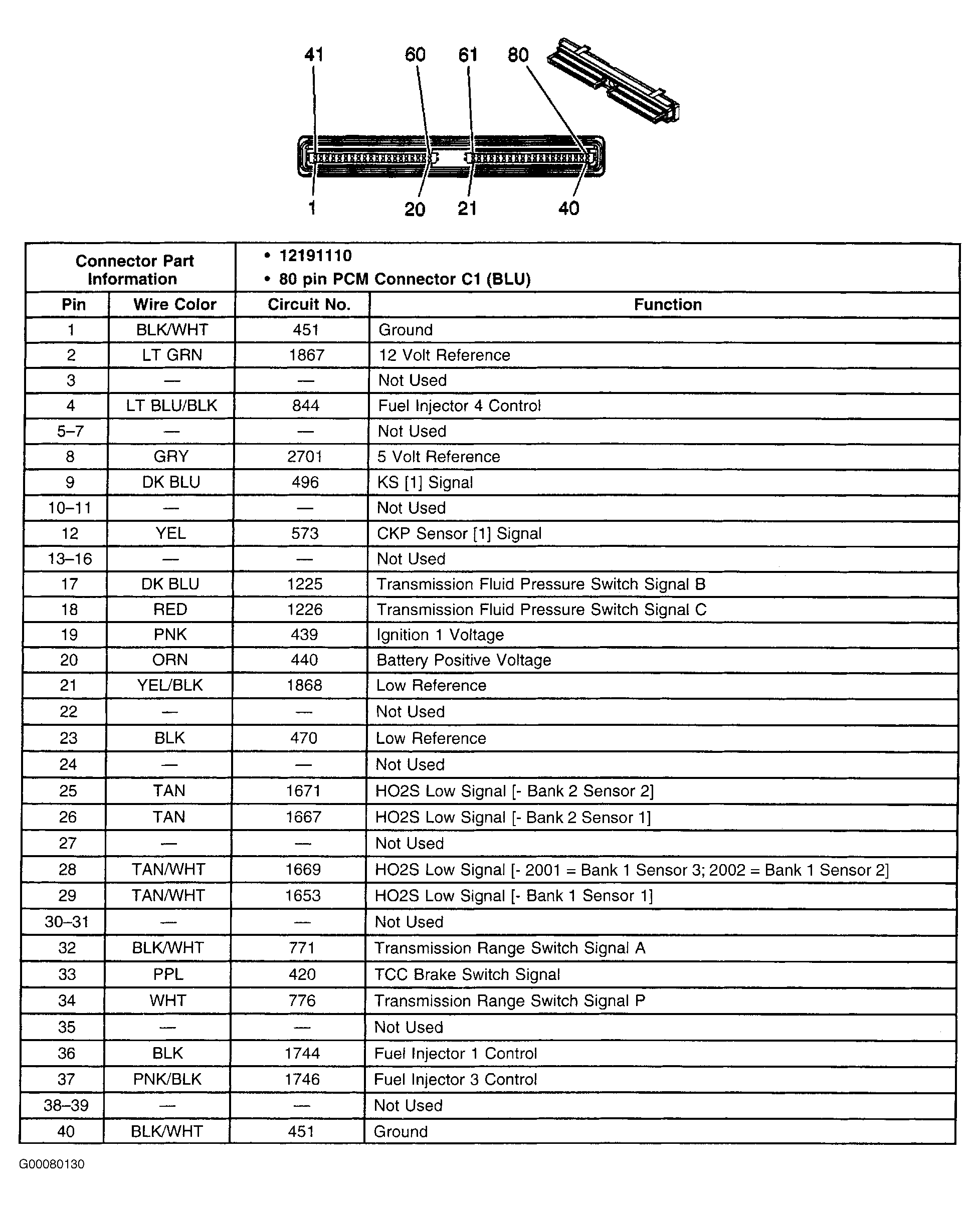

Fig 13: Identifying PCM 80-Way Connector C1 Terminals (4.3L - 1 Of 2)

G00080130

Courtesy of GENERAL MOTORS CORP.

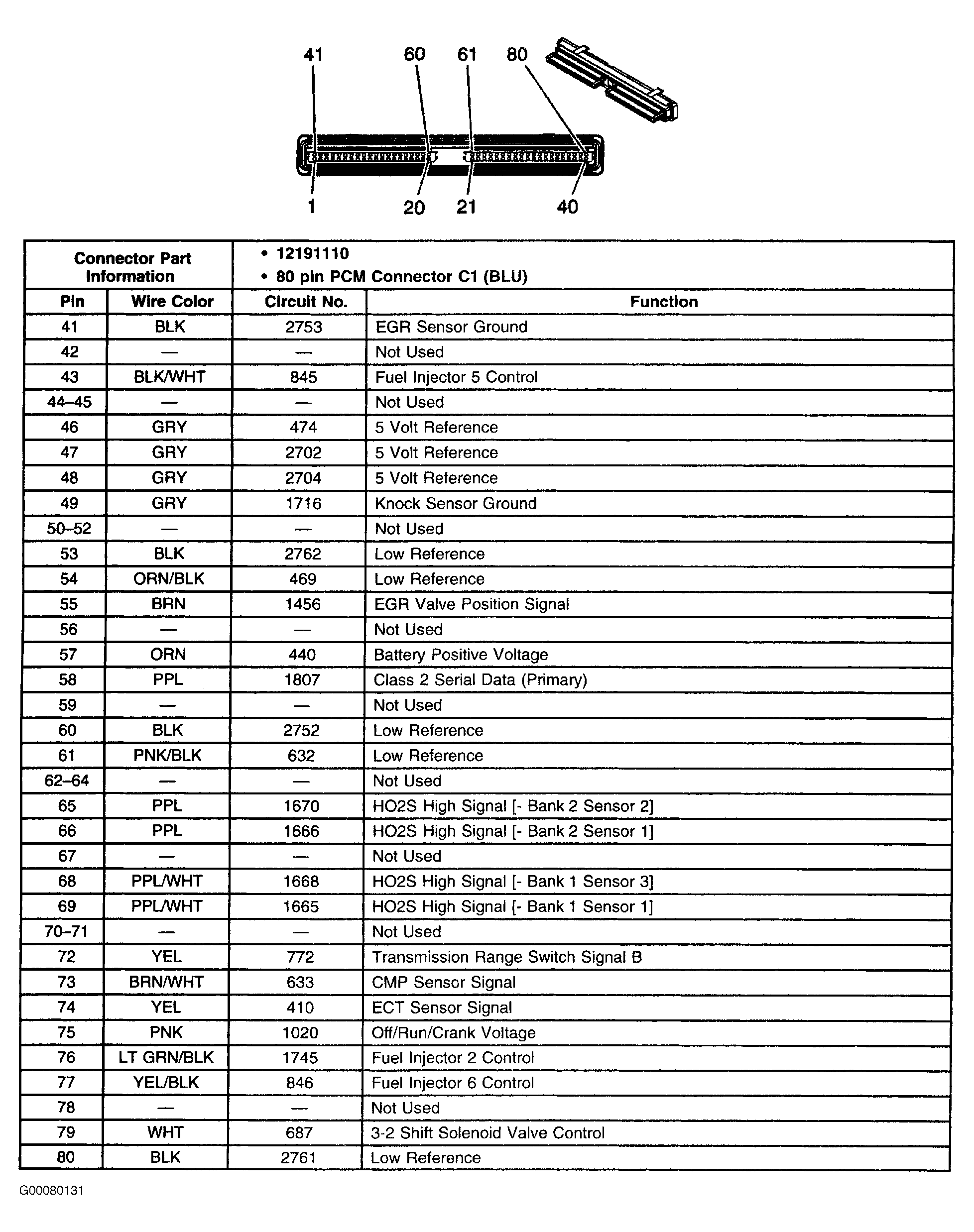

Fig 14: Identifying PCM 80-Way Connector C1 Terminals (4.3L - 2 Of 2)

G00080131

Courtesy of GENERAL MOTORS CORP.

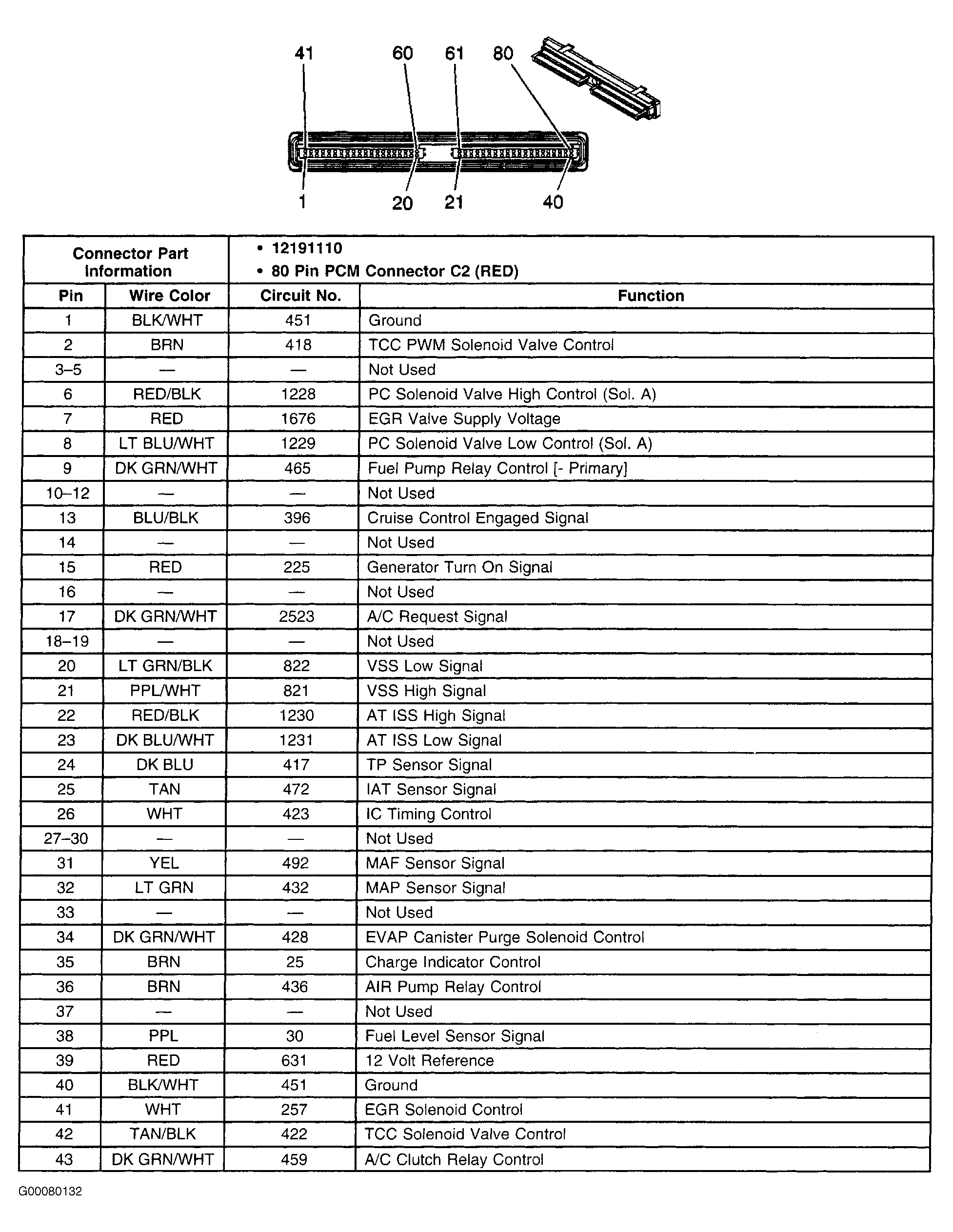

Fig 15: Identifying PCM 80-Way Connector C2 Terminals (4.3L - 1 Of 2)

G00080132

Courtesy of GENERAL MOTORS CORP.

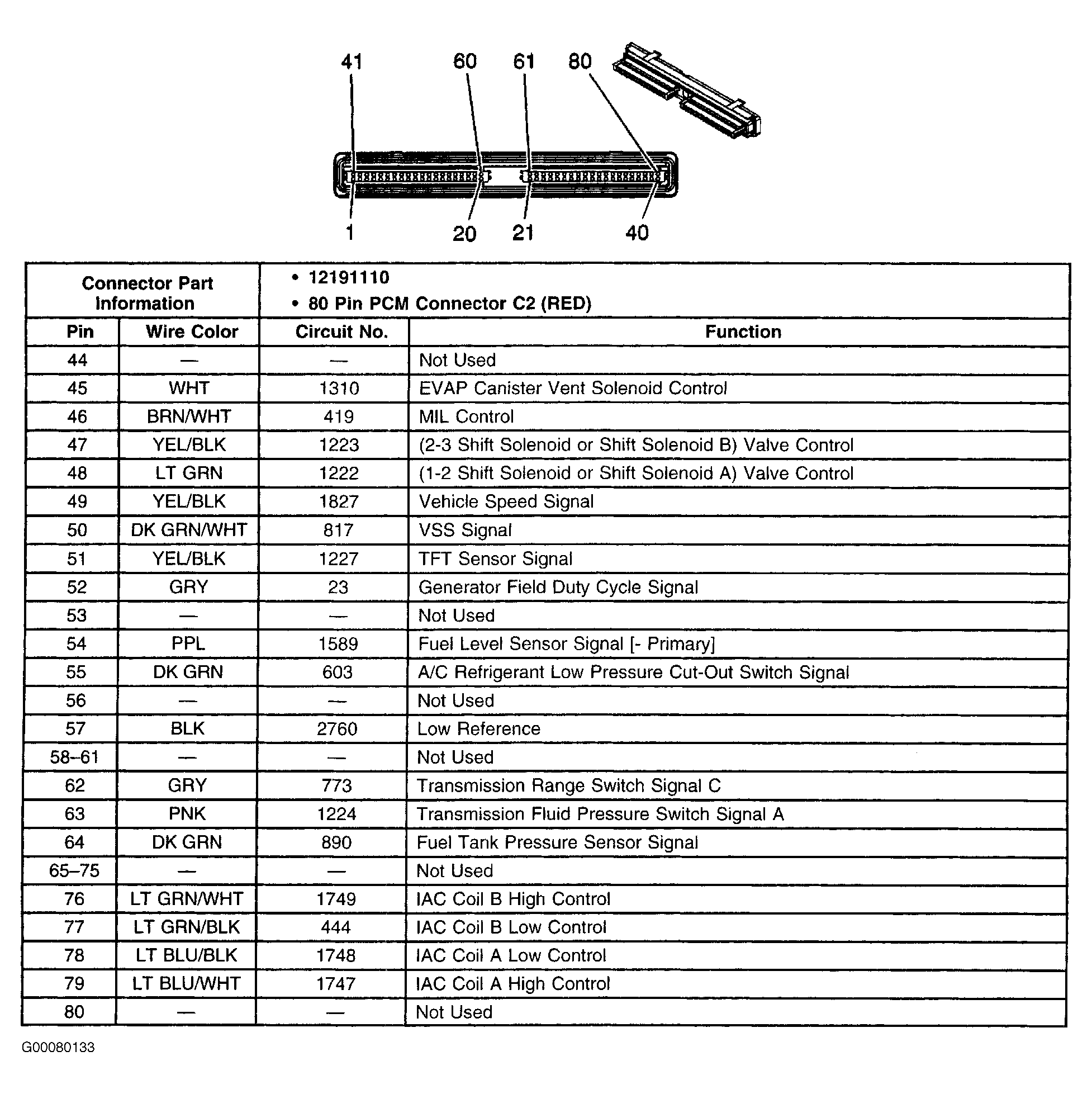

Fig 16: Identifying PCM 80-Way Connector C2 Terminals (4.3L - 2 Of 2)

G00080133

Courtesy of GENERAL MOTORS CORP.

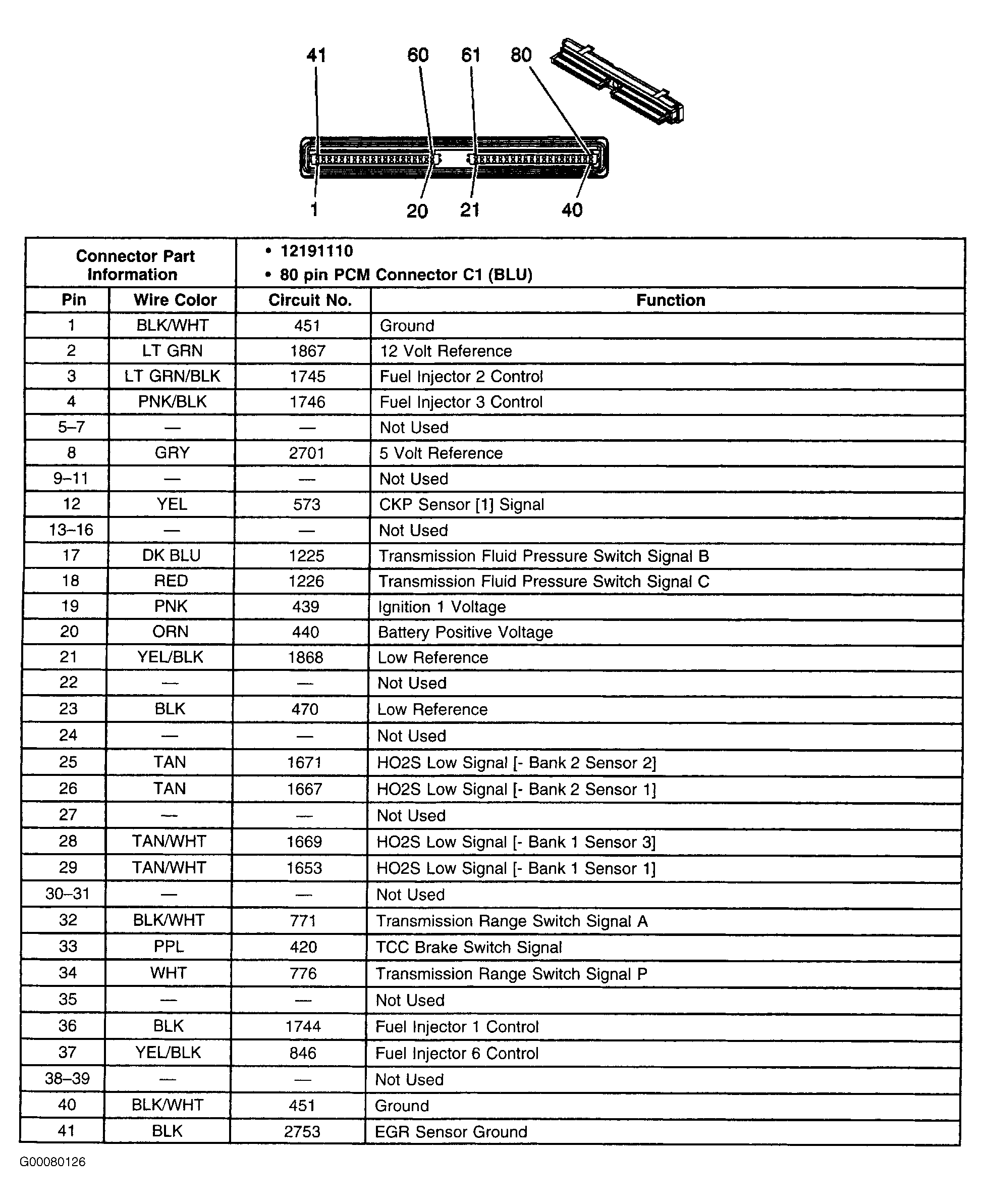

Fig 17: Identifying PCM 80-Way Connector C1 Terminals (5.7L - 1 Of 2)

G00080126

Courtesy of GENERAL MOTORS CORP.

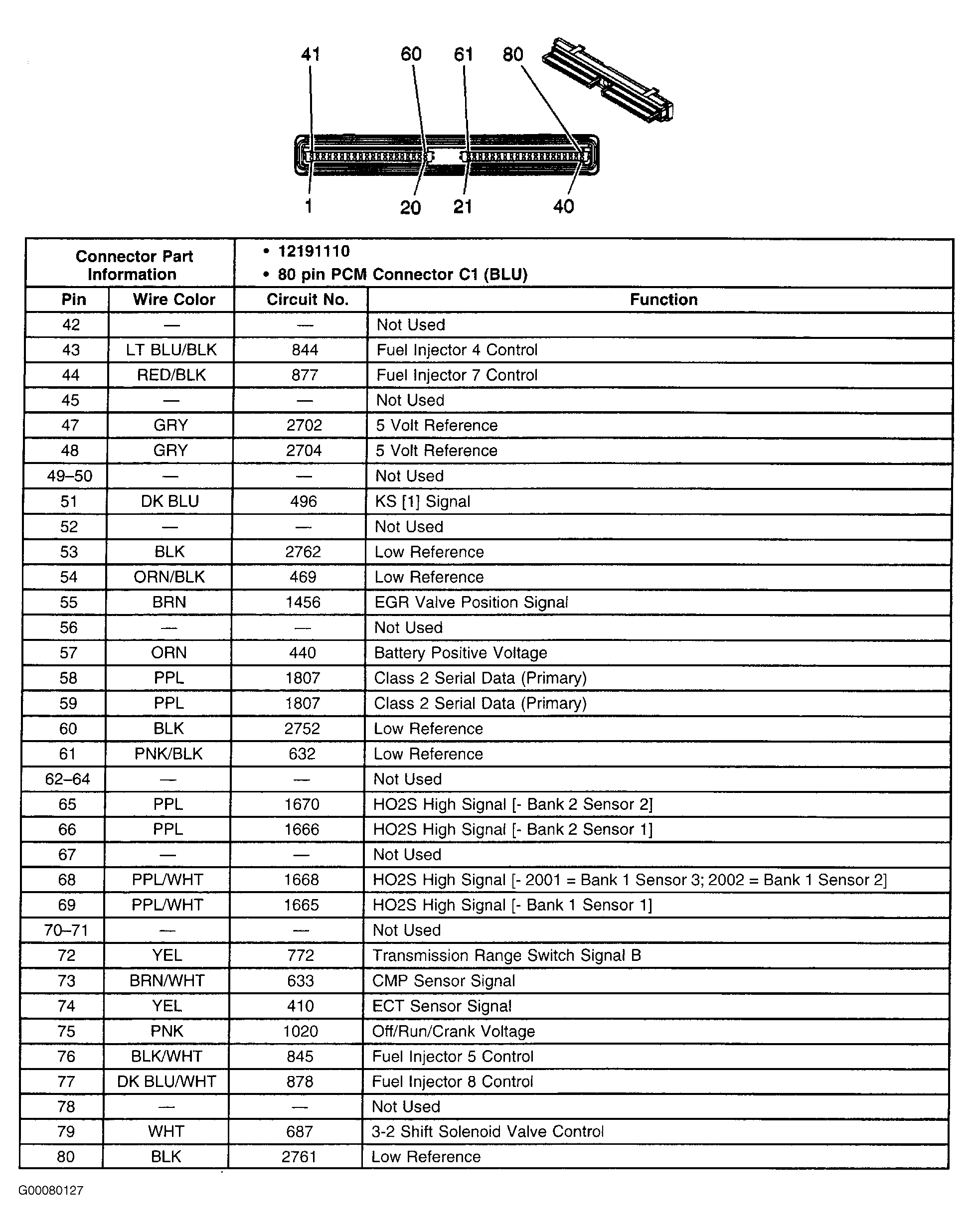

Fig 18: Identifying PCM 80-Way Connector C1 Terminals (5.7L - 2 Of 2)

G00080127

Courtesy of GENERAL MOTORS CORP.

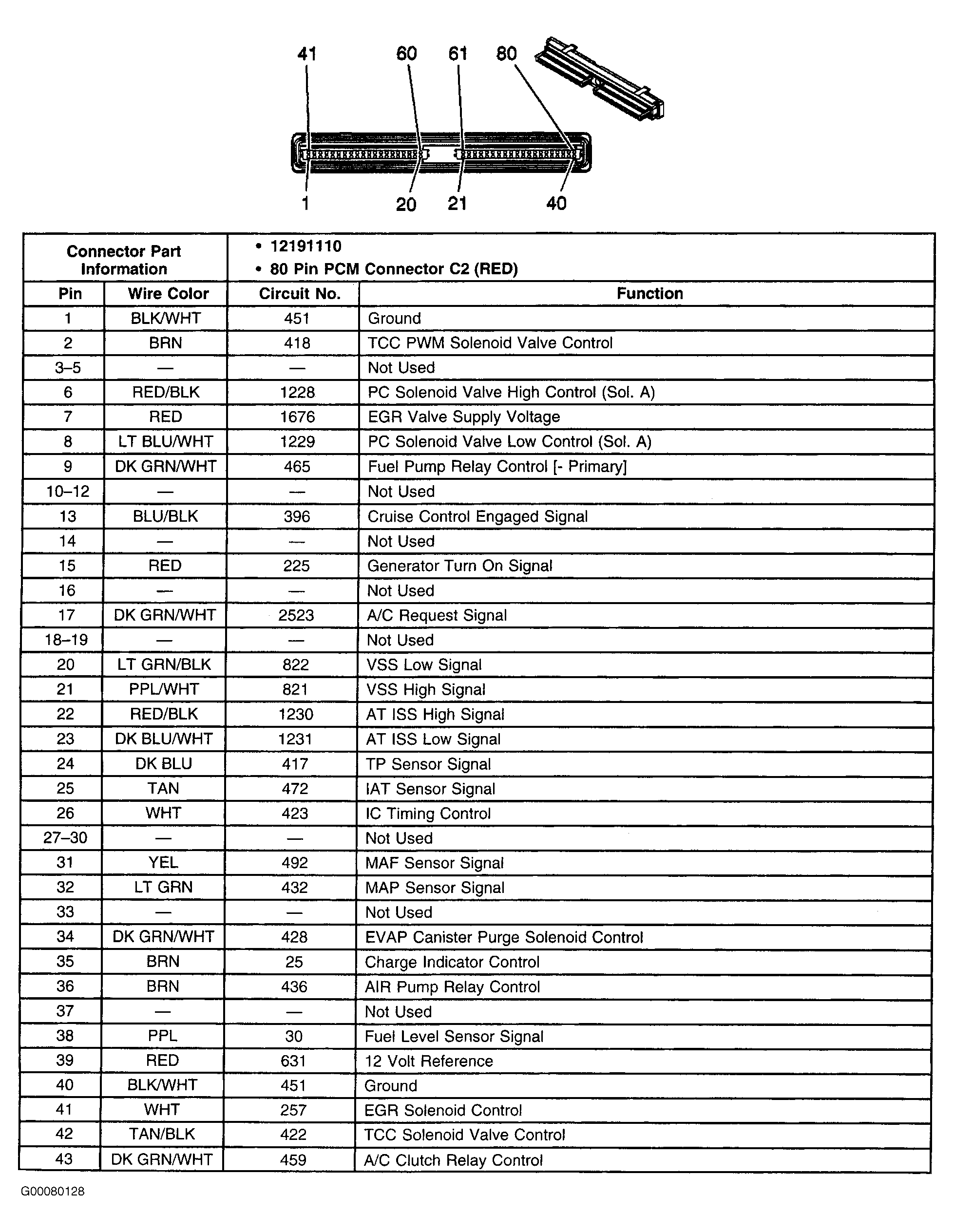

Fig 19: Identifying PCM 80-Way Connector C2 Terminals (5.7L - 1 Of 2)

G00080128

Courtesy of GENERAL MOTORS CORP.

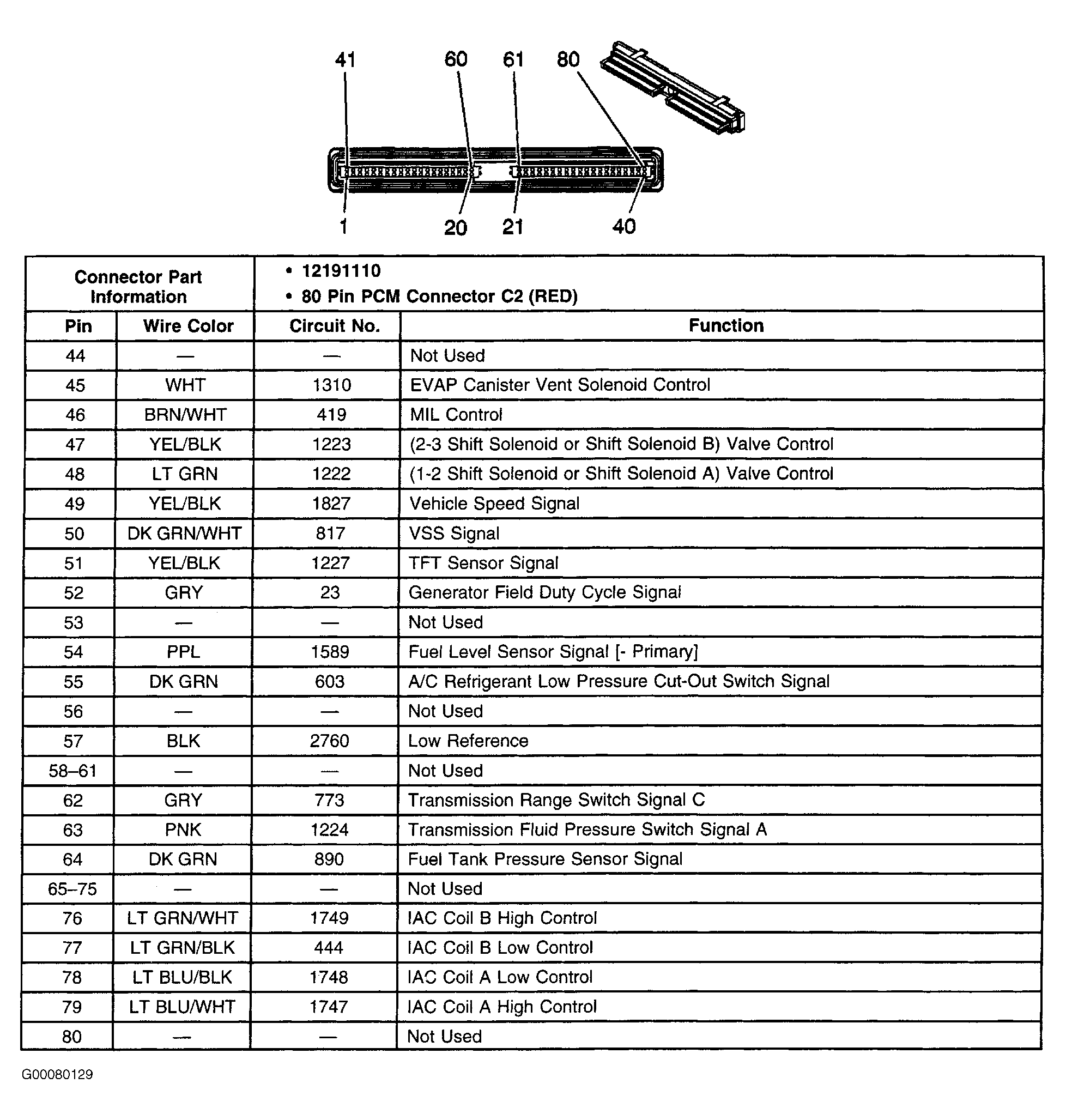

Fig 20: Identifying PCM 80-Way Connector C2 Terminals (5.7L - 2 Of 2)

G00080129

Courtesy of GENERAL MOTORS CORP.

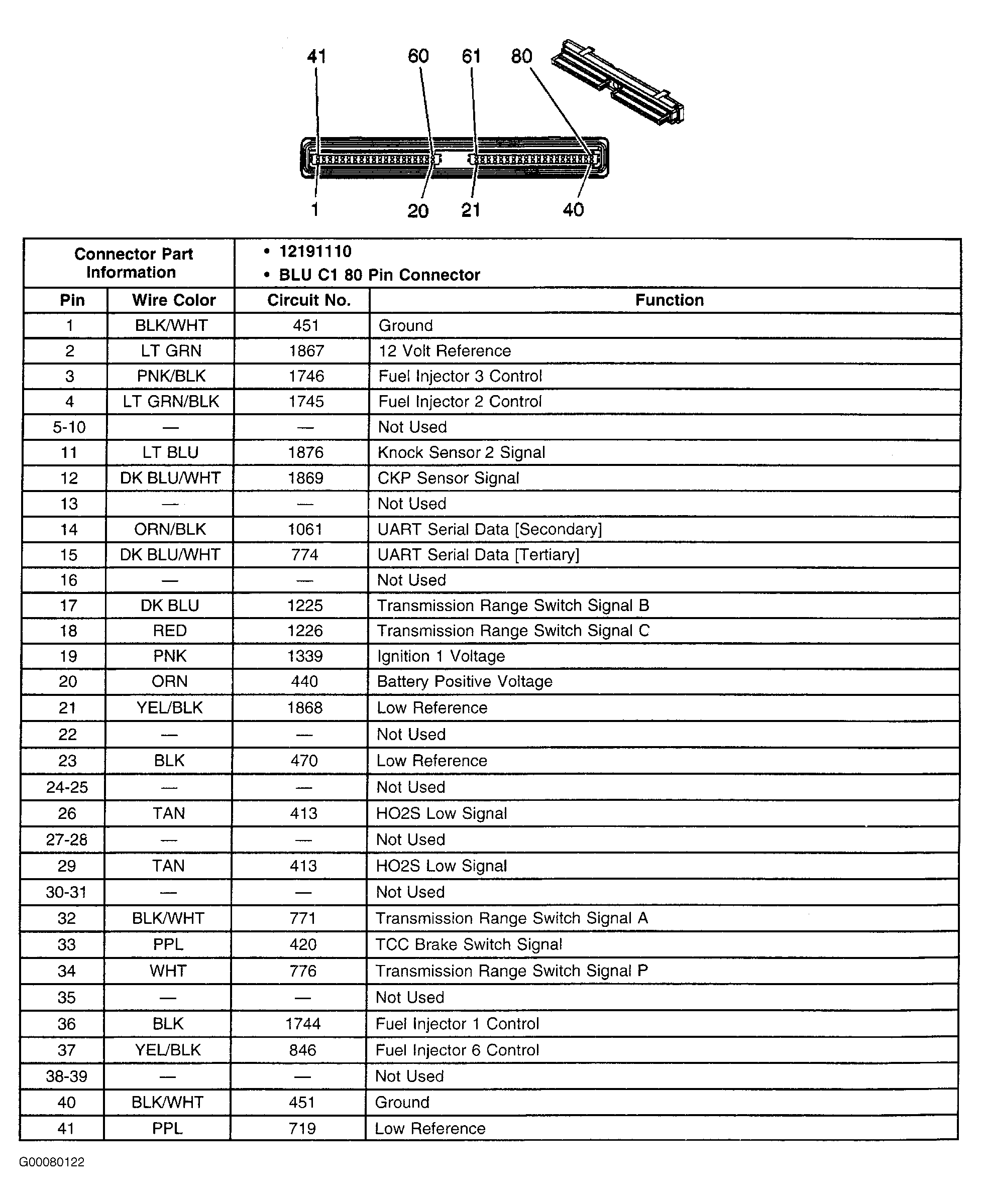

Fig 21: Identifying PCM 80-Way Connector C1 Terminals (8.1L - 1 Of 2)

G00080122

Courtesy of GENERAL MOTORS CORP.

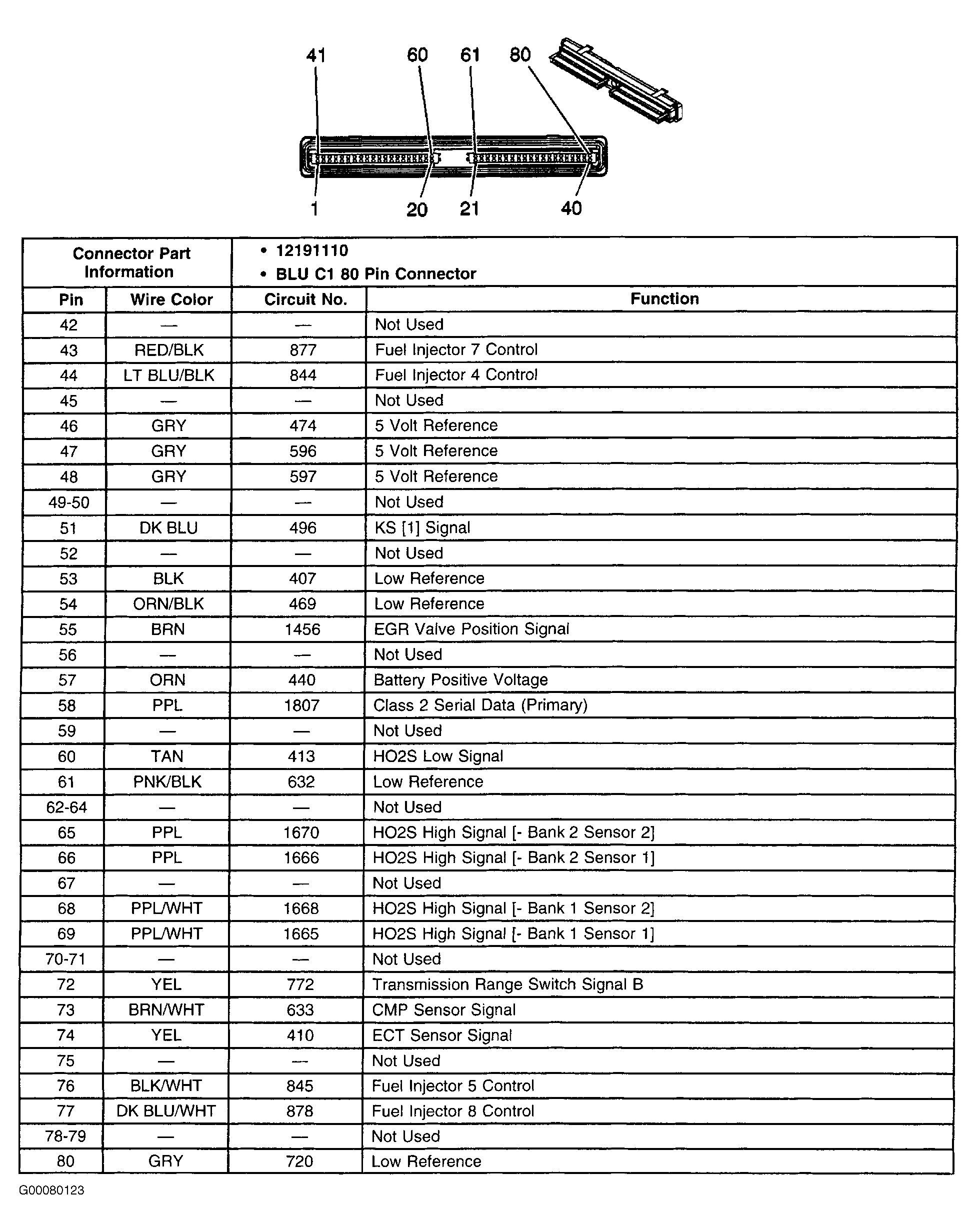

Fig 22: Identifying PCM 80-Way Connector C1 Terminals (8.1L - 2 Of 2)

G00080123

Courtesy of GENERAL MOTORS CORP.

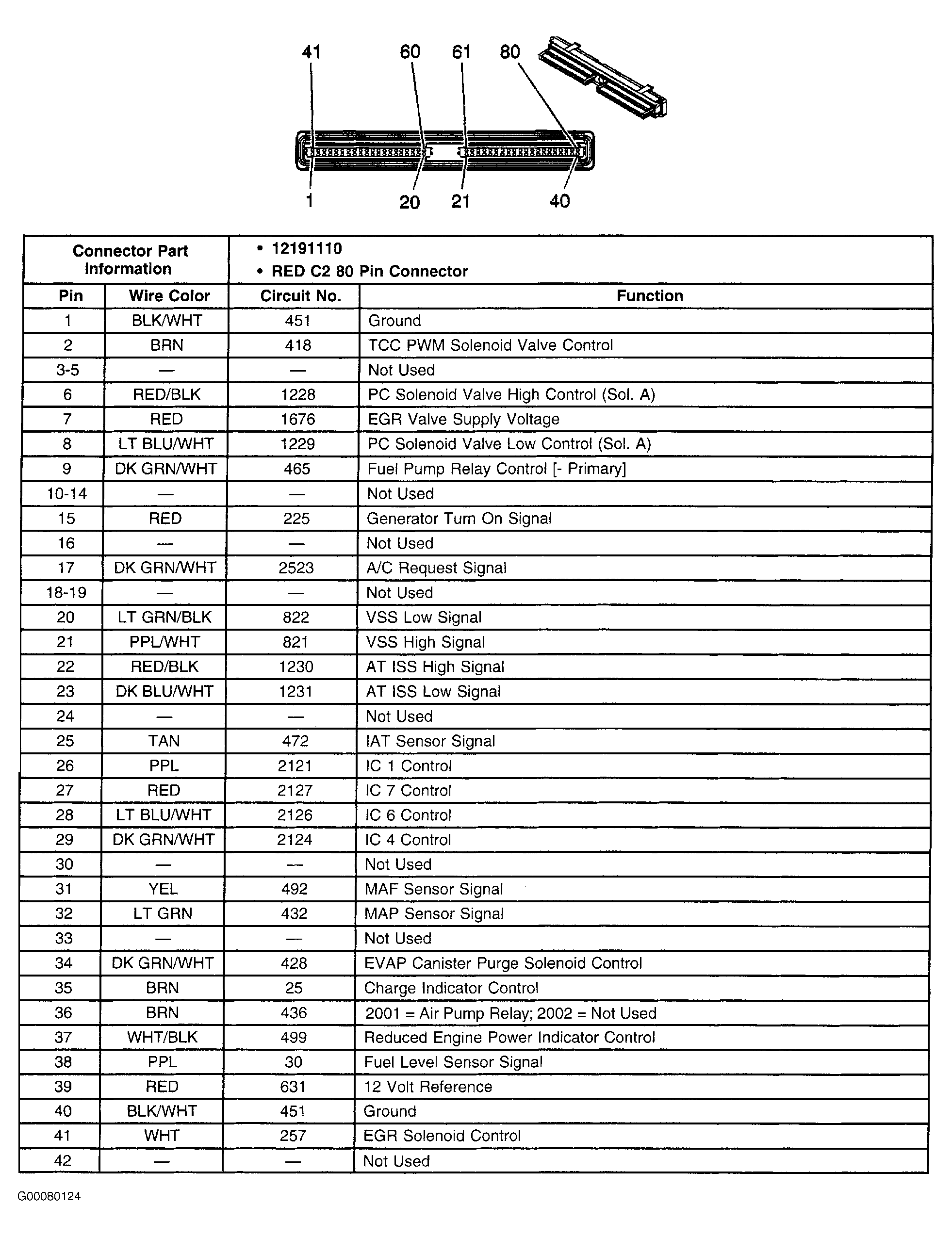

Fig 23: Identifying PCM 80-Way Connector C2 Terminals (8.1L - 1 Of 2)

G00080124

Courtesy of GENERAL MOTORS CORP.

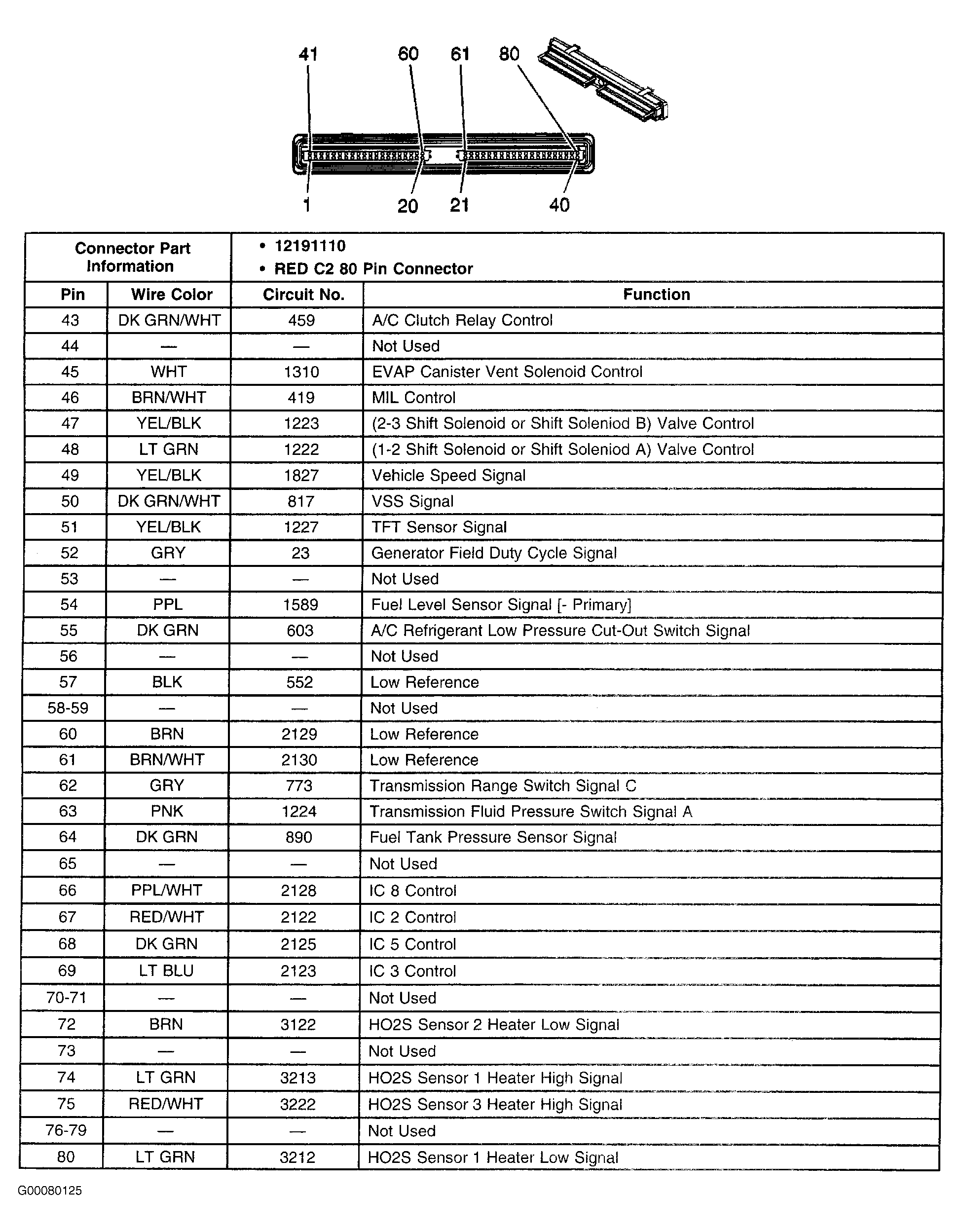

Fig 24: Identifying PCM 80-Way Connector C2 Terminals (8.1L - 2 Of 2)

G00080125

Courtesy of GENERAL MOTORS CORP.
