Rear Chassis EVAP Pipe Installation Procedure

  1. Position the EVAP pipe for installation.
  2. Secure the EVAP pipe to the chassis retainers.
  3. Install the fuel tank. Refer to the appropriate procedure in Fuel Tank Replacement (Side)  or Fuel Tank Replacement (Rear) .
  4. Install the EVAP pipe connector hose (3) from the front EVAP pipe to the chassis EVAP pipe.
  5. Secure the hose clamp.

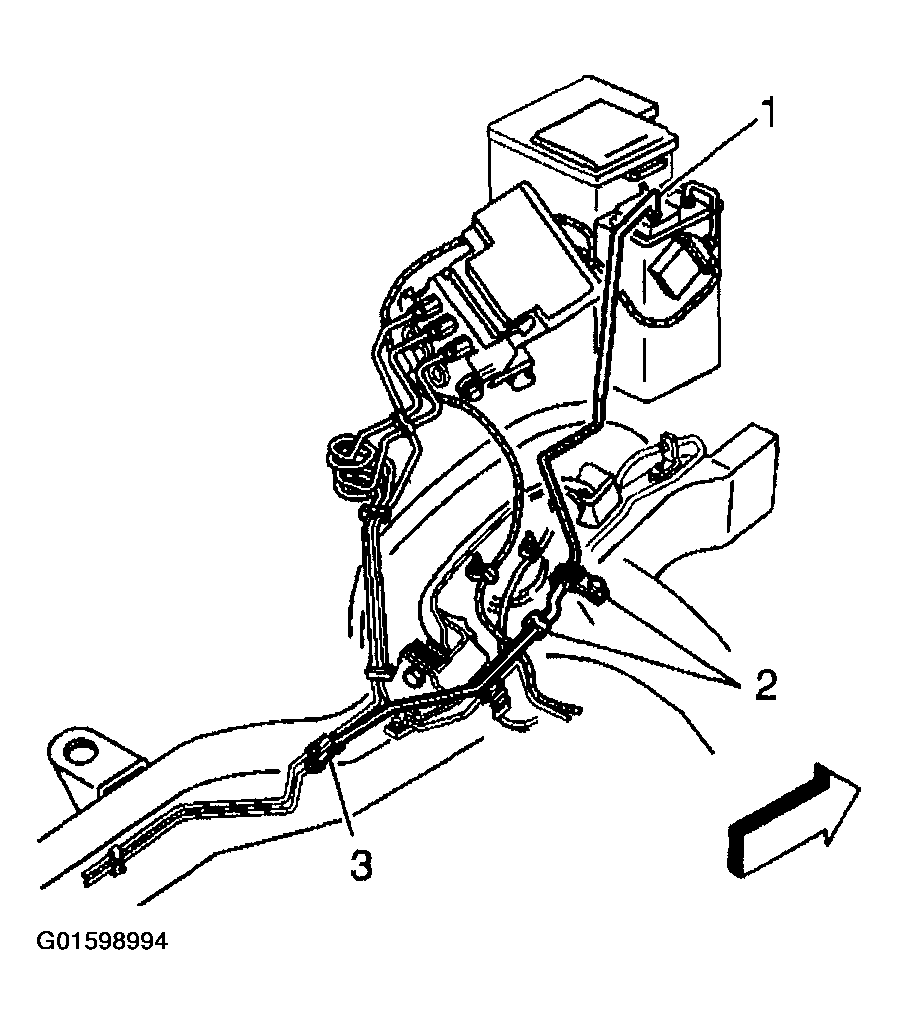

    Fig 1: Fuel Tank Vapor Pipe, EVAP Pipe Retaining Clips & Hose Clamp
    G01598994Courtesy of GENERAL MOTORS CORP.
