Front Chassis EVAP Pipe Installation Procedure

  1. Position the EVAP pipe for installation.
  2. Install the EVAP pipe to the hose connector.
  3. Install the clamp.
  4. Install the EVAP pipe retaining clips (2).
  5. Connect the fuel tank vapor pipe (1) to the canister.

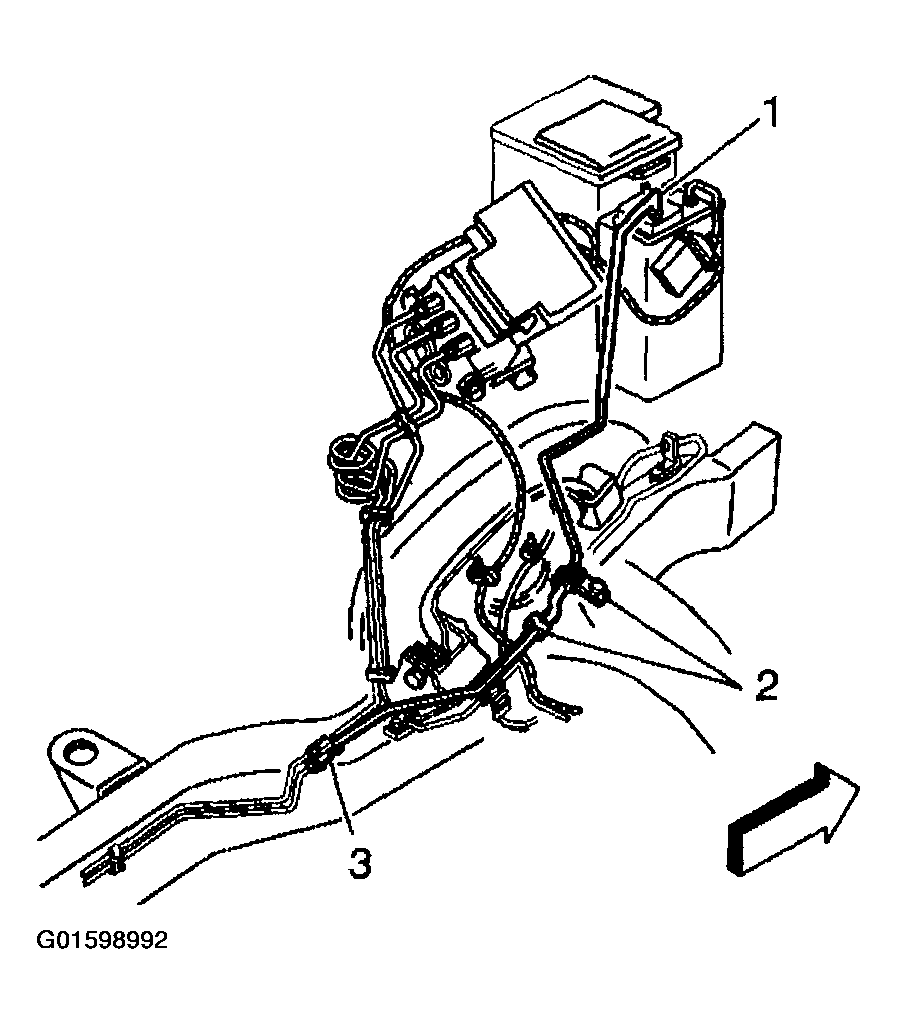

    Fig 1: Fuel Tank Vapor Pipe, EVAP Pipe Retaining Clips & Hose Clamp
    G01598992Courtesy of GENERAL MOTORS CORP.
