Removal Procedure
WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the fluid level in the brake master cylinder reservoir.
- If the brake fluid level is midway between the maximum--full point and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding.
- If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove brake fluid to the midway point before proceeding.
- Raise and support the vehicle.
- Remove the tire and wheel assembly
- Inspect the brake caliper operation. Refer to Brake Caliper Inspection NOTE: Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak
- Remove the brake caliper from the brake caliper mounting bracket and support the brake caliper with heavy mechanic's wire or equivalent. DO NOT disconnect the hydraulic brake hose from the brake caliper. Refer to Front Brake Caliper Replacement

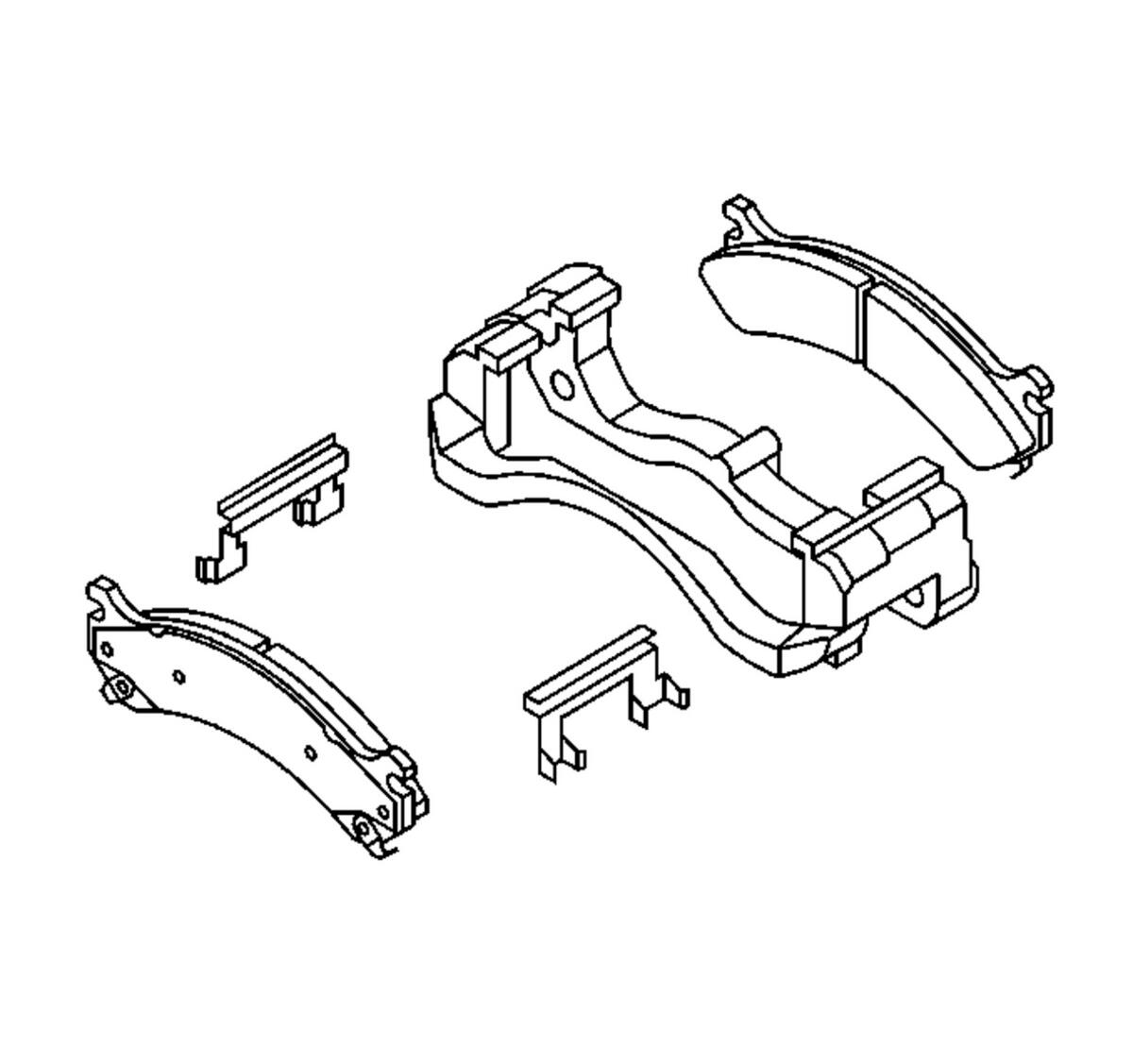

- Remove the disc brake pads from the brake caliper mounting bracket.
- Remove and discard the anti-rattle clips from the brake caliper mounting bracket
- Inspect the brake caliper and brake caliper mounting bracket. Refer to Brake Caliper Inspection
