Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra and 2002 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the front brake caliper bushings, bolts and seals with high temperature silicone brake lubricant

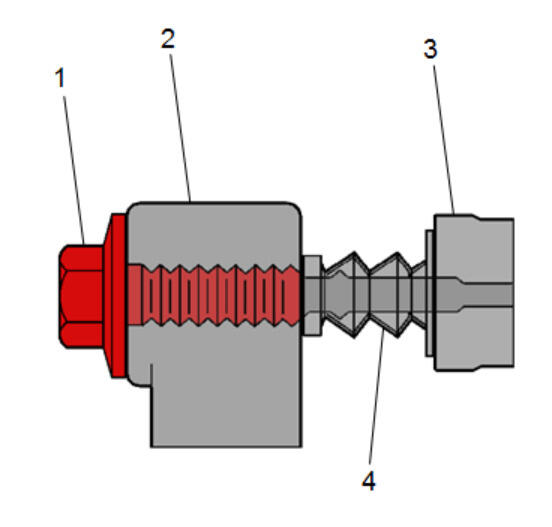

    2. Fig 1: View Of Caliper, Pin, Boots & Caliper Mounting Bracket
    GM344219
  2. Install the caliper pin boots (4) to the disc brake caliper mounting bracket (3).
    3. Fig 2: View Of Disc Brake Pads & Brake Caliper Mounting Bracket
    GM369668
  3. Install the disc brake pad retainers to the disc brake caliper mounting bracket
  4. Install the disc brake pads to the disc brake caliper mounting bracket.
  5. Install the disc brake caliper to the caliper mounting bracket. Refer to Front Brake Caliper Replacement
  6. With the engine OFF, gradually apply the brake pedal approximately 2/3 of its travel distance
  7. Slowly release the brake pedal
  8. Wait 15 seconds, then repeat steps 6-7 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
