Disassembled Views

WARNING: This page is about a different variant/trim than selected.

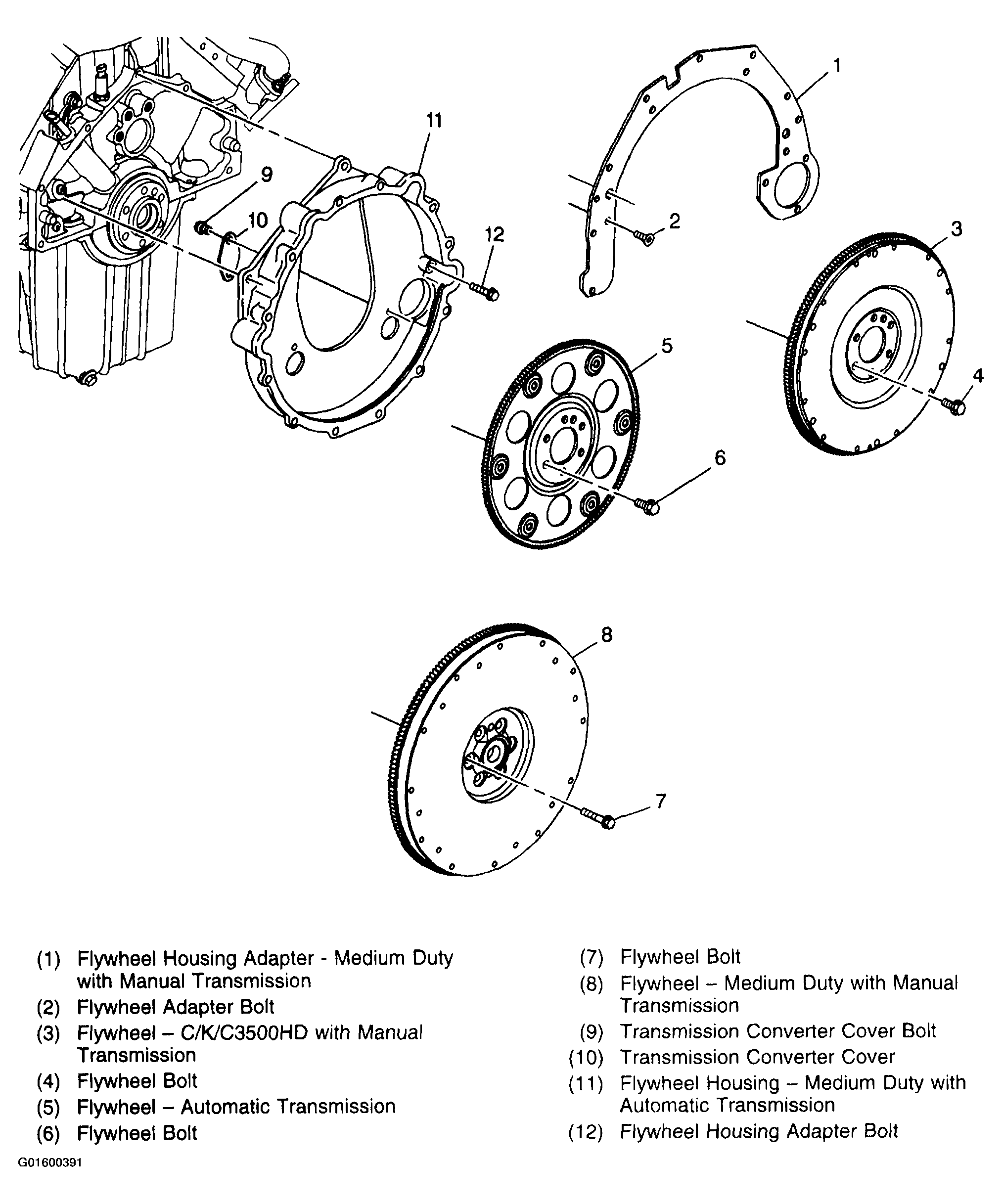

Fig 1: Engine Flywheel & Flywheel Housing Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

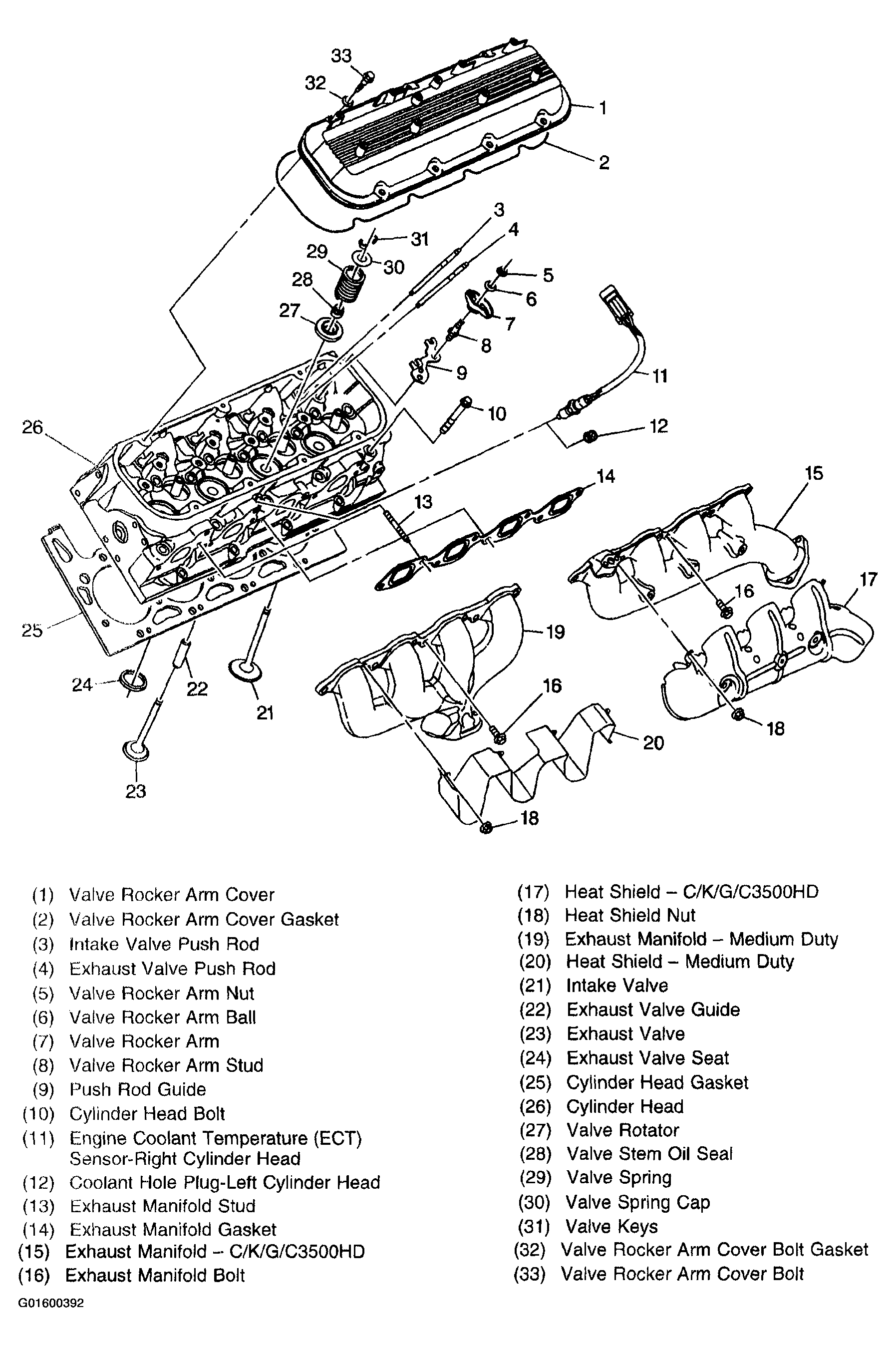

Fig 2: Cylinder Head & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

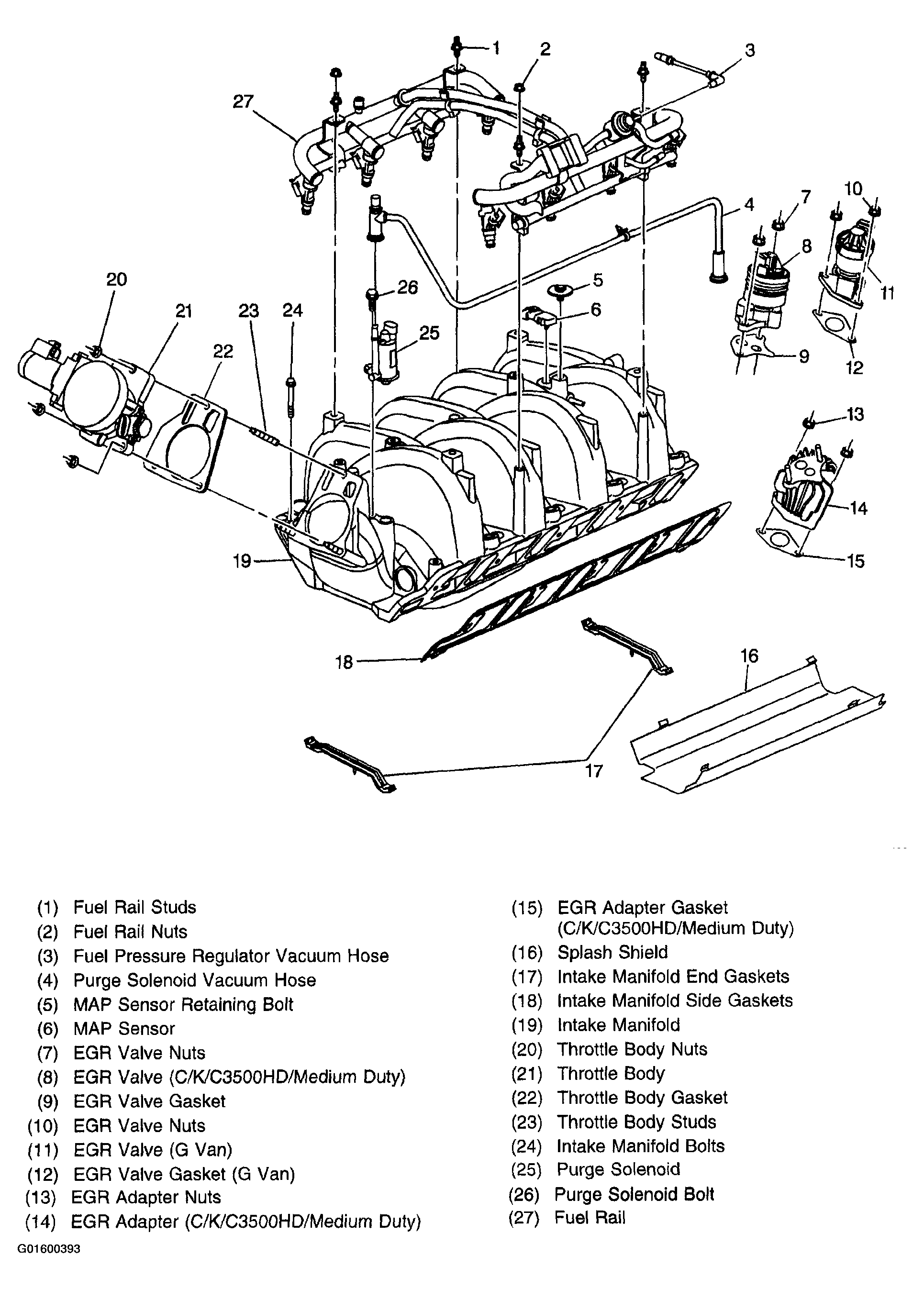

Fig 3: Intake Manifold & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

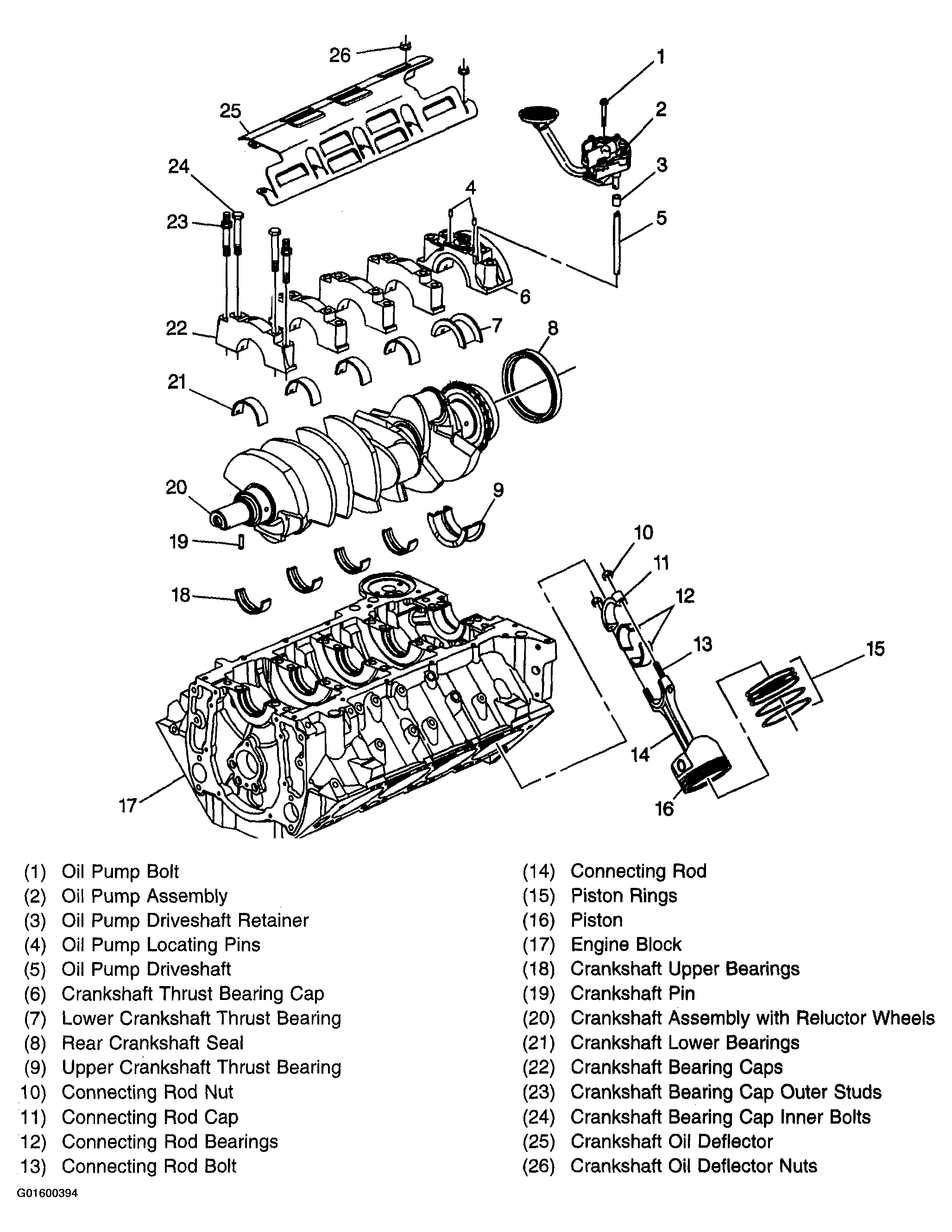

Fig 4: Engine Crankshaft & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

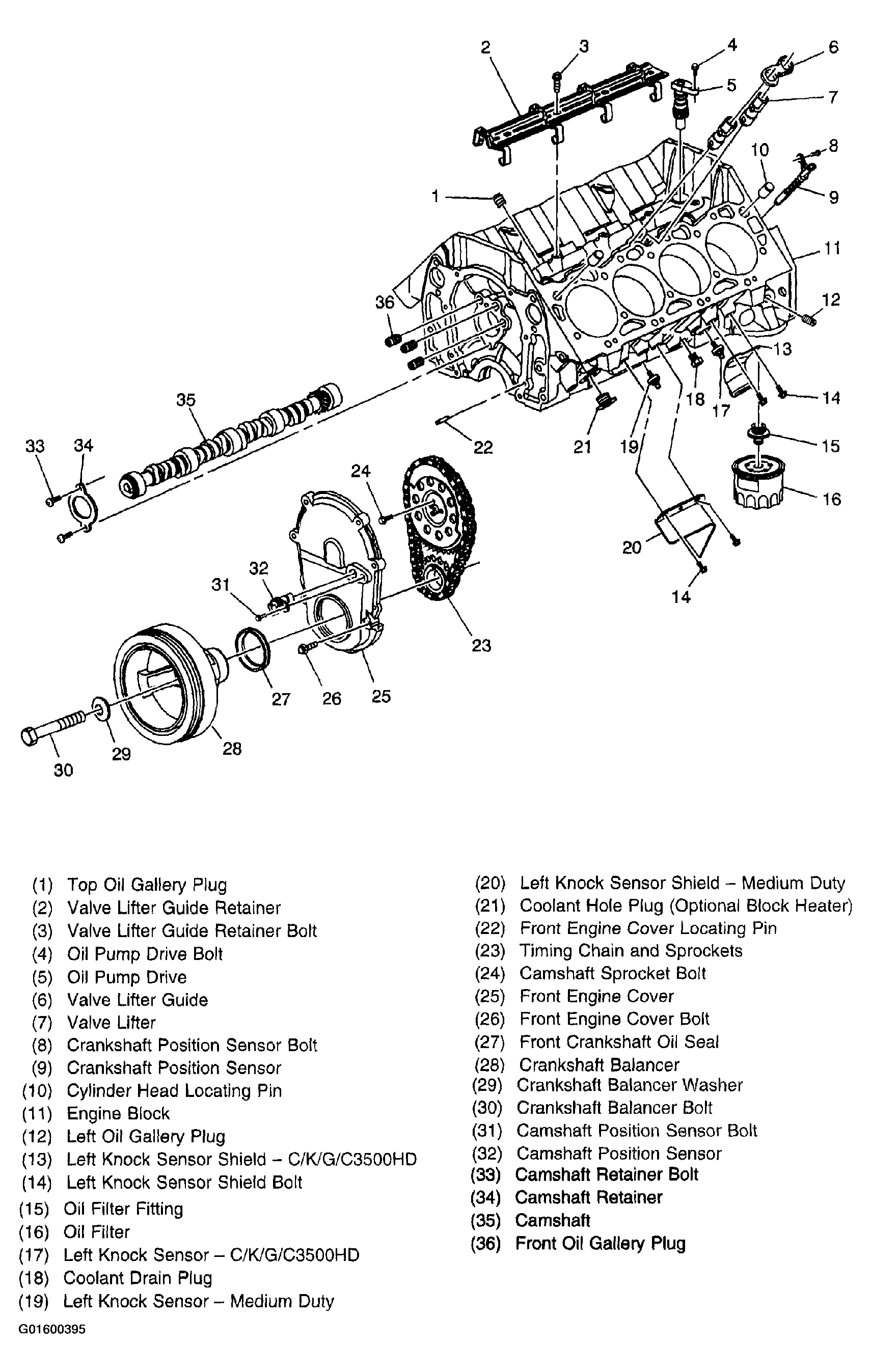

Fig 5: Lower Engine Block & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.
