Disassembled Views

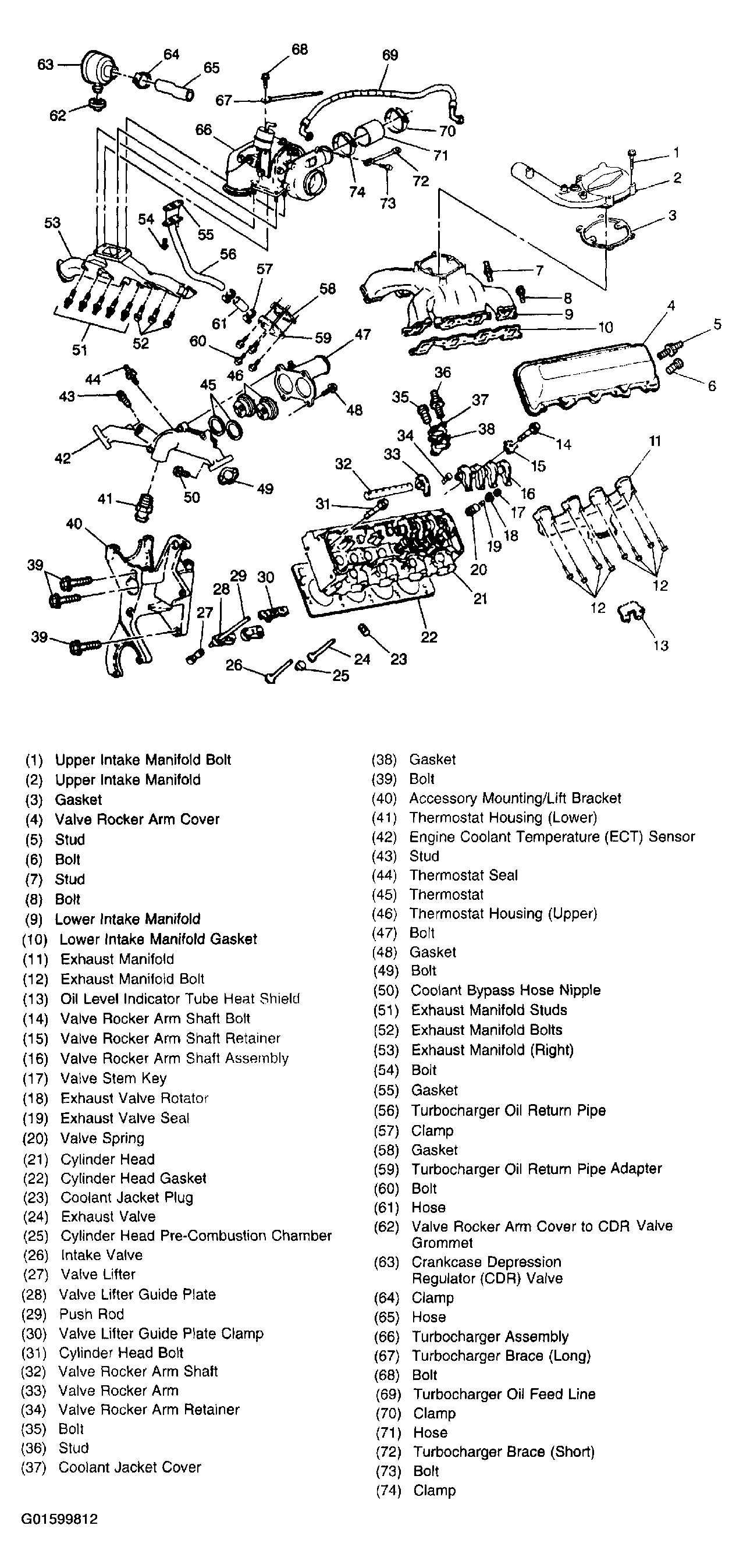

Fig 1: Cylinder Head & Components Disassembled View
G01599812Courtesy of GENERAL MOTORS CORP.

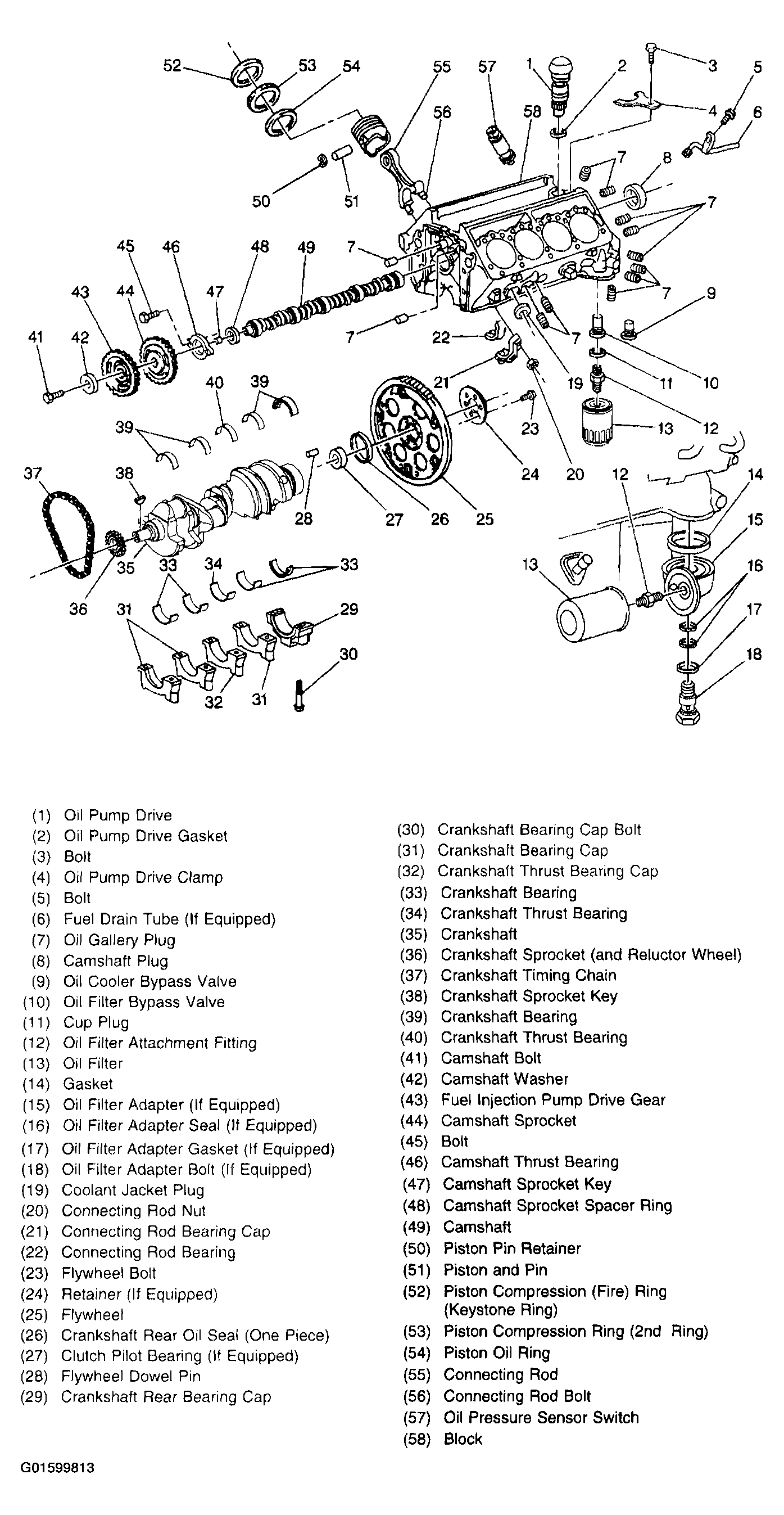

Fig 2: Cylinder Block & Components Disassembled View
G01599813Courtesy of GENERAL MOTORS CORP.

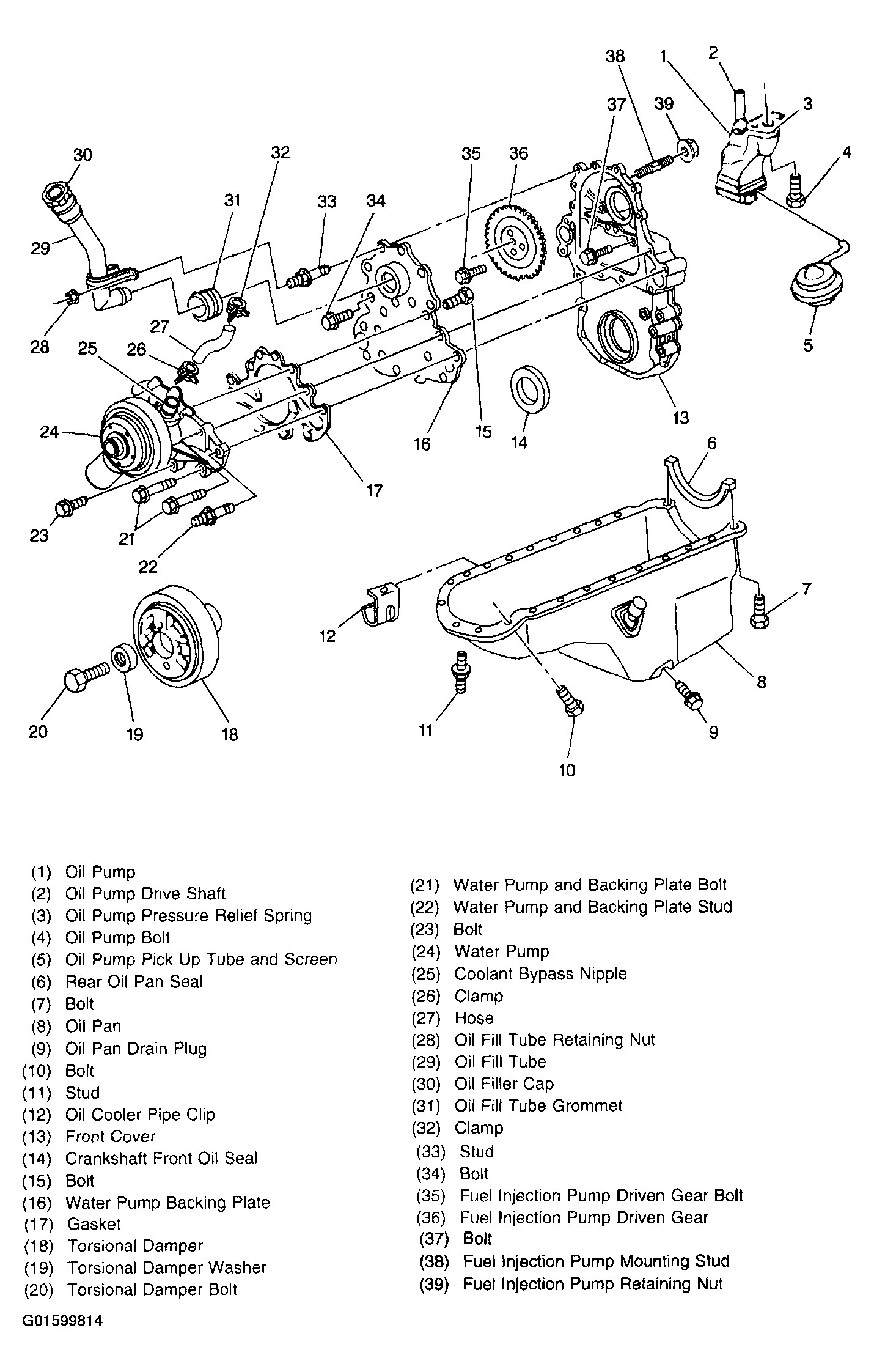

Fig 3: Front Cover, Oil Pan & Components Disassembled View
G01599814Courtesy of GENERAL MOTORS CORP.

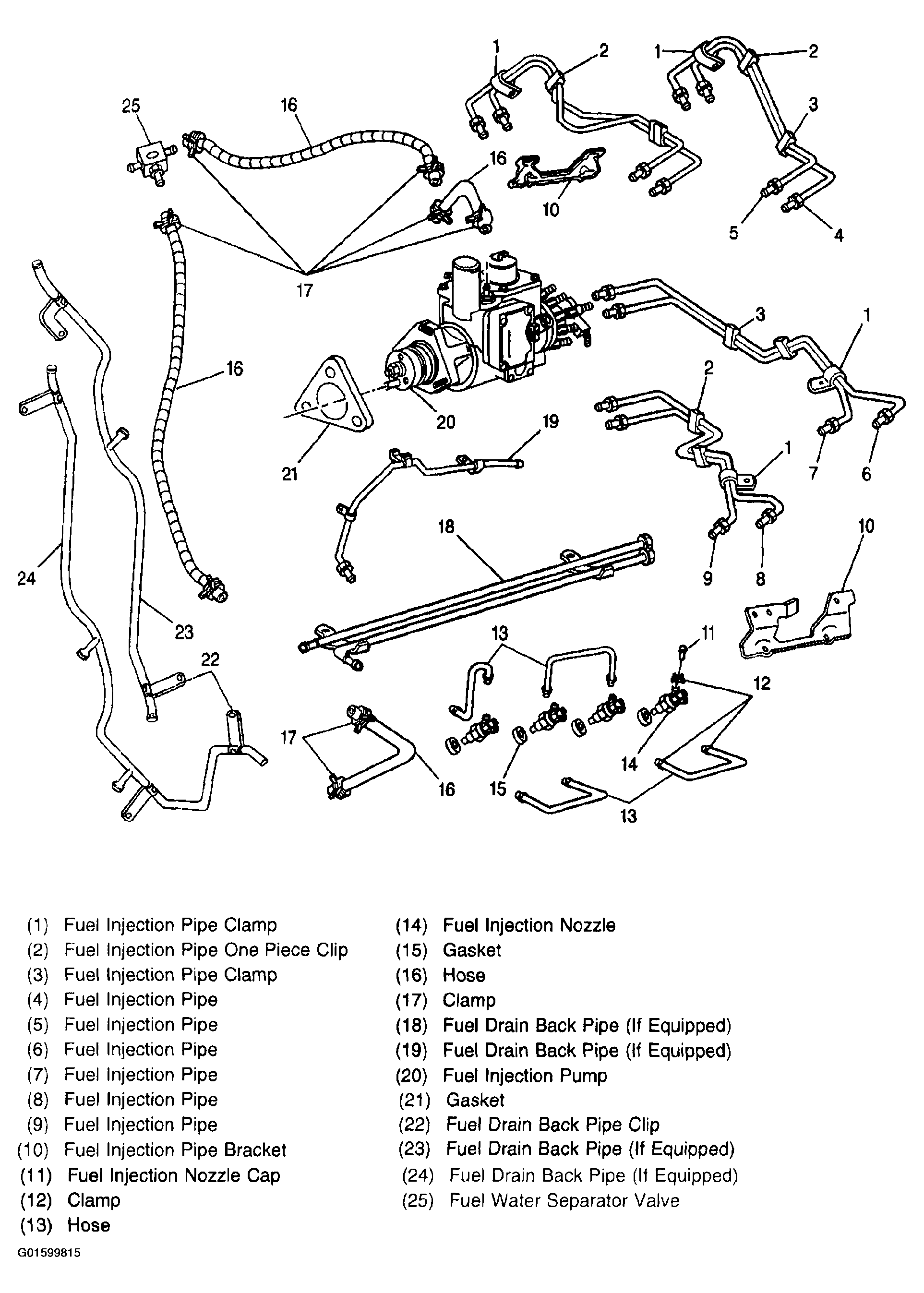

Fig 4: Fuel Systems Components Disassembled View
G01599815Courtesy of GENERAL MOTORS CORP.
