Interior Backlighting Inoperative
Interior Backlighting Inoperative

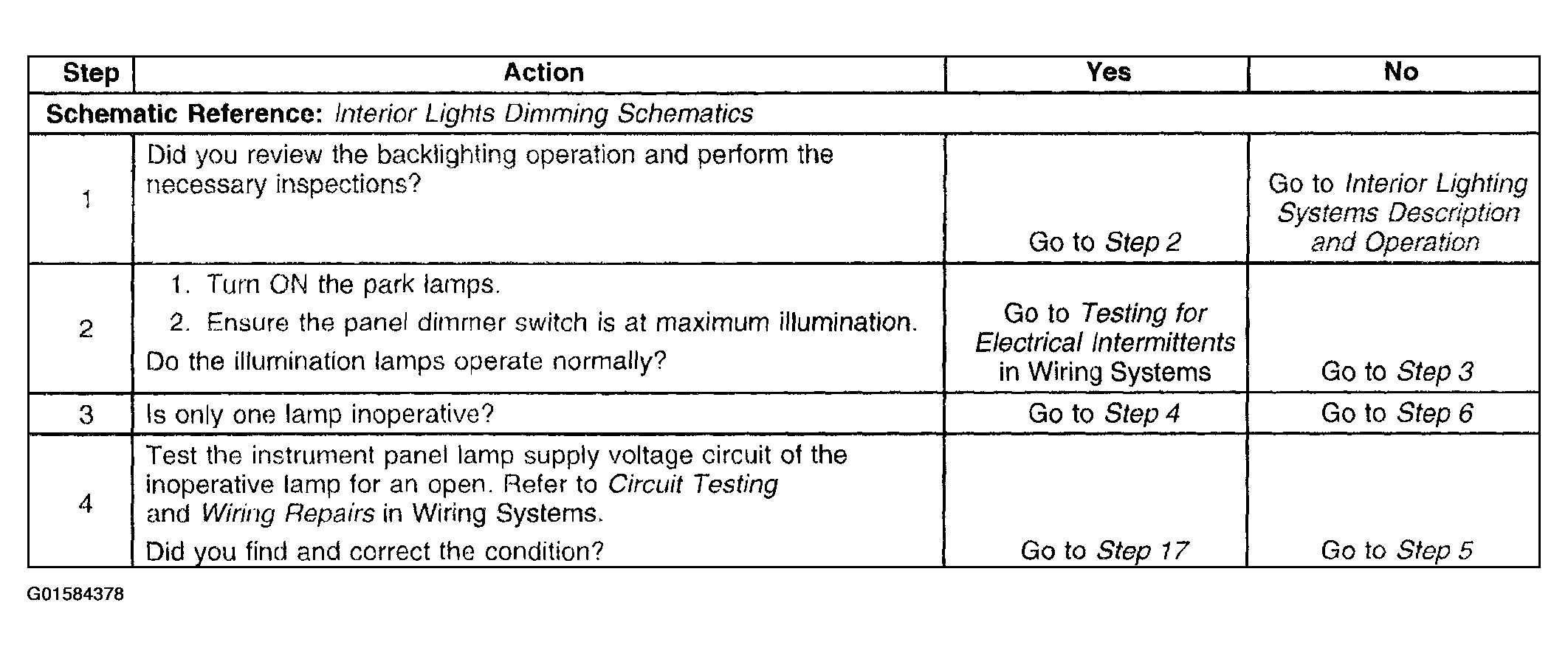

Fig 1: Interior Backlighting Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

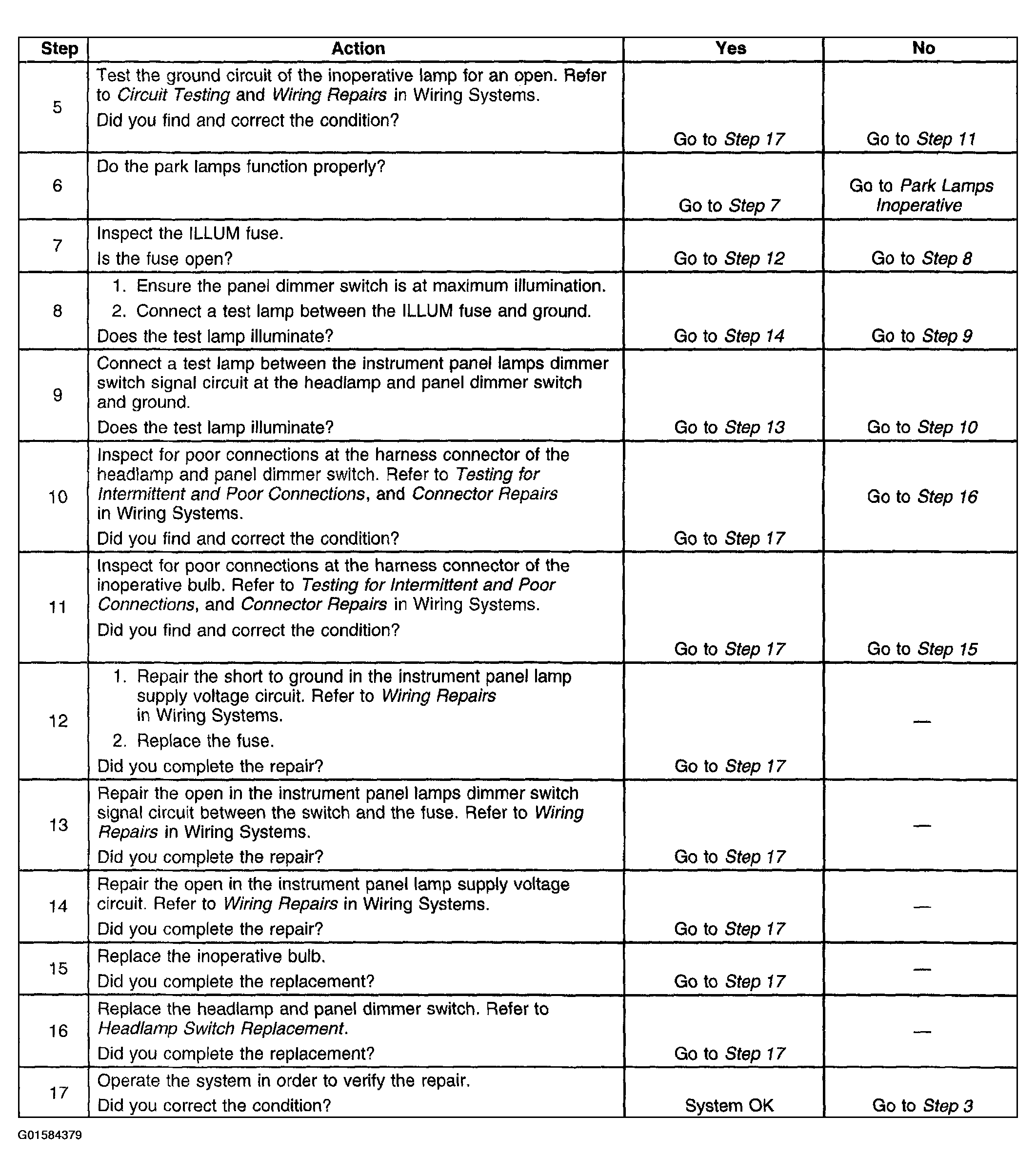

Fig 2: Interior Backlighting Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
