Audible Warnings Schematics
Audible Warnings Schematics

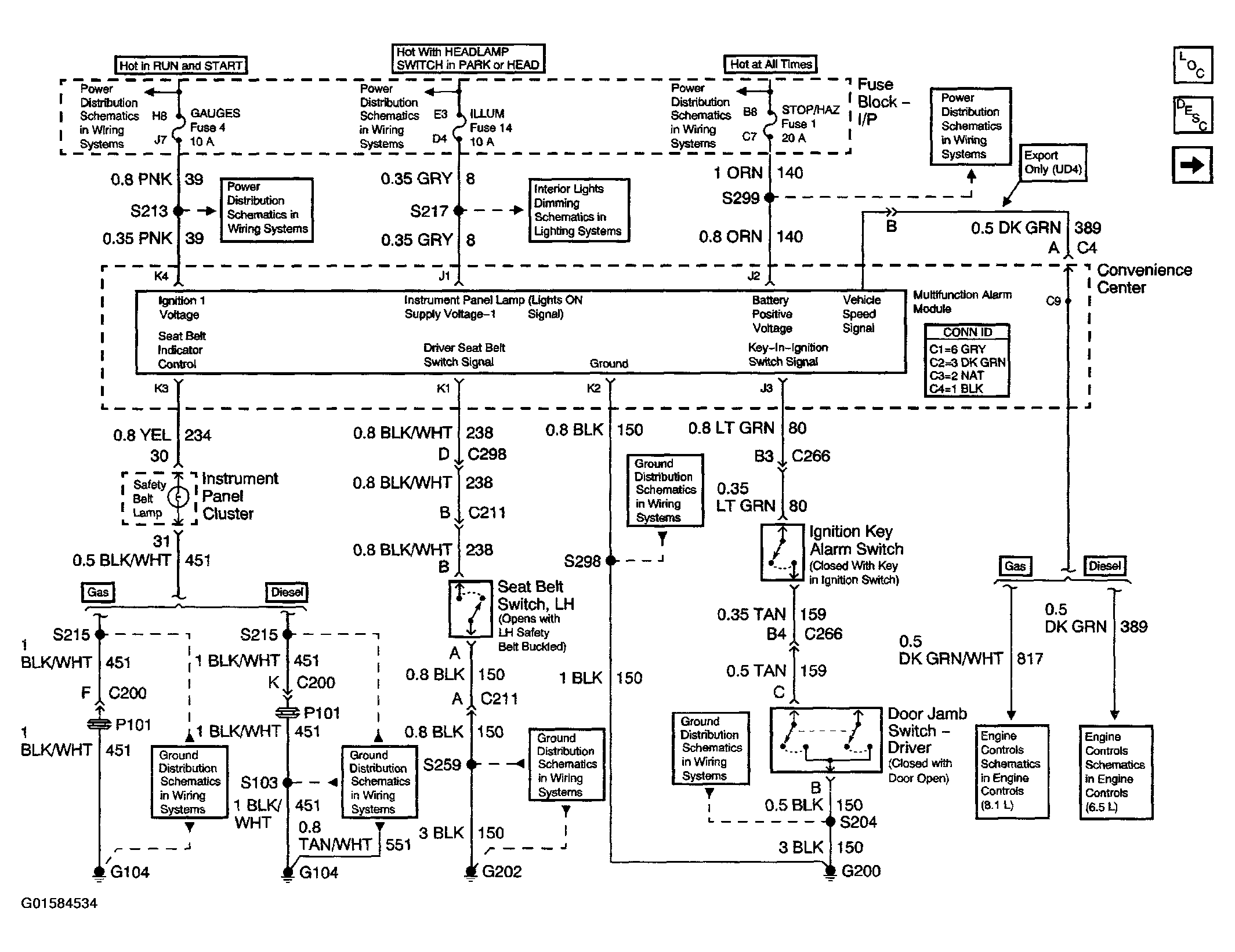

Fig 1: Audible Warnings Schematics
Courtesy of GENERAL MOTORS CORP.

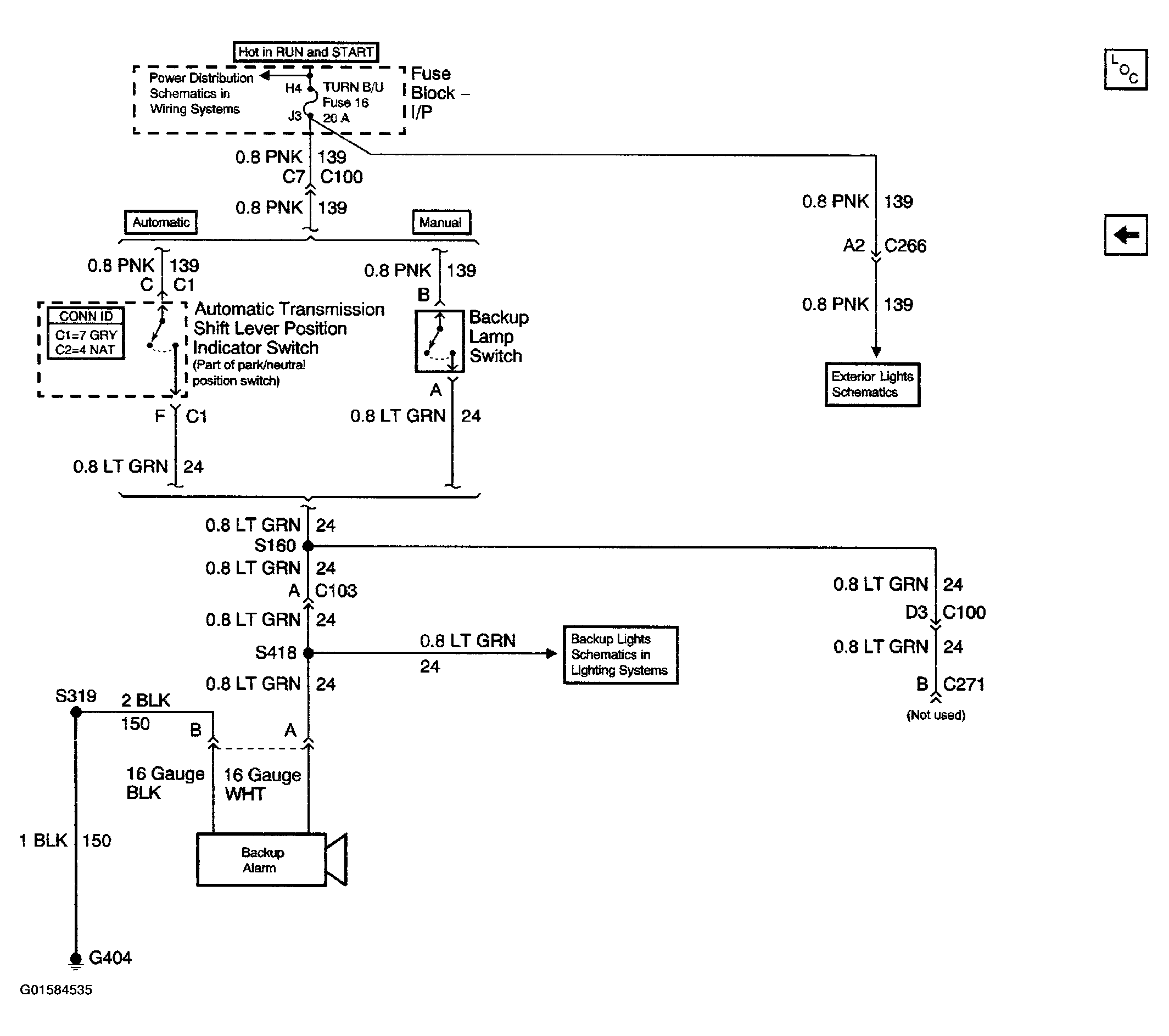

Fig 2: Audible Warnings Schematics (Back Up Alarm Circuit)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
