Installation Procedure

  1. Install the vehicle speed sensor (VSS) module (2) to the vehicle.
  2. Connect the electrical connector (3) to the VSS module (2).
  3. Position the VSS module (2) to the instrument panel carrier retaining tabs (1).
  4. Install the storage compartment. Refer to Storage Compartment Replacement - IP .

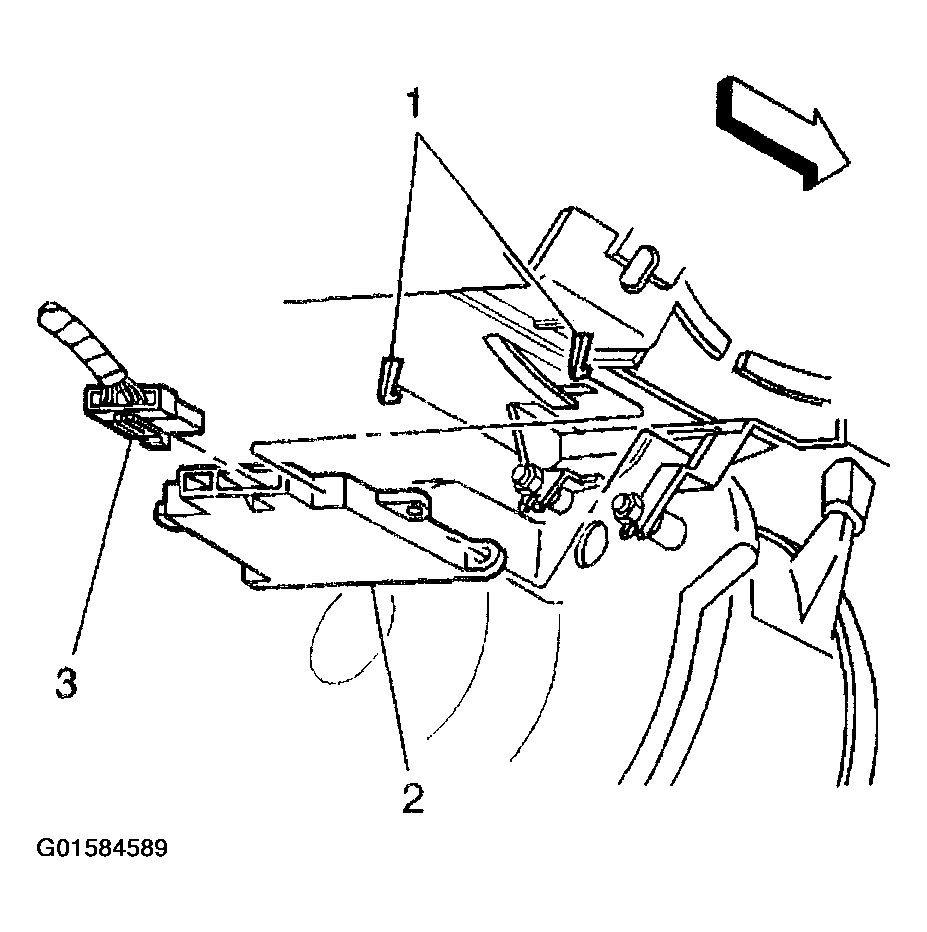

    Fig 1: Vehicle Speed Sensor (VSS) Module, Electrical Connector & Retaining Tabs
    G01584589Courtesy of GENERAL MOTORS CORP.
