Removal Procedure

  1. Remove screws from console trim plate.
  2. Remove console trim plate by lifting at the rear of the plate and sliding rearward.
  3. Remove electrical connector from console trim plate.

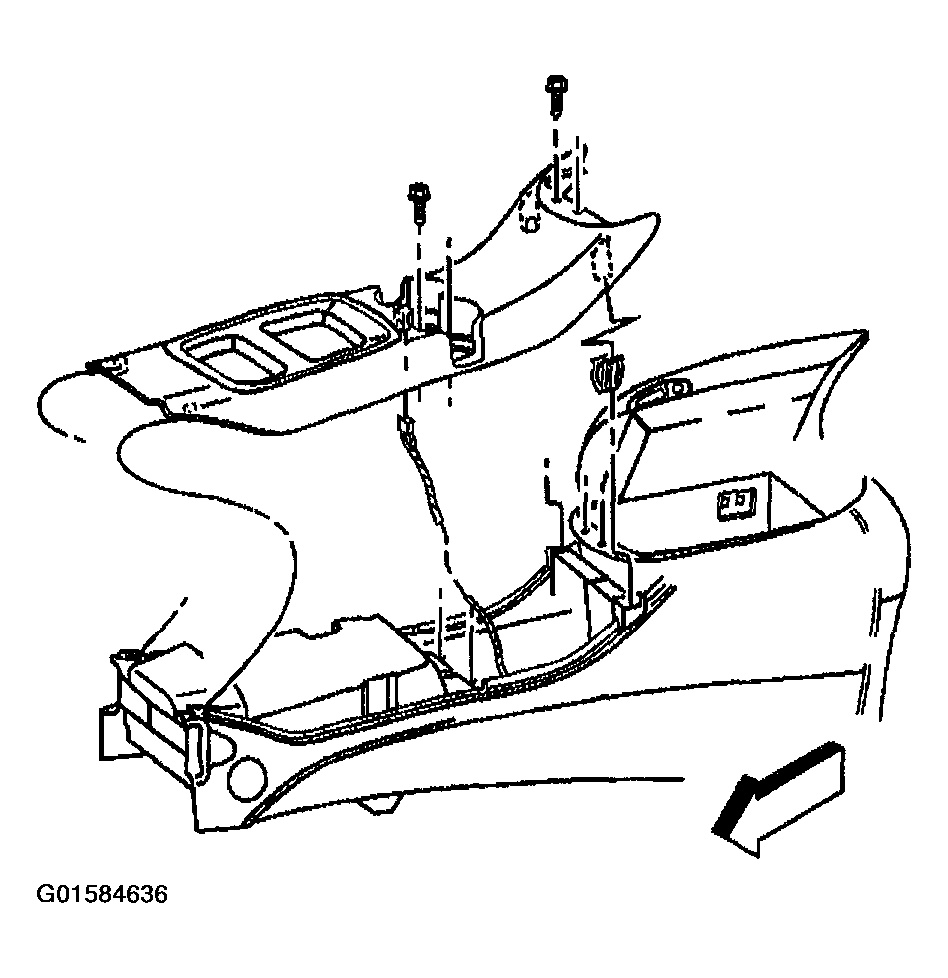

    Fig 1: Console Trim Plate, Electrical Connector & Screws
    G01584636Courtesy of GENERAL MOTORS CORP.
