Installation Procedure

  1. Install electrical connector to the console trim plate.
  2. Install the console trim plate to the console by sliding in from the rear.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the console trim plate screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

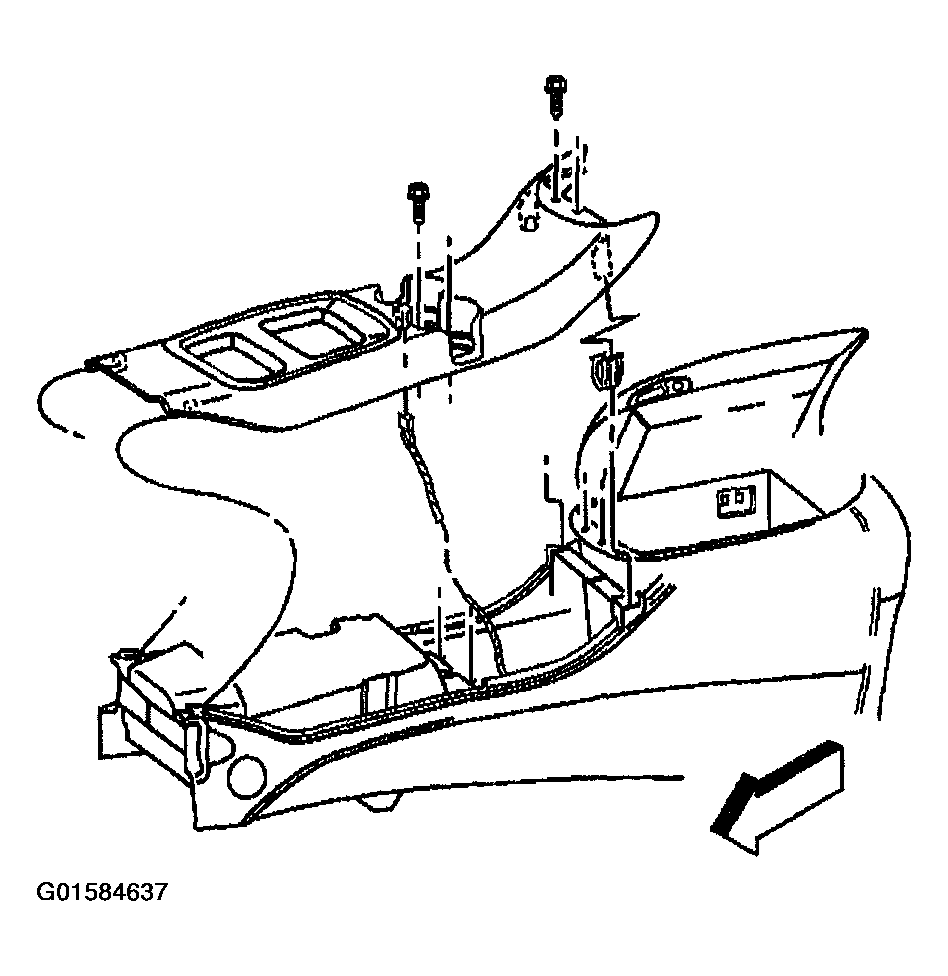

    Fig 1: Console Trim Plate, Electrical Connector & Screws
    G01584637Courtesy of GENERAL MOTORS CORP.
