Removal Procedure

  1. Remove the IP storage compartment check strap.
  2. Remove the IP storage compartment door.
  3. Remove the IP storage compartment. Squeeze the compartment in order for the compartment to release.

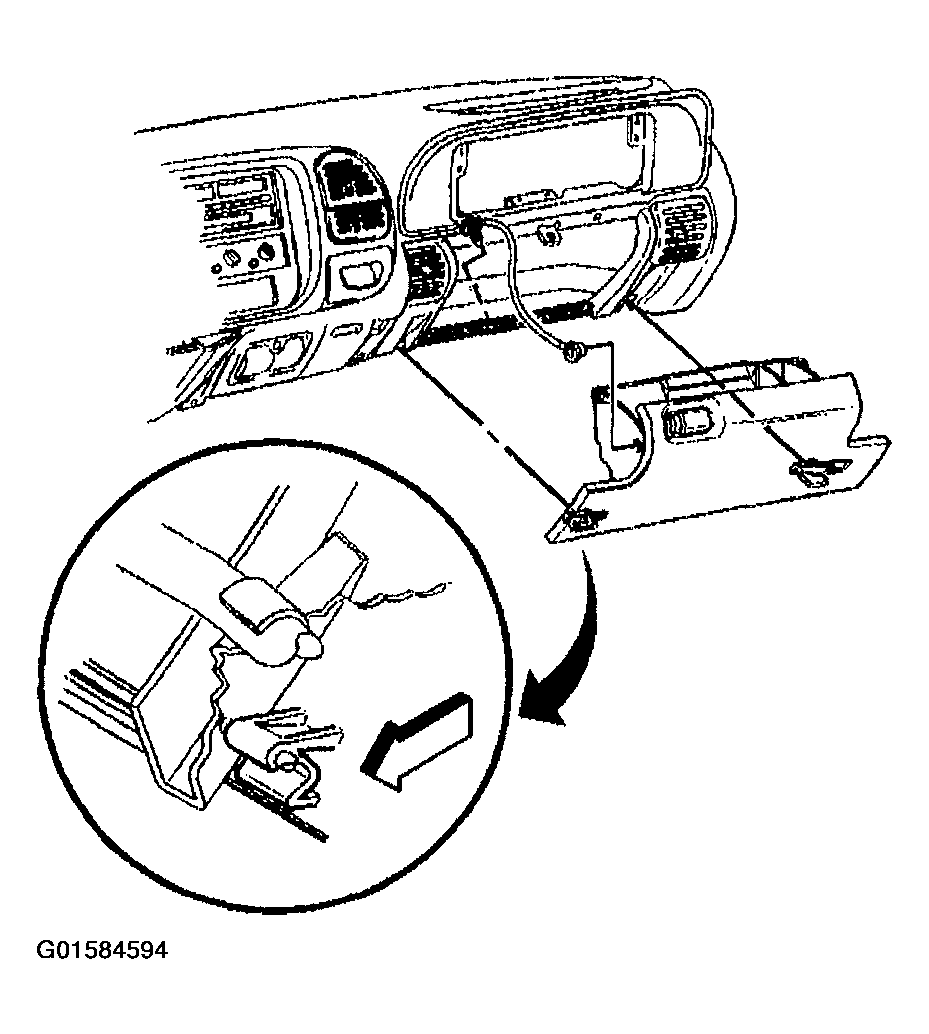

    Fig 1: IP Storage Compartment, Door & Check Strap
    G01584594Courtesy of GENERAL MOTORS CORP.
