Installation Procedure

  1. Install the IP storage compartment.
  2. Install the IP storage compartment door.
  3. Install the IP storage compartment check strap.

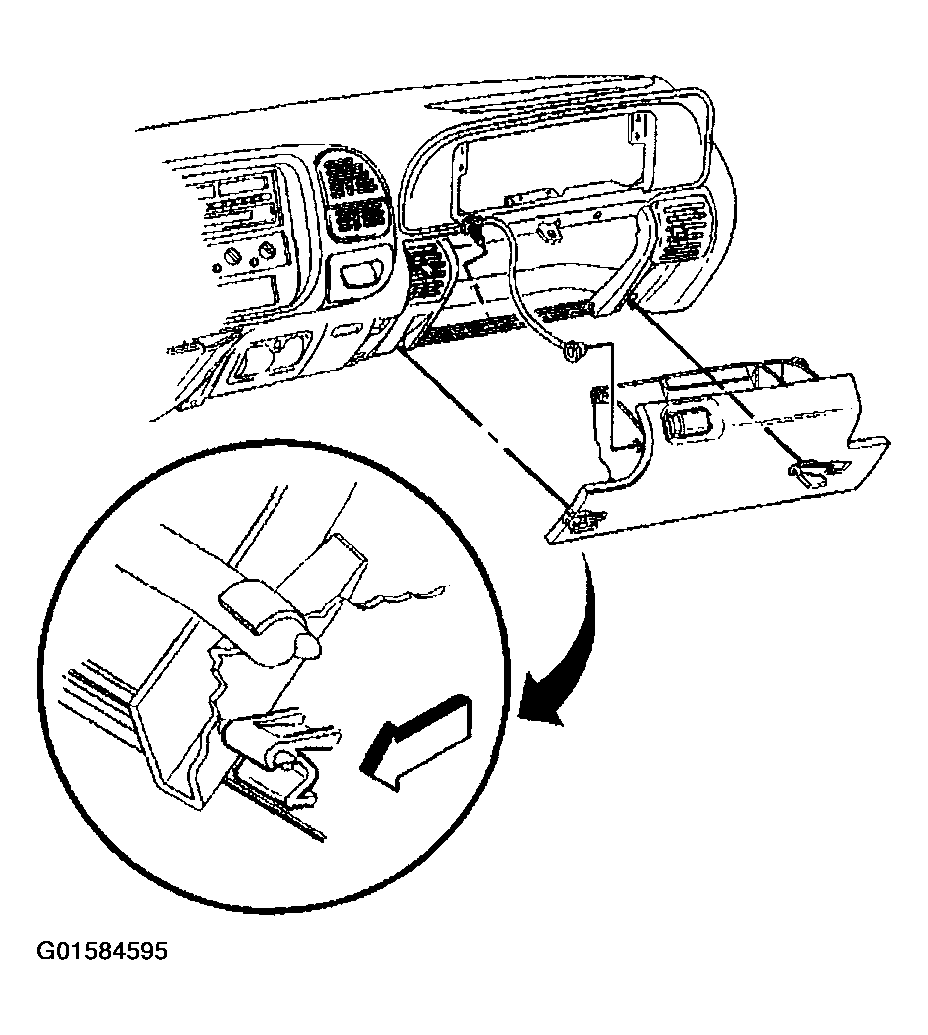

    Fig 1: IP Storage Compartment, Door & Check Strap
    G01584595Courtesy of GENERAL MOTORS CORP.
