Removal Procedure

Open the floor console door.

Fig 1: Floor Console Door
Courtesy of GENERAL MOTORS CORP.

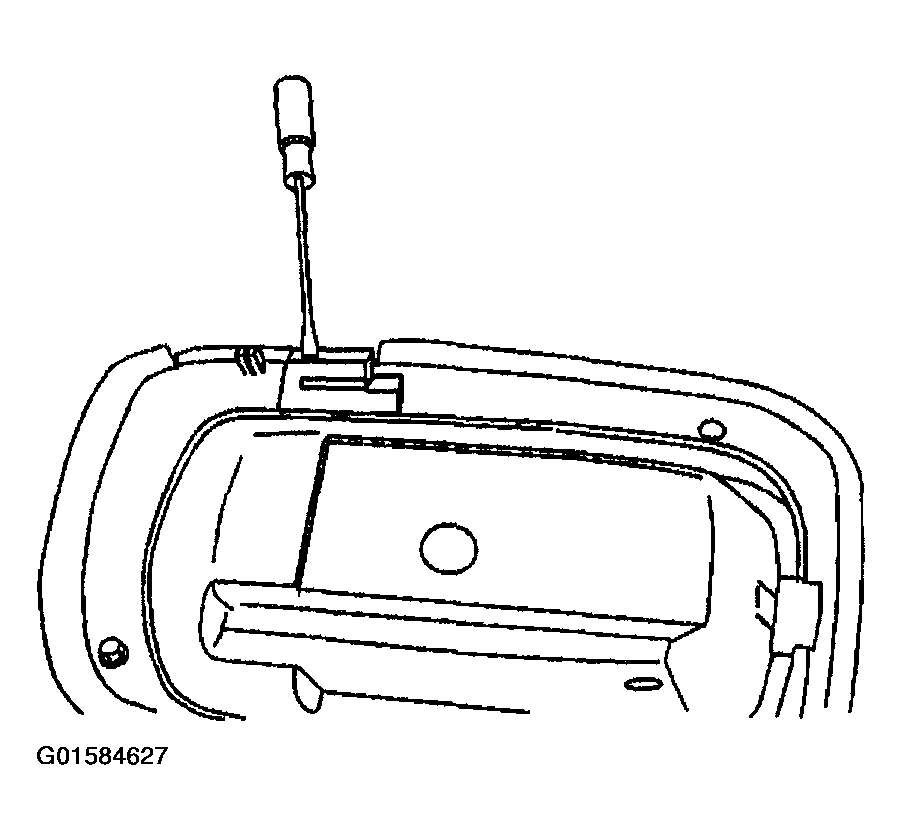

Insert a small suitably prying device to remove the lock cylinder retainer clip.

Fig 2: Removing Lock Cylinder Retainer Clip
Courtesy of GENERAL MOTORS CORP.

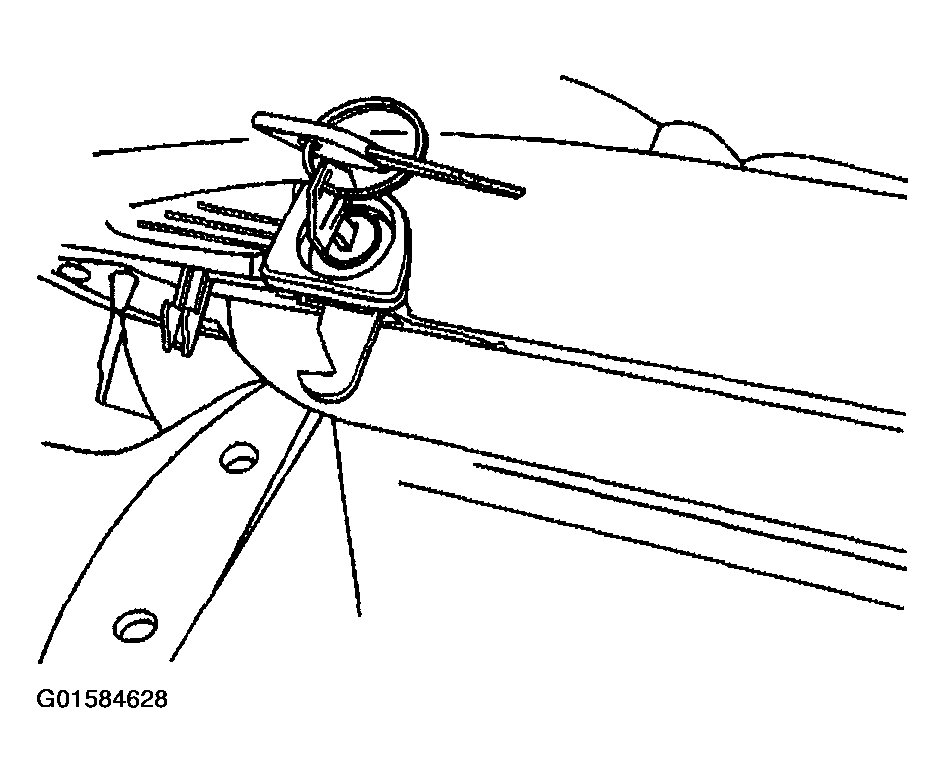

Insert the key into the lock cylinder and turn it to the locked position.

Fig 3: View Of Lock Cylinder With Key In Locked Position
Courtesy of GENERAL MOTORS CORP.
If the key is lost the rivet must be ground off and the lock arm must be removed in order to allow the proper clearance for the lock cylinder removal.

Fig 4: Lock Arm
Courtesy of GENERAL MOTORS CORP.

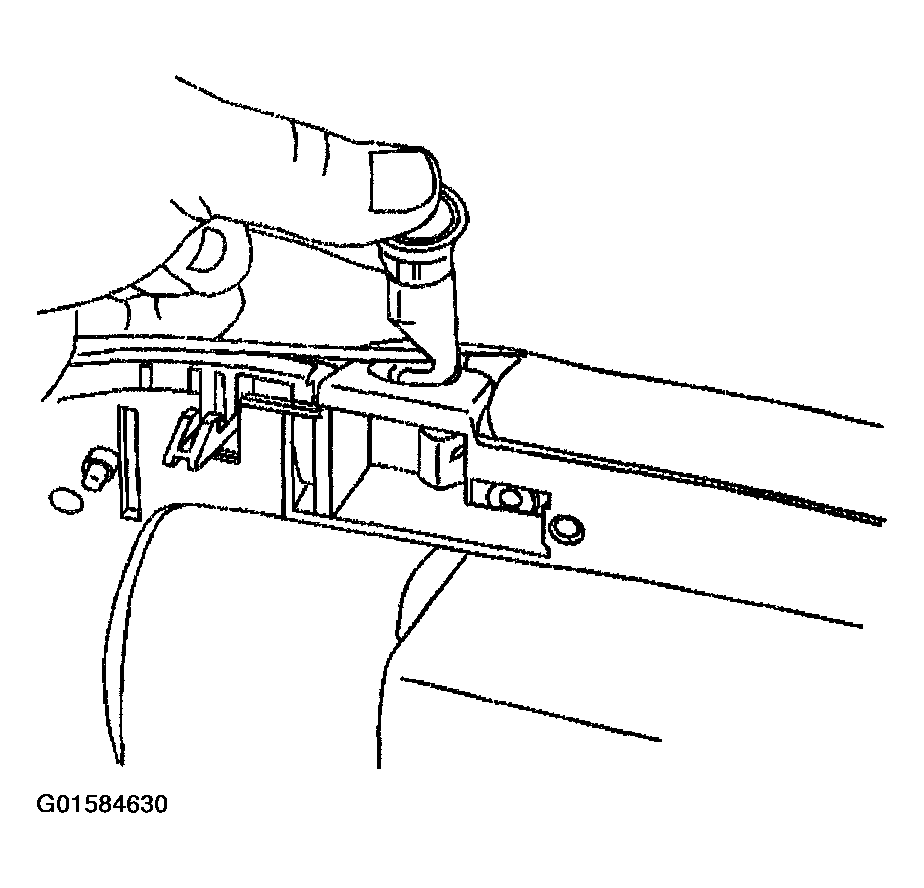

Push with your fingers on the lock cylinder in order to remove.

Fig 5: Removing Lock Cylinder
Courtesy of GENERAL MOTORS CORP.
